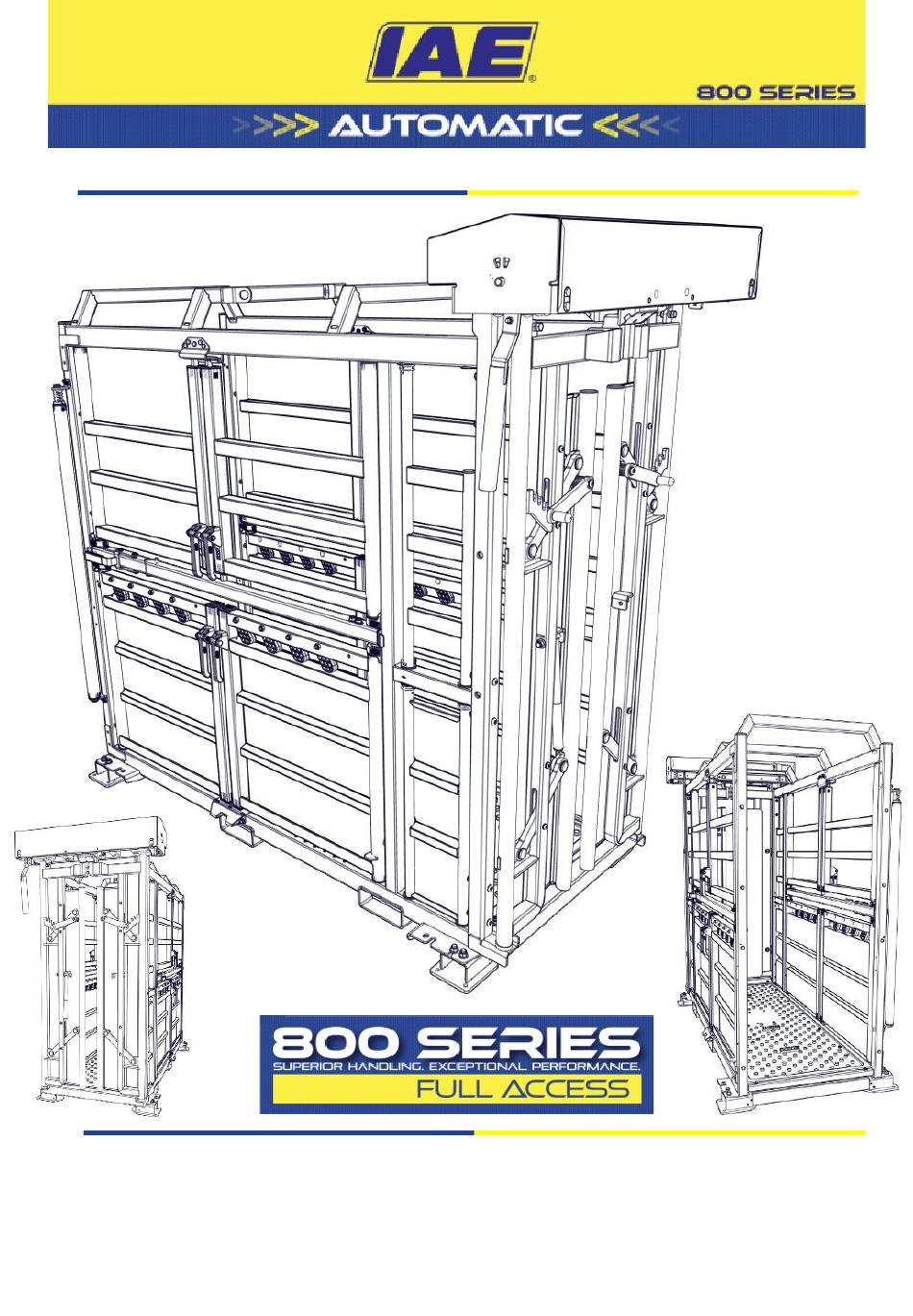

- Page 1 Call:+44 (0)1782 339320 | Email: sales@iae.co.uk | Weblink: https://iae.co.uk/ 800 SERIES (B21) AUTO YOKE ACCESS CRUSH INSTALLATION, OPERATION & MAINTENANCE TECHNICAL DOCUMENT NO. 1003596-01...
- Page 2 Before reading, study the illustrations on this page and familiarise yourself with all the functions of the product PRODUCT 1002397-01 KEY FEATURES All features listed are fitted together at the factory and will be supplied fully assembled.
-
Page 3: Intended Use
CRUSH EXTENSION - 1002145-01 SLIDING GATE IN FRAME - 1001686-01 A800 SCOOP BRACKET - 1003653-01 800 SERIES ID READER KIT - 1003656-01 HOOF TRIMMING KIT - 1002393-01 STERNUM BAR KIT - 1002705-01 LOAD BAR... -
Page 4: Safety Information
ALWAYS Check the product for damage before each use. NEVER USE THE PRODUCT IF IT IS DAMAGED. If you have any questions or comments regarding the product, we will be glad to hear them either through our website www.iae.co.uk or by contacting your local IAE dealership. - Page 5 INTRODUCTION/PRODUCT FEATURES ........Page 2 INTENDED USE .................. Page 3 TECHNICAL DATA ................Page 3 COMPATIBLE WITH IAE OPTIONS TO FIT ......... Page 3 SAFETY INFORMATION ..............Page 4 CRUSH INSTALL/GROUND FIXING ..........Page 6 HOW TO OPERATE OPERATING AUTO YOKE ..............Page 7 YOKE APERTURE ADJUSTMENT GUIDE ........
- Page 6 CRUSH FIRST USE/GROUND FIXING Locate on firm and level ground, IAE recommend placing onto a concrete pad. Allow for sufficient space all around the crush for safe operation. It is advised to run through the operations of the crush without cattle present to familiarise yourself with the correct workings.
- Page 7 OPERATING AUTO YOKE Begin in position , LOCKED (yoke doors inline) Note: operating handle provided bolt- on, operator can be moved to opposite side if required. See page 9 for ‘how to adjust yoke aperture’ instructions. Instruction: pull handle back (towards main body) to activate auto release.
- Page 8 Instruction: allow animal to enter the chute ANIMAL YOKED CAUTION : Do not enter the area in front of the crush until you are certain the animal is fully secured . Note: arrow & circle indicate animal travel direction and head position when yoked.
- Page 9 Instruction: push on yoke door to activate the auto yoke, making both doors drop back (angled into the chute). RETURN TO READY TO RECEIVE CAUTION : ensure the working area is clear before allowing the next animal to enter the chute YOKE APERTURE ADJUSTMENT CAUTION : ensure the working area is clear before...
- Page 10 OPERATING SIDE DOORS Instruction: lift bolt pivot handle to release (four doors individually operated) OPERATING FULL LENGTH SIDE RAIL (removed for entire side access) Instructions: pull operating handle to release and lift rail away to free, place loose rail away from the crush when not in use.
- Page 11 OPERATING VET ACCESS PANELS Vet access panels feasible of either side, all with capability to remove when access is required. REMOVING VET ACCESS PANELS Instruction: remove locking pins.
- Page 12 Instruction: lift (so tube end is free from bushes) and lift away to fully remove the panel Note: instructions for removal of the top vet access are the same . PIVOTING VET ACCESS TOP PANEL Instruction: relocate pin, move to lowest hole.
- Page 13 OPERATING RUMP RAIL Mounting brackets provided bolt-on, can be moved to opposite side if required. (main body frame is pre- drilled to suit). Instruction: push up and pull out to eject rump rail from mounting bracket...
- Page 14 Instruction: position rump rail between the ratchet system, behind the animal’s backside! CAUTION : Animal must be inside the chute and yoked before positioning the rump rail. Slide up to be tight behind animal’s rear...
-
Page 15: Recommended Maintenance
Lubricate all moving parts, in particular latches and locking systems Simply cleaning down after each use will increase the working life due to the highly corrosive effect of animal’s urine and/or faeces. CONTACT IAE HEADQUARTERS Mossfield Road Adderley Green Stoke-on-Trent England...
