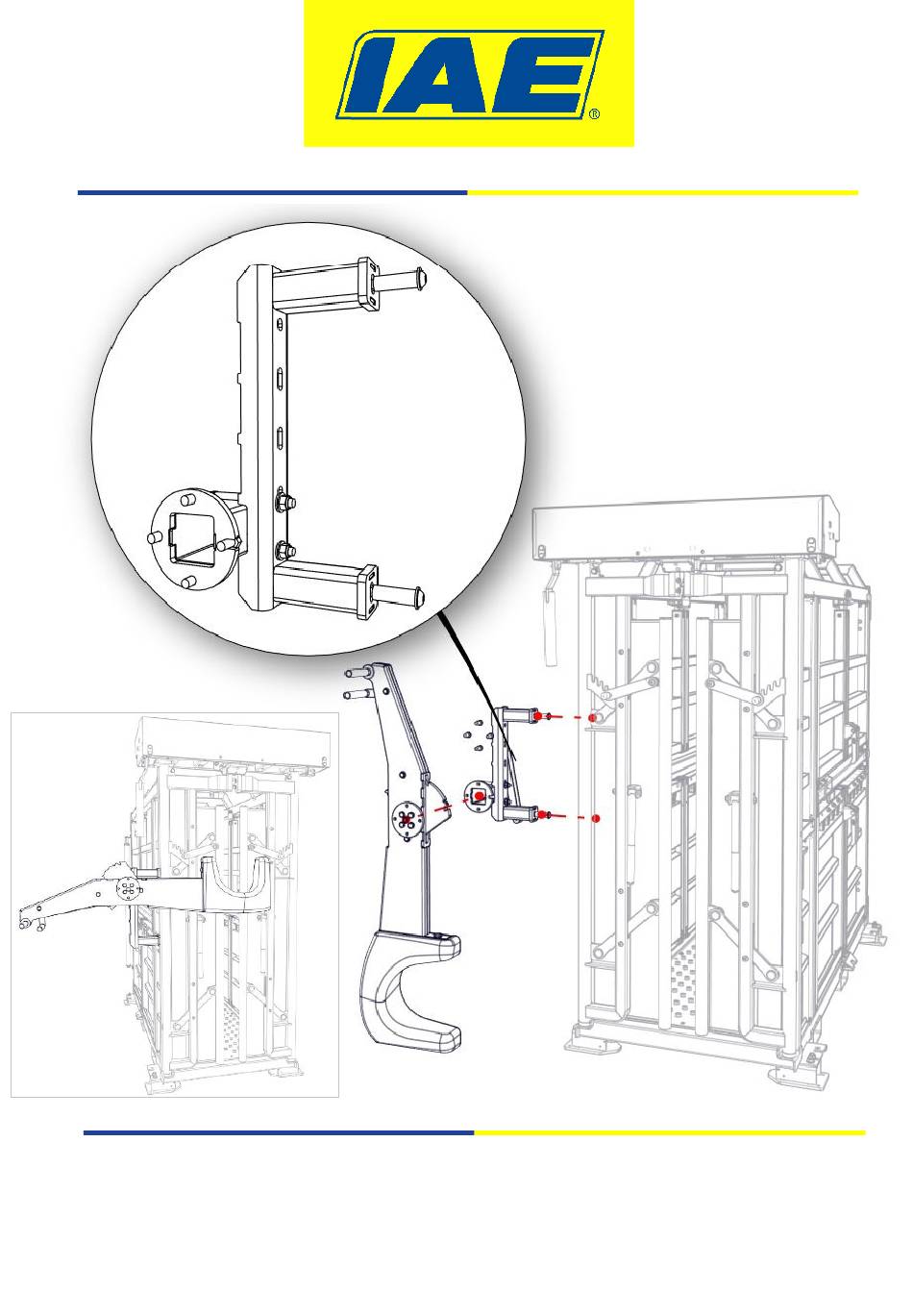

- Page 1 Call:+44 (0)1782 339320 | Email: sales@iae.co.uk | Weblink: https://iae.co.uk/ A800 SERIES SCOOP BRACKET INSTALLATION, OPERATION & MAINTENANCE TECHNICAL DOCUMENT - 1003599-01...
-
Page 2: Intended Use
Item Number: 1002278-01 Load: 1000 Kg Max. (not including the crush or the MK 4.5 superscoop itself) Weight: 10 Kg COMPATIBLE WITH IAE CRUSHES A800 FULL ACCESS CRUSH - 1002397-01 A800 SQUEEZE CRUSH - 1002395-01 NOTE: Any hand operation achievable, MK 4.5 superscoop set up supplied for right hand operating, option to be converted... -
Page 3: Safety Information
ALWAYS Check the product for damage before each use. NEVER USE THE PRODUCT IF IT IS DAMAGED. If you have any questions or comments regarding the product, we will be glad to hear them either through our website www.iae.co.uk or by contacting your local IAE dealership. - Page 4 INTRODUCTION ................. INTENDED USE ................... Page 2 TECHNICAL DATA ................Page 2 COMPATIBLE WITH IAE CRUSHES ..........Page 2 SAFETY INFORMATION ..............Page 3 PRODUCT PARTS LIST ..............Page 5 ASSEMBLY .................... Page 6 SCOOP BRACKET HEIGHT ADJUSTMENT ........Page 7 OPERATING SUPERSCOOP .............
- Page 5 PRODUCT 1003653-01 BOM ID DESCRIPTION PRODUCT 800 SERIES(B21) AUTO YOKE ADJ' SCOOP BKT 1002283-01 800 SERIES(B21) AUTO YOKE SCOOP BKT 1002279-01 M12 X 130 BOLT B003 2121 30 2 M12 WASHER B041 2006 12 6 M12 NYLOC NUT B040 2002 12 4 1000 SERIES S/SCOOP M/C BOLT SLEEVE D045 2101 72 2 M12 X 100 SOCKET BUTTON HEAD SCREW...
- Page 6 ASSEMBLY Before placing scoop bracket, undo bolt sets (m12 spec) loosely attached Fit scoop bracket to the yoke framework (at front, on right hand side), use bolt sets (x2 m12 x 100 bolts) Fit MK 4.5 superscoop® to the scoop bracket, ensure all fixing holes line up, then use screws (x4 m12 x 25) to secure.
- Page 7 SCOOP BRACKET HEIGHT ADJUSTMENT 4 sets of cut-outs on the scoop bracket adjustment channel, allow the operator to change the position of the arm bracket to suit…. POSITION 1 (1010mm) POSITION 2 (1095mm) POSITION 3 (1180mm) POSITION 4 (1265mm)
- Page 8 OPERATING SUPERSCOOP CAUTION: Animal must be successfully yoked before applying the scoop, Allow sufficient space around the entire crush body for operating safely, Keep fingers and limbs well clear of any moving parts. Note: MK 4.5 superscoop® supplied set up for right hand operating, option to convert to opposite hand if required...
- Page 9 CONVERTING SCOOP TO LEFT HAND SETUP MK 4.5 superscoop® supplied to fit to the right-hand side (as shown, on right) CAUTION: Do not attempt to convert the superscoop® whilst fitted to the crush. HANDLE & CLUTCH SCOOP HEAD Remove the scoop head, the operating handle and clutch handle (+ all associated fitted) ….
-
Page 10: Recommended Maintenance
Lubricate all moving parts, in particular the handles and cog system. Simply cleaning down after each use will increase the working life due to the highly corrosive effect of animals urine and/or faeces. CONTACT IAE HEADQUARTERS Mossfield Road Adderley Green Stoke-on-Trent England...
