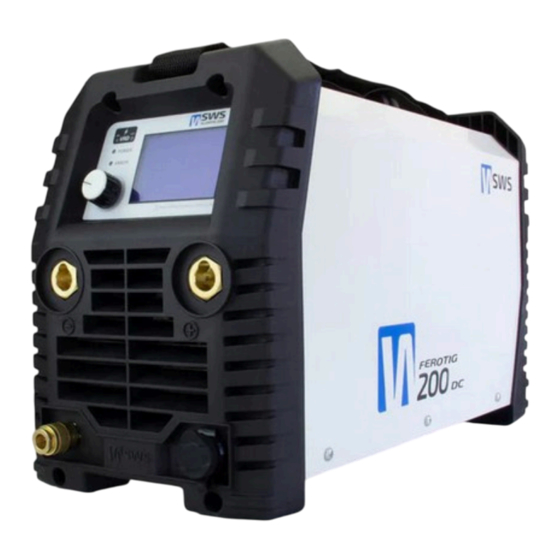

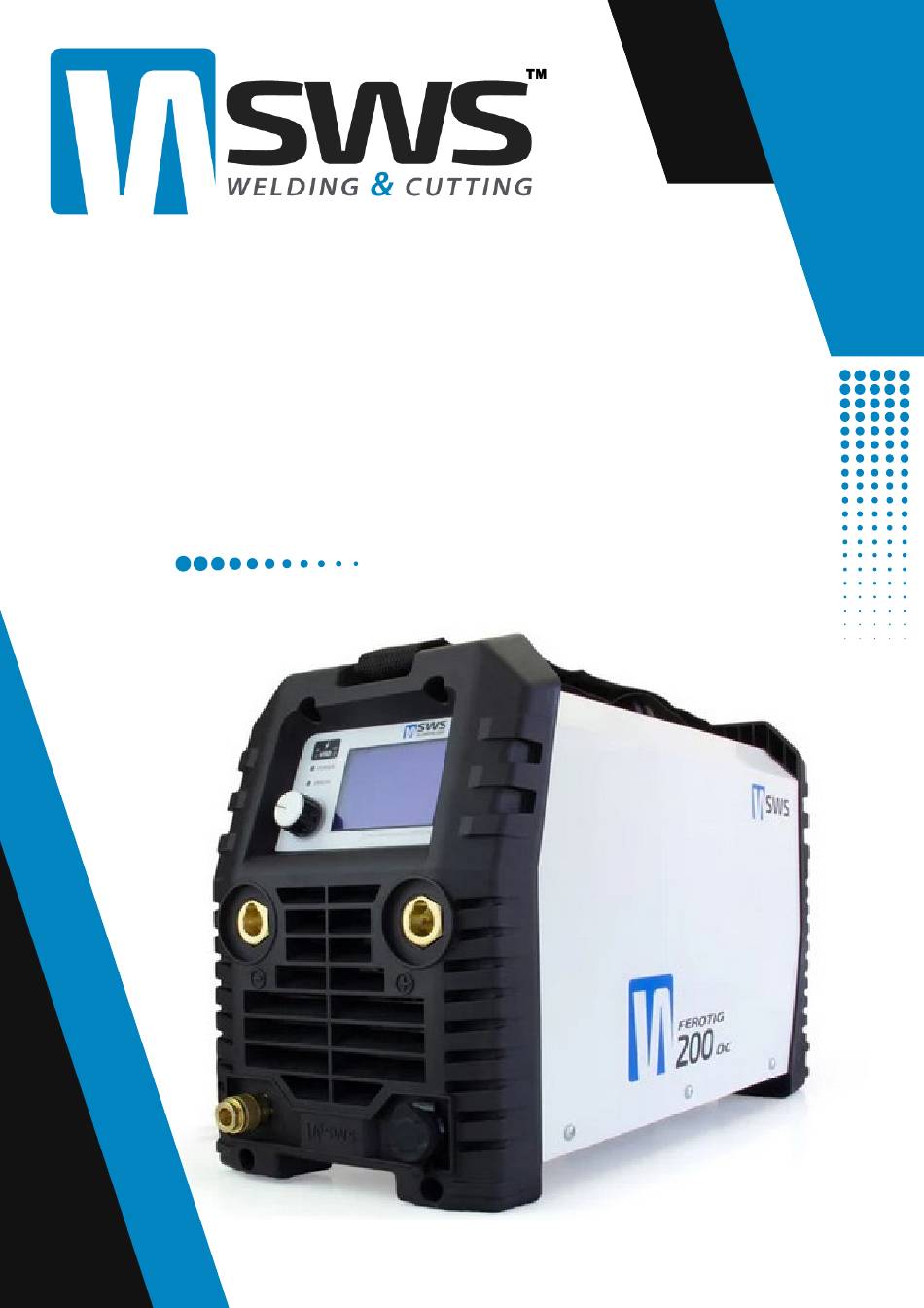

- Page 1 FEROTIG 200 DC TIG MMA WELDER OPERATING MANUAL...
- Page 2 Contents - Introduction - 3, 4 - Safety Information - 5, 6, 7, 8, 9 - Specifications - 10, 11 - Machine Overview - 12 - Installation - 12, 13 - Operation & Controls - 14 - TIG Welding Functions - 14, 15 - MMA Stick Welding Functions - 15 - Maintenance - 16 - Troubleshooting - 17, 18...
- Page 3 1. Introduction Welcome to the FEROTIG 200 DC TIG Welder user manual. Thank you for choosing SWS Welding for your welding needs. The FEROTIG 200 is a high- performance, versatile welding machine designed to provide precise and efficient welding results for both professionals and hobbyists.
- Page 4 Ultimate DC TIG welding The SWS FEROTIG™ 200 is a portable welding machine ideal for steel and specialty metals like titanium and chromoly. It has digital controls and quality accessories, making it a good choice for professional fabricators and hobby welders.
- Page 5 Safety Information General Safety Precautions Electric Shock: Can be fatal. Ensure proper grounding and avoid touching live electrical parts or electrodes with bare skin, wet gloves, or wet clothing. Insulate yourself from the workpiece and maintain a safe stance. Fumes and Gases: Hazardous to health. Ensure good ventilation and use fume extraction systems to keep fumes and gases away from your breathing zone.
- Page 6 2. Safety Information Avoid Live Electrical Parts: Touching live electrical parts can cause fatal shocks or severe burns. The electrode and work circuit are electrically live whenever the output is on. The input power circuit and internal machine circuits are also live when power is on. Proper Connection: Connect the primary input cable according to local standards and regulations.
- Page 7 3. Safety Information Gas Cylinders: Gas cylinders contain high-pressure gas and can explode if damaged. Protect cylinders from heat, physical damage, and ensure they are secured upright. Do not allow the welding electrode or earth clamp to touch the cylinder. Gas Build-Up: Accumulation of gas can create a toxic environment.
- Page 8 Additional Safety Info Emergency Procedures In case of fire: Know the location of fire extinguishers and how to use them. Be aware that sparks can travel through small cracks and openings, causing fires in adjacent areas. First Aid: Familiarize yourself with first aid procedures for electric shock, burns, and inhalation of fumes.
- Page 9 Caution Use of this Equipment This product is only intended for welding. Any other use may result in personal injury and equipment damage. Read and understand the instruction manual before installing or operating. Personal Protective Equipment (PPE) Always wear approved personal safety equipment, such as welding helmets, safety glasses, flame-proof clothing, and safety gloves.
- Page 10 Specifications Model: FEROTIG 200 Processes Supported: HF TIG DC (GTAW-DC) LIFT TIG DC (GTAW-DC) Pulsed TIG (GTAW-P) Stick DC (MMA) Current Type: DC Weldable Metals: Mild Steel (DC) Stainless Steel (DC) Specialty Metals Industries: Motorcycle Components and Steel and Stainless Steel Fabrication...
- Page 11 Specifications Parameters TIG: Pre-Flow: 0.5-10s Pulse Peak Amps: 10-200 Amps Post-Flow: 0-20s Pulse Time On: 10-90% Start-Amps: 5-100% Pulse Frequency: 0.1-500 Hz End-Amps: 5-100% Pulse Base Amps (TIG): 20-50% Upslope: 0-10s Hot Start (MMA): 0-60 Amps Downslope: 0-10s Arc Force (MMA): 0-99% Tack Time: 0.1-10s Dimensions: L 435mm, H 265mm, W 180mm Weight: 8 Kg...
- Page 12 Machine Overview Front Panel Rear Panel...
- Page 13 Installation Working Environment Ensure the workspace is free from excessive grinding dust, natural dust, flammable and corrosive chemicals, flammable gas or materials, etc. The humidity should not exceed 80%. When using the equipment outdoors, protect it from precipitation and direct sunlight. The working temperature environment should be between –15°C to +40°C.
- Page 14 Installation Machine Setup for Stick Welding Connect the ground clamp to the negative connection (DCEP) and the torch to the positive connection (+).
- Page 15 Installation Machine Setup for TIG Welding Connect the ground clamp to the positive connection (+) and the welding torch to the negative connection (-). Connect the 7-pin plug into the control connector, taking care to align it correctly. Connect the gas line.
- Page 16 Operation & Controls ROTARY ENCODER 1. Rotate to choose setting 2. Press to select setting 3. Rotate to adjust setting 4. Press to store setting 5. Rotate to choose setting 6. Main Menu rotate and select to return Main Menu LIFT TIG: This mode requires the tungsten to touch the metal, then press the button and lift to start the arc.
- Page 17 TIG Welding Functions Main Menu Function: PRE FLOW (1-10 Seconds) Provides gas to the weld zone prior to striking the arc, reducing weld porosity at the start of a weld. Function: START AMPS Sets the start current for TIG. In 4T mode, the Initial Current remains on until the torch trigger switch is released.
- Page 18 TIG Welding Functions Function: BUTTON CONTROL (2T, 4T, TACK CONTROL 0.1 - 10 Seconds) 2T MODE: Press and hold the switch. The program will cycle automatically. Release to terminate with post gas flow. 4T MODE: Press and hold to start the pre-flow, then start amps part of the cycle.
- Page 19 Maintenance General Maintenance Regular maintenance of the FEROTIG 200 is essential to ensure its longevity and optimal performance. Follow these guidelines for proper maintenance: Exterior Cleaning: Clean the exterior of the power source regularly using a dry brush or compressed air.
- Page 20 Troubleshooting Tungsten Corrodes Quickly: Incorrect gas: Check that 100% Argon is being used. No gas: Check the gas cylinder contains gas and is connected. Inadequate gas flow: Check the gas is connected, check hoses, gas valve, and torch are not restricted. Set the gas flow between 15–25 CFH (7–12 LMN) flow rate.
- Page 21 Troubleshooting Incorrect tungsten size and or tungsten being used: Grind marks should run lengthwise with tungsten, not circular. Use proper grinding method and wheel. Contaminated base metal: Remove all grease, oil, or moisture from filler metal. Incorrect filler wire: Remove contaminating materials like paint, grease, oil, and dirt, including mill scale from base metal.
- Page 22 For service and support, contact SWS Welding customer service. Warranty Claim Process: Contact the SWS Welding customer service line at (03) 5766 2331 for diagnosis and instructions. If qualified, you will not incur postage costs for warranty repairs. If not, you will be responsible for postage, parts, and labor costs.
- Page 23 Address SWS Welding & Cutting PO BOX 50 Glenrowan, Victoria Australia 3675 Website www.swswelding.com.au Phone Number National 1300 SWSWELD International +61 3 5766 2331...
