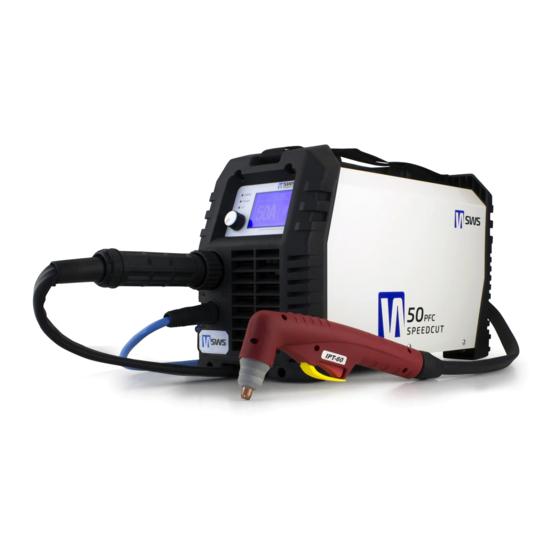

- Page 1 SPEEDCUT 50 PLASMA CUTTING SYSTEM Operating Manual WWW.SWSWELDING.COM.AU...
- Page 2 CUTTING SYSTEM. At SWS, we take pride in the professional quality, innovation, and support we deliver to our customers and the welding industry as a whole. The SPEEDCUT™ 50 is the next step in our progression as the new standard in welding and cutting products delivered fast marking the continuing evolution of SWS.
- Page 3 Warranty Repairs A SWS approved service provider must be informed within the warranty period of any warranty defect. The customer must provide proof of purchase and serial number of the equipment when making a warranty claim using the form on our website https://www.swswelding.com.au/pages/warranty NOTE: Store the product box and packaging materials for ease of return if in the event of a claim.
-
Page 4: Table Of Contents
TABLE OF CONTENTS INTRODUCTION 1.0 Welcome 1‑1.0 1.2 Specifications 2‑1.2 SAFETY 2.0 Hazards 3‑2.0 2.1 Precautions 4‑2.1 PLASMA CUTTING 3.0 Plasma cutting process 5‑3.0 RECEIPT OF EQUIPMENT 4.0 Unboxing 6‑4.0 INSTALLATION 5.0 Working Environment 7‑5.0 5.1 Preliminary Checks 7‑5.1 5.2 Machine Installation 7‑5.2 PLASMA TORCH 6.0 Plasma Torch Parts... -
Page 5: Introduction
INTRODUCTION 1.0 Welcome The SWS SPEEDCUT™ 50 is one of the highest quality and most affordable plasma systems on the Australian market for cutting and gouging of all conductive metals. Featuring pilot arc with auto ignition and automatic air regulation for optimum performance, you can now depend on a machine that cuts all day at its rated cutting capacity and to pack more punch when you need it most. -
Page 6: Specifications
50% @ 45A 100% @ 26A Duty Cycle 25° AMB 60% @ 50A 100% @ 40A Cutting Current Range 20A ‑ 50A Dimensions L 410mm H 180mm W 250mm Weight 11Kg Manufactured to AS60974.1:2006, IEC60974.10, CE Standards SPEEDCUT 50 OPERATING MANUAL SPEEDCUT 50... -
Page 7: Safety
MALFUNCTION - Call an for expert assistance in the event of a malfunction. CAUTION This product is only intended for metal removal and cutting. Any other use may result in personal injury and equipment damage. CAUTION Read and understand the instruction manual before installing or operating. SPEEDCUT 50 OPERATING MANUAL SPEEDCUT 50... -
Page 8: Precautions
SAFETY 2.1 Precautions Users of SWS welding and plasma cutting products have the primary responsibility for ensuring that anyone who works on or near this equipment adheres to all the relevant safety precautions. The following listed recommendations must be observed along with the standard regulations that apply to the workplace. -
Page 9: Installation
5.1 Preliminary Checks • Always turn the machine on and let it perform boot cycle before connecting pressurised air line. • Ensure compressor/gas regulator pressure is set between 75 ‑ 100 PSI. 5.2 Machine Installation SPEEDCUT 50 OPERATING MANUAL SPEEDCUT 50... -
Page 10: Plasma Torch
Consumables that are made for the torch model are to be used only. IPT40, IPT60 or SC50 models must use the correct genuine consumables. Not using the correct consumables may result in damaging the plasma torch head and machine. Worn Nozzle Worn Electrode SPEEDCUT 50 OPERATING MANUAL SPEEDCUT 50... -
Page 11: Machine Operation
Pull then release trigger to stop begin to make the cut at cooling cycle prematurely. (Will 90 degrees. cause premature tip wear if large amounts of cutting have been performed). SPEEDCUT 50 OPERATING MANUAL SPEEDCUT 50... -
Page 12: Service
Inspect the internal filter regulator/filter for contamination remove and clean if needed. NOTE: Never use any alcohol based cleaners to clean filter or assembly use warm mildly soapy water to clean catchment and rinse throughly. Replace filter if necessary. SPEEDCUT 50 OPERATING MANUAL SPEEDCUT 50... -
Page 13: Troubleshooting
1.Switch machine off wait until display goes blank wait 10 seconds then switch on again. 2.Check consumables for wear and replace. 3.Check for loose consumables. 4.Press control dial for air test then retry. 5.Check that torch connector is tightened. SPEEDCUT 50 OPERATING MANUAL SPEEDCUT 50... - Page 14 SPEEDCUT 50 This page is intentionally blank SPEEDCUT 50 OPERATING MANUAL SPEEDCUT 50...
- Page 15 FOR MORE PROFESSIONAL PRODUCTS DELIVERED FAST CHECK OUT... WWW.SWSWELDING.COM.AU ™ SWS WELDING & CUTTING WEBSITE: WWW.SWSWELDING.COM.AU EMAIL: SUPPORT@SWSWELDING.COM.AU TELEPHONE: (03) 5766 2331...
