Arcteq AQ-110FLV Instruction Manual

Arc sensor device with overcurrent
Hide thumbs Also See for AQ-110FLV:

Advertisement

Quick Links

Download this manual
AQ-110FLV
Arc sensor device with overcurrent
Instruction manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the AQ-110FLV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Arcteq AQ-110FLV

Summary of Contents for Arcteq AQ-110FLV

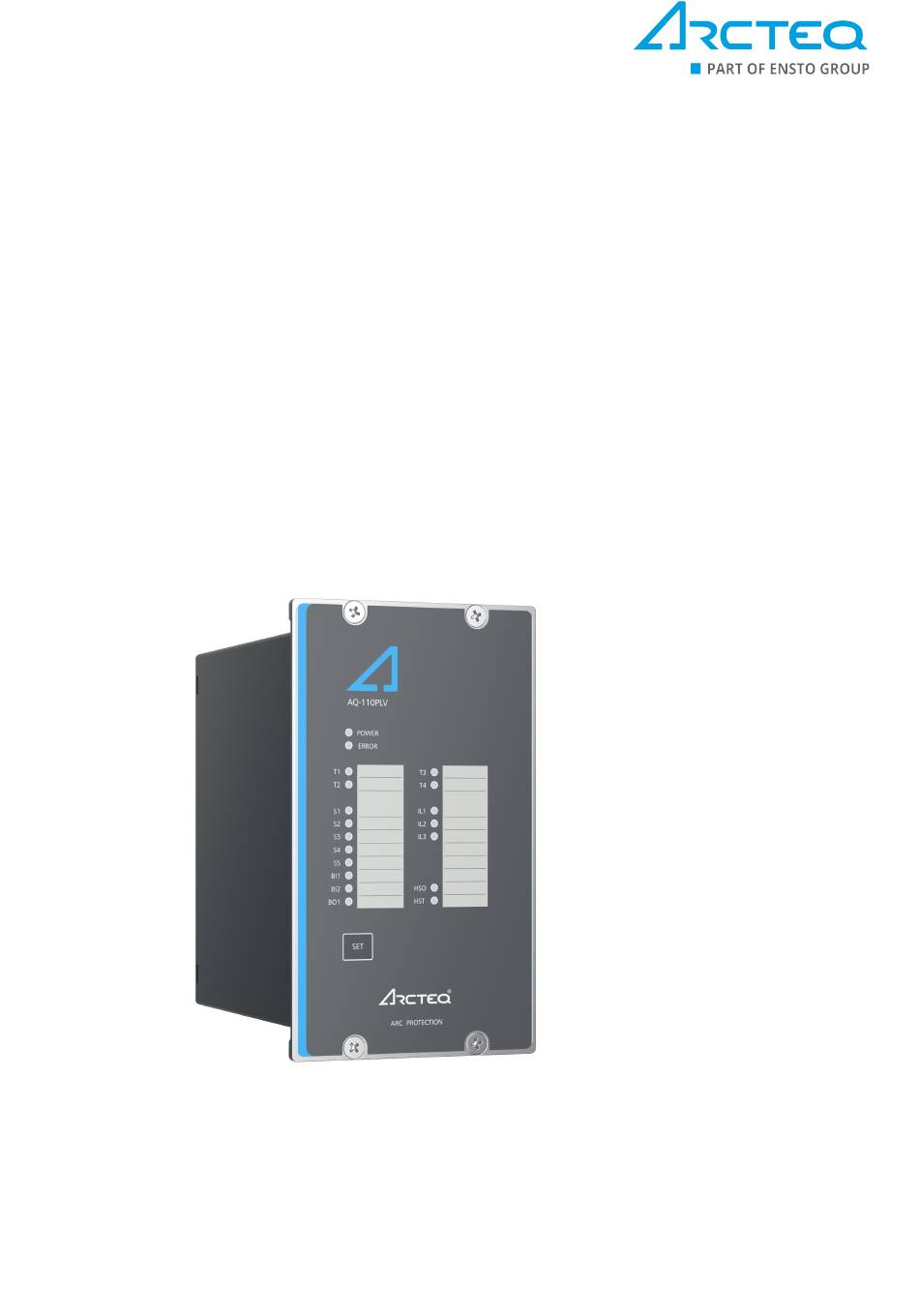

  • Page 1 AQ-110FLV Arc sensor device with overcurrent Instruction manual...
  • Page 2 11.2 Testing the light and current mode ..................41 11.3 Testing the CBFP function....................42 11.4 Testing the operation time ....................42 11.5 Test plan example ......................43 12 T 12 Tr r oubleshoo oubleshooting ting................................................44 © Arcteq Relays Ltd IM00092...
  • Page 3 13.13 Casing..........................49 14 Or 14 Ordering inf dering informa ormation tion ..............................................50 15 Contact and r 15 Contact and re e f f er erence inf ence informa ormation tion......................................52 © Arcteq Relays Ltd IM00092...
  • Page 4 Nothing contained in this document shall increase the liability or extend the warranty obligations of the manufacturer Arcteq Relays Ltd. The manufacturer expressly disclaims any and all liability for any damages and/or losses caused due to a failure to comply with the instructions contained herein or caused by persons who do not fulfil the aforementioned requirements.
  • Page 5 Please note that although these warnings relate to direct damage to personnel and/or equipment, it should be understood that operating damaged equipment may also lead to further, indirect damage to personnel and/or equipment. Therefore, we expect any user to fully comply with these special messages. © Arcteq Relays Ltd IM00092...
  • Page 6 NC – normally closed NO – normally open PCB – printed circuit board RF – radio frequency Rx – receiver SAS – standard arc scheme SF – system failure Tx – transceiver μP - microprocessor © Arcteq Relays Ltd IM00092...
  • Page 7 Figure. 3 - 1. Arc protection device AQ-110FLV. The AQ-110FLV is designed according to the latest protection relay standards and is therefore suitable for installations in rough environments. These include utilities and power plants (both traditional and renewable), various heavy industry applications (off-shore, marine, oil, gas, mining, steel, etc.) as well as commercial and institutional electrical systems.
  • Page 8 4 Device features AQ-110FLV is an arc flash protection device which can be applied to a variety of applications. The device can be used on its own as a stand-alone device, or as a part of a more complex arc protection system by using binary inputs and outputs to connect multiple AQ 100 series devices together.
  • Page 9 Version: 2.05 5 Connections The figure below depicts the connections of AQ-110FLV. Please note that the SF relay is in the de- energized position; also note that the device has been halved for the image to allow for space for all connector descriptions.
  • Page 10 This device includes a current transformer supervision function. See System self-supervision chapter for more information. 5.1.2 Arc sensor channels Figure. 5.1.2 - 4. Arc fiber loop sensor and arc quenching device connections. © Arcteq Relays Ltd IM00092...
  • Page 11 Binary outputs are capable of generating a short test pulse every second. Binary inputs of the receiving AQ 100 series devices use these pulses to count the number of connected binary outputs. See System self-supervision chapter for more information. © Arcteq Relays Ltd IM00092...
  • Page 12 This device has four (4) normally open trip relays. Trip relays T1 and T2 are used for tripping circuit breakers. T4 is generally used for tripping one additional disconnecting device, or as a trip alarm (local or remote) monitoring and alarming system. © Arcteq Relays Ltd IM00092...
  • Page 13 Figure. 5.3 - 10. Auxiliary power supply connection The auxiliary power supply voltage is 92…265 V AC/DC. Alternatively, the auxiliary power supply can be of 18…72 V DC. This choice must be specified when ordering. © Arcteq Relays Ltd IM00092...
  • Page 14 If necessary, the ends of an AQ-07 cable can be ordered with heat shrinking tubing to avoid light detection outside the protected zone. The covered area can be one (1) or two (2) meters by default; if other lengths are required, please consult the Arcteq sales team. You can find the Contact and reference information chapter at the end of this manual.
  • Page 15 Order option A A Q Q -102L -102LV V A A Q Q -103L -103LV V Order option A A Q Q -110P -110PL L V V Order option A A Q Q -110FL -110FLV V © Arcteq Relays Ltd IM00092...
  • Page 16 (e.g. sunlight). Device can detect overcurrent by measuring phase currents and residual current or by receiving overcurrent signal from external devices (mainly other AQ 100 series devices) which are connected to a binary input. © Arcteq Relays Ltd IM00092...
  • Page 17 "100 ms / 150 ms" DIP switch. CBFP logic depends on the selected logic scheme. See Circuit breaker failure protection chapter for more information. Figure. 7.2 - 13. DIP switch diagram for AQ-110FLV. Table. 7.2 - 2. DIP switch settings for SW1 group. ON (le ON (left ft...
  • Page 18 The schemes described below are the most commonly used ones for this device. However, additional schemes are also available; please contact your nearest Arcteq representative for more information on those schemes. The schemes are configured using the first DIP switch group (SW1) and its switches numbered 1…4 ("Scheme selection") and 5 ("a or b").
  • Page 19 Standard Arc Schemes (SAS). For detailed instructions on each of the available Standard Arc Schemes please refer to the AQ-SAS™ booklet (can be found at arcteq.fi/downloads/). © Arcteq Relays Ltd...
  • Page 20 The logic scheme SS:0a is designed for selective incoming feeder arc protection. It can be used for substations with one or more incoming feeders. Figure. 7.3.1 - 15. Example application with AQ-110FLV (SS:0a). If a fault is detected in the incoming feeder cable compartment (S1), circuit breakers on both sides of the transformer will be tripped with T1 and T2.
  • Page 21 3. Activates only when "Fast / CBFP" DIP switch is set to FAST mode. When channel is set to light only mode, current detection is not required for activation. 4. Activates only if overcurrent signal (I>) is ON. Figure. 7.3.1 - 17. Simplified logic diagram of SS:0a. © Arcteq Relays Ltd IM00092...
  • Page 22 2. If "Fast /CBFP" DIP switch is set to CBFP mode, channel must be set to light only mode or overcurrent signal (I>) must be active for output activation to occur. If "Fast /CBFP" DIP switch is set to FAST mode, no current signal is required. © Arcteq Relays Ltd IM00092...
  • Page 23 AQ-110 devices installed to other incoming feeders. Figure. 7.3.2 - 18. Example application with AQ-110FLV (SS:0b). If a fault is detected in the incoming feeder cable compartment (S1), circuit breakers on both sides of the transformer will be tripped with T1 and T2.
  • Page 24 1. CBFP signals are activated instantly if "Fast /CBFP" DIP switch is set to FAST mode, delayed if DIP switch 2/4 is set to CBFP mode. SW2/3 can be used for choosing 100 ms or 150 ms delay time. © Arcteq Relays Ltd IM00092...
  • Page 25 This scheme is a modification of SS:0a. AQ-1000 arc quenching device is not tripped from S1 channel in this scheme. Figure. 7.3.3 - 21. Example application with AQ-110FLV (SS:1a). If a fault is detected in the incoming feeder cable compartment (S1), circuit breakers on both sides of the transformer will be tripped with T1 and T2.
  • Page 26 2. If "Fast / CBFP" DIP switch is set to CBFP mode, channel must be set to light only mode or overcurrent signal (I>) must be active for output activation to occur. If "Fast /CBFP" DIP switch is set to FAST mode, no current signal is required. © Arcteq Relays Ltd IM00092...
  • Page 27 BI1 is used for receiving overcurrent signals AQ-110 devices installed to other incoming feeders. Figure. 7.3.4 - 24. Example application with AQ-110FLV (SS:1b). If a fault is detected in the incoming feeder cable compartment (S1), circuit breakers on both sides of the transformer will be tripped with T1 and T2.
  • Page 28 2. Activates only if overcurrent signal (I> or Iext>) is ON. Figure. 7.3.4 - 26. Simplified logic diagram of SS:1b. 1. CBFP signals are activated instantly if "Fast /CBFP" DIP switch is set to FAST mode. © Arcteq Relays Ltd IM00092...
  • Page 29 Figure. 7.3.5 - 27. Example application with AQ-110FLV (SS:2a). If a fault is detected in the incoming feeder cable compartment (S1), circuit breakers on both sides of the transformer will be tripped with T1 and T2 and the tie breaker will be tripped with T3 (if applicable).
  • Page 30 2. If "Fast / CBFP" DIP switch is set to CBFP mode, light channel must be set to light only mode or overcurrent signal (I>) must be active for output activation to occur. If "Fast /CBFP" DIP switch is set to FAST mode, no current signal is required. © Arcteq Relays Ltd IM00092...
  • Page 31 BI1 is used for receiving overcurrent signals AQ-110 devices installed to other incoming feeders. Figure. 7.3.6 - 30. Example application with AQ-110FLV (SS:2b). If a fault is detected in the incoming feeder cable compartment (S1), circuit breakers on both sides of the transformer will be tripped with T1 and T2 and the tie breaker will be tripped with T3 (if applicable).
  • Page 32 SET, and it can be used for all operational functions. The push button is used for: 1. Setting up the system (also known as auto-configuration) 2. Resetting the indicator LEDs 3. Resetting latched outputs 4. Checking the input connections © Arcteq Relays Ltd IM00092...
  • Page 33 You can reconfigure a device with more connections at any time without having to move one of the DIP switches. 7.4.2 Reset All LED indications and latched trip relays can be reset by pressing the SET SET push button. © Arcteq Relays Ltd IM00092...
  • Page 34 7.6 LED indicator functions The AQ-110FLV device has eighteen (18) indication LEDs on the device's front panel. Apart from the "Power" and "Error" LEDs, the user can write their own identifications for each of the remaining LEDs on the text insert located in the transparent pocket next to the LEDs.
  • Page 35 All critical system data (such as DIP switch settings and the system setup file) are stored in the non- volatile memory (EPROM) to ensure accurate operation and full self-supervision even if auxiliary power is lost temporarily. © Arcteq Relays Ltd IM00092...
  • Page 36 This feature is especially important if tripping causes the device to lose its auxiliary power. The non-volatile memory does not require a power supply to maintain the information and it retains the settings and the indications permanently without power. © Arcteq Relays Ltd IM00092...
  • Page 37 CT alarm: the SF relay is released, the "Error" LED is turned on and the LED of the faulty phase(s) starts blinking. © Arcteq Relays Ltd IM00092...
  • Page 38 A A Q Q -110FL -110FLV V 9 Wiring example Instruction manual Version: 2.05 9 Wiring example Figure. 9 - 34. Example wiring diagram for AQ-110FLV. © Arcteq Relays Ltd IM00092...
  • Page 39 The figure below presents the dimension of the device visually. It also shows the dimensions of the cut- out (bottom-left) required when mounting the device on a panel. Figure. 10 - 35. Dimensions of the device. © Arcteq Relays Ltd IM00092...
  • Page 40 Figure. 10 - 36. Installing a AQ-100 series device to a door. Fiber loops 1. Drill holes on the wall for the sensor cable to enter the protected compartment. 2. Install protective covers in the holes to ensure the sensor cable remains unharmed by rough edges. © Arcteq Relays Ltd IM00092...
  • Page 41 4. Turn the black and blue receiver (“Rx”) and transceiver (“Tx”) screws counter-clockwise and plug in the sensor cable terminals. Then turn the screws clockwise to secure the terminals in their place. © Arcteq Relays Ltd IM00092...
  • Page 42 10. Verify that no trip has occured and only the indicator LED of the sensor activation is lit. 11. If you are using the BO1 signal and have configured it to send light information, verify that it is activated. © Arcteq Relays Ltd IM00092...
  • Page 43 If you want to have more information of these tests, please refer to the routine test reports sent with the AQ-110 device and/or consult your nearest Arcteq representative for the type test reports.
  • Page 44 A A Q Q -110FL -110FLV V 11 Testing Instruction manual Version: 2.05 11.5 Test plan example © Arcteq Relays Ltd IM00092...
  • Page 45 Current threshold is continuously lit. settings chapter for more information). The current measurement's indicator LED Check that the connections of the three phase currents are is blinking. correct (see the System self-supervision for more information). © Arcteq Relays Ltd IM00092...
  • Page 46 3 mA Number of inputs 13.4 Trip relays Table. 13.4 - 9. Technical data for the trip relays (T1, T2, T3, T4). Number of trip relays 4 NO or or 3 NO + 1 NC © Arcteq Relays Ltd IM00092...
  • Page 47 Table. 13.7 - 12. Technical data for the system failure relay (SF). Number of SF relays Rated voltage 250 V AC/DC Carry: - continuous carry - make-and-carry for 3 s 16 A - make-and-carry for 0.5 s 30 A © Arcteq Relays Ltd IM00092...
  • Page 48 AQ-08 fiber optic loop sensor Table. 13.8 - 15. Technical data for the AQ-08 fiber optic loop sensor. Material Covered glass fiber Light intensity threshold 8,000 lux Cable length (min…max) 3…15 m Cable diameter 1.2 mm © Arcteq Relays Ltd IM00092...
  • Page 49 5 kV, 1.2/50 µs, 0.5 J 13.11 Mechanical tests Table. 13.11 - 18. Technical data for the mechanical tests. 2…13.2 Hz (± 3.5 mm) Vibration test 13.2…100 Hz (±1.0 g) Shock/bump test (IEC 60255-21-2) 20 g and 1,000 bumps/dir. © Arcteq Relays Ltd IM00092...
  • Page 50 Table. 13.13 - 20. Technical data for the device casing. Protection: - front IP 52 - back IP 20 Device dimensions (W × H × D) 102 × 177 × 161 mm Weight 1.2 kg © Arcteq Relays Ltd IM00092...
  • Page 51 A A Q Q -110FL -110FLV V 14 Ordering information Instruction manual Version: 2.05 14 Ordering information AQ-110FLV current measurement and arc sensing device AQ-0x fiber optic loop sensors © Arcteq Relays Ltd IM00092...
  • Page 52 Ltd. Wall mounting For AQ-101, AQ-101S and AQ-102 devices (MV and Arcteq Relays AX016 bracket LV). Ltd. Arcteq Relays AX033 Sensor bracket Ltd. Accessories Order code Description Note Manufacturer AX033 Sensor bracket Arcteq Relays Ltd. © Arcteq Relays Ltd IM00092...
  • Page 53 Arcteq Relays Ltd. Visiting and postal address Kvartsikatu 2 A 1 65300 Vaasa, Finland Contacts Phone: +358 10 3221 370 Website: arcteq.com Technical support: arcteq.com/support-login +358 10 3221 388 (EET 9:00 – 17.00) E-mail (sales): sales@arcteq.fi © Arcteq Relays Ltd IM00092...
