Arcteq AQ-110P Instruction Manual

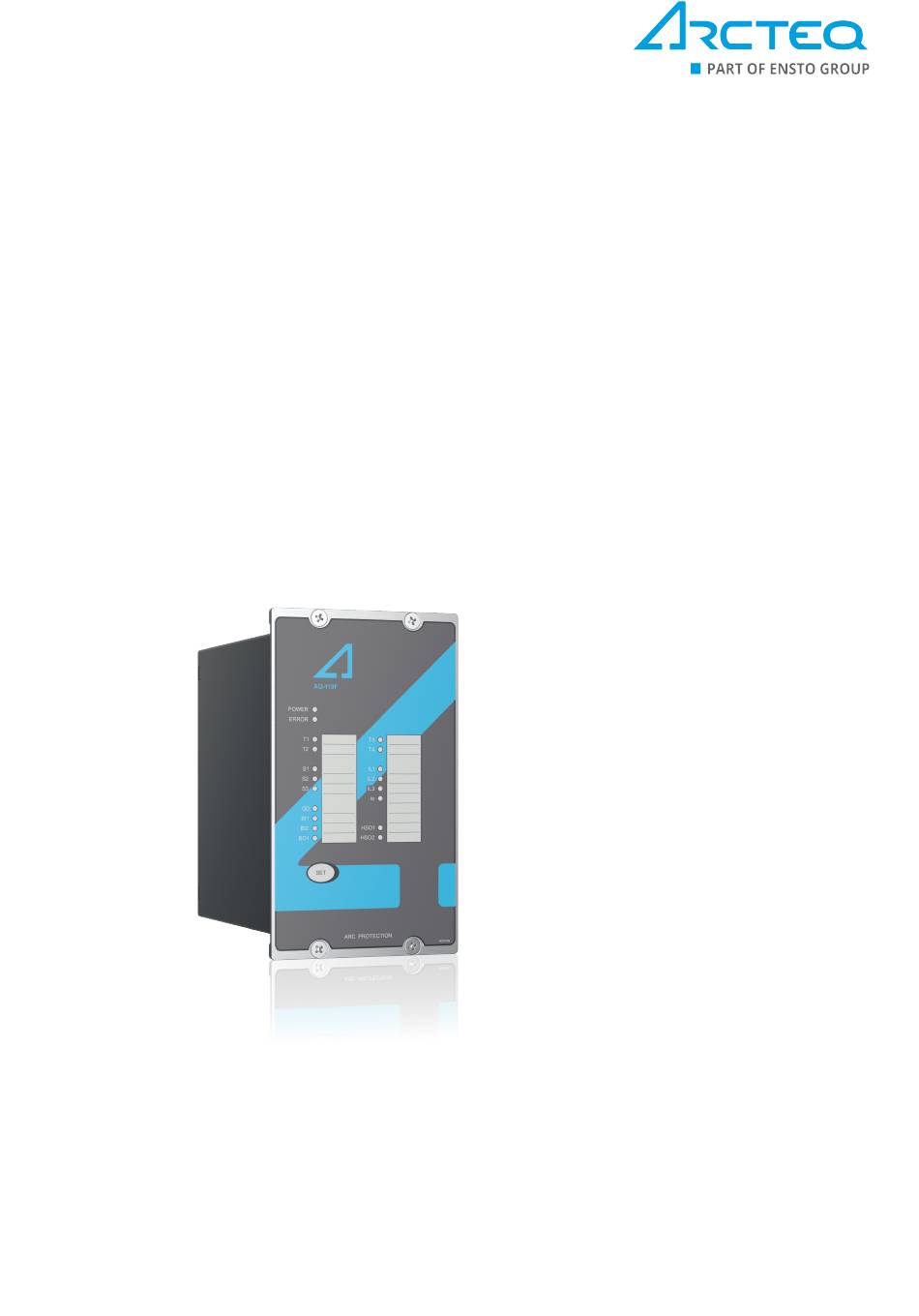

Arc sensor device with overcurrent
Hide thumbs Also See for AQ-110P:

Advertisement

Quick Links

Download this manual
AQ-110P
Arc sensor device with overcurrent
Instruction manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the AQ-110P and is the answer not in the manual?

Questions and answers

Related Manuals for Arcteq AQ-110P

Summary of Contents for Arcteq AQ-110P

  • Page 1 AQ-110P Arc sensor device with overcurrent Instruction manual...
  • Page 2 12 Testing esting ......................................................48 12.1 Testing the light-only mode ....................48 12.2 Testing the light and current mode ..................48 12.3 Testing the CBFP function....................49 12.4 Testing the operation time ....................49 © Arcteq Relays Ltd IM00089...
  • Page 3 14.16 Casing..........................58 15 Or 15 Ordering inf dering informa ormation tion ..............................................59 16 Contact and r 16 Contact and re e f f er erence inf ence informa ormation tion......................................61 © Arcteq Relays Ltd IM00089...
  • Page 4 Nothing contained in this document shall increase the liability or extend the warranty obligations of the manufacturer Arcteq Relays Ltd. The manufacturer expressly disclaims any and all liability for any damages and/or losses caused due to a failure to comply with the instructions contained herein or caused by persons who do not fulfil the aforementioned requirements.
  • Page 5 R R e e vision vision 1.05 1.05 Date November 2019 Changes - Added information to the "Technical data" chapter. Table. 1 - 2. History of Revision 2. R R e e vision vision 2.00 2.00 Date October 2020 © Arcteq Relays Ltd IM00089...
  • Page 6 - The IP classification of point sensors updated. - The AWG value updated. - "Disturbance tests" table reformatted. - Order code images updated (separated the codes for AQ-110P and AQ-110F). - The number for Arcteq's technical support added to the reference information. R R e e vision vision 2.02...
  • Page 7 R R e e vision vision 2.04 2.04 Date September 2024 Changes - Added point sensor dimensions. R R e e vision vision 2.05 2.05 Date November 2024 Changes - Split AQ-110P and AQ-110F into separate manuals. © Arcteq Relays Ltd IM00089...
  • Page 8 Please note that although these warnings relate to direct damage to personnel and/or equipment, it should be understood that operating damaged equipment may also lead to further, indirect damage to personnel and/or equipment. Therefore, we expect any user to fully comply with these special messages. © Arcteq Relays Ltd IM00089...
  • Page 9 NC – normally closed NO – normally open PCB – printed circuit board RF – radio frequency Rx – receiver SAS – standard arc scheme SF – system failure Tx – transceiver μP - microprocessor © Arcteq Relays Ltd IM00089...
  • Page 10 Figure. 4 - 1. Arc protection device AQ-110P. The AQ-110P is designed according to the latest protection relay standards and is therefore suitable for installations in rough environments. These include utilities and power plants (both traditional and renewable), various heavy industry applications (off-shore, marine, oil, gas, mining, steel, etc.) as well as commercial and institutional electrical systems.
  • Page 11 5 Device features AQ-110P is an arc flash protection device which can be applied to a variety of applications. The device can be used on its own as a stand-alone device, or as a part of a more complex arc protection system by using binary inputs and outputs to connect multiple AQ 100 series devices together.
  • Page 12 Version: 2.05 6 Connections The figure below depicts the connections of AQ-110P. Please note that the SF relay is in the de- energized position; also note that the device has been halved for the image to allow for space for all connector descriptions.
  • Page 13 This device includes a current transformer supervision function. See System self-supervision chapter for more information. 6.1.2 Arc sensor channels Figure. 6.1.2 - 4. Arc point sensor connections. © Arcteq Relays Ltd IM00089...
  • Page 14 AQ 100 series devices in the system. If a binary input loses connection to any of the configured binary outputs, the device will go into Error mode. See System self-supervision chapter for more information. 6.2 Outputs 6.2.1 Binary outputs Figure. 6.2.1 - 7. Binary output connection. © Arcteq Relays Ltd IM00089...
  • Page 15 The output’s direction of rotation is as follows: the signal goes in the even pin and out from the odd pin (see the image below, as detailed in the device’s side sticker). NOTICE! TICE! The high-speed outputs are polarity-sensitive. © Arcteq Relays Ltd IM00089...
  • Page 16 Whenever the device detects a system error or the auxiliary power supply is disconnected, the SF relay changes its state. The state stays this way until the device returns to a healthy condition. See the System self-supervision chapter for more information. © Arcteq Relays Ltd IM00089...
  • Page 17 Figure. 6.3 - 11. Auxiliary power supply connection The auxiliary power supply voltage is 92…265 V AC/DC. Alternatively, the auxiliary power supply can be of 18…72 V DC. This choice must be specified when ordering. © Arcteq Relays Ltd IM00089...
  • Page 18 No external mounting plates are needed regardless of the mounting type. However, you can use mounting brackets, such as Arcteq's sensor bracket accessory, for installation. See the Using the sensor bracket chapter for more information.
  • Page 19 No external mounting plates are needed regardless of the mounting type. However, you can use mounting brackets, such as Arcteq's sensor bracket accessory, for installation. See the Using the sensor bracket chapter for more information.
  • Page 20 If necessary, the ends of an AQ-07 cable can be ordered with heat shrinking tubing to avoid light detection outside the protected zone. The covered area can be one (1) or two (2) meters by default; if other lengths are required, please consult the Arcteq sales team. You can find the Contact and reference information chapter at the end of this manual.
  • Page 21 4. Run the auto-configuration procedure. See the System setup chapter for more details. NOTICE! TICE! If the cable has a shield (copper or tinned copper), it is recommended to connect it to same ground as the device. © Arcteq Relays Ltd IM00089...
  • Page 22 LEDs. 8.2 DIP switch settings Configuration of the operation logic and other functionalities are done with DIP switches. The DIP switches are located at the back of the device. © Arcteq Relays Ltd IM00089...
  • Page 23 "100 ms / 150 ms" DIP switch. CBFP logic depends on the selected logic scheme. See Circuit breaker failure protection chapter for more information. Figure. 8.2 - 18. DIP switch diagram for AQ-110P. Table. 8.2 - 4. DIP switch settings for SW1 group. ON (le ON (left ft...
  • Page 24 The schemes described below are the most commonly used ones for this device. However, additional schemes are also available; please contact your nearest Arcteq representative for more information on those schemes. The schemes are configured using the first DIP switch group (SW1) and its switches numbered 1…4 ("Scheme selection") and 5 ("a or b").
  • Page 25 Standard Arc Schemes (SAS). For detailed instructions on each of the available Standard Arc Schemes please refer to the AQ-SAS™ booklet (can be found at arcteq.fi/downloads/). © Arcteq Relays Ltd...
  • Page 26 (S4), both the incoming feeder (T1) and the tie breaker (T3) as well as all outgoing feeders (HSO2) will be tripped. If the fault is not cleared on time, T2 will trip the incoming feeder's HV side circuit breaker after the CBFP time delay has passed. © Arcteq Relays Ltd IM00089...
  • Page 27 3. Activates only if external overcurrent (BI1) is ON. NOTICE! TICE! CBFP signals are activated instantly if "FAST / CBFP" DIP switch is set to "FAST" mode. Figure. 8.3.1 - 22. Simplified logic diagram of SS:0a. © Arcteq Relays Ltd IM00089...
  • Page 28 Instruction manual Version: 2.05 1. Signal is activated instantly if "Fast / CBFP" DIP switch is set to FAST mode. 2. Signal is NOT activated if "Fast / CBFP" DIP switch is set to FAST mode. © Arcteq Relays Ltd IM00089...
  • Page 29 The overcurrent signal is sent with the HSO1 signal to the outgoing feeder devices. BO1 can be used for sending overcurrent signal to other incoming feeder devices. BI1 can be used for receiving overcurrent signals from other incoming feeder devices. © Arcteq Relays Ltd IM00089...
  • Page 30 "Fast / CBFP" DIP switch is set to "FAST" mode. Figure. 8.3.2 - 25. Simplified logic diagram of SS:1a. 1. "100 / 150 ms" DIP switch can be used for choosing 200 ms or 300 ms time delay. © Arcteq Relays Ltd IM00089...
  • Page 31 If the fault is not cleared on time, T2 will trip the incoming feeder's HV side circuit breaker after the CBFP time delay has passed. BI1 can be used for receiving overcurrent signals from other incoming feeder devices. HSO1 can be used as an alarm signal. © Arcteq Relays Ltd IM00089...
  • Page 32 "Fast / CBFP" DIP switch is set to "FAST" mode. Figure. 8.3.3 - 28. Simplified logic diagram of SS:1b. 1. Signal is NOT activated if "Fast / CBFP" DIP switch is set to "FAST" mode. © Arcteq Relays Ltd IM00089...
  • Page 33 BI1 can be used for receiving overcurrent signals from other incoming feeder devices. You can find a more detailed description of this scheme in the AQ-SAS booklet. © Arcteq Relays Ltd IM00089...
  • Page 34 "Fast / CBFP" DIP switch is set to "FAST" mode. Figure. 8.3.4 - 31. Simplified logic diagram of SS:2a. 1. "100 / 150 ms" DIP switch can be used for choosing 200 ms or 300 ms time delay. © Arcteq Relays Ltd IM00089...
  • Page 35 If the fault is not cleared on time, T2 will trip the incoming feeder's HV side circuit breaker after the CBFP time delay has passed. BO1 can be used for sending overcurrent signal to other incoming feeder devices. BI1 can be used for receiving overcurrent signals from other incoming feeder devices. © Arcteq Relays Ltd IM00089...
  • Page 36 1. "100 / 150 ms" DIP switch can be used for choosing 200 ms or 300 ms time delay. NOTICE! TICE! CBFP signals are NOT activated if "FAST / CBFP" DIP switch is set to "FAST" mode. © Arcteq Relays Ltd IM00089...
  • Page 37 If the device detects any deviation from the saved configuration, self supervision system issues an alarm. See System self-supervision chapter for more information. All arc sensors are operational even when they have not been auto-configured. System setup is only used for self-supervision purposes. © Arcteq Relays Ltd IM00089...
  • Page 38 8.6 LED indicator functions The AQ-110P device has twenty (20) indication LEDs on the device's front panel. Apart from the "Power" and "Error" LEDs, the user can write their own identifications for each of the remaining LEDs on the text insert located in the transparent pocket next to the LEDs.
  • Page 39 The measured There is an open CT Check the set current IL1–IL3 actual current is current is above the connection in the thresholds, or check the (amber) below the set set threshold. channel. CT wiring. threshold). © Arcteq Relays Ltd IM00089...
  • Page 40 This feature is especially important if tripping causes the device to lose its auxiliary power. The non-volatile memory does not require a power supply to maintain the information and it retains the settings and the indications permanently without power. © Arcteq Relays Ltd IM00089...
  • Page 41 The device goes into Error mode, if a DIP switch setting is changed after the system setup procedure has been performed. However, the configured (stored) settings are still valid and the device is still operational. © Arcteq Relays Ltd IM00089...
  • Page 42 CT alarm: the SF relay is released, the "Error" LED is turned on and the LED of the faulty phase(s) starts blinking. © Arcteq Relays Ltd IM00089...
  • Page 43 A A Q Q -110P -110P 10 Wiring example Instruction manual Version: 2.05 10 Wiring example Figure. 10 - 36. Example wiring diagram for AQ-110P. © Arcteq Relays Ltd IM00089...
  • Page 44 The figure below presents the dimension of the device visually. It also shows the dimensions of the cut- out (bottom-left) required when mounting the device on a panel. Figure. 11 - 37. Dimensions of the device. © Arcteq Relays Ltd IM00089...
  • Page 45 A A Q Q -110P -110P 11 Dimensions and installation Instruction manual Version: 2.05 Figure. 11 - 38. Installing a AQ-100 series device to a door. © Arcteq Relays Ltd IM00089...
  • Page 46 A A Q Q -110P -110P 11 Dimensions and installation Instruction manual Version: 2.05 Point sensors Figure. 11 - 39. Dimensions of arc flash sensors. Figure. 11 - 40. Installing an arc flash sensor. © Arcteq Relays Ltd IM00089...
  • Page 47 2. Install protective covers in the holes to ensure the sensor cable remains unharmed by rough edges. 3. Run the sensor cable through the holes and along the protected area. Fasten it to the compartment walls with cable clips or some other appropriate anchoring method. © Arcteq Relays Ltd IM00089...
  • Page 48 Instruction manual Version: 2.05 4. Turn the black and blue receiver (“Rx”) and transceiver (“Tx”) screws counter-clockwise and plug in the sensor cable terminals. Then turn the screws clockwise to secure the terminals in their place. © Arcteq Relays Ltd IM00089...
  • Page 49 10. Verify that no trip has occured and only the indicator LED of the sensor activation is lit. 11. If you are using the BO1 signal and have configured it to send light information, verify that it is activated. © Arcteq Relays Ltd IM00089...
  • Page 50 If you want to have more information of these tests, please refer to the routine test reports sent with the AQ-110 device and/or consult your nearest Arcteq representative for the type test reports.
  • Page 51 A A Q Q -110P -110P 12 Testing Instruction manual Version: 2.05 12.5 Test plan example © Arcteq Relays Ltd IM00089...
  • Page 52 Current threshold is continuously lit. settings chapter for more information). The current measurement's indicator LED Check that the connections of the three phase currents are is blinking. correct (see the System self-supervision for more information). © Arcteq Relays Ltd IM00089...
  • Page 53 - overcurrent stage 50 ms *) The total trip time when using both the arc light (L>) or phase/residual overcurrent (I>) from this device and the arc light (L>) from an AQ-101 variant or an AQ-102 device. © Arcteq Relays Ltd IM00089...
  • Page 54 Table. 14.5 - 12. Technical data for the binary inputs (BI1, BI2). Nominal threshold voltage 24 V DC Threshold: - pick-up Approximately 16 V DC - drip-off Approximately 15 V DC Rated current 3 mA Number of inputs © Arcteq Relays Ltd IM00089...
  • Page 55 Number of outputs Rated voltage +24 V DC (internal power supply) Rated current (max.) 20 mA 14.9 System failure relay Table. 14.9 - 16. Technical data for the system failure relay (SF). Number of SF relays © Arcteq Relays Ltd IM00089...
  • Page 56 Pressure measuring accuracy ±1.8 % (of full scale) Detection radius 180º Mechanical protection IP 20 Sensor cable specification Shielded twisted pair 0.75 mm (AWG: 18) Maximum sensor cable length (per 200 m channel) Operating temperature –20…+85 ºC © Arcteq Relays Ltd IM00089...
  • Page 57 Table. 14.11 - 21. Technical data for the AQ-08 fiber optic loop sensor. Material Covered glass fiber Light intensity threshold 8,000 lux Cable length (min…max) 3…15 m Cable diameter 1.2 mm Detection radius 360º Bending radius 1 cm Operating temperature –40…+125 ºC © Arcteq Relays Ltd IM00089...
  • Page 58 13.2…100 Hz (±1.0 g) Shock/bump test (IEC 60255-21-2) 20 g and 1,000 bumps/dir. 14.15 Environmental conditions Table. 14.15 - 25. Technical data for the environmental conditions. Specified ambient service temperature –35…+70 ºC Transportation and storage temperature –40…+70 ºC © Arcteq Relays Ltd IM00089...
  • Page 59 Table. 14.16 - 26. Technical data for the device casing. Protection: - front IP 52 - back IP 20 Device dimensions (W × H × D) 102 × 177 × 161 mm Weight 1.2 kg © Arcteq Relays Ltd IM00089...
  • Page 60 A A Q Q -110P -110P 15 Ordering information Instruction manual Version: 2.05 15 Ordering information AQ-110P current measurement and arc sensing device AQ-0x point sensors © Arcteq Relays Ltd IM00089...
  • Page 61 Ltd. Wall mounting For AQ-101, AQ-101S and AQ-102 devices (MV and Arcteq Relays AX016 bracket LV). Ltd. Arcteq Relays AX033 Sensor bracket Ltd. Accessories Order code Description Note Manufacturer AX033 Sensor bracket Arcteq Relays Ltd. © Arcteq Relays Ltd IM00089...
  • Page 62 Arcteq Relays Ltd. Visiting and postal address Kvartsikatu 2 A 1 65300 Vaasa, Finland Contacts Phone: +358 10 3221 370 Website: arcteq.com Technical support: arcteq.com/support-login +358 10 3221 388 (EET 9:00 – 17.00) E-mail (sales): sales@arcteq.fi © Arcteq Relays Ltd IM00089...
