InstAlert 24 Quick Start Guide

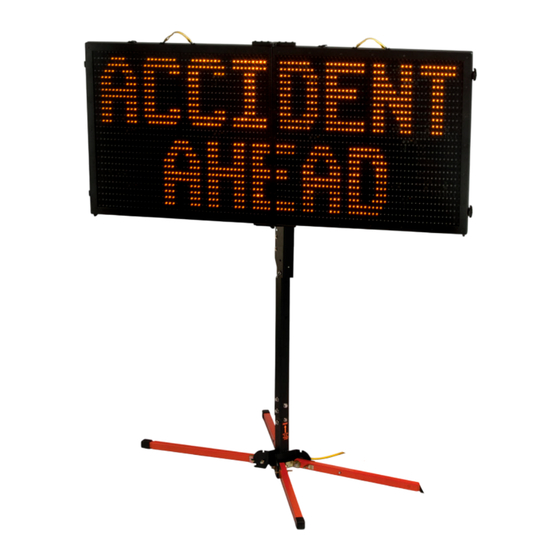

Thank you for purchasing an All Traffic Solutions InstAlert 24 Variable Message Sign. This
quick start guide will show you how to install, power, and configure your new sign.
Before you take to the road
Perform the following setup steps in your shop, before you take
the InstAlert to the roadside.
Step 1 Unpacking the equipment, below
Step 2 Charging the PowerCase (if provided), below
Step 3 Setting up the mounting hardware, below
Step 4 Choosing a site, on the next page
Step 5 Mounting the InstAlert, on page 3
At the roadside
Step 6: Configuring the InstAlert locally, on page 3
Scan or click the QR code for an installation video >>>
Step 1 Unpacking the equipment
Remove the sign, power source, such as PowerCase, and any
»
other optional equipment from the boxes. Check to ensure that
you received everything in your order and contact
ATS immediately if there are any issues.
Step 2 Charging the PowerCase (if
provided)
Charge the PowerCase before deployment. Follow the instructions and warnings
»
provided with the PowerCase. For effective charging, be sure to select AGM
mode on the charger module, as shown:
RISK OF INJURY OR DEATH. To avoid the
W :
ARNING
buildup of explosive gases, leave the lid of the PowerCase
OPEN while charging.
Step 3 Setting up the mounting hardware
Use the steps in this section for help with setting up the portable post.
To unfold the portable post:
A. Extend all four telescoping legs.
B. Push on the leg locks and lower each leg until the lock clicks back into place.
C. Unfold the stand by removing the wire-lock pin.
D. Raise the upper post of the stand and replace the wire-lock pin.
E. Level the stand and stabilize it with sandbags if windy.
ATS 5 other ATS 5 family Trailers
If your purchase includes an ATS 5 Trailer, ATS 5 FLEX Trailer, ALPR Camera-Ready Trailer, or Mobile
N :
OTE
Surveillance-Ready Trailer, the sign comes installed and ready for use, including a battery or solar power
supply. Refer to the Quick Start Guide supplied with your trailer for help with setting up the sign.
