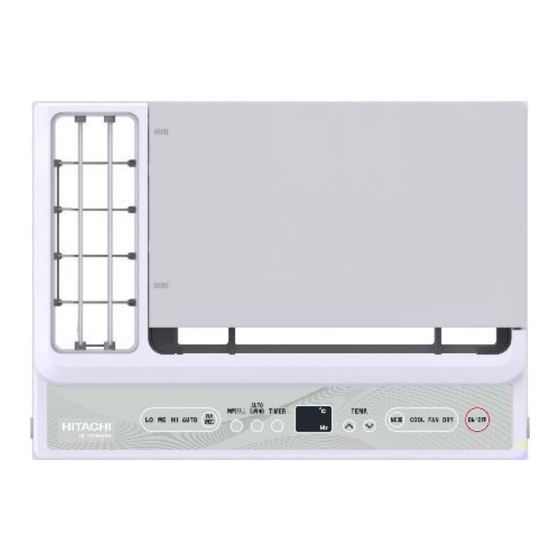

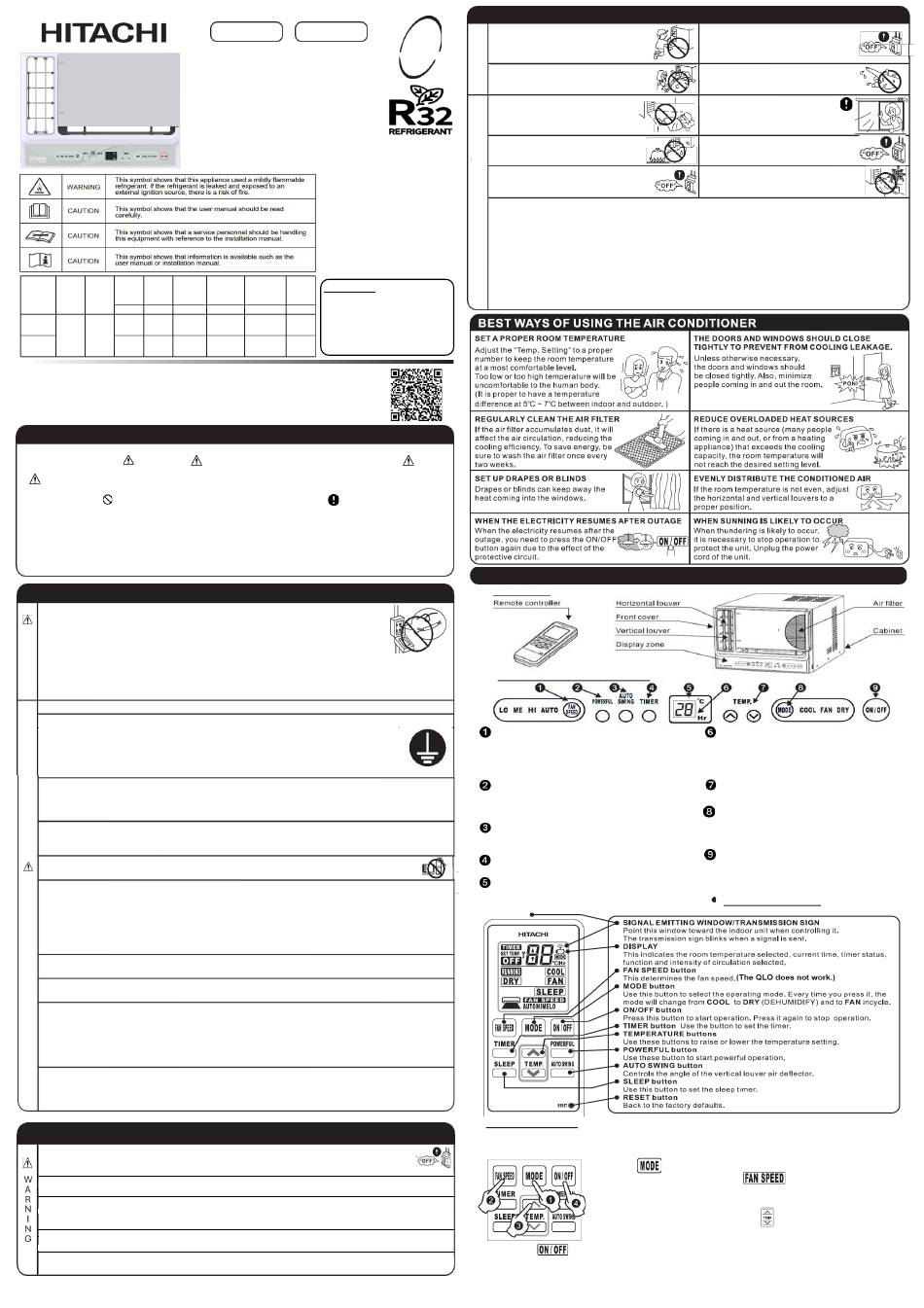

Hitachi RA-08HVQ3 Installation Manual

Power
Power Capacity EER Input
Model Function
Supply (STD/MAX)
kJ/h kJ/hW W
Single
RA-08HVQ3 8500 11.39 746 / 841
Cool
Phase
Fan
230V
Dry
RA-10HVQ3 9550 11.05 864 / 979
60Hz
Johnson Controls-Hitachi Air Conditioning Philippines, Inc.
1A Binictican Drive, Subic Bay Industrial Park Phase II Subic Bay Freeport Zone, Philippines
TEL: (02)362-4847
TEL(SERVICE): (02)362-3842
SAFETY PRECAUTIONS
• Read this section of "Safety precaution" carefully to understand proper usage of this unit before use.
• Pay special attentions to " Warning" and "
designation may cause death a serious of injury if not followed correctly. Failure to follow the instructions under the
" Caution" designation may also cause possible serious consequence depending on the situation. Therefore, be
sure to observe these designations for your safety.
• In addition, this sign " "shown in the diagram denotes prohibited items, whereas "
• Be sure to keep this manual after reading.
• The manufacturer is not liable for maintenance and repair of the air conditioner as stipulated in the warranty. The
same condition applies to any damage to this unit body/nearby property if you fail to observe warning instructions
in this manual/use of parts not supplied from us.
• This product uses Mildly Flammable R32 refrigerant. While the product is under installation or transport, except R32
refrigerant, please do not charge other refrigerants, air, oxygen, propane, alcohol, or any flammable material to avoid
machine damage, blaze, or explosion. Be sure to use the refrigerant specified by the manufacturer.
INSTALLATION PRECAUTIONS
• Air conditioner installation and its electrical wiring require a professional. Therefore, assign
only an authorized dealer or a certified technician to install your air conditioner and perform
its electrical wiring. Do not attempt to do it by yourself (charges are additional). If improperly
W performed by yourself, it may cause leakage, electric shock or fire.
• Do not use a metal wire or copper wire as a fuse to prevent from failure or fire.
A
R • When installing, do not use an extended power cord or a power cord with excess bending
N
(radius less than 20mm). Also, use the cable tie supplied with the base-pan to secure it. Do not place the
I
cord inside the unit body or it may cause short circuit or abnormal heat leading to a fire due to insulation
N
damage by an overly compressed cord.
G
• R32 refrigerant air conditioner installation and maintenance should be done by competent person.
• Use only on single outlet circuit exclusive for the air conditioner.
• To avoid electric shock in case of current leakage, be sure to connect the air conditioner to the
ground. The ground wire diameter should be 2.5 mm² to 6 mm². Also, the end of the ground wire
must be crimped with a round terminal before securing it and must not be loose by accident.
• Do not connect the ground wire to the gas pipe, water pipe, lightning rod, and the telephone line.
If the ground wire is not installed properly, there is a risk of electric shock. If the unit is not
grounded, the protective circuit such as lightning striking protection will not work properly.
•
To avoid carelessness from power companies or other accidents that cause over current to get into the unit
via the ground wire resulting in damage to the unit, be sure to install an earth leakage circuit breaker. Consult
•
To avoid carelessness from power companies or other accidents that cause over current to get into the unit
the dealers (a registered water and electrical engineering dealer) for details. If no earth leakage circuit
via the ground wire resulting in damage to the unit, be sure to install an earth leakage circuit breaker. Consult
breaker is installed, there is a risk of accident such as electric shock to occur.
the dealers (a registered water and electrical engineering dealer) for details. If no earth leakage circuit
•
When installing near places with high humidity such as bathing facilities, damp and humid places, basements breaker is installed, there is a risk of accident such as electric shock to occur.
and places with frequent water accumulation, be sure to install an earth leakage circuit breaker to prevent
•
When installing near places with high humidity such as bathing facilities, damp and humid places, basements
current leakage. Consult the dealers (a register water and electrical engineering dealer) for details.
and places with frequent water accumulation, be sure to install an earth leakage circuit breaker to prevent
• current leakage. Consult the dealers (a register water and electrical engineering dealer) for details.
Do not install at places where flammable objects and flammable gases exist.
If such objects and gases are around, a fire may occur.
•
Do not install at places where flammable objects and flammable gases exist
C
• If such objects and gases are around, a fire may occur.
The outdoor side should be well ventilated. Do not place any obstacle near the air discharge outlet, otherwise,
A
C
the unit performance may decrease and the noise increases.
•
U The outdoor side should be well ventilated. Do not place any obstacle near the air discharge outlet, otherwise,
A
•
Do not place any object in front of the indoor side, otherwise, it may affect airflow and Impede operation of the
T the unit performance may decrease and the noise increases.
U
unit.
•
I
T Do not place any object in front of the indoor side, otherwise, it may affect airflow and Impede operation of the
•
Do not place any foreign material around the unit body, otherwise, it may affect the performance of the unit.
O
unit.
I
•
Do not allow ejected heated air to face your neighbors. Also, do not let water dripping, drainage, vibration,
N •
O Do not place any foreign material around the unit body, otherwise, it may affect the performance of the unit.
noise, etc. interfere your neighbors.
•
N
Do not allow ejected heated air to face your neighbors. Also, do not let water dripping, drainage, vibration,
noise, etc. interfere your neighbors.
•
This unit is intended to be used for general family room air conditioning purpose, do not use it for storing
food, animals and plants, precision machinery, fine art works, medicine, etc.
•
This unit is intended to be used for general family room air conditioning purpose, do not use it for storing
•
When installing the water drain hose, be sure water can flow out smoothly. If installation is not proper, it is
food, animals and plants, precision machinery, fine art works, medicine, etc.
possible that water may flow inside the room or get your furniture wet.
•
When installing the water drain hose, be sure water can flow out smoothly. If installation is not proper, it is
•
possible that water may flow inside the room or get your furniture wet.
Plug the power cord to the right source, and the voltage required by the air conditioner is 230V.
•
If the power of the air conditioner is connected to an incorrect voltage, it will invariably burn out the electrical
•
Plug the power cord to the right source, and the voltage required by the air conditioner is 230V.
parts.
•
If the power of the air conditioner is connected to an incorrect voltage, it will invariably burn out the electrical
•
Be sure to firmly plug the power supply cord or it may cause short circuit or heat resulting in danger of fire or
parts.
electric shock.
•
Be sure to firmly plug the power supply cord or it may cause short circuit or heat resulting in danger of fire or
•
Periodically check the power cord plug and receptacle every year to ensure that they are clean.
electric shock.
•
Periodically check the power cord plug and receptacle every year to ensure that they are clean.
• While indoor unit front cover is not installed, do not operate the unit. Moreover, be sure to take good measures
against dust and dirt for unit body.
• While indoor unit front cover is not installed, do not operate the unit. Moreover, be sure to take good measures
•
Before the unit starts, be sure to check that the room has been cleaned up, airborne matters and
against dust and dirt for unit body.
odors have been cleared, the unit body is clean. This will prevent insufficient cooling or water
•
Before the unit starts, be sure to check that the room has been cleaned up, airborne matters and
leakage in later days.
odors have been cleared, the unit body is clean. This will prevent insufficient cooling or water
leakage in later days.
DURING SHIFTING OR MAINTENANCE
• If there is an error (burning odor, etc.), stop operation and turn off the power switch and then notify
the service center or the dealer from where the air conditioner was purchased. If the air conditioner
keeps on running with the error, it may lead to failure, electric shock, fire, etc.
• To service the air conditioner, directly contact the service center or the dealer from where the air conditioner
was purchased. If it is improperly repaired by yourself, there is a risk of electric shock or fire.
• If the air conditioner is to be moved or relocated, directly contact the service center or the dealer from where
the air conditioner was purchased. If it is moved or relocated improperly by yourself, there is a risk of electric
shock or fire.
• If the power cord is damaged, it must be replaced by the manufacturer or by the service center or a technician
to prevent danger.
• Be aware that refrigerants may not contain an odor. In case of accidental refrigerant leaks, call qualified
personnel for repair before resuming operation.
RA-08HVQ3 RA-10HVQ3
Operation manual
Window Inverter Type
Room Air Conditioner
Running
Dimension Product
IMPORTANT:
Current
(WxHxD) Weight
(STD/MAX)
READ AND UNDERSTAND THIS
A mm kg MANUAL BEFORE USING THIS
AIR CONDITIONER.
3.72 / 4.15 470x340x600 29
KEEP THIS MANUAL FOR
FUTURE REFERENCE.
4.24 / 4.77 470x340x600 29
Caution" designations contained in this manual. The"
" denotes mandatory items.
USAGE PRECAUTIONS
• Do not insert anything like slender stick
into the discharge air plenum or return air
DC
W
I
grille as the fan is running at high speed,
A
INVERTER
it is highly likely to cause danger.
R
N
• When cleaning the unit body, never wash
I
it with splashing water as there is a risk
N
of current leakage.
G
• Do not let the discharge air plenum
directly face your body for a long
period of time, or it may have
adverse effect to health.
• Do not let the airflow directly face
the gas stove, or it is likely to
cause incomplete combustion.
C
• When cleaning the unit body, be sure to turn
C
A
A
off the power switch, or it may cause injury
U
u
as the fan is running at high speed inside.
T
T
I
• When the window and the door are open (the humidity inside the room continuously exceeds 80%), the air
O
vanes of the louver are facing down or in the auto-swing mode, do not operate the machine for too long as it
N N
is likely that humid air may condensate on the louver and may drip down water and wet the furniture.
• If there is a heat source (many people come in and out, a heating appliance is being used, etc.) that exceeds the
capacity of cooling or heating, the room temperature may not reach the desired setting level.
• If there is any abnormal noise is heard during unit operation, refer to the service center or to the dealer from
where the air conditioner was purchased.
• When installing at areas subjected to high salinity, sulfur, corrosive substance such as coastal areas and
hot springs, the heat exchanger of the unit or the circulation piping must be treated with anti-corrosion
coating. In addition, installation at places subjected to plenty of fumes, at hospitals where electromagnetic
wave is available, at places subject to dust and dirt or special environmental situations around installation,
consult the service center or the dealer from where the air conditioner was purchased first.
Warning"
FUNCTIONS LIST AND FEATURES
•
UNIT DISPLAY
•
INDICATION DISPLAY ON THE FRONT
COVER
FAN SPEED indicator light
•
When the unit is running, the light turns on.
•
When you press this button, the intensity of
circulation will change from (AUTO) to (HI) to (ME) to
(LO) in cycle.
POWERFUL indicator light
• Use these buttons to start powerful operation.
When the unit is performing a powerful operation,
this light turns on.
AUTO SWING indicator light
• When you press the button, the vertical louver will
automatically be swinging.
TIMER indicator light
• When the unit is preset with a timer, this light turns on.
Infrared light receiving window
• "beep" sound will be generated when it receives the
A
signal from the remote controller.
• COOLING OPERATION
Use the device for cooling when the outdoor temperature is above 10°C. If humidity is very
high (over 80%) indoors, some dew may form on the air outlet grille of the indoor unit.
※
Operating range of cooling: Indoor 21°C~32°C, Outdoor 10°C~42°C
❹ Press the
cooling function does not start if the temperature setting is higher than the current room temperature (even
though the "RUNNING" (OPERATION) lamp Iights). The cooling function will start as soon as you set the
temperature below the current room temperature.
•
When thunder is likely to happen, for
protecting the machine, stop operation
and turn off the power switch to prevent
from failure.
• Do not operate the switch when your
hand is wet to prevent electric shock.
• If a gas stove is used while the air
conditioner is operating, be sure to
open the window often, or it is possible
to have insufficient oxygen inside.
• If the machine will not be used for a
long period of time, turn off the power
switch for safety.
• Do not place animals or plants at the place
•
to where the airflow is blowing directly, or
it will have adverse effect to them.
Room temperature display
•
When the unit is powered up, the computer
will automatically detect the room temperature
and display the current temperature. (Indicates
the error code when an error occurs)
Temperature button
• Press this button to raise or lower the temperature.
MODE indicator Light
•
When the unit is running, the light turns on.
When you press this button, the mode will
change
ON/OFF button
•
Press this button to start operation, press it again
to stop operation.
R
REMOTE CONTROLLER
❶ Press the
❷ Set the desired FAN SPEED with the
button so that the display indicates "COOL".
setting).
AUTO : The FAN SPEED is HI at first and varies to ME automatically when the preset
❸ Set the desired room temperature with the
temperature has been reached.
the actual room temperature may vary somewhat depending on conditions.
button. Cooling operation starts with a beep. Press the button again to stop operation. The
from (COOL) to (FAN) to (DRY) in cycle.
button (the display indicates the
buttons. The temperature setting and
