Hitachi RA-08HV Operation Manual

Johnson Controls-Hitachi Air Conditioning Philippines, Inc.
1A Binictican Drive, Subic Bay Industrial Park Phase II Subic Bay Freeport Zone, Philippines
TEL: (02)362-4847
TEL(SERVICE): (02)362-3842
SAFETY PRECAUTIONS SAFETY PRECAUTIONS
• Read this section of "Safety precaution" carefully to understand proper usage of this unit before use.
• Pay special attentions to " Warning" and "
designation may cause death a serious of injury if not followed correctly. Failure to follow the instructions under the
" Caution" designation may also cause possible serious consequence depending on the situation. Therefore, be
sure to observe these designations for your safety.
• In addition, this sign " "shown in the diagram denotes prohibited items, whereas "
• Be sure to keep this manual after reading.
• The manufacturer is not liable for maintenance and repair of the air conditioner as stipulated in the warranty. The
same condition applies to any damage to this unit body/nearby property if you fail to observe warning instructions in
this manual/use of parts not supplied from us.
• This product uses non-flammable R410A refrigerant. While the product is under installation or transport, except R410A
refrigerant, please do not charge other refrigerants, air, oxygen, propane, alcohol, or any flammable material to avoid
machine damage, blaze, or explosion. Be sure to use the refrigerant specified by the manufacturer.
INSTALLATION PRECAUTIONS
• Air conditioner installation and its electrical wiring require a professional. Therefore, assign
only an authorized dealer or a certified technician to install your air conditioner and perform
W
its electrical wiring. Do not attempt to do it by yourself (charges are additional). If improperly
A
performed by yourself, it may cause leakage, electric shock or fire.
R
• Do not use a metal wire or copper wire as a fuse to prevent from failure or fire.
N
• When installing, do not use an extended power cord or a power cord with excess bending
I
(radius less than 20mm). Also, use the cable tie supplied with the base-pan to secure it. Do not place the
N
cord inside the unit body or it may cause short circuit or abnormal heat leading to a fire due to insulation
G
damage by an overly compressed cord.
• Use only on single outlet circuit exclusive for the air conditioner.
• Ensure the mounting support is firm and steady or there is a risk the unit may fall.
• To avoid electric shock in case of current leakage, be sure to connect the air conditioner to the
ground. The ground wire diameter should be 2.5 mm² to 6 mm². Also, the end of the ground wire
must be crimped with a round terminal before securing it and must not be loose by accident.
Do not connect the ground wire to the gas pipe, water pipe, lightning rod, and the telephone line.
If the ground wire is not installed properly, there is a risk of electric shock. If the unit is not grounded,
the protective circuit such as lightning striking protection will not work properly.
• To avoid carelessness from power companies or other accidents that cause over current to get into the unit via
the ground wire resulting in damage to the unit, be sure to install an earth leakage circuit breaker. Consult the
dealers (a registered water and electrical engineering dealer) for details. If no earth leakage circuit breaker is
installed, there is a risk of accident such as electric shock to occur.
•
e When installing near places with high humidity such as bathing facilities, damp and humid places, basements,
and places with frequent water accumulation, be sure to install an earth leakage circuit breaker to prevent
current leakage. Consult the dealers (a registered water and electrical engineering dealer) for details.
• Do not install at places where flammable objects and flammable gases exist.
C
If such objects and gases are around, a fire may occur.
A
C
• The outdoor side should be well ventilated. Do not place any obstacle near the air discharge outlet, otherwise,
U A
the unit performance may decrease and the noise increases.
U
T
• Do not place any object in front of the indoor side, otherwise, it may affect airflow and Impede operation of the
T
I
I
unit.
O
0
• Do not place any foreign material around the unit body, otherwise, it may affect the performance of the unit.
N
N
• Do not allow ejected heated air to face your neighbors. Also, do not let water dripping, drainage, vibration,
noise, etc. interfere your neighbors.
• This unit is intended to be used for general family room air conditioning purpose, do not use it for storing food,
animals and plants, precision machinery, fine art works, medicine, etc.
• When installing the water drain hose, be sure water can flow out smoothly. If installation is not proper, it is
possible that water may flow inside the room or get your furniture wet.
• Plug the power cord to the right source, and the voltage required by the air conditioner is 230V.
• If the power of the air conditioner is connected to an incorrect voltage, it will invariably burn out the electrical
parts.
• Be sure to firmly plug the power supply cord or it may cause short circuit or heat resulting in danger of fire or
electric shock.
• Periodically check the power cord plug and receptacle every year to ensure that they are clean.
•
While indoor unit front cover is not installed, do not operate the unit. Moreover, be sure to take good measures
against dust and dirt for unit body.
• Before the unit starts, be sure to check that the room has been cleaned up, airborne matters and odors have
been cleared, the unit body is clean. This will prevent insufficient cooling or water leakage in later days.
USAGE PRECAUTIONS
• Do not insert anything like slender stick
into the discharge air plenum or return air
W
I
grille as the fan is running at high speed,
A
R it is highly likely to cause danger.
N
• When cleaning the unit body, never wash
I
it with splashing water as there is a risk
N
G of current leakage.
• Do not let the discharge air plenum
directly face your body for a long
period of time, or it may have
adverse effect to health.
• Do not let the airflow directly face the
gas stove, or it is likely to cause
incomplete combustion.
C
C
• When cleaning the unit body, be sure to turn
A
A
off the power switch, or it may cause injury
U
u
T as the fan is running at high speed inside.
T
I
• When the window and the door are open (the humidity inside the room continuously exceeds 80%), the air
O
vanes of the louver are facing down or in the auto-swing mode, do not operate the machine for too long as it
N N
is likely that humid air may condensate on the louver and may drip down water and wet the furniture.
• If there is a heat source (many people come in and out, a heating appliance is being used, etc.) that exceeds the
capacity of cooling or heating, the room temperature may not reach the desired setting level.
• If there is any abnormal noise is heard during unit operation, refer to the service center or to the dealer from
where the air conditioner was purchased.
• When installing at areas subjected to high salinity, sulfur, corrosive substance such as coastal areas and
hot springs, the heat exchanger of the unit or the circulation piping must be treated with anti-corrosion
coating. In addition, installation at places subjected to plenty of fumes, at hospitals where electromagnetic
wave is available, at places subject to dust and dirt or special environmental situations around installation,
consult the service center or the dealer from where the air conditioner was purchased first.

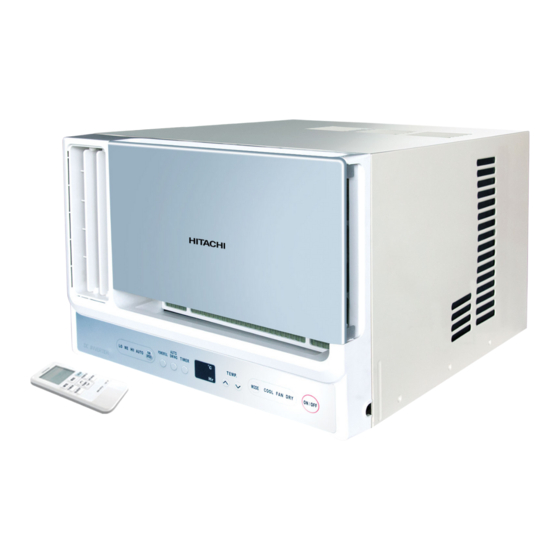

RA-08HV RA-10HV RA-15HV
RA-20HV RA-23HV
Operation manual
Window Inverter Type
Room Air Conditioner
IMPORTANT:
READ AND UNDERSTAND
THIS MANUAL BEFORE
USING THIS AIR
CONDITIONER.
KEEP THIS MANUAL FOR
FUTURE REFERENCE.
Caution" designations contained in this manual. The "
" denotes mandatory items.
•
When thunder is likely to happen, for
protecting the machine, stop operation
and turn off the power switch to prevent
from failure.
• Do not operate the switch when your
hand is wet to prevent electric shock.
• If a gas stove is used while the air
conditioner is operating, be sure to
open the window often, or it is possible
to have insufficient oxygen inside.
• If the machine will not be used for a
long period of time, turn off the power
switch for safety.
• Do not place animals or plants at the place
•
to where the airflow is blowing directly, or it
will have adverse effect to them.
PRECAUTIONS DURING SHIFTING OR MAINTENANCE
• If there is an error (burning odor, etc.), stop operation and turn off the power switch and then notify the
DC
service center or the dealer from where the air conditioner was purchased. If the air conditioner keeps on
running with the error, it may lead to failure, electric shock, fire, etc.
W
INVERTER
A
• To service the air conditioner, directly contact the service center or the dealer from where the air conditioner
R
was purchased. If it is improperly repaired by yourself, there is a risk of electric shock or fire.
N
• If the air conditioner is to be moved or relocated, directly contact the service center or the dealer from where
I
N
the air conditioner was purchased. If it is moved or relocated improperly by yourself, there is a risk of electric
shock or fire.
• If the power cord is damaged, it must be replaced by the manufacturer or by the service
center or a technician to prevent danger
Warning"
FUNCTIONS LIST AND FEATURES
UNIT DISPLAY
INDICATION DISPLAY ON THE FRONT COVER
FAN SPEED indicator light
• When the unit is running, the light turns on.
• When you press this button, the intensity of circulation
will change from (AUTO) to (HI) to (ME) to (LO) incycle.
POWERFUL indicator light
• Use these buttons to start powerful operation.
When the unit is performing a powerful operation, this
light turns on.
AUTO SWING indicator light
When you press the button, the vertical louver will
automatically be swinging.
TIMER indicator light
When the unit is preset with a timer, this light turns on.
Infrared light receiving window
A "beep" sound will be generated when it receives the
signal from the remote controller.
REMOTE CONTROLLER
COOLING OPERATION
Use the device for cooling when the outdoor temperature is above 10°C. If humidity is very high
(over 80%) indoors, some dew may form on the air outlet grille of the indoor unit.
※
Operating range of cooling: Indoor 21°C~32°C, Outdoor 10°C~4 2°C
21°C -32°C ' outdoor 10°C -46°C.
❹ Press the
button. Cooling operation starts with a beep. Press the button again to stop operation. The
cooling function does not start if the temperature setting is higher than the current room temperature (even
though the "RUNNING" (OPERATION) lamp lights). The cooling function will start as soon as you set the
temperature below the current room temperature.
DEHUMIDIFYING OPERATION
Room temperature display
When the unit is powered up, the computer will
automatically detect the room temperature and
display the current temperature.
(Indicates the error code when an error occurs)
Temperature button
Press this button to raise or lower the temperature.
MODE indicator light
When the unit is running, the light turns on.
When you press this button, the mode will change
from (COOL) to (FAN) to (DRY) in cycle.
,
ON/OFF button
Press this button to start operation, press it again
to stop operation.
❶ Press the
button so that the display indicates "COOL".
❷ Set the desired FAN SPEED with the
setting).
AUTO: The FAN SPEED is HI at first and varies to ME automatically when the preset
temperature has been reached.
❸ Set the desired room temperature with the
the actual room temperature may vary somewhat depending on conditions.
Use the device for dehumidifying when the room temperature is above 16°C.
When it is under 15°C, the dehumidifying function will not work.
button so that the display indicates "DRY" (DEHUMIDIFY).
❶ Press the
The FAN SPEED is set at "LO" automatically.
❷ Press the button.
button (the display indicates the
buttons. The temperature setting and
