Summary of Contents for BALAY 3VF341ND

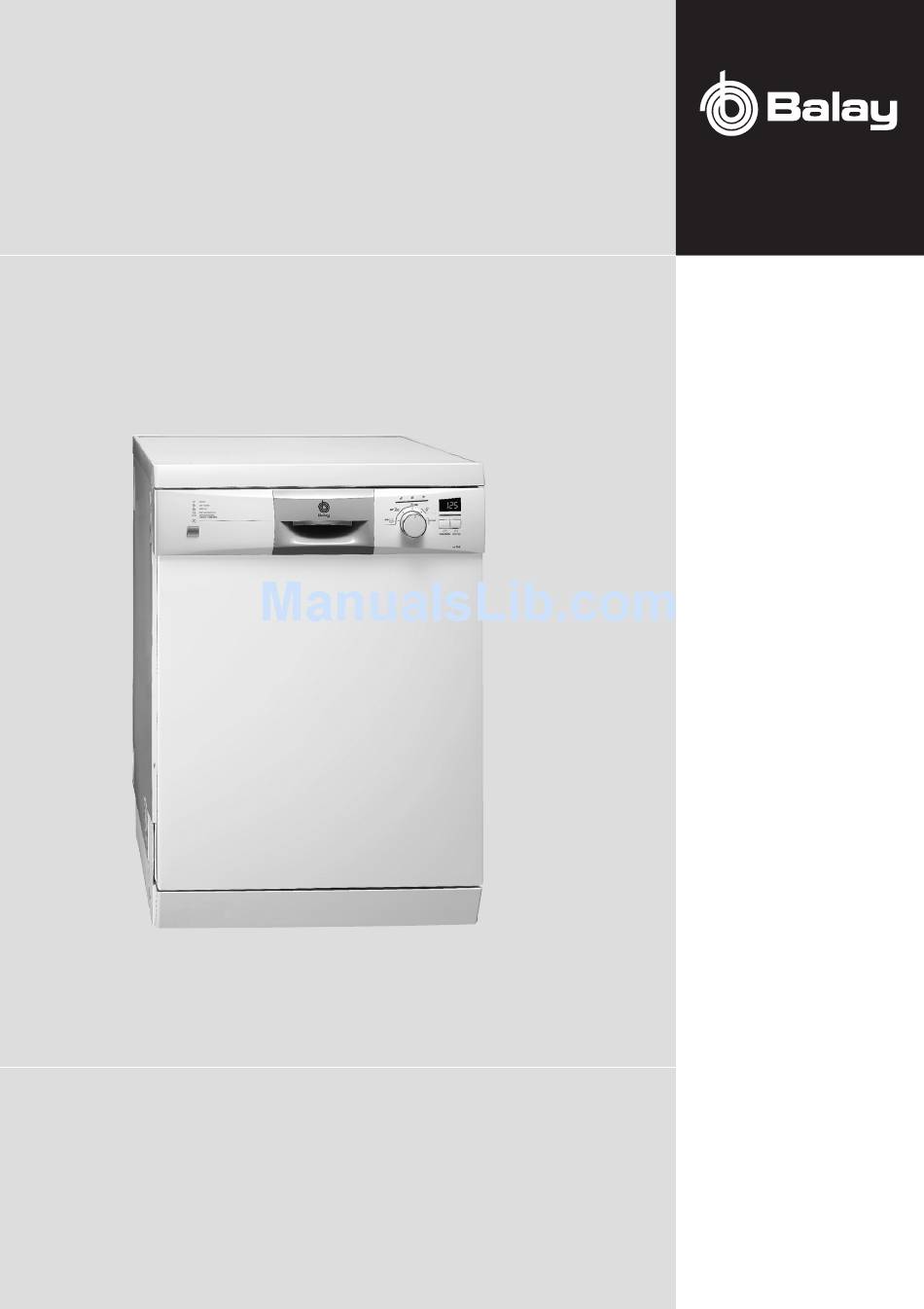

- Page 1 Instructions for use Dishwasher...
-
Page 3: Table Of Contents
Index Safety instructions ... . . Detergents ....Getting to know your appliance Programme overview . -
Page 4: Safety Instructions
Safety instructions Installation Install and connect the appliance Delivery according to the installation and Immediately check the packaging and assembly instructions. dishwasher for any damage which may The dishwasher must NOT be have been caused in transit. Do not use connected to the power supply during a damaged appliance, but consult your installation. -
Page 5: In Daily Use
In daily use If a fault occurs Repairs or other work on the dishwasher should only be carried out Warning by a qualified specialist. Knives and other utensils with sharp points The dishwasher must be disconnected must be placed in the baskets either flat or from the electricity supply before any with the points downwards. -
Page 6: Getting To Know Your Appliance
Getting to know your Appliance interior appliance Upper basket with 2-tiered cup rack Additional cutlery basket for the top Diagrams of the control panel and the basket * interior of the appliance can be found Upper spray arm in the envelope at the front. Lower spray arm Individual positions are referred to in the text. -
Page 7: Water Softener
Water softener To change the setting: Press programme button B . In order to rinse dishes and glasses Each depression of the button satisfactorily, the dishwasher requires soft increases the set value by one (0–3). water, i.e. containing little or no lime, If buttons A , B and C illuminate, otherwise water stains will be left behind the maximum hardness value has been... -
Page 8: Filling The Special Salt Container
Filling the special salt The LOW SALT indicator on the front panel will light up initially but will extinguish container again after a short period when the salt solution has become sufficiently How the salt works concentrated. While washing is taking place, salt is automatically rinsed out of the salt container into the water softener where it dissolves the lime in the water. -
Page 9: Filling The Rinse-Aid Container
Filling the rinse-aid Adjusting the amount of rinse-aid container The amount of rinse-aid added to the The purpose of a rinse-aid is to prevent water can be varied by adjusting the the formation of water marks on tableware stepless control. The rinse-aid control has and utensils, and to ensure that glasses been set to ”4”... -
Page 10: Unsuitable Dishes
Unsuitable dishes Damage to glassware and other dishes You should not clean the Possible causes: following items in your type of glass or manufacturing process dishwasher: chemical composition of detergent Cutlery and dishes made of wood. They water temperature and duration of will leach out and become unsightly;... -
Page 11: Arranging Crockery, Glasses, Etc
Arranging crockery, glasses, Cups and glasses etc. in the dishwasher Upper basket Loading the dishwasher Scrape off any large amounts of left-over food. It is not necessary to rinse the dishes under running water. Place objects in the dishwasher in such a way that D items such as cups, glasses, pots/pans, etc. -
Page 12: Small Accessories Holder
Cutlery Small accessories holder* Cutlery should be placed in the * some models dishwasher always unsorted and with the Light-weight plastic accessories, e.g. cups, eating surface pointing downwards. The lids, etc. can be held securely in the small spray jet is then better able to reach the accessories holder. - Page 13 Top basket with upper To lower the basket, press in succession the two levers on the left and lower roller pairs and right sides of the basket. Always Pull out the top basket. take hold of the side of the basket on Remove the top basket and re-attach it the upper edge, otherwise the basket to the upper or lower rollers.
-
Page 14: Detergents
Baking sheet spray head * Detergents * some models Information about detergents You can clean large baking sheets or You can use any brand of liquid or powder grilles with the baking sheet spray head. detergent, as well as tablets, that have To do this, remove the top basket and been specifically designed for use in insert the spray head as illustrated in the... -
Page 15: Adding Detergent
Detergent compartment with measuring marks Important The side of the detergent compartment is Due to the different solvency properties of marked with lines to help you determine the detergent tablets supplied by various how much powder to add. manufacturers, the cleaning efficiency of the detergent may not be fully utilised by The capacity of the detergent container is 15 ml up to the bottom line and 25 ml up to... - Page 16 If you are using detergent in tablet form, CAUTION read the manufacturer’s IMPORTANT NOTE recommendations on the packaging in ON THE USE OF order to determine where the tablets should be COMBINED CLEANING placed inside the dishwasher (e.g. in PRODUCTS cutlery basket, detergent compartment, Please note the following when using etc.).
-
Page 17: Programme Overview
Programme overview This overview lists the max. possible number of programmes. The programmes supplied with your appliance are indicated on the fascia. Type of crockery e.g.china, Non- pots/pans, Mixed Mixed Delicate delicate cutlery, glasses, etc. Type of food Rinse off if Soups, casseroles, Soups, potatoes, Coffee, cakes,... -
Page 18: Washing Dishes
Washing dishes End of programme The programme has come to an end when the PROGRAMME END indicator Reduce costs! the indicator for the selected programme are both lit up. If only a small number of Apart from this, the end of the programme dishes have been loaded into is indicated by a buzzer. -
Page 19: Maintenance And Care
Programme interruption Maintenance and care Carefully open the door, it could happen You can help prevent faults by checking that water splashes out of the and maintaining your appliance regularly. appliance. Only open completely when This will save time and reduce problems. the spray arm no longer turns. -
Page 20: Spray Arms
Spray arms Lime and remnants of food in the washing water can block the nozzles in the spray arms and the arm mountings . Inspect the nozzles in the spray arms for blocked holes due to remnants of food. If necessary, pull the lower arm upwards and lift it off. -
Page 21: Fault Finding
Pump * Fault finding on applicable models Resolving minor problems Larger remnants of food that have not yourself been trapped by the filters and have been Experience has shown that you can left in the water can cause a blockage in resolve most problems that arise during the pump. - Page 22 Water remains inside appliance Caution after programme has ended Blockage or kink in drainage hose. Do not forget that repairs Pump is jammed. should only be carried out by a qualified specialist. Improper Filters are blocked. repairs can lead to The programme is still running.
- Page 23 Knocking sound coming from inlet White stains are left on crockery, valves glasses have a milky appearance This is caused by the way the Not enough detergent was added water pipes have been laid and it to input compartment. has no effect upon the way the Amount of rinse-aid was set too appliance functions.
-
Page 24: Customer Service
Traces of rust on cutlery Customer Service Cutlery is not sufficiently rustproof. Please call your local service agent, if you Salt content in washing water is are not able to resolve any problem too high. yourself. The name of your nearest service Lid on salt container is not agent is shown in the Customer Service screwed tight. -
Page 25: Important Information
Important information General Built-under and integrated appliances Notes on waste disposal which are subsequently installed as Old appliances still have some residual free-standing appliances must be value. An environment-friendly method of secured to prevent them from falling disposal will ensure that valuable raw over, e.g. -
Page 26: Installation
Installation Fresh water connection Using the enclosed parts, connect the The dishwasher must be connected by fresh water connection to the tap a qualified technician to ensure correct according to the installation instructions. operation. The specifications for supply, Ensure that the fresh water connection is drainage and connected load must fulfil not kinked, crushed or twisted. -
Page 27: Removing The Appliance
Removing the appliance It is essential, when removing the appliance, to observe the following sequence: First, disconnect the appliance from the power supply. Pull out the mains plug. Turn off the water supply. Disconnect the waste water and fresh water connections. Loosen the fastening screws under the worktop. - Page 32 In order to protect the environment, we used recycled paper . BSH Electrodomésticos España, S.A. Itaroa 1 • 31620 Huarte-Pamplona (Navarra) • ESPAÑA 9000 0 32268 (8407) 1G00V8 630J Balay on the Internet: Browse our complete product catalogue at: www.balay.es Customer Support 902 145 150...
