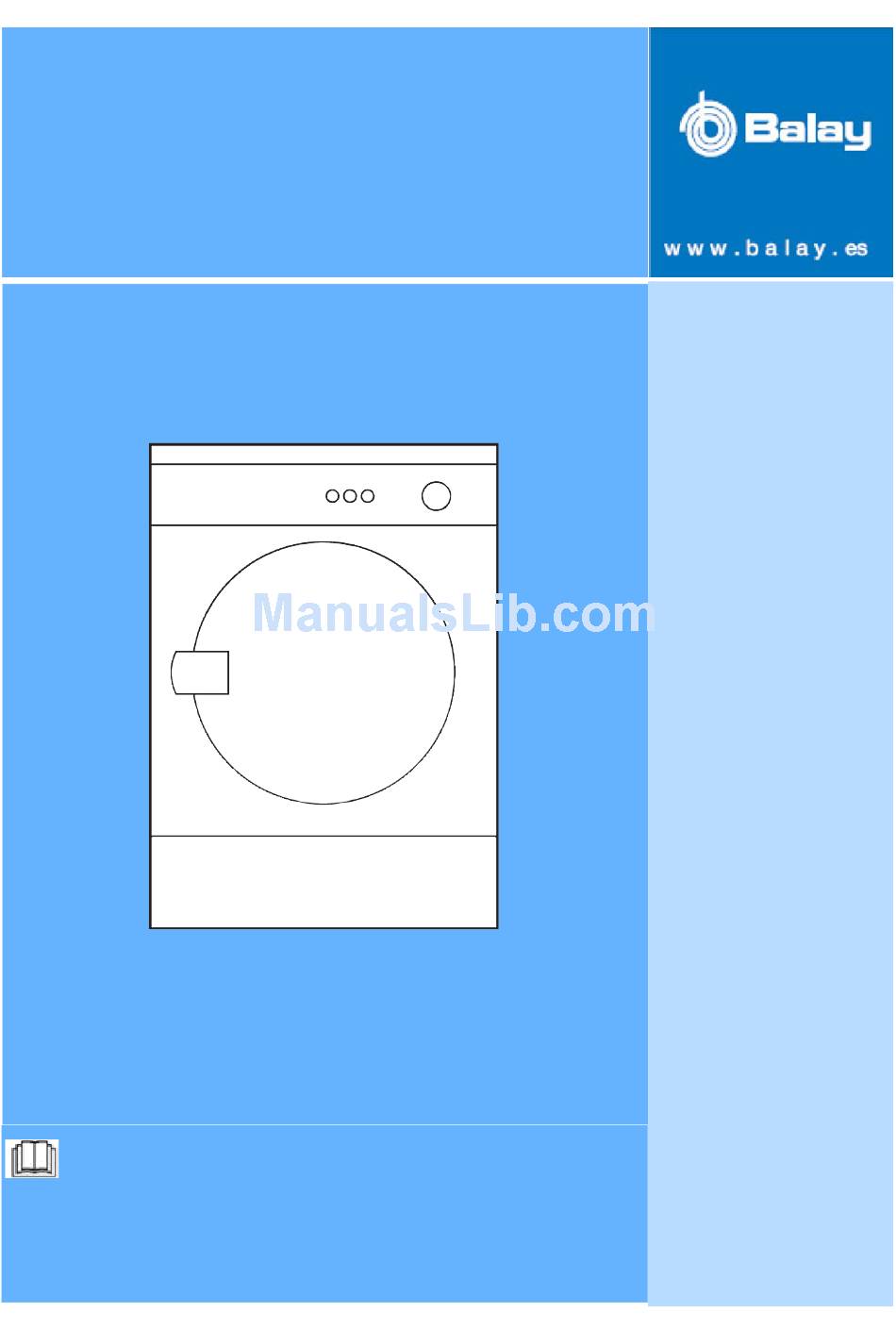

Installation and operating
instructions

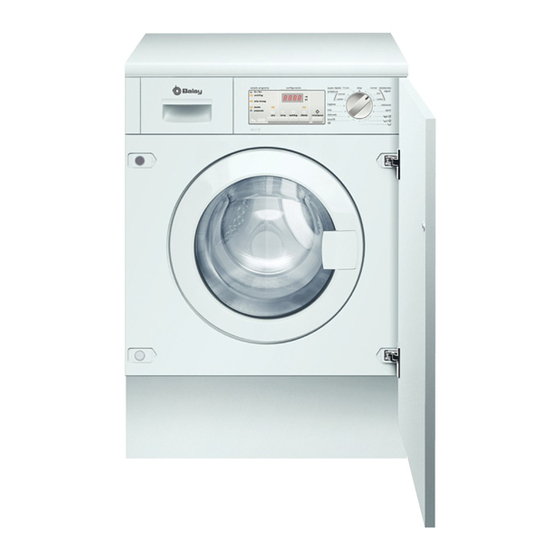

Washing machine
Please read the installation and operating instructions and all the
other information supplied and handle the appliance accordingly.
Keep all documents in a safe place for future reference, or to pass on to the
next owner.
For further information and a selection of our products, visit our website:
http://www.balay.es
en
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for BALAY 3TI62101A
Summary of Contents for BALAY 3TI62101A
- Page 1 Please read the installation and operating instructions and all the other information supplied and handle the appliance accordingly. Keep all documents in a safe place for future reference, or to pass on to the next owner. For further information and a selection of our products, visit our website: http://www.balay.es...
-
Page 2: Table Of Contents
Table of contents General safety information ............3 Operating instructions Environmental protection / conservation tips ......4 Your new washing machine ............5 Before the first wash ..............7 Preparing and sorting the laundry ..........7 Detergents and care products ..........9 Programmes ................11 Washing options ................13 Washing ..................14... -
Page 3: General Safety Information
General safety information The washing machine is designed: Intended use – exclusively for domestic use, – for machine-washable fabrics and hand-washable wool in detergent solution. – for operation with cold drinking water and commercially-available detergents and care products that are suitable for use in washing machines. -
Page 4: Operating Instructions Environmental Protection / Conservation Tips
Environmental protection / conservation tips – Separate the various waste materials of the packaging and take them to the nearest collection point. – Always fill the appliance with the maximum amount of laundry for each programme. – Wash normally soiled laundry without a prewash. –... -
Page 5: Your New Washing Machine
Your new washing machine You have opted for a modern, high-quality domestic appliance Description of the manufactured by Balay. A distinctive feature of the washing machine is washing machine its low energy consumption. Every machine that leaves our factory has been inspected thoroughly to ensure that it functions properly and is in perfect condition. -
Page 6: Control Panel
Control panel Programme progress ! inicio/pausa (Start/Pause) Display panel button Page 13. indicator lamps Shows the selected Shows the programme Starts the selected programme. settings, progress and the programme – Reset function: (e.g. temperature, status. Resets the machine to the spin speed) as well original settings ... -
Page 7: Before The First Wash
Before the first wash The washing machine was tested before leaving the factory. To remove any water that may be left over from the test, do not load any laundry the first time that you run a washing programme. Make sure that the transport safety bolts on the rear of the washing machine have been removed ... -
Page 8: Loading The Laundry
Only wash laundry with the following care labels: Sorting laundry accord- ing to the information on Care label Type of laundry the care labels Cottons 90°C. <; Coloureds 60 °C, 40 °C, 30 °C. Easy-Care 60 °C, 40 °C, 30 °C. BA>... -
Page 9: Detergents And Care Products
Detergents and care products The detergent drawer is divided into three compartments Detergent drawer Compartment I : Detergent for prewash Compartment II : Detergent for main wash. Compartment i : Liquid additives, such as starch or fabric softener. Additives are automatically dispensed during the final rinse cycle. –... - Page 10 Normally soiled laundry Measuring washing powder Set the programme without Prewash. Add all the detergent, according to the manufacturer's instructions, to compartment II of the detergent drawer. – Only use pH-neutral wool detergent for wool programmes. – Pour fabric softener into compartment i. Heavily soiled laundry ...
-
Page 11: Programmes
Programmes The programme selector is used to set the washing and drying pro- Programme selector grammes. The display shows suitable standard presettings for the tem- perature, spin speed and running time. normal resistentes algod. (Cottons) Washing programmes Suitable for hard-wearing fabrics, heat-resistant fabrics made from cotton or linen. - Page 12 delicado (Delicate/Silk) Gentle programme for delicate, washable fabrics, e.g. silk, satin, synthetic fibres or blended fabrics (such as curtains). Gentle spinning between the rinse cycles and reduced final spin speed. lana/lã (Wool) Wool becomes matted when subjected to heat, moisture and movement. The wool programme takes these qualities into account and finds a compromise between standing still and movement.
-
Page 13: Washing Options
Washing options Increased water level during the washing and rinsing cycle. For areas plus (water plus) with very soft water or to further improve the washing result. button The lamp lights up if R plus (water plus) was selected. The temperature can be individually adjusted for each programme. °C temp. -
Page 14: Washing
Washing Turn the programme selector to the desired programme, Washing e.g. normal resistentes algod. (Cottons) 60°C. The lavado (Wash) (Ready) indicator lamp flashes Change the spin speed or Rinse stop ( page 13) and temperature if required. ... -
Page 15: Adding Laundry
Adding laundry If you want to add subsequent items of laundry after the programme has started, press and hold the ! inicio/ pausa (Start/Pause) button until ˜‘—† appears in the display panel. ˜‘—† and the remaining time appear alternately while the programme is paused. Press the ! inicio/ pausa (Start/Pause) button to continue with the programme. -
Page 16: Cleaning And Care
Cleaning and care Risk of electric shock Safety information You must first disconnect the appliance from the mains. Never clean the washing machine with a water jet. Risk of explosion. Never clean the washing machine with solvents. Risk of scalding Hot detergent solution must be cooled before being drained. - Page 17 Detergent solution pump Information about blockages Turn the programme selector to stop (Off). Use a screwdriver to release the lock pins. Fold down the service panel and remove to the top. Draining the water Take the drain hose out of the retainer. ...
- Page 18 If no (or not enough) water runs into the washing machine, you must first Filter in the water supply reduce the water pressure in the supply hose: Turn off the tap. Choose any programme (except (Rinse + Spin)/ (Empty)).
-
Page 19: What To Do If
What to do if... Risk of electric shock Repairs must only be carried out by the after-sales service or authorised technicians. If repairs are required, or if you cannot rectify a fault yourself with the help of the following table: ... - Page 20 Damp or lumpy detergent. Clean and dry the detergent drawer Detergent residues in the page 16. detergent drawer. Use the measuring aid for liquid detergent. The mains plug is not correctly Plug in the mains plug correctly. Water is not flowing in. plugged in.
- Page 21 Soiling worse than expected. Select a suitable programme, e.g. a Washing results not programme with Prewash. Pretreat satisfactory. stains if necessary. Too little or incorrect detergent used. Use the correct dosage of a suitable detergent, in accordance with the manufacturer's instructions. Maximum load exceeded.
-
Page 22: After-Sales Service
After-sales service Before you call the after-sales service, please check whether you can correct the fault yourself page 19. You will be charged if a technician is called out, even during the warranty period. You can find information about your nearest after-sales service here or in the after-sales service directory (depending on the model). -
Page 23: Installation Instructions
Installation instructions The washing machine is heavy - take care when lifting it. Safety information Do not operate the washing machine if it has visible signs of damage. If you are in any doubt, please consult our after-sales service or your retailer. - Page 24 Removing the transport safety bolts Unscrew all four screws Remove all transport safety bolts completely using the key provided. and take the mains cable out of the retainers. – Before using the appliance for the first time, ensure that all transport safety bolts have been removed and kept safe for any subsequent transport.
-
Page 25: Hose And Cable Lengths
Dimensions Width x depth x height 596 mm x 585 mm x 818 mm Weight 76 kg Hose and cable lengths Left-hand connection Right-hand connection – To prevent leaks or water damage, you must observe the instructions Water connection in this section. –... -
Page 26: Water Supply
Do not allow the water supply hose to be: Water supply – bent, squashed, modified or cut through (otherwise its strength is no longer guaranteed). Note the water pressure in the mains supply: – The water pressure should be between 50-900 kPa (0.5-9 bar) (at least 8 litres of water flow out per minute when the tap is turned on). - Page 27 Once the washing machine has been installed in a kitchen unit, it can be Fitting the door hinges concealed using a door. If you wish to do this, you must fit the supplied hinges to the washing machine. to the washing machine...
-
Page 28: Table Of Programmes
Table of programmes Observe the information about care labels, fabric type and load quantity. Type of laundry Option* Programmes* °C** Max. load Max. spin speed*** Water + normal resistentes algod. cold-90 (Cottons) Hard-wearing fabrics, heat-resistant fabrics made of cotton or 6 kg 1200 rpm* linen. -
Page 29: Appendix Consumption Rates
Consumption rates Washing Programme Load Power** Water** Programme duration** 0.80 kWh 60 l 1:51 h normal resistentes algod. (Cottons) 40 °C normal resistentes 2.10 kWh 65 l 2:21 h 6 kg algod. (Cottons) 90 °C 1.02 kWh 45 l 2:06 h eco resistentes algod. -
Page 30: Index
Index Adding laundry 15 delicado (Delicate/Silk) Fault message 19 -Programmes 12, 28, 29 Faults 19 Filter Care information Descaling 16 -Water supply hose 18 -Washing 8 Detergent 9 -Liquid detergent insert 9, 10 First wash 7 Care product 9 Liquid detergent insert 10 Function selector buttons 6 Changing the programme 14 Cleaning... - Page 31 normal resistentes algod. Safety information 3, 16, 19, 23 Washing 14 (cottons) sintéticos (Easy-Care) Washing machine door 5, 14 -Programmes 11, 14, 28, 29 -Programmes 11, 28, 29 Washing options -Indicator lamps 6, 13 sintéticos prelav. (Easy-Care) -Programmes 11 Washing programmes 11 Power 29 Water 29 prelav.
- Page 32 Further information about our products, accessories, spare parts and service can be found at: http://www.balay.es or via our after-sales service centres. BSH Electrodomésti- Itaroa, 1 3TI62101A/ 3T62121A 31620 HUARTE PAMPLONA 12.2010 cos España, S.A. NIF/VAT A-28893550 9000586515 ESPANA 19291011200...
