BALAY 3TS60106A Instruction Manual

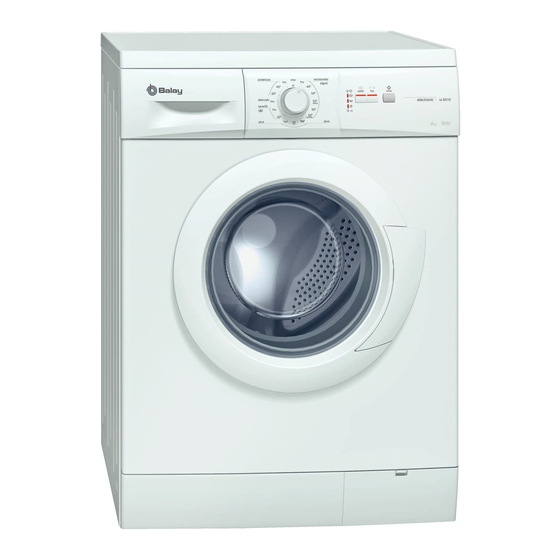

Your washing machine Intended use
Congratulations You have opted for a modern, high-quality for use in the household only,
domestic appliance manufactured by Balay. This washing machine for machine-washable fabrics and hand-washable wool
is distinguished by its economical water and energy consumption.
in detergent solution,
Each machine that leaves our factory has been inspected thoroughly
to be operated with cold drinking water and commer-
to ensure that it functions properly and is in perfect condition. cially available detergents and care products which are
suitable for use in washing machines.
For further information and a selection of our products go to our web .
site: www.balay.es – Do not leave children unattended near the
washing machine.
– The washing machine is not to be used by
Environmentally friendly waste disposal
children or persons not familiar with the
operating instructions.
All packaging must be disposed of in accordance with
environmental guidelines. – Keep pets away from the washing machine.
This appliance is certified in accordance with European Directive
2002/96/EC on waste electrical and electronic equipment (WEEE).
This directive provides the framework for the EU-wide collection and
reuse of used appliances.
Contents
Page
Intended use .......................................................................................1
Programmes .......................................................................................1
Setting and adjusting the programme ...........................................3
Washing ...........................................................................................3/4
Programmes
After washing ......................................................................................4
Detailed overview of programmes page 7.
Individual settings ..............................................................................5
Important information ........................................................................6
algodón/algodão (cottons) hard-wearing fabrics
Overview of programmes ................................................................7
algodón/algodão eco hard-wearing fabrics
Safety instructions .............................................................................8
(cottons eco)
Consumption values .........................................................................8
algodón/algodão + prelav. hard-wearing fabrics , prewash
Care .....................................................................................................9
(cottons + prewash) at 30 °C
Information to indicator lights ..........................................................9
Maintenance .................................................................................... 10 (rinse) with subsequent spin cycle
What to do if... .................................................................................. 11
(spin) laundry washed by hand
plus (empty) the rinsing water
/ lana/lã (wool) hand/machine-washable
textiles
Environmental protection/Conservation tips
– Always fill the washing machine with a maximum amount of delicado (delicates) delicate washable fabrics
laundry for the relevant programme.
sintéticos (easy-care) easy-care fabrics
– Wash normally soiled washing without a pre-wash (model-
dependent).
– Instead of algodón/algodão (cottons) 90 °C, choose the
programme algodón/algodão eco (cottons eco) 60 °C.
Comparable cleaning result with significantly lower energy
consumption.
– Measure the detergent according to the manufacturer's
instructions and water hardness.
– If the laundry is then dried in the tumble dryer, select the spin
speed according to the instructions of the dryer manufacturer
(model-dependent).
1
Preparation Before washing for the first time
Wash once without any laundry
Sorting and loading laundry
Correct installation according to the
separate Installation instructions.
Follow the manufacturer's care information.
According to the information on the care labels.
Checking the machine
According to type, colour, soiling and temperature.
Do not exceed the maximum load
– Never use a damaged machine.
Observe the important information
– Inform the after-sales service.
Insert large and small items of laundry.
Close the washing machine door. Take care not to trap items of laundry
Connecting the mains
between the washing machine door and the rubber seal.
plug
Add detergent and care products
Make sure your hands are dry.
Take hold of the plug only.
Amount of laundry, soiling, water hardness (ask your water supply
company) and manufacturer's instructions.
Turning the tap on Pour liquid detergent into the appropriate dispenser and place in the drum.
Compartment II: Detergent for the main wash, water softener,
Dilute thick fabric softener and fabric conditioner with water.
bleach, stain remover
This prevents blockages.
Compartment : Fabric softener, starch
Compartment I: Detergent for pre-wash (model-dependent)
Setting and adjusting programmes
(*spin speed depending on model)
Additional function
settings, page 5.
Programme selector Status Additional Start
indicators function*
Select
start
Programme selector for
switching the machine on
wash
and off and for selecting the
programme. Can be turned rinse
in either direction.
spin
end
2
Washing Removing the washing
page 9.
Open the washing machine door and remove the washing.
If flot (no spin) (without final spin) is active: Turn the
programme selector to
speed (model-dependent).
Select inicio (start).
Detergent drawer with – Remove any foreign objects - risk of rusting.
page 7.
compartments I, II,
– Leave the washing machine door and detergent
page 6.
drawer open so that any residual water can
Drum
evaporate.
Turning the tap off
Control panel
Washing machine
Measure accordingly: door
Switching off
Turn the programme selector to stop (off).
1
End of programme when ...
Individual
... the status indicator
Interrupting the programme
Programmes at high temperatures:
– Cool washing: Select
3
– Select inicio (start).
Programmes at lower temperatures:
– Select (spin) or
Service flap for
– Select inicio (start).
detergent solution
inicio (start) 2
pump
Changing the programme, if ...
... you have selected the wrong programme by mistake:
– Reselect the programme.
– Select inicio (start). The new programme starts from
the beginning.
Washing
3
Individual settings
Additional functions and overview of programmes, see page 7.
plus (empty) or select the spin
flot (no spin) Clothing remains immersed in the last rinse water.
centrif. Reduce spin speed (values depending on model).
inicio (start)
For starting the programme.
(spin) - (end) flashes.
(rinse).
plus (empty).
4
Important information
Protecting the washing and the machine
– When determining the dosage of all washing powders, additives and cleaning agents, you
must follow the manufacturer's instructions.
– Empty pockets.
– Look out for metal items (paperclips, etc.).
– Wash delicates in a laundry bag (tights, curtains, underwired bras).
– Fasten zips, do up any buttons.
– Brush sand out of pockets and collars.
– Remove curtain fittings or place in the laundry bag.
Washing with varying degrees of soiling
Wash new items of clothing separately.
light Do not pre-wash.
If required, pretreat stains.
Select programme algodón/algodão eco (cottons eco) 60 °C.
heavy Load less washing. Select programme algodón/algodão + prelav.
(cottons + prewash) 60°C.
Starching
Washing must not be treated with fabric softener
Starching is possible in all wash programmes if liquid starch is used. Pour the starch in
accordance with the manufacturer's instructions into fabric softener compartment (rinse first
if necessary).
Dyeing / Bleaching
Dye should only be used in normal household quantities. Salt may damage stainless steel.
Always follow the dye manufacturer's instructions! Do not use the washing machine for
bleaching clothes!
5 6
