DE Kabelloses TENS&EMS-Gerät

Gebrauchsanleitung .....................................2

EN Wireless TENS & EMS Device

Instructions for use ....................................21

FR Wireless Electrostimulateur TENS/EMS

numérique

Mode d'emploi ...........................................39

ES Aparato TENS y EMS inalámbrico

Instrucciones de uso ..................................57

Apparecchio TENS/EMS wireless

Istruzioni per l'uso ......................................75

TR Kablosuz TENS ve EMS cihazı

Kullanım kılavuzu........................................93

RU Беспроводной прибор TENS и EMS

Инструкция по применению ..................111

PL Bezprzewodowe urządzenie TENS i EMS

Instrukcja obsługi .....................................130

EM 70

Need help?

Do you have a question about the EM 70 and is the answer not in the manual?

Questions and answers

Summary of Contents for Beurer EM 70

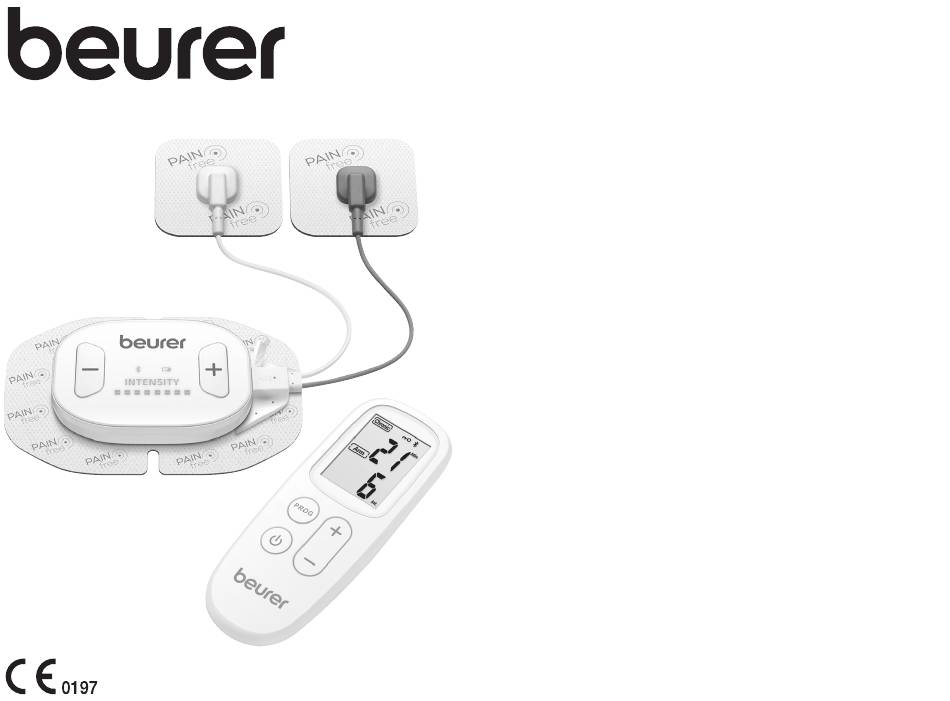

Page 1 EM 70 DE Kabelloses TENS&EMS-Gerät Gebrauchsanleitung ........2 EN Wireless TENS & EMS Device Instructions for use ........21 FR Wireless Electrostimulateur TENS/EMS numérique Mode d’emploi ...........39 ES Aparato TENS y EMS inalámbrico Instrucciones de uso ........57 Apparecchio TENS/EMS wireless Istruzioni per l’uso ........75 TR Kablosuz TENS ve EMS cihazı...
Page 2 7. Device description ...............26 tomer Service address. 8. Initial use ..................27 You can also download the free "beurer PainAway" App for iOS and 9. Usage ..................28 Android™. The "beurer PainAway" app is an application assistance 9.1 Using the main unit ..............28 where you will get suggestions for the electrode placement and ex- 9.2 TENS-Chronic Pain and Acute pain ........29...
Page 3 2. Package contents Note 1 x EM 70 Unit Note on important information 1 x Remote controller 1 x Electrode pad (50*50mm 2pcs) Only use indoors. 1 x Electrode pad (110*70mm 1pc) 1 x Electrode pad (190*95mm 1pc) 1 x Micro-USB cable...
Page 4 WARNING Storage / Transport Transportation and storage humidity limits Do not use this device with the following medical devices: from 10% to 90% • Implanted electronic medical devices, such as pace- makers. This may cause electric shock, burns, or death. Disposal in accordance with the Waste Electrical •...
Page 5 • Do not use the device over open wounds or rashes, and over • Do not modify the device or the electrodes without authorization swollen, red, infected, or inflamed areas or skin eruptions (e.g., of the manufacturer. This could cause improper functioning. phlebitis, thrombophlebitis, varicose veins).
Page 6 What is it? • Do not use this device for any other purpose than what it is in- The WirelessTENS&EMS Device EM 70 is highly effective in tem- tended for. porarily relieving pain. Gentle electrical pulses are sent via water •...
Page 7 How TENS works? For optimum results, we recommend supplementing your elec- Scientific theory suggests that electrical stimulation therapy may trostimulation sessions with other commitments, such as: work in several ways: • Regular physical exercise • The gentle electrical pulses move through the skin to nearby •...
Page 8 Insert the Micro-USB plug of the Micro-USB cable into the Micro- • Fully charge the battery of the Main unit at least every 6 months. USB charging port of the EM 70 device, and then connect to the • Choking hazard! Small children may swallow and choke on batter- Standard USB plug of the Micro-USB cable to the appropriate pow- ies.
Page 9 • If the batteries of the Remote Controller leaks, put on protective If you use EMS mode, you can connect the extended electrodes to gloves and clean the battery compartment with a dry cloth. adapt to different treatment area.(See Electrode Pad Placement for •...
Page 10 Step 3 – Placing the Electrode pads 9.2 TENS-Chronic Pain and Acute pain Remove the clear plastic film from the back of the pad. NOTE Place the device on clean, dry and healthy skin, near or surrounding To treat areas of shoulder, back, please use large size electrode. the area with pain.
Page 11 Body Back 9.3 EMS-Muscle Stimulation NOTE You can connect the extended electrodes to adapt to different treat- ment area. MASSAGE-Relax The electrode pad placement is same as the TENS or EMS. At- tach both pads on either side of the region where you want to relax.
Page 12 Step 4 – Starting a session only through the EM 70 UNIT 9.4 The remote controller to control the main device Turn on the device by press [ ] button, then you can press [+] but- Step 1 – Turn on the main unit and remote control ton to start a treatment.
Page 13 Step 2 – Choose Treatment Body parts Step 4 – Start treatment and adjust intensity Press [PROG] button to set the treatment body parts (Arm-Body- Start the electrical stimulation by pressing [+].Adjust electrical stim- Back- Joint-Leg). Switch between body parts by pressing [ +/- ] but- ulation intensity by pressing [+] or [-] button.
Page 14 Key lock/unlock function If the device is frequently used during the day, it is advisable to Press [PROG] and [ ] button together to lock the intensity setting charge it before starting a new session. button in output status. The indicator [ ] will display on LCD.
Page 15 12. Problems / solutions • If replacement electrodes are necessary, use only electrodes that are the same as the electrodes provided with the EM70. Problem Possible causes Possible solution • Always use electrodes with CE mark. • Always clean the electrodes after your treatment every time. The unit can not Are the batteries Charging.
Page 16 78 g(with batteries) can not power on installed correctly? observing polarity. Service life of the device: 2 years The Remote control Restart the EM 70 Bluetooth ® Service life of electrode 10~20 times can’t connect to the connection failure.
Page 17 Maximum Output Powers <20 dBm household waste at the end of its service life. Dispose of the device at a suitable local collection or recycling point in your country. The EM 70 uses low energy technology, frequency band Bluetooth ®...
Page 18 • If the device will not be used for some time, take the batteries out HOW TO CONTROL AND REDUCE YOUR PAIN of the battery compartment. When should the device be used? • Use identical or equivalent battery types only. Use as soon as your pain begins.
Page 19 NOTE If you feel pain, dizziness, discomfort or nausea, discontinue use of device and call your physician or medical practitioner. What type of pain is it best for? This therapy works best on acute pain because it is localized. Acute pain is pain in one area for less than 3 months.
Page 20 The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Beurer ® GmbH is under license. Other trademarks and trade names are those of their respective owners. Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc., registered in the U.S.
