Sony VIP-1000 Service Manual

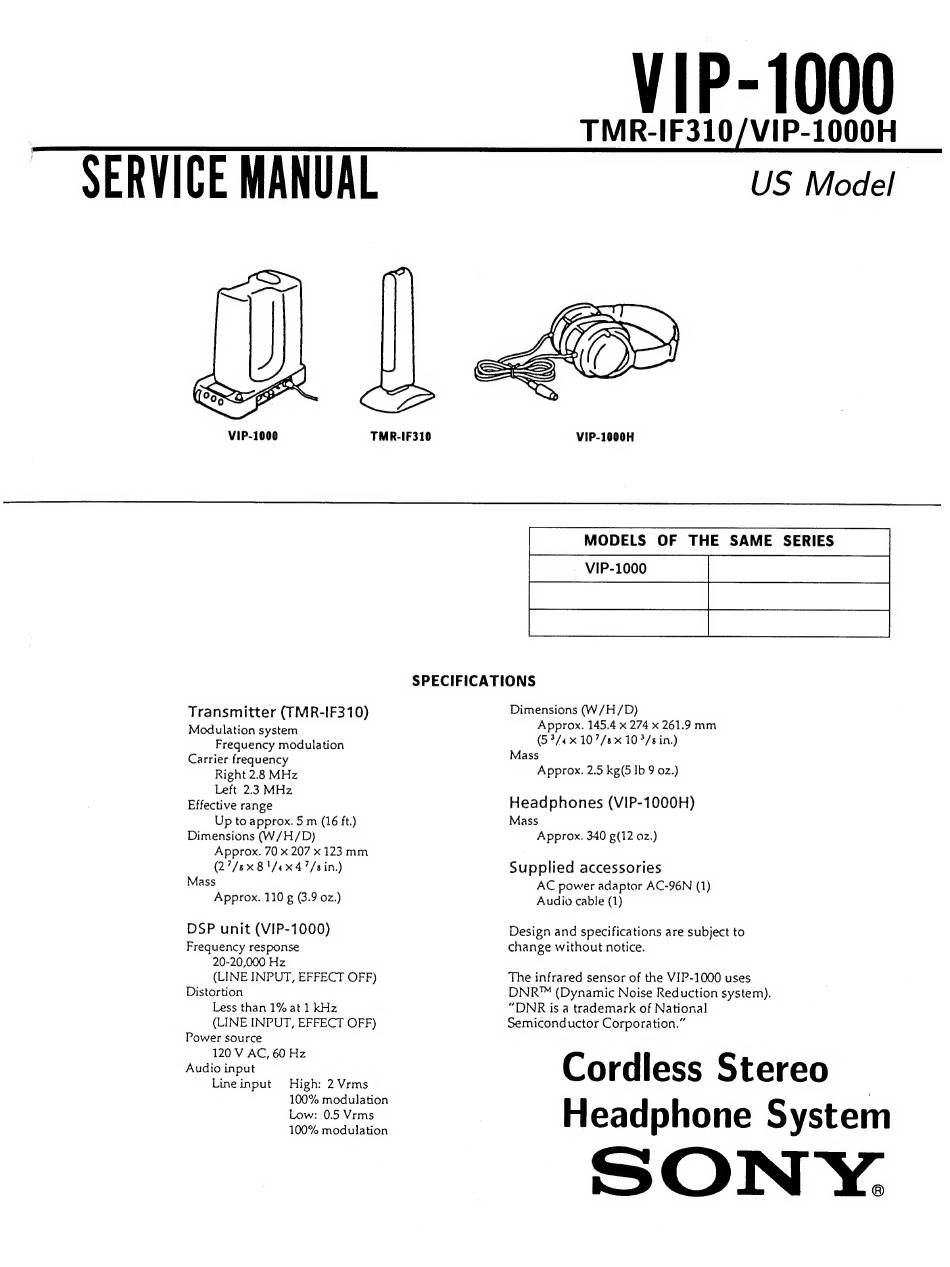

SERVICE MANUAL
VIP-1000 TMR-IF310
Transmitter (TMR-IF310)
Modulation system
Frequency modulation
Carrier frequency
Right 2.8 MHz
Left 2.3 MHz
Effective range
Up to approx. 5 m (16 ft.)
Dimensions (W/H/D)
Approx. 70 x 207 x 123 mm
(27/8x8'/4x4?/sin.)
Mass
Approx. 110 g (3.9 oz.)
DSP unit (VIP-1000)
Frequency response
20-20,000 Hz
(LINE INPUT, EFFECT OFF)
Distortion
Less than 1% at 1 kHz
(LINE INPUT, EFFECT OFF)
Power source
120 V AC, 60 Hz
Audio input
Lineinput High: 2 Vrms
100% modulation
Low: 0.5 Vrms
100% modulation
VIP-1000
TMR-IF310/VIP-1000H
US Model
VIP-1000H
MODELS OF THE SAME SERIES
SPECIFICATIONS
Dimensions (W/H/D)
Approx. 145.4 x 274 x 261.9 mm
(53/4 x 107/8 x 10 */s in.)
Mass
Approx. 2.5 kg(5 Ib 9 02.)
Headphones (VIP-1000H)
Mass
Approx. 340 g(12 oz.)
Supplied accessories
AC power adaptor AC-96N (1)
Audio cable (1)
Design and specifications are subject to
change without notice.
The infrared sensor of the VIP-1000 uses
DNR™ (Dynamic Noise Reduction system).
"DNR is a trademark of National
Semiconductor Corporation."
Cordless Stereo
Headphone System
SONY.
