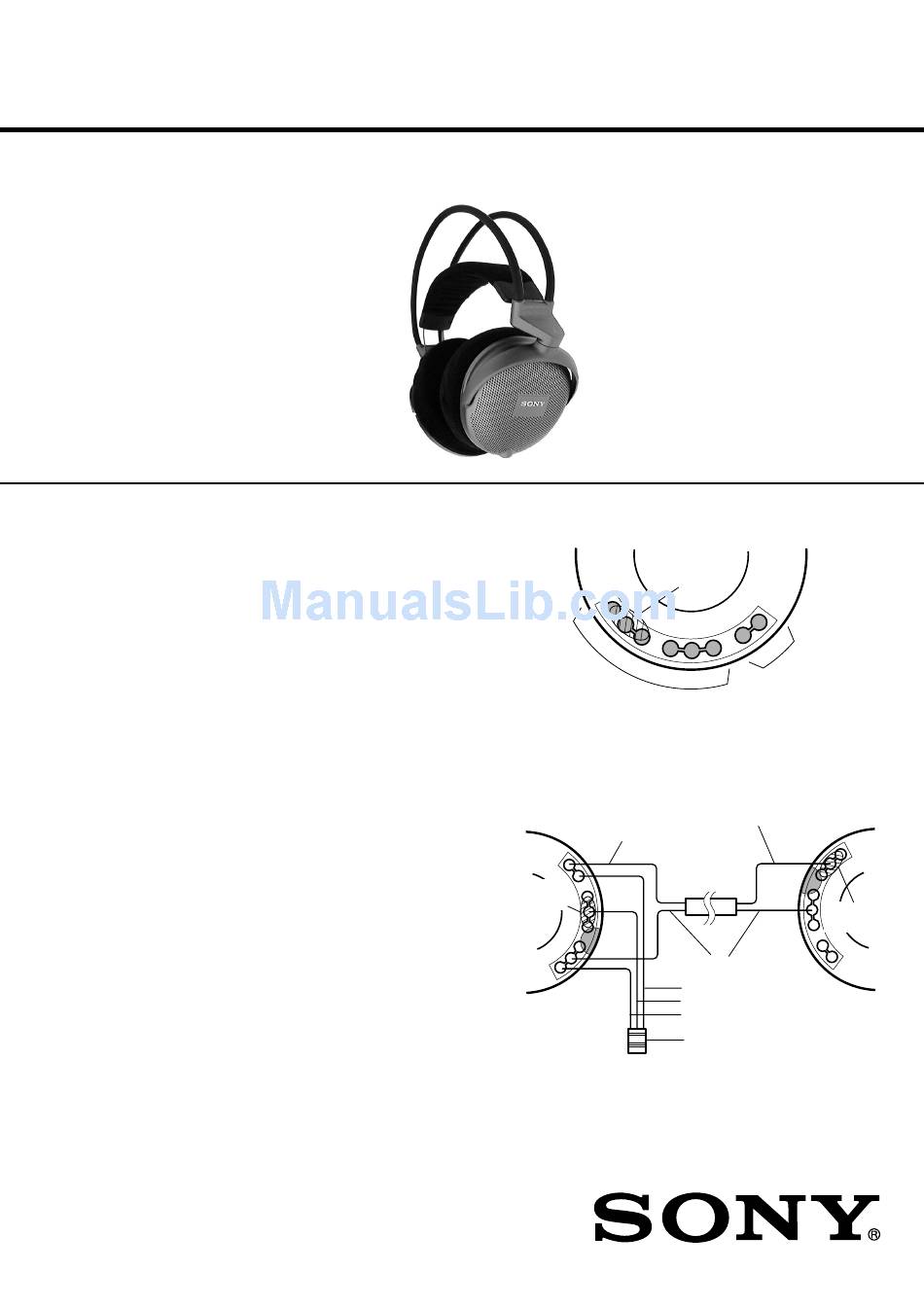

SERVICE MANUAL
Ver 1.1 2002. 02
SPECIFICATIONS
Type: Dynamic, closed
Driver units: ø 50 mm, dome type
Impedance: 32 ohms at 1 kHz
Sensitivity: 106 dB/mW
Power handling capacity: 1500 mW (IEC)
Frequency response: 5 – 30,000 Hz
Cord: Approx. 3.5 m long detachable LC-OFC litz
cord with a gold-plated stereo unimatch plug
Mass: Approx. 300 g (without cord)
Supplied accessory: Pouch
Design and specifications are subject to change
without notice.
Sony Corporation
9-927-663-12
2002B0400-1
Personal Audio Company
© 2002. 02
Published by Sony Engineering Corporation
MDR-CD2000
• DRIVER DIAGRAM
The position marked with a marker
is on the + side. (indefinite)
• CONNECTION DIAGRAM
Note : The connection depends on the + side position
of the driver.
driver (L)
marked
position
US Model
AEP Model
Marked position
(+ side)
Relay terminal
(no connection)
RED (R)
RED (R)
NATURAL (GND)
RED (R)
WHITE (L)
BLACK (GND)
JACK (SMALL TYPE)
STEREO HEADPHONES
driver (R)
marked
position
