Page 37

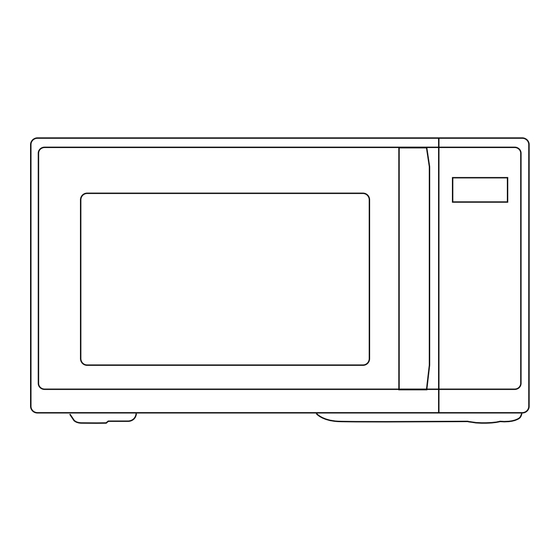

INSTRUCTION MANUAL MICROWAVE OVEN MW3-EG25PE(BK) Please review this instruction manual before operating.
Page 38
CONTENTS PRODUCT SAFETY Precautions to avoid possible exposure to excessive microwave energy ........EN-01 Speci cations ............................EN-02 Important safety instructions ........................EN-03 To reduce the risk of injury to persons grounding installation ............EN-08 Cleaning ................................EN-10 Utensils .................................. EN-11 Materials you can use in microwave oven ....................
Page 39
13. Lock function ........................... EN-28 14. Eco function ........................... EN-28 15. Mute function ............................EN-28 16. Auto menu ............................EN-29 CLEANING AND MAINTENANCE Cleaning ................................EN-30 Trouble shooting ............................... EN-32 BEFORE OPERATING THIS PRODUCT, READ, UNDERSTAND, AND FOLLOW THESE INSTRUCTIONS. BE SURE TO SAVE THIS BOOKLIST FOR FUTURE NOTE REFERENCE.
Page 40
PRODUCT SAFETY PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a). Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks. (b).
Page 41
SPECIFICATIONS MW3-EG25PE(BK) MODEL MULTIFUNCTION MAIN FUNCTION 25 L CAPACITY 230 V~ VOLTAGE 50 Hz FREQUENCY PROTECTION AGAINST ELECTRIC SHOCK CLASS 1300 W GRILL 1000 W 800 W MICROWAVE FREQUENCY 2450 MHz 11.9 kg WEIGHT 472 x 378 x 280 DIMENSION (WXDXH) All pictures in this manual are for illustrative purposes only;...
Page 42
IMPORTANT SAFETY INSTRUCTIONS persons or exposure to excessive microwave oven energy when using your appliance, follow basic WARNING precautions, including the following: Read and follow the Children should be PRECAUTIONS supervised to ensure that TO AVOID POSSIBLE they do not play with the EXPOSURE TO EXCESSIVE appliance.
Page 43
IMPORTANT SAFETY INSTRUCTIONS WARNING: It is hazardous Only use utensils that for anyone other than a are suitable for use in competent person to carry microwave ovens. out any service or repair operation that involves the If smoke is emitted, switch removal of a cover which gives protection against and keep the door closed...
Page 44
IMPORTANT SAFETY INSTRUCTIONS The microwave oven must The oven should be be operated with the cleaned regularly and any decorative door open. (for food deposits removed. ovens with a decorative Please keep the waveguide door.) area clean. Use soft damp cloth to clean it up when This appliance is intended there is food splash residue...
Page 45
IMPORTANT SAFETY INSTRUCTIONS The appliance is intended has ended. to be used freestanding. The rear surface of appliances shall be placed against a wall. The appliance must not be installed behind a The temperature of decorative door in order accessible surfaces may be to avoid overheating.
Page 46
IMPORTANT SAFETY INSTRUCTIONS The appliances are not intended to be operated by means of an external timer or separate remote-control system. READ CAREFULLY AND KEEP FOR FUTURE REFERENCE HOUSEHOLD USE ONLY (NOT FOR COMMERCIAL USE) EN-07...
Page 47
TO REDUCE THE RISK OF INJURY TO PERSONS GROUNDING INSTALLATION This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug.
Page 48
TO REDUCE THE RISK OF INJURY TO PERSONS GROUNDING INSTALLATION Electric Shock Hazard: Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded. 1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
Page 49
CLEANING Be sure to unplug the appliance from the power supply. 1. Clean the cavity of the oven after using with a slightly damp cloth. 2. Clean the accessories in the usual way in soapy water. 3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.
Page 50
UTENSILS Personal Injury Hazard: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy. See the instructions on " Materials you can use in microwave oven "...
Page 51
MATERIALS YOU CAN USE IN MICROWAVE OVEN UTENSILS REMARKS Follow manufacturer’s instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause Browning dish the turntable to break. Microwave-safe only. Follow manufacturer’s instructions.
Page 52
MATERIALS YOU CAN USE IN MICROWAVE OVEN UTENSILS REMARKS Microwave-safe only. Follow the manufacturer’s instructions. Should be labeled “Microwave Safe”. Some plastic containers soften, as the food inside gets hot. “Boiling bags” and tightly closed plastic bags should be Plastic slit, pierced or vented as directed by package.
Page 53
MATERIALS CAN NOT BE USED IN MICROWAVE OVEN UTENSILS REMARKS May cause arcing. Transfer food into microwave-safe dish. Aluminum tray May cause arcing. Transfer food into microwave-safe dish. Food carton with metal handle Metal shields the food from microwave energy. Metal trim may cause arcing.
Page 54
PRODUCT SETTING SETTING UP YOUR OVEN (In case of any di erences between the appliance and the pictures in this manual, the product shall prevail.) NAMES OF MICROWAVE OVEN PARTS AND ACCESSORIES Remove the oven and all materials from the carton and oven cavity. Turntable Ring Assembly Glass Tray Instruction Manual...
Page 55
SETTING UP YOUR OVEN SETTING UP YOUR OVEN TURNTABLE INSTALLATION Clean the cooking compartment and place the turntable. For new installations, make sure all packaging and shipping tape has been removed from the turntable shaft. Before using the appliance to prepare food for the first time, you will need to put the turntable in place correctly.
Page 56
COUNTERTOP INSTALLATION Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged. Cabinet: Remove any protective film found on the microwave oven cabinet surface. Do not remove the waveguide cover that is attached to the oven cavity to protect the magnetron.
Page 57
INSTRUCTION FOR USE BEFORE USING FOR THE FIRST TIME It is normal that the oven may produce unpleasant odors when it is used for the first time. This section tells you what you need to do before using your microwave to prepare food for the first time.
Page 58
OPERATION CONTROL PANEL AND FEATURES EN-19...
Page 59
1. POWER LEVELS power levels are available PRESS NUMBER KEY POWER DISPLAY 100% PL10 2. SETTING THE CLOCK When the microwave oven is plugged into an outlet , "0:00" will display. Press once, “00:00” will appear on the display. Press the number keys to set the time. For example, press 1,2,0,5 to set the time to “12:05 ”.
Page 60
3. SETTING THE KITCHEN TIMER When the microwave oven is plugged into an outlet, "0:00" will display. Press twice, “00:00” will appear on the display. Press the number keys to set the time, the maximum value is “99:99”. Press to start counting down. •...
Page 61
Press the number keys to set the power level as the power chart. Press to start cooking. 5. GRILL COOKING Press once, “G-1” will appear on the display. Press the number keys to set the cooking time, the maximum value is “99:99”. Press to start cooking.
Page 62
6. COMBINATION COOKING (MICROWAVE+GRILL) Press 2~3 times, “C-1” or “C-2” will appear on the display in order. Press the number keys to set the cooking time, the maximum value is “99:99”. Press to start cooking. 7. DEFROST BY WEIGHT Press once, “dEF1”...
Page 63
8. DEFROST BY TIME Press twice, “dEF2” will display. Press the number keys to set the defrost time. The maximum value is “99:99”. Press to start defrosting. • The default power level is PL3, it cannot be changed. • The buzzer will sound to remind of turning over the food during defrosting. NOTE 9.
Page 64
Press once, “00:00” will appear on the display. Press the number keys to set the cooking time. Press once, “PL10” will appear on the display. Press the number keys to set the power level. Press to start cooking. • Two cooking stages can be set in multi-stage cooking. •...
Page 65
10. MEMORY FUNCTION Press to program and choose up to three cooking procedures. Each procedure will be indicated by 1, 2 or 3 in the display. Press to start cooking. Two cooking stages can be set for each procedure. To program a procedure, follow the steps listed below. Example: Cook food at 80% Power Level for 3 minutes and 20 seconds;...
Page 66
• Press to save the procedure. Oven beeps once, screen will display "2". • Press again to start the procedure. • Auto Menu and defrost can’t be set in memory function. • If the power is not cut o , the procedure will be saved all the time. NOTE 11.
Page 67
13. LOCK FUNCTION To lock the microwave so that it can’t be operated by children or other unintended users. press for 3 seconds, there will To lock, in standby mode, be a long beep, the locked icon will display denoting enter the locked state.
Page 68
16. AUTO MENU Press the desired menu key repeatedly to set the weight of it. For example, press twice to cook the popcorn for 100 g. Press to start cooking. AUTO MENU CHART WEIGHT/ MENU DISPLAY PORTION 200g 400g Dinner Plate 1(230g) Potato 1cup(120ml)
Page 69
CLEANING AND MAINTENANCE CLEANING With good care and cleaning, your appliance will retain its appearance and remain fully functioning for a long time to come. We will explain here how you should correctly care for and clean your appliance. • Scratched glass in the appliance door may develop into a crack. Do not use a glass scraper, sharp or abrasive cleaning aids or detergents.
Page 70
APPLIANCE FRONT WITH STAINLESS STEEL Hot soapy water: Clean using a dish cloth and then dry with a soft cloth. Remove splashes and patches of limescale, grease, starch and albumin immediately. Corrosion can form under these patches or splashes. Do not use glass cleaners or metal or glass scrapers for cleaning.
Page 71
TROUBLE SHOOTING Normal Radio and TV reception may be interfered when microwave oven operating. It is similar to the Microwave oven interfering interference of small electrical appliances, like TV reception mixer, vacuum cleaner, and electric fan. It is normal. In low power microwave cooking, oven light may Dim oven light become dim.
