Index:
1. General information
2. Packaging contents
3. Safety information
4. Legal regulations
5. Technical specification
6. Assembly
6.1. General assembly instructions
6.2. Headlight alignment
6.3. IQ-XL connection and rear light
6.4. Mounting handlebar button with attachment band
7. Operation
7.1. Standlight (coming / leaving home function)
7.2. SENSO operation
7.3. High beam
8. Further information
9. Liability
16
Page 18
Page 19
1
Page 19
Page 20
Page 20
Page 21
Page 21
Page 22
2
Page 23
Page 24
Page 25
Page 25
Page 26
Page 27
Page 28
Page 29
1
2
3
3

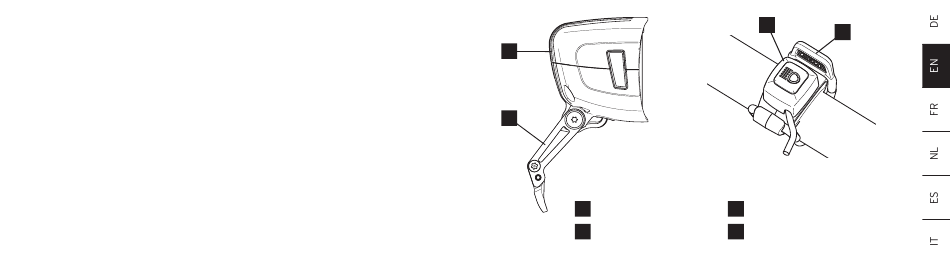

Headlight
