Days 100 Series, 102, 103, 105, 106 Manual

Introduction

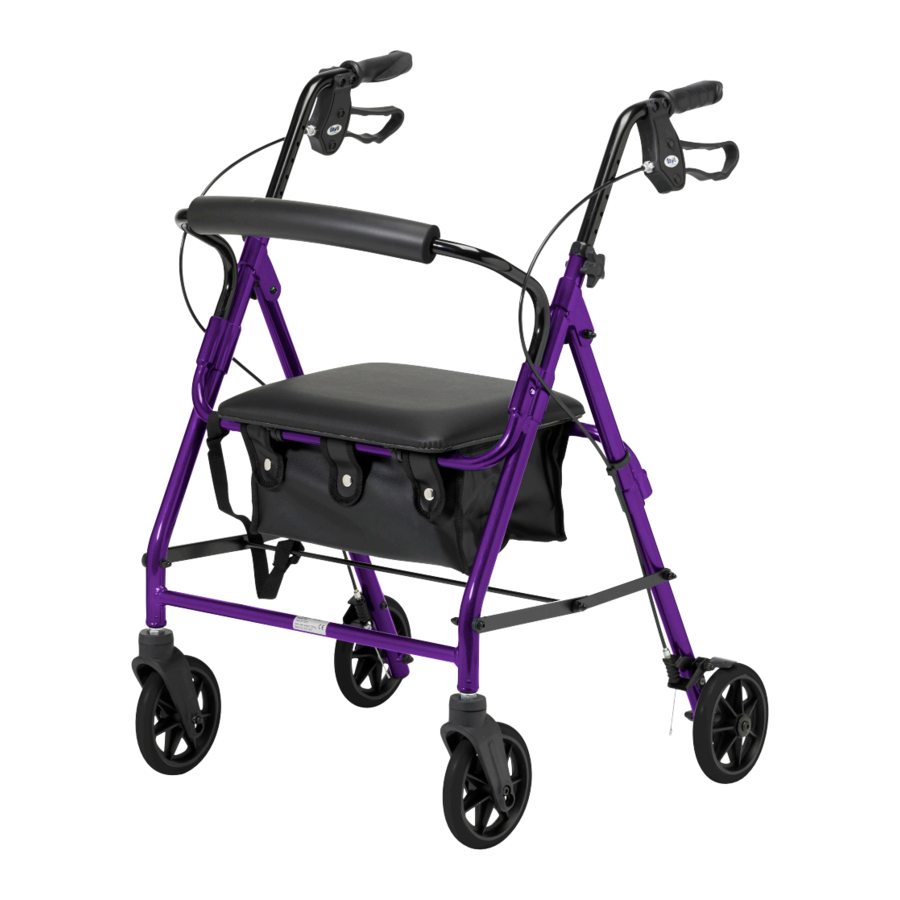

The Days Lightweight Rollator is a durable walker manufactured from painted aluminium tubing with four solid tyre wheels. It incorporates a rest seat, storage bag and locking brakes. This walker also has height adjustable handles and can be folded for storage or transportation.
Before using your new Days Lightweight Rollator, it is essential that you read and fully familiarise yourself with the instructions for use.

Specifications

	102 X-Small	103 Small	105 Medium	106 Large
Overall Height	755-875mm	790-910mm	825-945mm	875-995mm
Overall Width	620mm	605mm	620mm	620mm
Overall Depth	640mm	655mm	655mm	670mm
Seat Height	505mm	540mm	545mm	630mm
Seat Width	350mm	350mm	350mm	350mm
Seat Depth	320mm	320mm	320mm	320mm
Width between Arms	460mm	460mm	460mm	460mm
Backrest Height	750mm	800mm	800mm	870mm
Diameter of Wheels	150mm	200mm	200mm	200mm
Weight	6kg	7kg	7.2kg	7.3kg
Max. User Weight

Assembly Instructions

1. Remove all packaging and examine all parts for signs of shipping damage. Do not use Rollator if it is damaged or any parts are missing.
2. Open the Rollator frame fully. Push the folding hinge until straight to secure the Rollator in the correct position. Make sure all wheels make contact with the floor and the Rollator is stable.

3. Insert a handle with the pre-assembled locking loop brake into each handle tube. Ensure that the brake cable runs down the outside of the frame.

4. Depress the pin clips on the backrest and slide it into the tubes at the front of the Rollator. You should hear a "click" as the pin clips lock into the securing holes. Ensure both sides of the backrest are in place with the pin clips protruding through the holes.

5. Remove the protective plastic covering from the tyres.

Setting the Handle Height

1. The handles have five settings at 25mm intervals.
2. To determine the correct height of the handle

   • Stand upright behind the Rollator with your shoulders relaxed and arms slightly bent at 15°.
   • Set the handle height to be level with your wrists
3. To adjust each handle to the desired height, line up the holes appropriately. Slide the bolts through the holes from the inside of the frame and screw the tightening knobs until secure.
4. Ensure that the bolt heads are countersunk within the holes, the tightening knobs are fully tightened and the handles are secure and stable.

Using the Walker

When using the Rollator be aware that stability is dependent on all four wheels being in contact with a flat surface. Care should be taken when negotiating uneven ground, inclines and kerbs for example, as stability will inevitably be reduced.

Hand Brake Operation

The Rollator is fitted with locking brakes for added security. Before use test the brake by rotating the rear wheels and applying the brakes.
Note: Always engage and disengage brakes on both sides

1. To apply the brakes, squeeze both brake handles.
2. To lock the brakes, push both brake handles down until the click securely into the locked position.
3. To release the brakes simply pull up on the brake handles until they click.

Adjusting the Brake Pressure

If the brakes are too hard to apply, the pressure can be adjusted by reducing the tension in the spring above the brake shoe.

• The pressure needed to brake can be adjusted by turning the knurled knob whilst holding the hexagonal nut below it.
• Both the knob and nut are located above the brake shoe.
• Turning the knob anti-clockwise increases the pressure needed to brake by moving the brake shoe nearer to the wheel and compressing the spring.
• Turning the knob clockwise decreases the pressure needed to brake.

Brakes that are adjusted to give light pressure will be less effective at preventing rear wheel movement under load.

Using the Rest Seat

• Before using the walker as a rest seat both brakes must be applied and the frame pushed forward to check that the brakes are fully engaged. The brakes only lock the back wheels so the frame will not be completely immobile.
• When seated place both feet firmly on the ground and do not lean backwards or sideways.
• Do not use the seat without the safety backrest
• Only use the seat on level surfaces
• Do not exceed the maximum user weight

Folding for Storage or Transportation

The rollator is easily folded by lifting the seat and pulling the black strap attached to the hinge and the upper crossbar.
Pushing down on the handles unfolds the Rollator.

Care and Maintenance

1. The Rollator should be inspected before each use to ensure it is free from damage and excessive wear.
   Check that:
   • The brakes are operating effectively
   • The hand grips are not loose or damaged
   • The brake cables are not damaged in any way
   • The wheels are securely in place and are not damaged or excessively worn
   • The frame is not cracked or dented
   • The frame is secure, stable and all nuts and bolts are tight

If you do find wear or damage to your Rollator, DO NOT USE.

2. Check that all wheels and folding parts move freely and that there is no build-up of debris around the axle
3. Keep the Rollator clean by wiping with a damp cloth on a regular basis. Do not use abrasive cleaning materials
4. If required, only use genuine parts supplied by Performance Health International Ltd or an approved stockist

Safety Precautions

• Ensure the Rollator is fully open, the seat is down and the locking hinge is straight to secure the Rollator in the correct position
• Ensure both handles are at the same height and that the tightening knobs are fully tightened. Test the Rollator for stability before applying full weight to the handles.
• Test the brake mechanism before use. When the wheels are locked, the brake pad should prevent the wheels from turning. If the wheels turn while the brakes are locked, refer to Adjusting the Brake Pressure section. When the brakes are released, the wheels should turn freely.
• The Rollator is a walking aid only and should not be used as a transportation device. Do not allow anyone to sit on the Rollator while it is being pushed
• Do not leave the Rollator unattended without locking the brakes
• Do not use the Rollator as a seat in any type of motor vehicle
• Always put the brakes in the lock position before sitting on the Rollator
• Do not stop, turn or reverse on a ramp or incline
• Do not use the seat when the Rollator is on an incline or uneven ground
• Do not make sharp turns
