Riso RZ2 Series Installation Procedure

RISO Printer Control Board RISORINC3n
Type of Connectable Printer
The following printer models are the intended basic
units for installation.
RISO KAGAKU CORPORATION Models
RISO RZ2 Series
RISO RZ3 Series
Nobody but Riso-authorized service
representatives is allowed to install this unit.

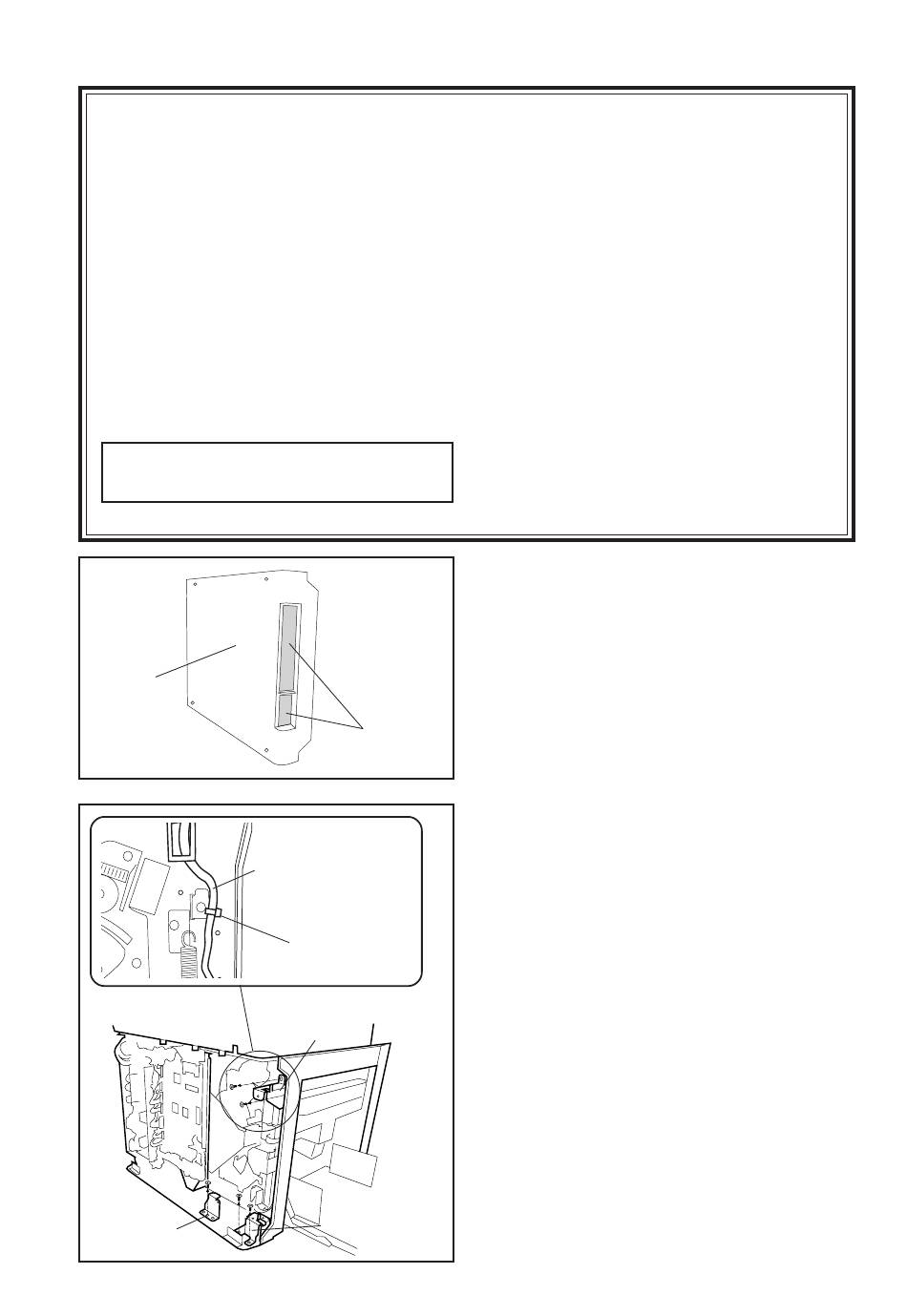

Rear cover
SH3M bracket
This document is printed on recycled paper.
Installation Procedure
Cut off these parts
Wire harness; paper feed R
Reusable wire clamper
Upper hinge
Lower hinge
Packing List
This package contains the following items.
1. RISORINC3n control board assy ............. 1 unit
2. Upper hinge .............................................. 1 pc.
3. Lower hinge .............................................. 1 pc.
4. SH3M bracket ........................................... 1 pc.
5. MR wire harness ....................................... 1 pc.
6. LWS-1316 Wire saddle ............................. 1 pc.
7. Wire clamper ............................................. 1 pc.
8. Screws ....................................................... 1 set
9. Ferrite core ................................................ 1 pc.
10. Control Board RISORINC3n Installation guide
(This manual) ............................................ 1 copy
11. RISO Printer Driver CD-ROM ................. 1 pc.
12. End user license agreement ...................... 1 copy
13. RISO Printer Driver Installation guide ..... 1 copy
14. Declaration of Conformity (for EU only) . 1 copy
1. Turn off the power switch of the printer and unplug
the power cord.
2. Remove the following covers and units of the
printer : Scanner rear cover, Scanner left cover,
Rear cover and Stage cover unit.
3. Cut off the illustrated parts from the Rear cover.
4. Remove the illustrated Reusable wire clamper of
the Wire harnesses; paper feed R from the Rear
side frame.
5. Secure the Upper hinge to the rear side frame with
IT3C screws. (4x8, 2pcs)
6. Remove the screws from the bottom frame and
secure the Lower hinge to the bottom frame with
the same screws. (without washer)
7. Remove the screws from the bottom frame and
secure the SH3M bracket to the bottom frame with
the same screws. (without washer)
1
