Auto Document Feeder AF-V
Attachment Kit Installation Procedure
Type of Connectable Printer
The following printer models are the intended
basic units for connection to the Auto
Document Feeder AF-V.
RISO KAGAKU CORPORATION Models
RISO RZ2 Series/RZ3 Series/RZ5 Series
Nobody but Riso-authorized service
representatives is allowed to install
this unit.
Installation procedure
Stage cover
Original stopper
Scanner left cover
ADF original stopper
This document is printed on recycled paper.
Packing List
This package contains the following items.
1. ADF control PCB ........................... 1 pc.
2. ADF wire harness ........................... 1 pc.
3. ADF control PCB bracket .............. 1 pc.
4. Wire clamper .................................. 1 pc.
5. Screws ............................................ 1 set
6. Installation guide (This manual) .... 1 copy
7. * Declaration of Conformity ........... 1 copy
( * for EU only)

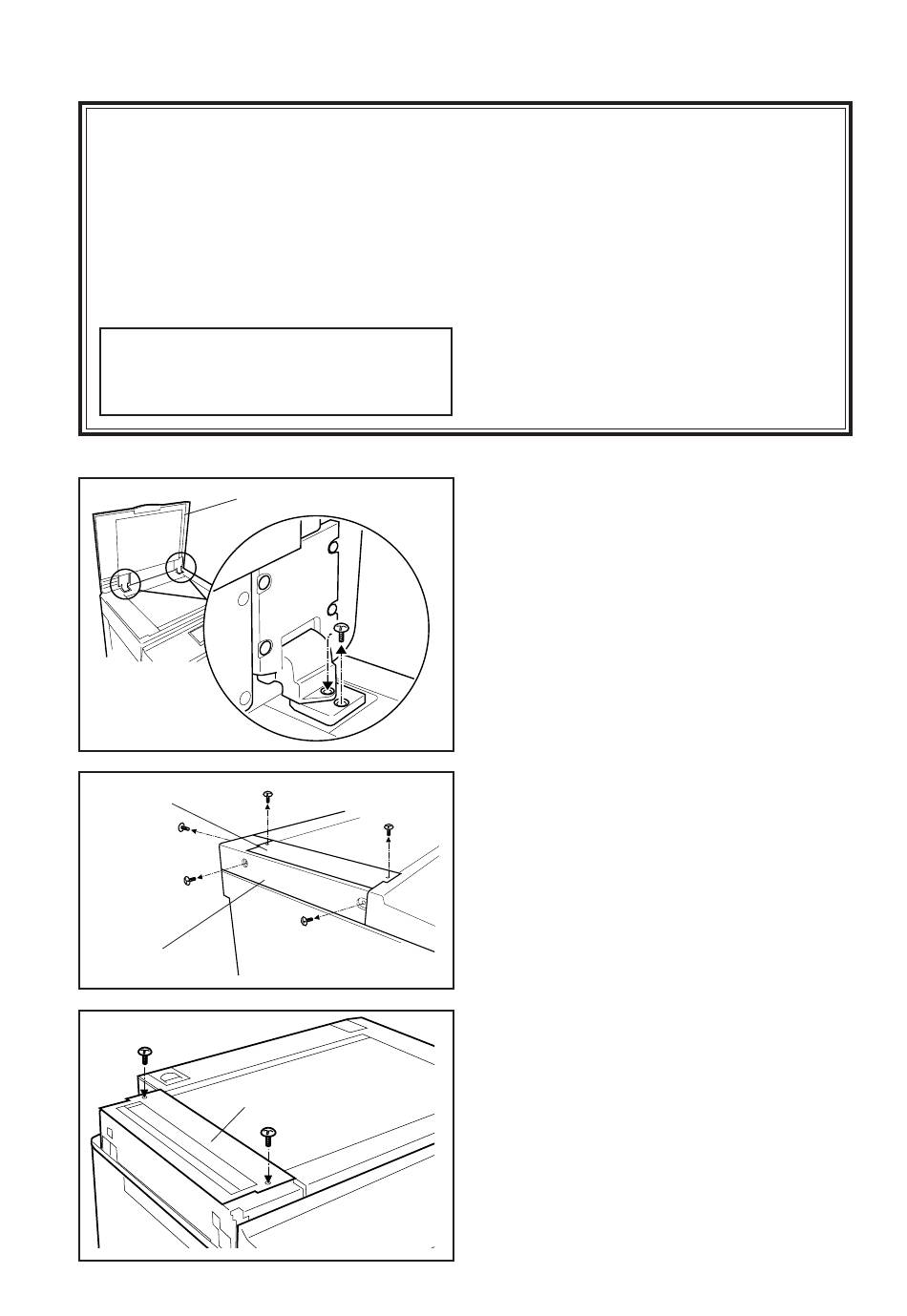

1. Turn off the main power switch of the printer
and unplug the power cord.
2. Open the Stage cover and remove the
securing screws on the hinges. The removed
screws should be kept by turning them into
the adjoining holes on the hinges.
3. Dismount the Stage cover.
NOTE : The Stage cover is not reused.
4. Remove the Scanner left cover.
NOTE : Two of the removed screws will
not be reused.
5. Remove the securing screws on the Original
stopper and slide it off to the left.
NOTE : The Original stopper is not reused.
6. Secure the ADF original stopper with the
screws which were removed in the step 5.
Important !
Before securing the ADF original
stopper, be sure to clean the shading
sheet (a white sheet) on the backside. If
it is stained or dusty, unwanted images
may appear on prints.
1
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the RZ2 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Riso RZ2 Series

  • Page 1 3. ADF control PCB bracket ....1 pc. RISO KAGAKU CORPORATION Models 4. Wire clamper ........1 pc. RISO RZ2 Series/RZ3 Series/RZ5 Series 5. Screws ..........1 set 6. Installation guide (This manual) ..1 copy Nobody but Riso-authorized service 7.
  • Page 2 Scanner cover 7. Remove the Rear cover from the printer. 8. Remove the Scanner rear cover. Rear cover 9. Secure the ADF control PCB bracket with ADF control PCB brackt two screws. 10. Connect the brown connector at an end of Pulse motor Wire saddle the ADF wire harness to CN7 and CN8 of...
  • Page 3 16. Secure the stepped screws (provided in the package) on the Hinge housings. Stepped screw Hinge housing 17. Mount the ADF unit on the printer, sliding the stepped screws (added in the previous step) into the slits of the ADF hinge bases, and secure it with two additional screws (Binding screw, M4×10).
  • Page 4 25. Plug the power cord to the printer and turn on the main power. 26. Check that the ADF unit appropriately works and adjust it with Riso Test chart, following the procedures on the next page. Then proceed to the step 27 on page 7.
  • Page 5 Adjustment of Scanning Parameters If printed images are of a different size and/or by far offset when originals are scanned in the ADF unit, compared with when scanned on the Stage glass, adjust the scanning parameters as follows. 1. Adjustment of scanning position (Compensation for printing position in horizontal direction) T h e p r i n t e d 1) Start up the test mode of the printer and input image scanned...
  • Page 6 3. Adjustment of scanning speed (Compensation for printed image size in vertical direction) T h e p r i n t e d 1) Start up the test mode of the printer and input image scanned the test code "3074" using print quantity on the Stage keys.
  • Page 7 Installation procedures after adjustment 27. Remove the screws which secure the ADF ADF hinges ADF hinge stopper hinge stopper on the rear side of the ADF hinges. 28. Rotate the ADF hinge stoppers by 180 degrees and secure them with the screws again.
