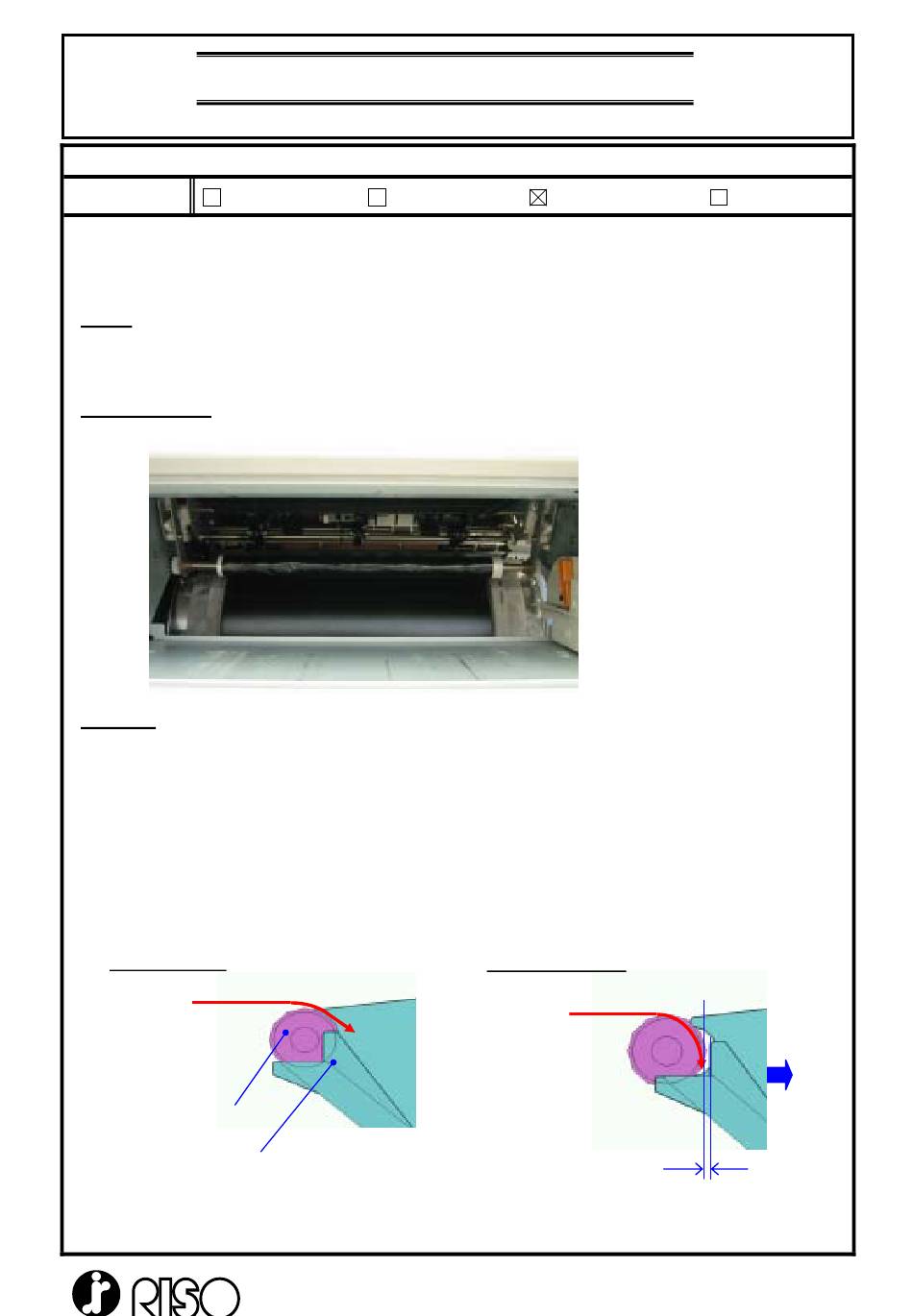

Riso RZ 2 Series Technical Bulletin

MODEL: RZ 2/3 Series
Data Category
Field Modification

SUBJECT: Master Disposal Jam

Brief:
Master disposal jam will be occurred if the master disposal box is set incorrectly.
To improve setting of the Master disposal box, relative parts have been changed.
Phenomenon:
Disposed master wrapped up on the Transport Roller lower.
Cause:
The Ribs of the Master disposal box do not fit with the Transport roller lower by following
causes.
1. Stay B is bended upward and prevents the box from sets in smoothly.
(See "Countermeasure 1" on the next page.)
2. Side rib on the master disposal box scrape against side flame of Master disposal flame.
(See "Countermeasure 2" on the next page.)
3. Incorrect setting of master disposal box.
(See "Countermeasure 3" on the next page.)
Correct setting
Disposed master
Transport roller (Lower)
RZ series TECHNICAL BULLETIN
ISSUE NO. RZT-016
Trouble Shooting
Rib on the Master disposal box
General Information
Our Ref.: AZ1-0904/ 0818/ 0814/ 0811
Incorrect setting
Disposed master wrapped up
Issued By Overseas Technical Sec., Riso Kagaku Corp.
1/3
Page
DATE : 10-Mar.-05
Safety Advice
Some gap exists
