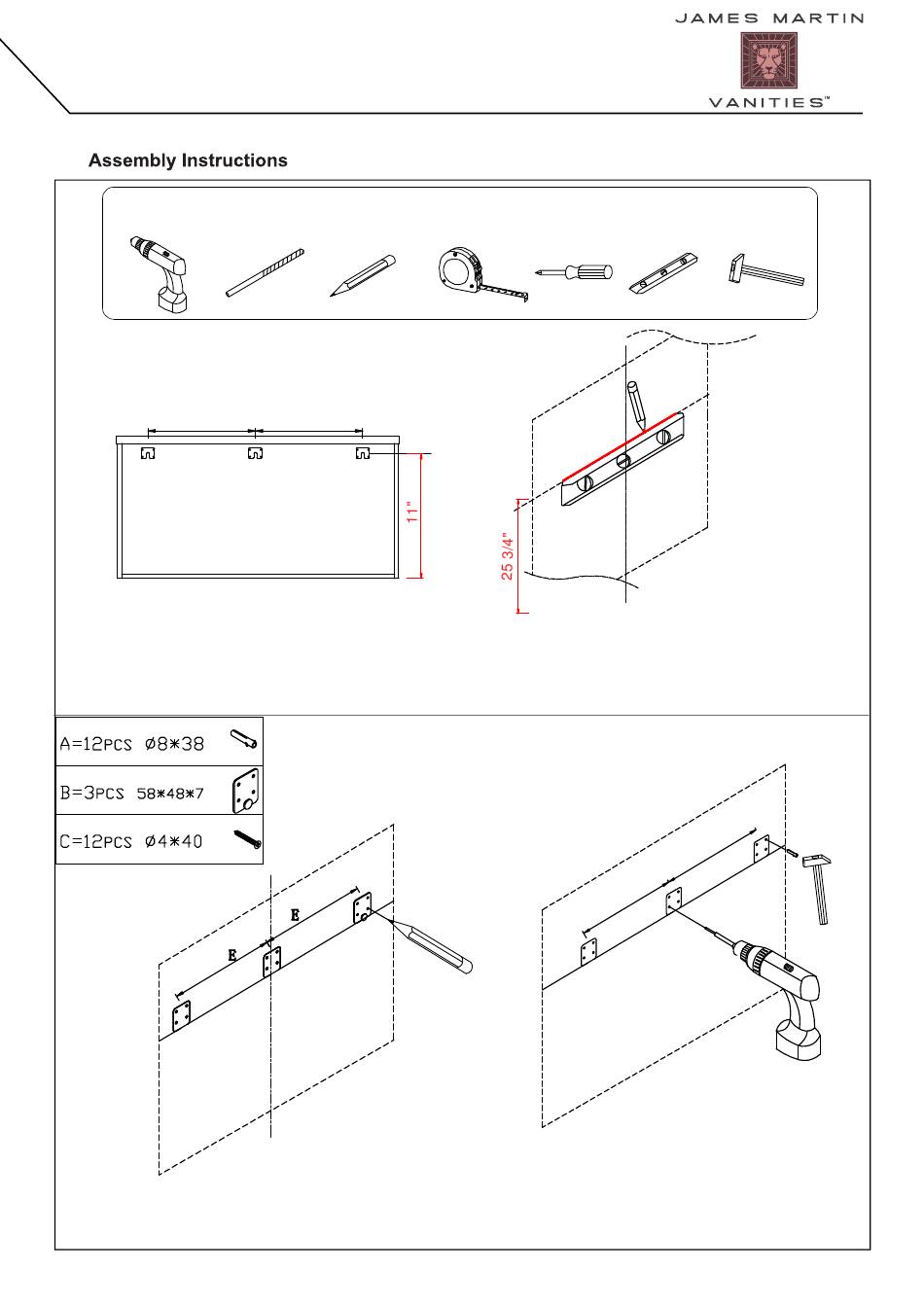

389-V36-AGR-A / 389-V36-CFO-A / 389-V36-GW-A / 389-V36-LTO Vanity
868-V59D-CFO / 868-V59D-CTG / 868-V59D-NZB / 868-V59D-SOK VANITIES
Tools required
drill with 5/16" bit Pencil
Screw driver
24"
Back View
Step 1:
Metal plates has been pre-installed to the back of cabinet,
measure the distance between the bottom of the cabinet
and point a.
24"
Step 3:
Draw the points according to the hole of the mounting
bracket
Measuring tape
24"
a
b
24"
B
Wall
Center line
Leveler
Screw driver
a
Wall
Center line
Step 2:
Draw a horizontal line from the point a by using
a leveler.
(suggested H25 3/4" from floor to "a" line)
24"
Wall
Step 4:
Drill the holes' deepth no less than 40mm, and
insert "A" to the holes by using hammer.
Hammer
A
24"
Version:202003
Made in Vietnam
