Summary of Contents for Beko 683616EBI

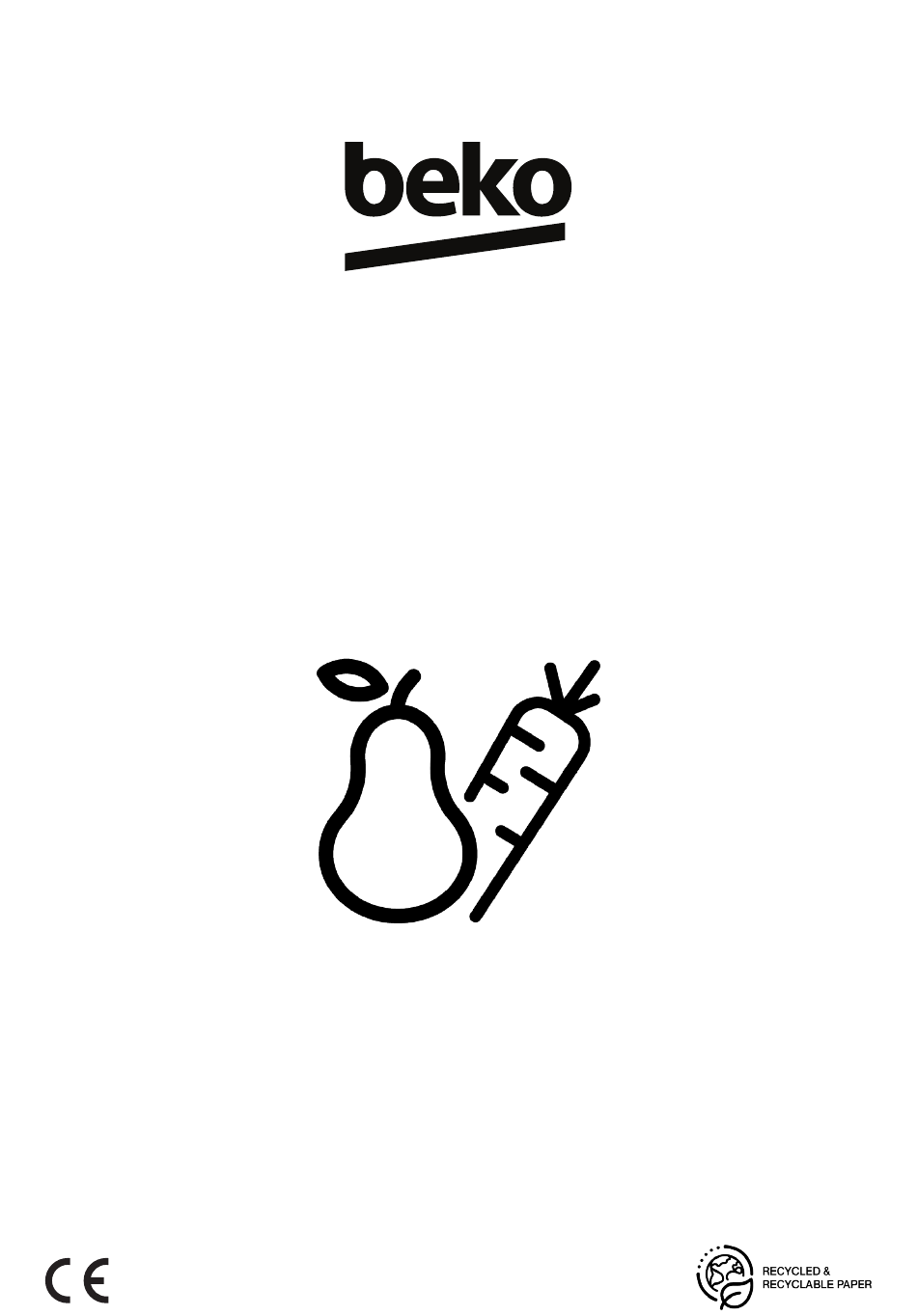

- Page 1 Refrigerator User Manual 683616EBI 15 7550 0071/ EN/ AB/ 03/09/2024 14:23 7291620255...
- Page 2 Please read this manual first! Dear Customer Thank you for choosing this Beko product. We would like you to achieve the optimal effi- ciency from this high quality product which has been manufactured with state of the art technology. To do this, carefully read this manual and any other documentation provided before using the product.
- Page 3 ............24 ............24 1 Safety Instructions......9 Maintenance and Cleaning ..... 24 Intention of Use ......10 Troubleshooting ......25 Safety of Children, Vulnerable Persons and Pets ......Electrical Safety......Handling Safety ......Installation Safety......Operational Safety......Food Storage Safety...... 11 Maintenance and Cleaning Safety 12 Lighting ..........
- Page 4 1 Safety Instructions • This section includes the In the units of hotels, motels or safety instructions necessary other resting facilities that are to prevent the risk of personal used by the customers, injury or material damage. In hostels, or similar environ- •...
- Page 5 • Children and pets must be kept • Do not use an extension cord, away from the cabin area multi-plug or adaptor to oper- (compressor) where electrical ate your product. parts are located. • Portable multi-plugs or port- • Cleaning and user mainten- able power supplies may over- ance must not be performed heat and cause fire.
- Page 6 • Do not touch the plug with wet ter utilities are as required. If hands. not, call a qualified electrician • When unplugging the appli- and plumber to arrange the ance, don’t hold the power utilities as necessary. cable, but the plug. •...
- Page 7 the right or left). Otherwise, the must be a minimum of 50mm refrigerator may tip over and in order to prevent hot sur- cause injuries. faces. Reducing this distance • Proceed with care to prevent may increase the energy con- causing any damage to the sumption of product.
- Page 8 • The installation place of the • Do not plug the product to product must not be exposed loose, broken, dirty, greasy to direct sunlight and it shall sockets or sockets that have not be in the vicinity of a heat come out of their seats or source such as stoves, radiat- sockets with a risk of water...
- Page 9 • Do not use any procedures Operational Safety other than those recommen- • Do not ever use chemical ded by the manufacturer to solvents on the product. These speed up defrosting. materials contain an explosion • Take due care not to jam any risk.
- Page 10 • Do not store explosive materi- or damages may occur if the als such as aerosol cans with contents of the refrigerator fall flammable materials inside the when the door is opened. Sim- product. ilar problems may also occur • Do not place cans containing when an object is placed over fluids over the product an open the product.
- Page 11 Compartment etc.) Unless oth- 3. Do not remove the racks and erwise stated in the relevant drawers from the product to manual of the product, these prevent children from getting compartments can be re- inside the appliance. moved, and the product can be 4.
- Page 12 • Clean the water tanks that • Do not store foods without have not been used for 48 properly sealing them in the re- hours and mains-fed water frigerator and the freezer com- systems that have not been partments, to prevent direct used for more than 5 days.
- Page 13 only cleaning and maintenance Lighting agents that are not harmful for Contact an authorized service food inside the product. when you shall replace the LED / • Do not use paper towels, kit- bulb using for lighting. chen sponges or other hard cleaning materials.
- Page 14 Software Details: Quartz_WiFi.XXX CE Declaration of Conformity: The entire EU declaration of con- Arçelik A.Ş. states that this formity is available on the fol- product is in compliance with lowing website: 2014/53/EU directive. Products, the address: sup- port.beko.com EN / 14...
- Page 15 2 Environmental Instructions your local authorities regarding these col- 2.1 Compliance with WEEE regula- lection areas. You can help protect the en- tions and Waste Disposal vironment and natural resources by deliver- This product does not contain hazardous ing the used products for recycling. and prohibited substances specified in the "Regulations for Supervision of Waste Elec- Conformity with standards and...
- Page 16 1 Egg holder 2 *Door Shelf 3 *Adjustable Small Door Shelf 4 *Bottle Shelf 5 Adjustable legs 6 *Freezer Compartment Small Drawer 7 *Freezer Compartment Large Drawer 8 *Vegetable Drawer 9 Crisper Cover 10 *Cold Storage Drawer 11 *Adjustable Glass Shelf 12 Fan 13 Lighting 14 Cooler Compartment...
- Page 17 4.2 Electrical Connection Do not use extension cables or multi sockets in power connection. When doing so, pay attention not to jam your hand between the product and the Damaged power cable must be re- ground or between the product and the ad- placed by Authorized Service.
- Page 18 and preferably, in a way that air outlets A sound will be heard when the remain below the glass shelf. This com- compressor is engaged. It is nor- bination may help improving air distribu- mal for the product to make noise tion and energy efficiency.
- Page 19 6.1 Storing Food in the Freezer and Storing the foods, which are sold frozen Cooler Compartment • Always follow the instructions of the pro- ducer in relation to the time during which Storing food in the freezer compartment you are required to store your foods. Do •...
- Page 20 Freezer details • Do not store too much food in your refri- gerator. To achieve a better and homo- As per the IEC 62552 standards, the freezer geneous cooling, place the food separ- must have the capacity to freeze 4,5 kg of ately in a way that cold air can wander food items at -18°C or lower temperatures through them.
- Page 21 drying cloth. If you wash this type of food • Except the cases where extreme circum- before placing them in the refrigerator, re- stances are available in the environment, member to dry them. if your product (on the recommended set •...
- Page 22 phone number that you have saved on Cancelling a Request on Support Ser- vice HomeWhiz application and help you for your all questions. If you want to cancel your Support Service request, your request should be delivered to Entering A Telephone Number For Sup- the customer representative successfully port Service and the light of the symbol should be illu-...
- Page 23 7 Control Panel of the Product 8 Product Features 8.1 Crisper Technologies Take the ice bucket from the freezer compartment and bend in slightly over Blue Light the holder that you are going to serve. Fruits and vegetables stored in the crispers Ice will easily pour into the serving that are illuminated with a blue light con- holder.
- Page 24 Never leave vegetables in plastic bags in the crisper. Leaving them in plastic bags 8.6 Humidity Controlled Crisper causes vegetables to rot in a short time. Everfresh In situations where contact with other ve- getables is not preferred, use packaging With the humidity controlled crisper feature, materials such as paper that has a certain the humidity of vegetables and fruits is...
- Page 25 • To clean all removable components dur- • To avoid this, clean the inside with car- ing the cleaning of the interior surface of bonated water every 15 days. the product, wash these components • Keep the foods in sealed holders, as mi- with a mild solution consisting of soap, cro-organisms arising from foods kept in water and carbonate.
- Page 26 Compressor is not working. • The freezer or cooler door may be ajar. >>> Check that the doors are fully closed. • In case of sudden power failure or pulling • The product may be set to a temperature the power plug off and putting back on, that is too low.
- Page 27 • The product may have been recently The interior smells bad. plugged in or a new food item is placed • The product is not cleaned regularly. >>> inside. >>> This is normal. The product Clean the interior regularly using sponge, will take longer to reach the set temperat- warm water and carbonated water.
- Page 28 EN / 28...
- Page 31 Considerations Regarding Errors of Use and Warranty The following defects can be rectified for a fee. Warranty conditions do not apply for any of these cases; Damages and malfunctions caused by errors in use, Damages and malfunctions during loading, unloading, transport, etc. following the de- livery of the goods to the consumer, Damages and malfunctions arising from the electricity (socket, voltage, grounding, etc.), water (water pressure, tap, etc.), natural gas, telephone, internet, etc.
