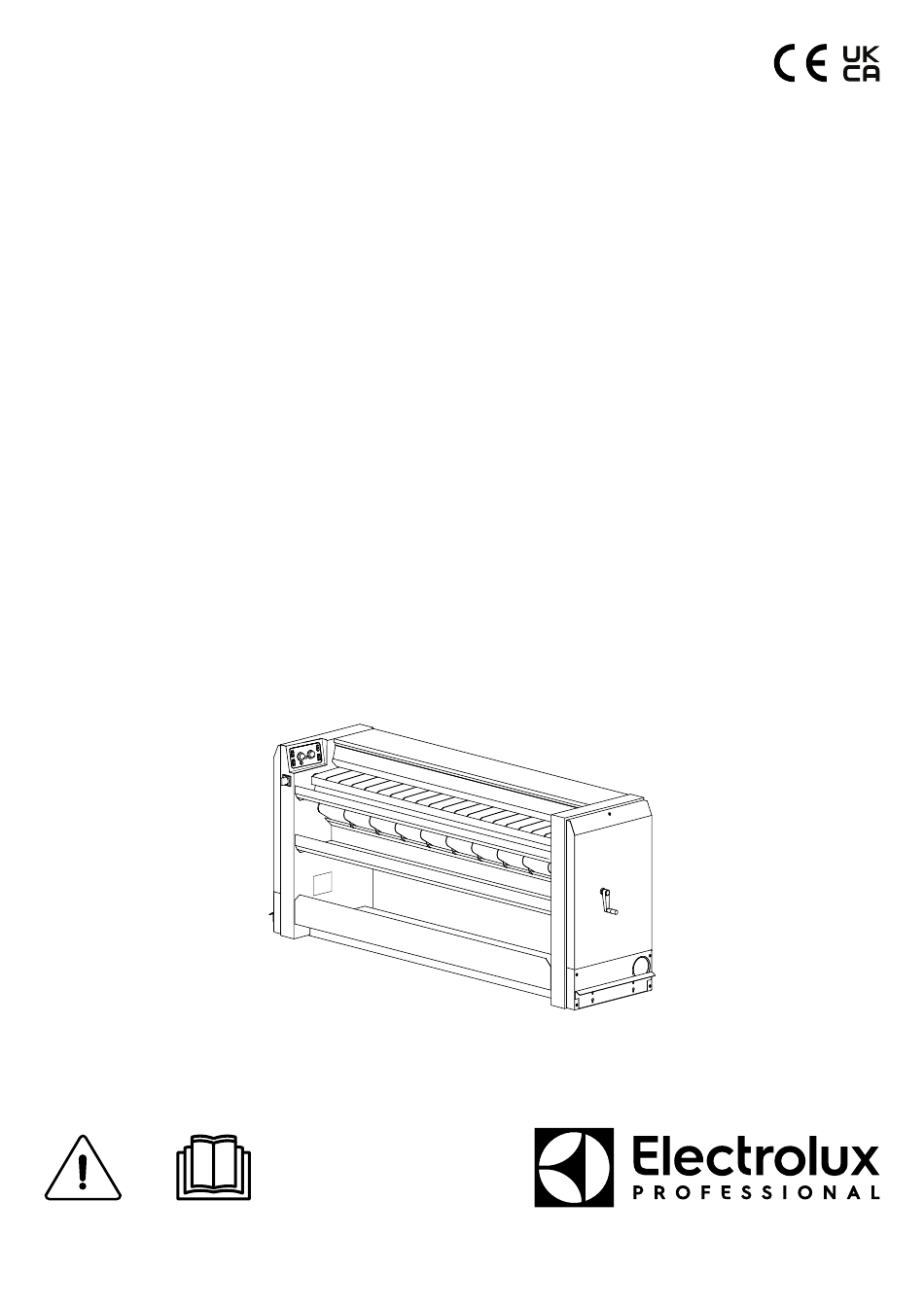

- Page 1 User manual Ironers IC63316 – IC63320 Originals instructions 01103055/EN...
- Page 3 Contents Contents 1 Precaution for use ..........................5 2 Safety rules............................5 3 Warranty terms and exclusions......................6 4 General ..............................6 Data plate explanation........................7 5 Method of use ...........................10 Standard control panel ......................10 Starting machine with standard control panel ................11 Stopping machine with standard control panel................11 DIAMMS control panel ......................12 Simplified instructions for using the ironer with DIAMMS option ...........13 Starting machine with DIAMMS console ..................16...
- Page 5 User manual 1 Precaution for use • The machine should not be used by children. • Blankets should not be ironed. • This ironer must be used exclusively for textiles appropriate for machine ironing, which have been previously and exclusively washed in water. •...
- Page 6 Warranty will be applicable where the customer has used only genuine spare parts and has performed maintenance in accordance with Electrolux Professional user and maintenance documentation made available in paper or elec- tronic format. Electrolux Professional strongly recommends using Electrolux Professional approved cleaning, rinse and descaling agents to obtain optimal results and maintain product efficiency over time.
- Page 7 User manual The temperature of the ironing cylinder can also be adjusted by a thermostat. The parameters are displayed by a control panel. Caution This machine should be installed in conformance to the health and safety regulations, and only used in a suffi- ciently aerated area.
- Page 8 User manual Electrical heating : • P.Max : maximum power installed of your product • Power of the motorization in kW and its isolation class (F) . • Heating power in W .
- Page 9 User manual Gas heating : Left side • P.Max : maximum power installed of your product • Power of the motorization in kW and its isolation class (F) . • Heating power in W . • Gas approval number depending on your machine except ETL product (begin by1312/..) Right side •...
- Page 10 User manual 5 Method of use 5.1 Standard control panel 1. "Voltage" indicator 2. "Stop" switch 3. "On" switch 4. "Ironing speed adjustment" potentiometer 5. "Ironing temperature selection" thermostat 6. "Heating" indicator on 7. Gas heating "Ignitor failure" indicator 8. "On / Off" heating switch with "On" indicator 9.
- Page 11 User manual 5.2 Starting machine with standard control panel - Turn main section switch to I (ON), the indicator (1) "voltage" lights". - Turn the potentiometer (4) to the minimum speed. - Adjust thermostat (5) on required temperature. Usual ironing temperature is around 180 °C (355 °F) for cotton.
- Page 12 User manual 5.4 DIAMMS control panel 1.This indicator lights up when the linen removed from the dryerironer is not completely dry. 2.Display screen 3.Functions keys : Function key assignments vary according to the menu displayed on the screen during operation...
- Page 13 User manual 5.5 Simplified instructions for using the ironer with DIAMMS option...
- Page 14 User manual...
- Page 15 User manual...
- Page 16 User manual 5.6 Starting machine with DIAMMS console Start-up screen Turn on the power to the machine using the machine’s main switch. The software version will appear on the screen for 4 seconds. "Emergency stop" warning message If the screen displays this message, check whether the emergency stop button has been operated.
- Page 17 User manual 5.7 Cooling mode with DIAMMS console Cooling mode When the STOP function is requested during operation, the machine will switch to standby and the heating system will be switched off. The screen will remain in this mode as long as the temperature of the cylinder remains above 100°C (212°F).
- Page 18 User manual 5.9 Manual mode with DIAMMS console Selection of Manual mode If you press MANU, you will switch to manual mode. In this mode you use the following menus to select the temperature and the ironing speed you wish to apply to the machine. Each changeover from manual mode to automatic mode auto- matically resets the sheet counter.
- Page 19 User manual 5.11 Service screen in manual mode with DIAMMS console Service screen in Manual mode The first line of the screen displays the values for the current use of the machine. • The «M» shows that you are in manual mode. The following three values show: •...
- Page 20 User manual 6.2 Precautions for use Please respect the following usage recommendations to get the best out of your ironer: In manual mode • Avoid when running, too low or badadjusted temperatures as consequence of : - a too high ironing speed with high moisture content in sheets : bad sliding on metallic sparts. - a partial use of the ironing length of the cylinder : creating overheating (be carreful especially, to the risk for the poly- cotton sheets to loose their shape, generally stabilised at 200 °C (392 °F).
- Page 21 User manual • Carefully engage the washing to be ironed, because it is impossible to disengage a badly engaged washing. • Do not iron washing folded in four, because it will be too thick to achieve the drying/ironing/folding quality that you are entitled to expect from your machine.
- Page 22 User manual 6.7 Using the tipping feed bin The dryer-ironer is equipped with a tipping feed bin. This is very useful for letting large items hang to assist feeding and allow smoothing of linen by hand. For ease of opening, lift the bin slightly before pivoting. 7 Use recommendations •...
- Page 23 User manual • Do not iron non heat-resistant or overly voluminous buttons (round buttons, for example). • Carefully inserting the articles to be ironed will improve results. • Make sure that the width of the ironing does not exceed the useful width of the machine. •...
- Page 24 User manual Power supply If there is a mains power supply failure, use the handle to remove any washing engaged in failure the machine. If the temperature is too high, use the handle to feed some wet washing and protect the ironing bands. Ironing Tempera- The control enclosure includes an electronic thermostat panel which shows in real time the ture Display...
- Page 25 User manual The heating does not work, or works badly Check the temperature preselection. Check the panel’s sensors Check the safety thermostat. Check that the vapour intake fan is working Check to see if the panel is showing over- and is turning in the right direction. heating or a high temperature.
- Page 26 User manual 9.5 Overheating of cylinder sides Overheating of cylinder sides (when feeding is carried out on the centre of the cylinder too often) In the event that one of the two sides of the cylinder overheats due to it being partially used, a flashing message will be displayed on the screen, alternately with the service screen.
- Page 27 User manual 9.8 Fault Emergency stop Message: «Emergency stop-check button» If the screen displays this message, one of the emergency stop but- tons has been triggered. The machine enters safety mode, the heating is turned off and the cyl- inder stops. Check why the button was pressed and then reset it.
- Page 28 User manual 9.11 Fault with the heating system Message: «Problem - fault with the heating system». . The screen appears if, after a certain time (approximately 20 minutes) the cylinder temperature remains below 100°C (212 °F). Try to restart the machine. If the problem continues, please consult your after-sales service department.
- Page 29 User manual Each day (8h) • 1. Check that the finger protection is working. Every week (40h) • 2. Clean the fan grates of motors. • 3. Clean the stripper fingers and the thermostat attachment. • 4. Clean the ironer external, from dust. •...
- Page 30 User manual • G. Clean the cover filter with suction device. • G. Clean the inner gas burner with suction device. • G. Check the sight of the ceramic plates joints and change them if necessary. Every 3 years (6000h) •...
- Page 31 User manual Caution The tension of the ironing bands was adjusted in the factory with the machine hot. Never retension the bands. Their tension must be as low as possible (just enough to drive them) since excessive tension will cause fast wear of these bands.
- Page 32 User manual If the machine is to be left unused for a longer period, it is advisable to oil the cylinder slightly (anti-rust oil ref. 96010012).
- Page 33 User manual 11 Symbols Caution. An exclamation mark inside an equilateral triangle offers the user important advice about usage, servicing and hazard- ous conditions. Caution, presence of dangerous current. A flash of lightning with an arrow at its end displayed inside an equilateral triangle, warns the user about the presence of uninsulated "dangerous current"...
- Page 34 User manual 12 Lubricant table MACHINE LUBRICATION Rolling Rolling Assembly Bare gears Flange joints Reducers Reducers Circuits and bearings bearings paste (fretting with wheels with gears pneumatic Chains shafts Union pipes corrosion) and screws devices USES Bearings Bearings Thread Steam high circuits Slides...
- Page 35 User manual 13 Explanation of washing symbols (ISO 3758:2005 standard) To overcome language barriers, the following are symbols used internationally to give you guidance and recommen- dations when washing different textiles. 13.1 Washing The tub symbolizes washing. Max. washing temperature Symbols Mechanical action in °C ( °F)
- Page 36 User manual Symbols Explanation Bleaching allowed (chlorine or oxygen). Bleaching allowed (only oxygen). Do not bleach. 13.3 Drying The circle in a square symbolizes tumble drying. Symbols Explanation Can be put in a tumble dryer. Normal temperature. Can be put in a tumble dryer. Lower temperature.
- Page 37 User manual Mild dry cleaning with solvent of hydrocarbon. Do not dry clean. Normal water cleaning. Mild water cleaning. Very mild water cleaning.
- Page 40 Electrolux Professional AB 341 80 Ljungby, Sweden www.electroluxprofessional.com...
