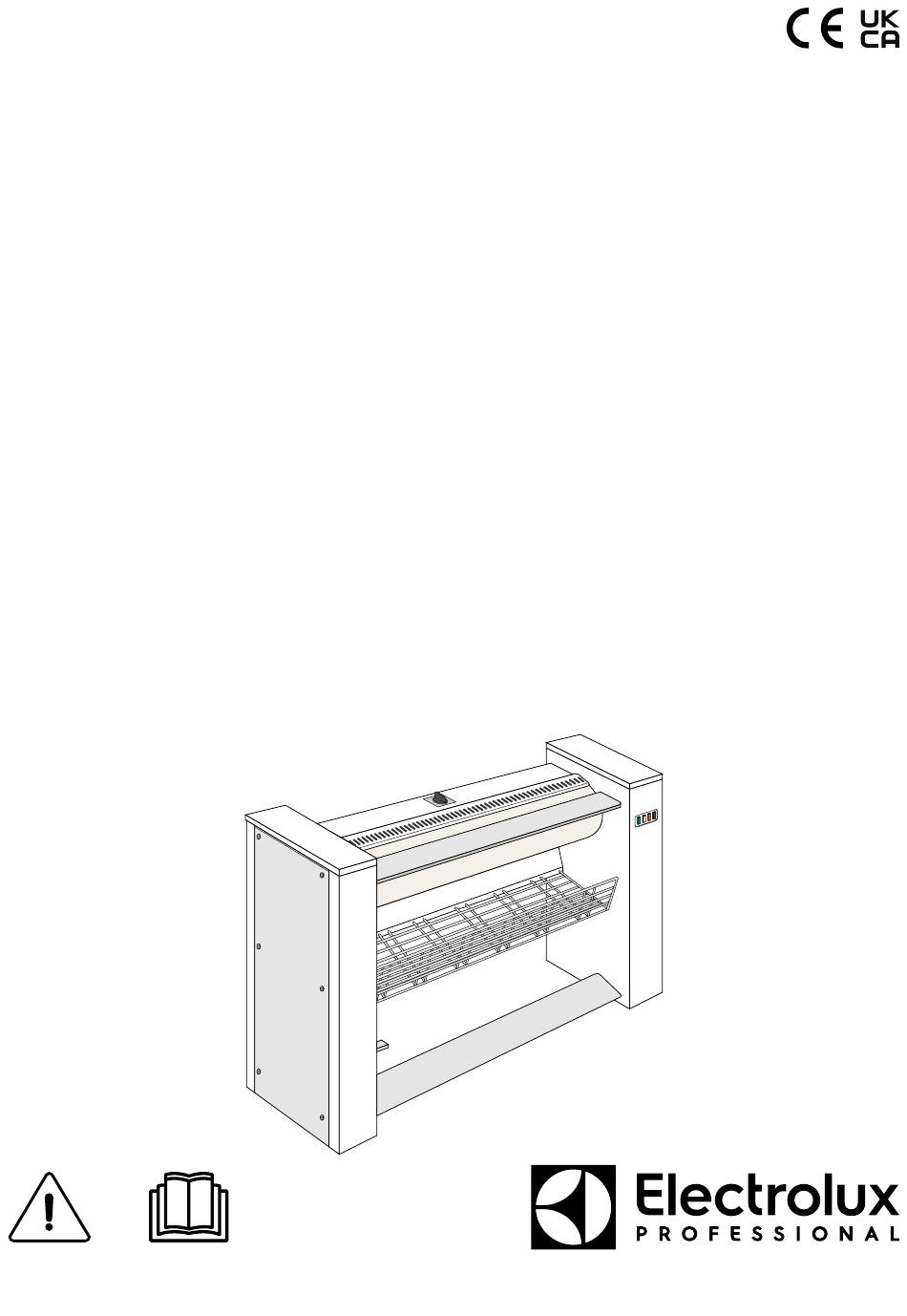

- Page 1 User manual Ironers IB62310 – IB62314 – IB62316 01405028/EN...
- Page 2 Originals instructions...
-
Page 3: Table Of Contents
Contents Contents 1 Precaution for use ..........................5 2 Safety rules............................5 3 Warranty terms and exclusions......................6 4 General ..............................6 5 Method of use .............................7 Description of the machine ......................7 Control devices..........................9 Finger protection device ......................9 Control pedal ...........................10 Release device ........................10 6 Use ..............................10 Starting the machine ........................10 Ironing machine with coin operating system ................ -
Page 5: Precaution For Use
User manual 1 Precaution for use • The machine should not be used by children. • This ironing machine should only be used for previously washed and dried, machine-ironable textiles. • Be careful with synthetic linen and also with printed linen. They can melt and stick on the cylinder. •... -
Page 6: Warranty Terms And Exclusions
Warranty will be applicable where the customer has used only genuine spare parts and has performed maintenance in accordance with Electrolux Professional user and maintenance documentation made available in paper or elec- tronic format. Electrolux Professional strongly recommends using Electrolux Professional approved cleaning, rinse and descaling agents to obtain optimal results and maintain product efficiency over time. -
Page 7: Method Of Use
User manual Identification plate 5 Method of use 5.1 Description of the machine "On" indicator lamp "On-Off" switch "Heating" indicator lamp Potentiometer button "Ironing speed adjustment" (option with variator, speed adjustment from 1 to 4 m/min.) Pivoting sensitive protective device (finger guard) Thermostat Cylinder Insertion table... - Page 8 User manual Control pedal Bed release device (to be used in case of power failure)
-
Page 9: Control Devices
User manual 5.2 Control devices "ON-OFF" switch. This switch turns the ironing machine on and off. The green indicator light comes on as soon as the switch is on. D0349 The yellow "HEATING ON" indicator light indicates that the heater is operating. This indicator light goes out after a few minutes when the desired working temperature has been reached. -
Page 10: Control Pedal
User manual 5.4 Control pedal 3 - position control pedal. • Position 1 up (rest position) • Position 2 intermediary (cylinder stop for pressing function) • Position 3 down (ironing function or moving away of bed). Note! Push gently on the control pedal with your foot. 5.5 Release device In the event of power failure, any garment in the machine can be removed by activating and then releasing with your foot this lever which separates the bed from the cylinder. -
Page 11: Ironing Machine With Coin Operating System
User manual Press on the machine’s white start button. The green indicator lamp comes on. Press down on the pedal to start ironing. 6.2 Ironing machine with coin operating system Turn on the main switch. Press on the machine’s white start button. Insert a coin. -
Page 12: Temperature Setting
User manual 6.4 Temperature setting Select the temperature in function of the article to be ironed. 0 (zero) Heating off Tepid 0 to 50 °C Nylon, etc... 50 to 100 °C Silk, Wood 100 to 150 °C Cotton, Linen, Polycotton 150 to 170 °C As soon as the yellow "heating on"... -
Page 13: Pressing Function
User manual Place the ironing on the insertion table and push it so that it is taken up by the cylinder. Smooth out the linen starting at the centre and moving towards the edges. When there are buttons, they should be placed against the cylinder to protect them and the tray. For zippers and metal buttons, cover with a cloth to protect the bed. -
Page 14: Releasing Of The Cylinder
User manual 3. Press completely down on the pedal to move back the bed. 4. Turn off the switch to stop the machine. 5. Turn off the main switch. 6.9 Releasing of the cylinder In some conditions of humidity or static electricity, it may happen that the piece of linen being ironed winds around the cylinder. -
Page 15: Safety Devices
User manual Important It is very important that the machine is not running cold, the grip between the cylinder and the chest is too impor- tant which can prematurely wear out the cylinder padding and deteriorate the free wheel. Failure to follow this recommendation would void the warranty of the parts in question. -
Page 16: Operating Faults
User manual Warning For your personal safety, never use the machine without the protective housings. Danger The presence of dangerous mechanisms inside the machine can cause serious injuries. Respect all safety in- structions before doing any work on the machine. Replace protective casings after doing any work. 9 Operating faults The heating works incorrectly or not at all •... -
Page 17: Replacing Cylinder Coverings
User manual Important The bed has to be maintained with care so that the ironing is easy and of good quality. The removal of detergent or fur deposits should be done as soon as these are prejudicial to the ironing quality. The use of emery cloth or steel wool is strictly unadvised. -
Page 18: Care Instructions For The Nomex Textile
User manual 13. Wash the cotton covering in hot water. 14. Replace the slightly damp cloth without ironing it. 15. Then, fit in the cotton cloth centring it on the cylinder as if it was a piece to iron, introducing it under the felt pad- ding for about 10 cm. -
Page 19: Symbols
User manual 11 Symbols Caution. An exclamation mark inside an equilateral triangle offers the user important advice about usage, servicing and hazard- ous conditions. Caution, presence of dangerous current. A flash of lightning with an arrow at its end displayed inside an equilateral triangle, warns the user about the presence of uninsulated "dangerous current"... -
Page 20: Lubricant Table
User manual 12 Lubricant table MACHINE LUBRICATION Rolling Rolling Assembly Bare gears Flange joints Reducers Reducers Circuits and bearings bearings paste (fretting with wheels with gears pneumatic Chains shafts Union pipes corrosion) and screws devices USES Bearings Bearings Thread Steam high circuits Slides... -
Page 21: Explanation Of Washing Symbols
User manual 13 Explanation of washing symbols (ISO 3758:2005 standard) To overcome language barriers, the following are symbols used internationally to give you guidance and recommen- dations when washing different textiles. 13.1 Washing The tub symbolizes washing. Max. washing tem- Symbols Mechanical action perature in °C... -
Page 22: Drying
User manual Symbols Explanation Bleaching allowed (chlorine or oxygen). Bleaching allowed (only oxygen). Do not bleach. 13.3 Drying The circle in a square symbolizes tumble drying. Symbols Explanation Can be put in a tumble dryer. Normal temperature. Can be put in a tumble dryer. Lower temperature. - Page 23 User manual Mild dry cleaning with solvent of hydrocarbon. Do not dry clean. Normal water cleaning. Mild water cleaning. Very mild water cleaning.
- Page 26 Electrolux Professional AB 341 80 Ljungby, Sweden www.electroluxprofessional.com...
