USER MANUAL
DK-CL5-TUY
WiFi DVR camera
Product description

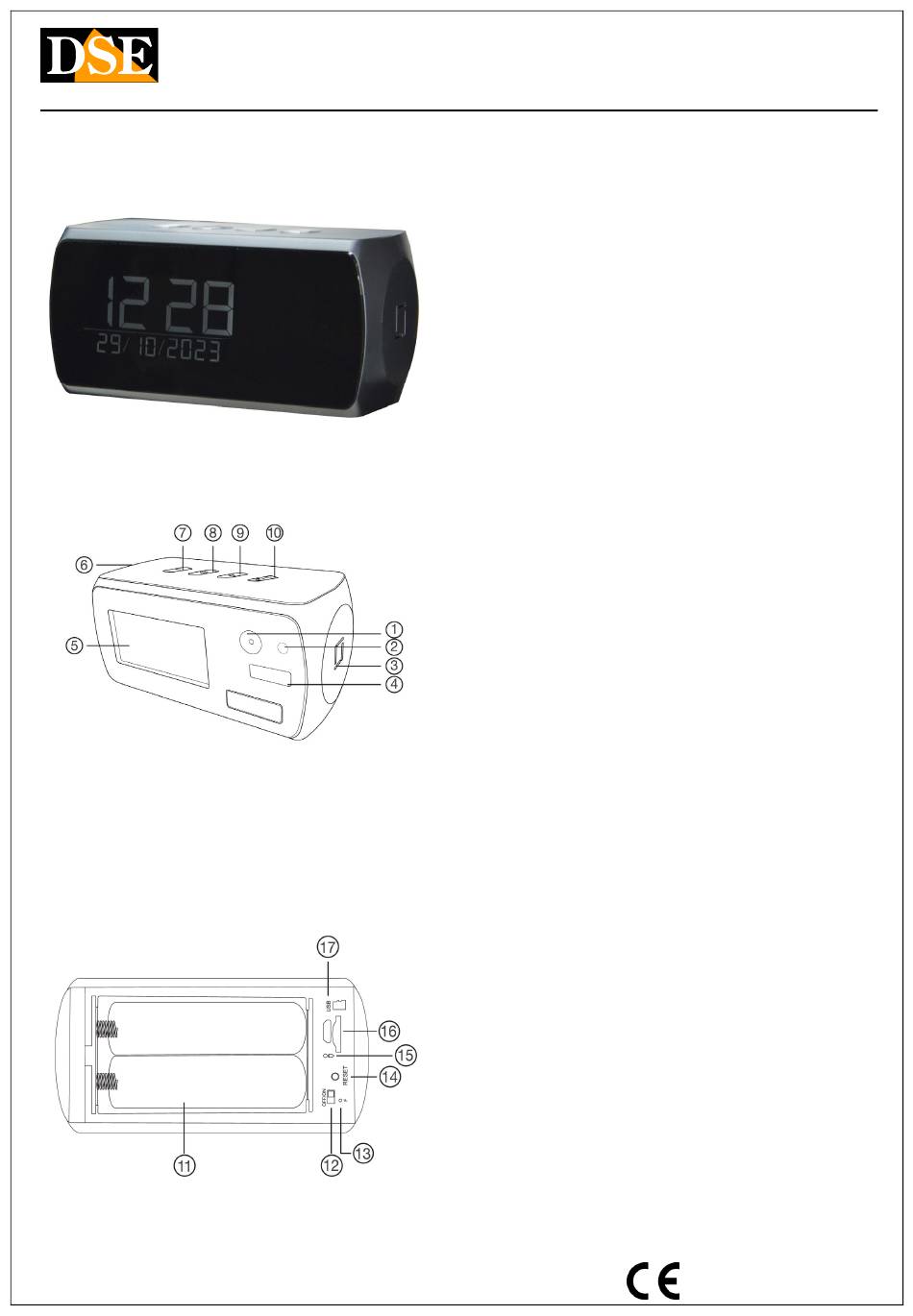

DK-CL5-TUY is a video recorder equipped with an integrated
camera hidden in an elegant table clock.
1. Objective
2. Brightness sensor
3. Clock speakers
4. Invisible infrared illuminators
5. Clock display
6. Camera speaker
7. + button
8. Clock setting button
9. Button –
10. Alarm button
11. Lithium battery
12. ON/OFF clock-camera switch
DSE srl - Digital Surveillance Equipment – www.dse.eu
DK-CL5-TUY Hidden video camera
13. WiFi network LED indicator
14. Reset button
15. LED charging indicator
16. microSDcard slot
17. Micro USB port
Power
The camera is able to operate solely on its own internal 3Ah battery
which allows approximately 4 hours of battery life. For greater
autonomy you can also insert a second 18650 battery with cap on
the positive side (not supplied).
The battery is recharged by connecting a USB power supply (not
supplied) with the included cable. The LED (15) lights up red during
charging and turns off when charging is complete. Full charging
takes approximately 6 hours. It is advisable to place the camera
switch in the OFF position during charging.
The DVR can also work powered by the mains, with the 220V/USB
power supply always connected and the camera switch set to ON.
In this case you keep the USB cable connected even during
operation and the camera has unlimited autonomy.
Use as a watch
DK-CL5-TUY is an investigative camera but it is also a real digital
watch that works perfectly so as not to arouse any suspicion.
To adjust the clock, do the following:
1. Charge the internal battery well
2. Press the button (8) to activate the time adjustment
3. Adjust the time with the +/- buttons (7)(9)
4. Press the button (8) to confirm and move on to adjusting
the minutes, alarm, year, month, day
Storing videos
Video files are stored on a micro SD card (not supplied). The videos
have Full HD 1920x1080 resolution at 25 f/sec.
It is possible to use micro SD of any brand up to 128 GB
Obviously we recommend using motion detection recording, where
possible, so as to only record significant images and not needlessly
occupy memory when no action is taking place in front of the lens.
Once the memory space runs out, the DVR automatically overwrites
the oldest files.
It should be noted that the Tuya system does not allow you to
explore the files stored on the SD card. To save video files you need
to play the videos from the app and record them during playback.
Inserting the micro SD card
The first thing to do, if you want to make recordings, is to insert the
micro SD card into the appropriate slot in the DVR (16) which can be
accessed by removing the rear door.
It is possible to use micro SD cards with capacities up toto 128 GB
in CLASS 10or higher.
A class 10 SD card has a writing speed of 10 MB/s. Do not use SD
cards with slower speeds as they would cause malfunctions.
Pay attention to the direction of insertion of the SD card which will
slide into its seat only respecting the shape next to the slot.
Document:DK-CL5-TUY 2B4
Page: 1
capacity.
