DSE DK-CS4-TUY User Manual

USER MANUAL
DK-CS4-TUY
Tuya WiFi DVR camera

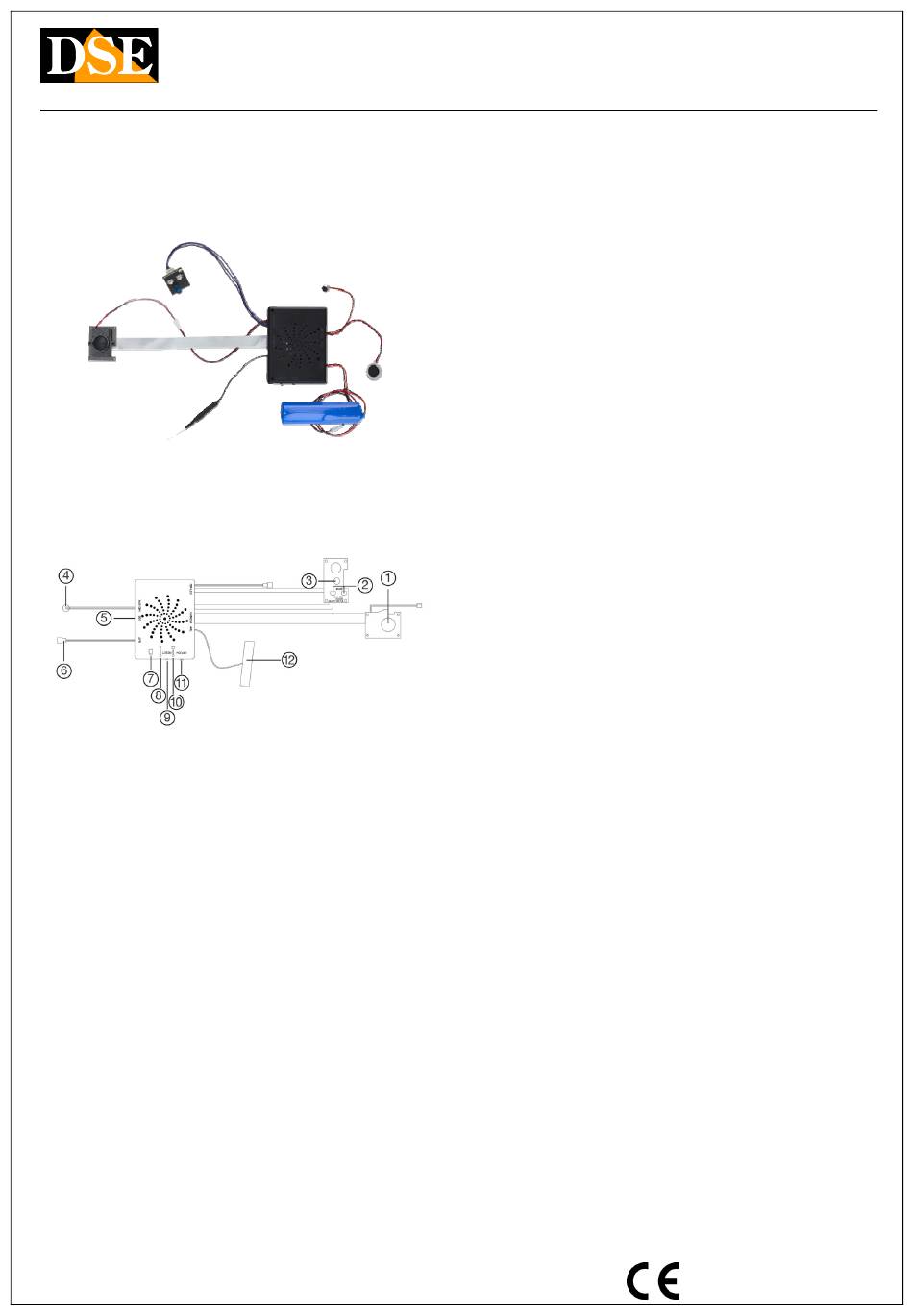

Product description
DK-CS4-TUY is a video recorder equipped with an integrated
camera supplied in a small container to be hidden in other objects.
1. Objective
2. Invisible infrared illuminator
3. Brightness sensor
4. Microphone and speaker
5. microUSB port for charging power supply
6. Battery connector
7. Micro SD card slot
8. Blue WiFi status indicator
flashing = Waiting for wifi configuration Solid blue =
Wifi connected
9. Reset button (press 8 sec.)
10. Charging indicator (solid red while charging | off when fully
charged)
11. Camera power selector
12. WiFi antenna
Diet
The camera is able to operate solely on its own 2.6Ah battery which
allows approximately 4 hours of battery life. For greater autonomy
you can purchase larger capacity batteries separately.
The battery is recharged by connecting a USB power supply (not
included) with the cable provided. The charging LED (10) lights up
red during charging and turns off when charging is complete. Full
charging takes approximately 6 hours. It is advisable to place the
camera switch in the OFF position during charging.
The DVR can also operate powered by the mains, with the 220V/
USB power supply always connected and the camera switch set to
ON. In this case it remains connected
DSE srl - Digital Surveillance Equipment – www.dse.eu
DK-CS4-TUY Hidden video camera
the USB cable even during operation and the camera has unlimited
autonomy.
Assembly
DK-CS4-TUY is a camera made to be hidden in objects. You need to
think of an object with sufficient internal space and drill a hole of at
least 1-2 mm for the lens or use an existing opening for shooting.
Storing videos
Video files are stored on a micro SD card (not supplied). The videos
have Full HD 1920x1080 resolution at 25 f/sec.
It is possible to use micro SD of any brand up to 128 GB
Obviously we recommend using motion detection recording, where
possible, so as to only record significant images and not needlessly
occupy memory when no action is taking place in front of the lens.
Once the memory space runs out, the DVR automatically overwrites
the oldest files.
It should be noted that the Tuya system does not allow you to
explore the files stored on the SD card. To save video files you need
to play the videos from the app and record them during playback.
ATTENTION: It is not possible to download the files via the DVR's
USB cable because this is only used to recharge/power the device.
Inserting the micro SD card
The first thing to do, if you want to make recordings, is to insert the
micro SD card into the appropriate slot in the DVR (7).
It is possible to use micro SD cards with capacities up toto 128 GB
in CLASS 10or higher.
A class 10 SD card has a writing speed of 10 MB/s. Do not use SD
cards with slower speeds as they would cause malfunctions.
Pay attention to the direction of insertion of the SD card which will
slide into its seat only respecting the shape next to the slot.
No micro SD card is included in the package.
Battery charging
Before using the appliance it is advisable to fully recharge the
battery. To do this, connect the battery and the USB port of the DVR
to the computer or to the USB charger with the supplied cable.
Full charging takes approximately 6 hours depending on the initial
state of charge. It is advisable to comfortably leave the charging to
complete overnight.
There is a red LED that lights up during charging and turns off
when charging is complete.
Turning on the device
DK-CS4-TUY is equipped with a power switch located on the side
(11). If you keep this switch OFF, the appliance is turned off and can
only be recharged. Turn the selector to ON to turn it on and wait
approximately 30 seconds for start-up to complete.
the device is turned on, the DVR lights up a blue LED (11) which
signals the WiFi status (flashing = not connected to WiFi, fixed =
connected to WiFi network and app).
To use the product you need to connect the camera to your wifi
network, using a smartphone or tablet with the SmartLife or Tuya
smart app.
Document:DK-CS4-TUY 2C4
Page: 1
