OWNER'S MANUAL
DK-AL4EZ
Camera and video recorder WiFi
in a mobile phone base

Product description

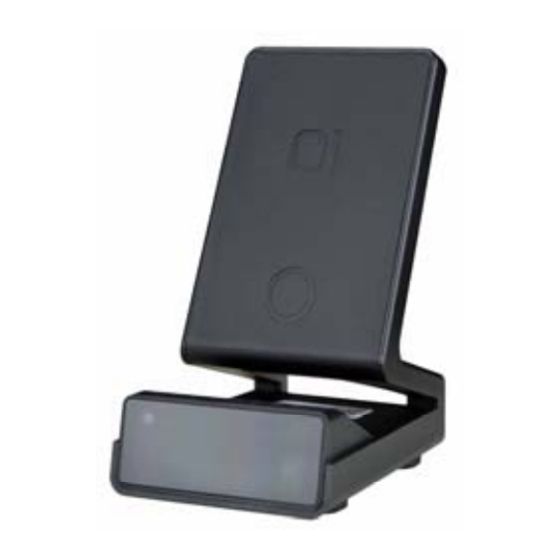

DK-AL4EZ is a basic wireless phone charger that contains
a hidden camera with video recorder. It is supplied
together with its USB adapter to be inserted into a power
outlet.
The camera is hidden inside the base and draws power
from the socket, thus ensuring a continuous operation
without problems of autonomy. Not using battery power,
DK-AL4EZ is ideal for
discreetly for long periods.
The product is also equipped with a highly sensitive
microphone can sense very clearly all the sounds of the
environment.

Operating as a real phone charger

To avoid arousing any kind of DK-AL4EZ suspect is a
wireless cellular base really works. E 'compatible with all
mobile phones that support wireless charging. Just place
your phone on the cradle to begin charging. CAUTION.
The USB port is used to power the device, you DO NOT
need to connect to a PC and review movies. To do this,
remove the microSD card and insert it into a PC player.

Inserting the micro SD card

The first thing to do if you want to make recordings, you
insert the micro SD card into this slot in DVR. To access
the SD card compartment is necessary to open the cover
into the base by sliding it sideways.
E 'can use micro SD card with 4 to 128 GB capacity in
CLASS 10 or higher.
An SD card class 10 has a 10 MB / s write speed. Do not
use the SD card with a lower rate because it would lead to
malfunction.
The package does not include any Micro SD card, or the
SD card reader for your computer that you must purchase
separately.

Resolution / archive / overwrite

monitoring an environment
DSE srl - Digital Surveillance Equipment - www.dse.eu
DK-AL4EZ camera with video recorder for mobile base
DK-AL4EZ is able to record audio and video in HD @ 30 f /
sec. Thanks to H.264 compression, you can record up to
700 hours on a 128 GB sd card
Obviously you should use the recording of motion
detection whenever possible in order to record only
meaningful images and not unnecessarily taking up
memory when no action takes place in front of the lens.
Once exhausted the memory capacity of the micro SD
card, the device will
overwriting the oldest new recorded files.
The recorded video files size is adjustable as we shall see.

Shooting Position

DK-AL4EZ recovers from a front hole which provides a
perfect image with the base resting on a floor.
The angle is not adjustable for which it is necessary to
find a good suitable position to provide an optimum angle
of view.

Control buttons

DK-AL4EZ has a small rear control panel.
A - ON / OFF CAMERA (ON to USB)
B - Micro USB port for power supply
C - RESET button
D - LED camera
STEADY RED = Camera turned on
BLUE flashing = Search WiFi
BLUE fixed = WiFi connected
E - LED charging mobile phone.
GREEN flashing = charging in progress
SOLID GREEN = Charging completed
RED = not charging

Cell phone charging

You can recharge your cell phone by placing it on the
base. The red rear LED E flashes green when charging,
and solid green when fully charged. Do not use special
cover on the phone because they prevent the operation of
wireless charging. If charging is not activated it may be
that your phone does not support wireless charging.

Turning on the camera

This cellular base has a button to turn on and turn off the
camera (A). If you move the switch to the USB socket at
the camera turns on and you will also illuminate the LED
D. You can hold the camera off and only use the base as a
charger when you do not need to register.

Download IoVedo.EZ and Configuration

DK-AL4EZ was developed to be controlled remotely via
wifi with a mobile phone or tablet.
It is not necessary to have a wifi network to use DK-
AL4EZ because the device comes factory in acccess POINT
mode and generates itself a wifi network to which you can
connect with portable devices Android / iOS.
Document: DK-AL4EZ-1A9
Page: 1
