Summary of Contents for Uniz NBEE

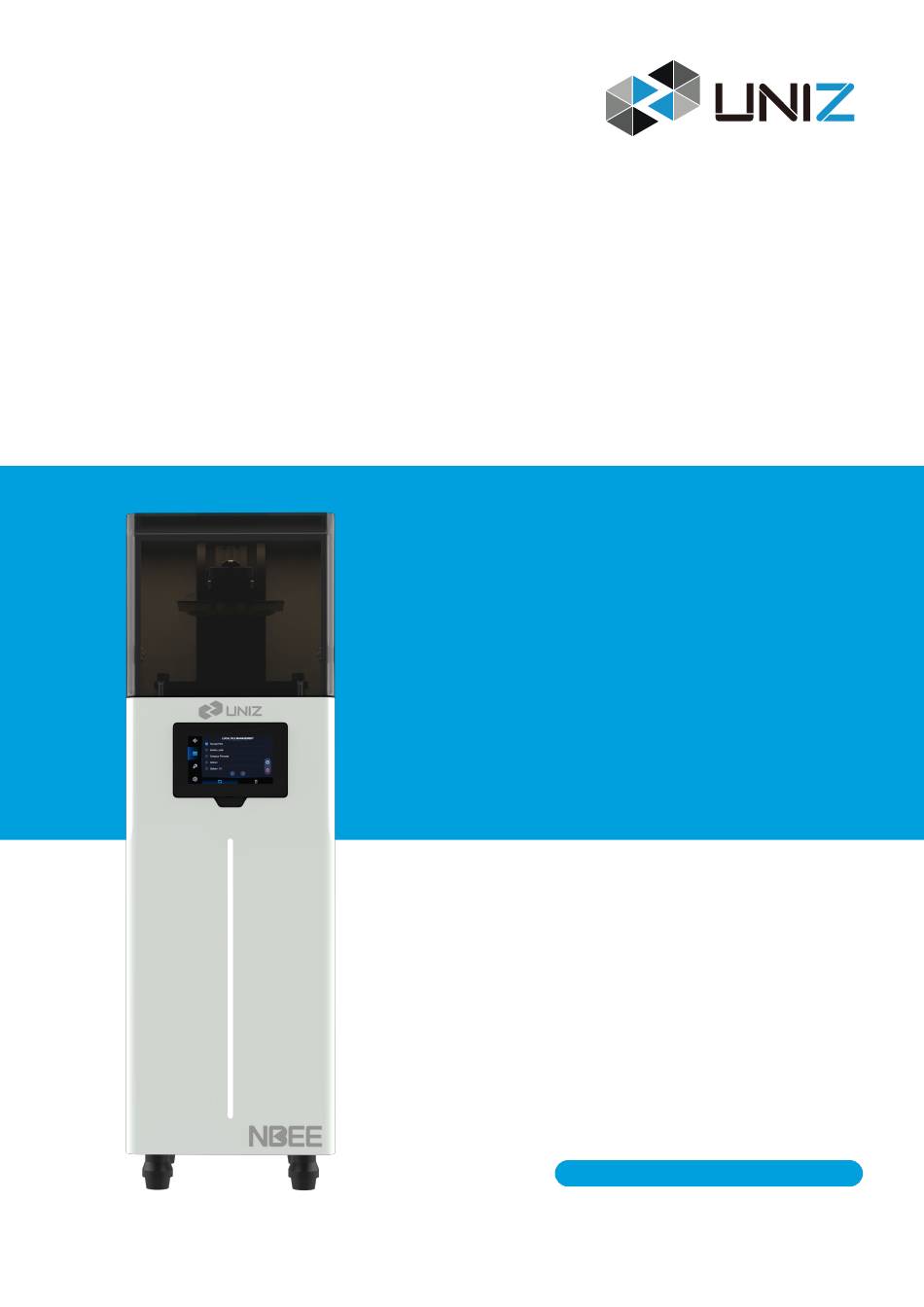

- Page 1 USER MANUAL APPLICABLE TO NBEE UNIZ TECHNOLOGY (BEIJING) CO., LTD...
- Page 3 (including upgrades and expansions) performed by anyone who is not a representative of UNIZ; e) To a Hardware Product or part that has been modified to alter functionality or capability without the written permission of UNIZ; f) To consumable parts, unless damage has occurred due to a defect in materials or workmanship;...
- Page 5 TABLE OF CONTENTS A NBEE 3D PRINTER ..........................1 MEET THE PRINTER ..............................1 SPECIFICATIONS ................................3 B GET STARTED ............................. 4 UNBOXING .................................. 4 GET THE ACCESSORIES ..............................5 SOFTWARE PREPARATION ............................6 C INTERFACE INFORMATION ........................ 7 MAIN INTERFACE ................................. 7 PRINT ..................................
- Page 7 A NBEE 3D PRINTER This user manual is designed to help you start your NBEE 3D printer experience. Learn everything about using your printer by following the instructions in this user manual and experience how easy it is to produce great quality prints.
- Page 8 BACK A NBEE 3D PRINTER...
- Page 9 Control Pannel 7" Touch Screen Slice Format zslr * Maximum accuracy is only achievable at integer multiples of smallest pixel sizes. **The printing efficiency is based on the test model, it may differ from one to another. A NBEE 3D PRINTER...
- Page 10 B GET STARTED After receiving your printer, you’re ready to unpack it and set it up! Carefully unpack your printer and set it up according to the following instructions. UNBOXING The printer comes in reusable, durable packaging that has been specially designed to protect your printer in transport.
- Page 11 GET THE ACCESSORIES ① Remove the four screws on the back of the printer and the bottom back cover plate. ② Remove the packing strap. ③ Take out the accessory box, resin box, and Build Platform box. ④ The accessory box contains essential accessories including power cord and flash drive etc. B GET STARTED...
- Page 12 1. Double click the installation program. 2. Agree to the user agreement. 3. Drag UNIZ to your Applications folder. Note: Once your computer is connected to the Internet, UNIZ DENTAL will detect new versions automatically and prompt whether you wish to update. B GET STARTED...
- Page 13 C INTERFACE INFORMATION You may check the information of your printer, control the printer, and start printing projects using the touch screen on the front of NBEE. Power on and wait until the animation ends. MAIN INTERFACE There are four main functions: Standby/Print, File List, Tools, Settings.
- Page 14 PRINT WITH FLASH DISK NBEE supports flash drive printing. You may use UNIZ Dental to slice the model on your PC then save it to your flash drive to print. Plug the flash drive into the USB port on the left of the printer, then choose the slice you want to print and click the Start button .
- Page 15 PRINT LOCAL FILES The files printed on the printer will be shown in this interface. You will see the sliced files stored Select the file you want locally on the printer, divided into two directories: 'Pending' and 'Compete'. to print, then click the start print button , and the printer will enter the print details page.
- Page 16 Note: The heater will stop working when a printing task start, regardless of whether the preheating function is enabled. After the print is finished, the system will ask whether the print was successful. Please make a judgment based on the actual printing situation. If the print fails, to avoid solid residues damaging the Resin Tank Film or the LCD screen, system will recommend using the exposure cleaning function to clean the solid residues in the Resin Tank.
- Page 17 Click LCD TEST you will see the UNIZ Logo appears on the LCD screen. RESET Z-AXIS ZERO POSITION AND LEVEL THE BUILD PLATFORM When changing a new Build Platform or when the printing model does not stick onto the Platform, please reset z-axis zero position and leveling the Build Platform.
- Page 18 Note: Detailed operation procedures are described below in Chapter D. AUTOMATIC PREHEATING To keep the printer able to print at all time, you may enable the auto preheating feature to keep the resin at a suitable temperature. Auto preheating is disabled by default, and remain the same status to the last use. °...
- Page 19 SETTINGS SET LAN Connect the printer with your router via an Ethernet cable. Go to the SETTINGS menu. Click LAN button. Set to AUTO mode. Then the printer will get the IP address automatically. If you set AUTO mode off, you will need to type IP address, Netmask, Gateway and DNS manually. Then click CONNECT.
- Page 20 SYSTEM Enter SETTINGS menu and click SYSTEM. 1. If you need to get the SN number, you may use a QR code scanner. 2. You can also set the printer alias and system language in this interface. 3. If you need to check the current firmware version, upgrade firmware, or perform Factory Reset, please click System&Updates.
- Page 21 Note: a. Factory Reset only resets LAN and alias, but will not modify light calibration or firmware version, local files, nor the work time of LCD/LED/PUMP. b. Install an USB drive and click EXPORT LOG, it will export the print log file into the USB drive. 4.
- Page 22 D USAGE AND MAINTENANCE In order to get a great work with NBEE 3D printer, it is important to maintain it correctly. In this chapter the most important maintenance tips are described. It is recommended to read them carefully in order to achieve the best results with your printer.
- Page 23 BUILD PLATFORM The Build Platform is the platform where the first layer of the model burns in-to, its levelness and roughness are crucial to successful prints. INSTALLATION AND REMOVAL OF BUILD PLATFORM 1. Turn the platform locking screw clockwise to lock (Turn the platform locking screw counter- clockwise to unlock).
- Page 24 RESET Z-axis ZERO POSITION AND LEVEL THE BUILD PLATFORM 1. Prepare an empty Resin Tank and the M5 Hexagon Wrench in the accessory box coming with the printer. 2. Make sure the bottom of Platform is clean and dry. 3. Install the empty Resin Tank and turn four blocks to lock it. 4.
- Page 25 6. Once the Build Platform stopped moving, tighten the four screws with M5 Hexagon Wrench clock wisely - as below images showed. 7. Click CONFIRM and the leveling is finished. D USAGE AND MAINTENANCE...
- Page 26 8. Then choose the 50mm option and click the arrow. Tightening the four M5 screws again. 9. Install the Resin Tank, then repeat the Zero & Leveling process from Step 5. Once the Build Platform stopped, gently pull out the 4 small pieces of papers in any directions. If the papers are firmly pressed on the Resin Rank, that means the Build Platform is zeroed and Leveled successfully.
- Page 27 CLEAN THE BUILD PLATFORM If a printing fails, there may be residues on the Platform which needs to be cleaned in time to avoid damage to the LCD screen. Please remove the failed model on the Build Platform, and clean the solidified items on the button of the Resin Tank, dispose it properly.
- Page 28 2. Put the Resin Tank onto the LCD screen. 3. Lock the Resin Tank with the 4 blocks. If a certain block is difficult to 4. Make sure the Resin Tank is stably locked to get best performance. press onto the Resin Tank, please adjust the installation position and try again. CLEANING THE RESIN TANK When a printing failure or model drop occurs, there will be some residual cured models in the Resin Tank.
- Page 29 2. Once the EXPOSURE CLEANING is done, use a scraping card to take the solidified item out. DO NOT use metal scraper which will damage the release film and cause resin leakage. Repeat it if necessary. D USAGE AND MAINTENANCE...
- Page 30 CHANGE LCD PROTECTIVE FILM There is a protective film on the LCD. Change to a new protective film when it is scratched or dirty. Please keep one protective film on the LCD or the resin cured will left permanent damage to the LCD.
- Page 31 4. Using a card and cloth to paste the film onto the surface of LCD. 5. Peel off the cover film marked ‘②’. 6. Any air bubbles between film and the LCD will disappear automatically in a period of time. D USAGE AND MAINTENANCE...
- Page 32 1. When removing the Resin Tank, please place it on a clean table to avoid scratch. 2. When slicing a file by UNIZ Dental software, it is recommended to save the sliced file to a solid state drive (SSD) for faster storage speed.
- Page 33 E DEFINITIONS Accessories Box Mainboard Air Port Nameplate Observation Light Build Platform Packaging Box Casters Power Cable Cleaning Cloth Power Port Cover Plate Printing Task Detail Packing List Rear Casing Disposable Glove Rear Cover Ethylene Glycol(Coolant) Resin Film Frame-down Resin Tank Film Frame-up Resin Tank Blocks Front Casing...
- Page 34 If you ever need help resolving an issue, please contact our Support Team. support@uniz.com STORE To learn about other UNIZ products, including UNIZ resins, please visit our online store. uniz.com/store If you have additional questions about any UNIZ product, please email our Sales Team.
