Summary of Contents for Uniz SLASH
-
Page 1: Getting Started
GETTING STARTED SLASH 3D printer quick start guide... - Page 2 UNIZ PRINTING SYSTEM A. SLASH 3D Printer B. Power Cord C. USB Cable D. Extra Resin Bottle(s) E. Clean Bottle...
-

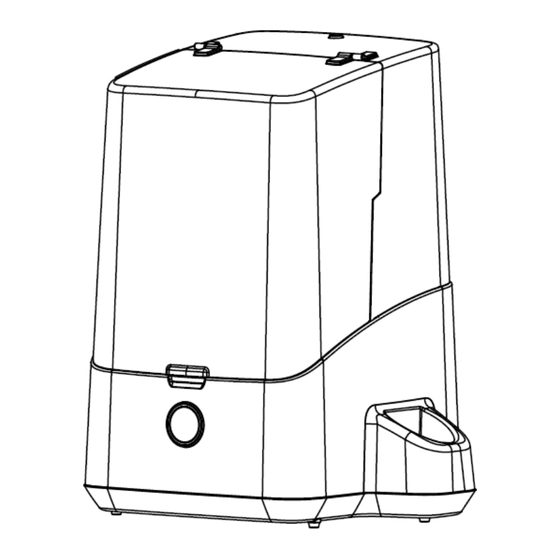

Page 3: Product Description
PRODUCT DESCRIPTION... - Page 4 ACTION BUTTON COLOR GUIDE...
-
Page 5: Unpack Your System
UNPACK YOUR SYSTEM SET-UP YOUR PRINTER Put SLASH on a flat horizontal platform. - Page 6 LOAD THE RESIN 1. Remove rigid cap. 2. Puncture the rubber cap with the needle and push it all the way down into the bottle holder. 3. Pull the plug (small) on top to open the vent. 4. Put rigid cap at the opposite side of bottle Do not remove the rubber cap at any time.
-
Page 7: Using The Software
LIGHT IT UP 1. Plug in USB cable and connect to your computer. 2. Plug in power cord and turn on. USING THE SOFTWARE 1. Double click the icon on the desktop of computer. (Please keep USB connection at this time) * Please refer to the “Software manual”... - Page 8 2. Load a model (*.stl). 3. Start slicing. a. Click the “SLICE” button; b. Click the sliding bar on the right to choose slicing parameter; c. Define parameters of different zones; d. Start slicing (check the box to skip verify process). e.
- Page 9 4. Print. a. When slicing is finished, click “print” to send data to SLASH and start to print. POST PRINT 1. Clean the bottom of Building Platform (Wipe off any uncured resin). 2. Rotate the lock arm. 3. Take it off.
- Page 10 4. Shovel the model off from Building Platform with a scrapper. Watch out for the scrapper, and don’t hurt your hand! ENJOY!
- Page 11 How to Clean the Resin System 1. Push the plug (small) in to close the vent. 2. Take the Resin Bottle off and put it on the desk. 3. Remove rigid cap of Clean Bottle. 4. Puncture the rubber cap with the needle and push it all the way down into the bottle holder.
- Page 12 CAUTION 1. Please place the printer on a horizontal flat surface. 2. Always wipe the build platform clean before removing it from the printer. 3. Double check the build platform and bottom of resin tank (vat) for debris to prevent damage to the LCD module.
- Page 13 6. Please restrain from using pause function too frequently, this will cause layer marks and sometime failed prints. 7. Make sure the orange cover is closed all the way (this will be controlled by magnetic lock sensor in final product). Keep away from intensive light and heat sources.
- Page 14 DECLARATION 1. Due to refractive index mismatch of the prototype printer, the printed parts will have distinctive ‘water marks’ which will not be present in the final product. 2. Some parts (Build platform with ARM, several locking mechanisms) doesn’t have perfect fit due to the prototype silicone molding process.
- Page 15 FCC STATEMENT : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
