USER
MANUAL
APPLICABLE TO
UBEE
UNIZ TECHNOLOGY LLC

Advertisement

loading
Need help?

Need help?

Do you have a question about the UBEE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Uniz UBEE

Summary of Contents for Uniz UBEE

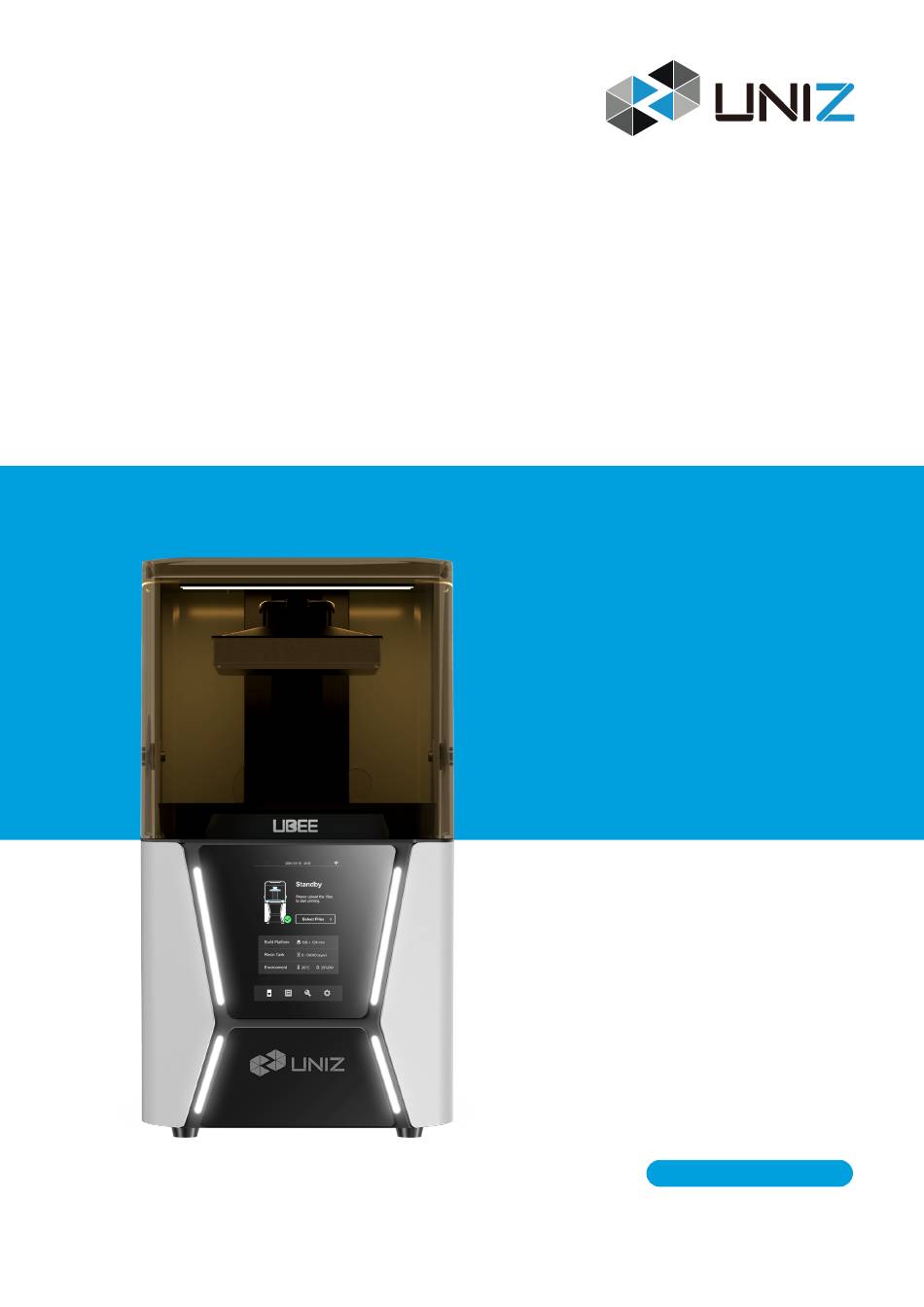

  • Page 1 USER MANUAL APPLICABLE TO UBEE UNIZ TECHNOLOGY LLC...
  • Page 3 UBEE Series 3D printers are high precision, high-speed 3D printers. Based on Stereo lithography Apparatus (SLA) modeling for various high quality photopolymer resins within a commercial/business environment. The combination of precision and speed makes the UBEE Series 3D printers the perfect machines for concept models, functional prototypes, and also the production of small series.
  • Page 5 TABLE OF CONTENTS A UBEE 3D PRINTER ......................1 MEET THE PRINTER .............................. 1 SPECIFICATIONS ..............................3 B GET STARTED .......................4 UNBOXING ................................4 POWER ON ................................5 SOFTWARE PREPARATION ...........................6 C INTERFACE INFORMATION ..................7 MAIN INTERFACE ..............................7 PRINT ...................................8 TOOLS ................................11 CALIBRATION ..............................14...
  • Page 7 A UBEE 3D PRINTER This user manual is designed to help you start your UBEE 3D printer experience. Learn everything about using your printer by following the instructions in this user manual and experience how easy it is to produce great quality prints.
  • Page 8 BACK A UBEE 3D PRINTER...
  • Page 9 Control Pannel 7" Touch Screen Slice Format zslr * Maximum accuracy is only achievable at integer multiples of smallest pixel sizes. **The printing efficiency is based on the test model, it may differ from one to another. A UBEE 3D PRINTER...
  • Page 10 Remove the plastic wrap, then flip out the two handles on the sides of the printer. Hold both handles and lift the printer out of the bottom foam BY TWO PEOPLE. Put the painter on a sable table and flip the handles back. A UBEE 3D PRINTER...
  • Page 11 POWER ON Open the Front Cover, rotate the Platform Locking Arm upward to unlock it, and then pull out the Build Platform. Take the accessories box and foam out. Remove the foam, take power cable and USB Flash Drive out. B GET STARTED...
  • Page 12 1. Double click the installation program. 2. Agree to the user agreement. 3. Drag UNIZ to your Applications folder. Note: Once your computer is connected to the Internet, UNIZ DENTAL will detect new versions automatically and prompt whether you wish to update. B GET STARTED...
  • Page 13 C INTERFACE INFORMATION You may check the information of your printer, control the printer, and start printing projects using the touch screen on the front of UBEE. Power on and wait until the animation ends. MAIN INTERFACE There are four main functions: Standby, File List, Tools, Settings.
  • Page 14 PRINT WITH USB Flash Drive UBEE supports USB Flash Drive printing. You may use UNIZ Dental to slice the model on your PC then save it to your USB Flash Drive. Plug the USB Flash Drive into the USB port on the left of the printer, then choose the files you want to print and click the Print button.
  • Page 15 You can also select a slicing file and click the "Add to Queue" button to copy the file from the USB Flash Drive to the queue. You can also choose a slice file and use the Delete function button to remove queue files individually or entirely.
  • Page 16 HISTORY FILES The printed file will enter history interface. While print success, it will displayed , however, print failure will displayed . All File listed in the history interface can be reprinted. To ensure optimal printer performance in low-temperature environments, the system will automatically activate the preheating function.
  • Page 17 TOOLS LCD TEST The LCD TEST function is to ensure the proper functioning of LCD screen. Click LCD Test you will see the UNIZ Logo appears on the LCD screen. C INTERFACE INFORMATION...
  • Page 18 RESET Z-AXIS ZERO POSITION AND LEVEL THE BUILD PLATFORM When installing a new Build Platform or if printing models fail to adhere properly, reset the Z-axis zero position and level the Build Platform. Use the provided cross screwdriver to make precise leveling adjustments.
  • Page 19 MOTOR CONTROL To move the Build Platform upwards, choose a distance (10/50/100mm) first, and then click Move AUTOMATIC PREHEATING To ensure optimal printing results, the preheating function will be activated before printing. This will heat the resin at the bottom of the Resin Tank to the optimal printing temperature of approximately 25°C.
  • Page 20 CALIBRATION To ensure accurate pressure sensor detection results, it is necessary to calibrate the device using the calibration tool after a certain period of use or whenever the sensor shows abnormalities. Note: Please refer to Chapter D for details. C INTERFACE INFORMATION...
  • Page 21 SETTINGS SETUP LAN Connect the printer with your router via an Ethernet cable. Go to the SETTINGS menu. Click LAN button. Set to AUTO mode. Then the printer will get the IP address automatically. If you set AUTO mode off, you will need to type IP address, Netmask, Gateway and DNS manually. Then click Connect.
  • Page 22 SYSTEM Enter Settings menu and click About. 1. On this screen, you can view the local storage usage and SN of the machine, or scan the QR code to obtain the SN. 2. You can also set the nickname of the printer in this interface. 3.
  • Page 23 4. If you need to check the current firmware version, upgrade firmware, set time or select a language version, please click System&Updates. Note: Insert the provided USB flash drive into the USB interface on the left side of the machine, then click "Export Log"...
  • Page 24 D USAGE AND MAINTENANCE In order to get a great work with UBEE 3D printer, it is important to maintain it correctly. In this chapter the most important maintenance tips are described. It is recommended to read them carefully in order to achieve the best results with your printer.
  • Page 25 SANDING BUILD PLATFORM The surface of the Build Platform will be smooth after a long time of use, resulting in poor model adhesion and printing failures. To fix this problem, users need to sand the Build Platform. 1. Clean the Build Platform surface with alcohol. 2.
  • Page 26 2. Wait for the platform to descend to its lowest position. Follow the on-screen prompts to adjust the corresponding screws: Turn clockwise to decrease pressure. Turn counterclockwise to increase pressure. Continue adjusting until all indicators turn green. Then, click the Complete button to finalize the leveling process.
  • Page 27 CLEAN THE BUILD PLATFORM If a printing fails, there may be residues on the Platform which needs to be cleaned in time to avoid damage to the LCD screen. Please remove the failed model on the Build Platform, and clean the solidified items on the button of the Resin Tank, dispose it properly.
  • Page 28 2. Align the resin tank with the back edge of the LCD screen, then slide it forward into its designated position until it locks securely in place. 3. Make sure the Resin Tank is stably locked to get best performance. Note: An NFC label is attached to the back of the resin tank for installation and detection purposes.
  • Page 29 CLEANING THE RESIN TANK If a printing fails, there may be residues in the Resin Tank which needs to be cleaned in time to avoid damage to the LCD screen. It is recommended to use the Full Screen Clean function as following.
  • Page 30 CALIBRATION To ensure accurate pressure sensor detection results, it is necessary to calibrate the device using the calibration tool after a certain period of use or whenever the sensor shows abnormalities. 1. Click Tools >Calibration. 2. Remove the Resin Tank and Build Platform, ensuring the screen is free of any foreign objects.
  • Page 31 4. Reinstall the Resin Tank, then place the Build Platform in the Resin Tank, proceed to the next step, and then click the Setup button, The process is complete when the red area turns green. D USAGE AND MAINTENANCE...
  • Page 32 CHANGE LCD PROTECTIVE FILM There is a protective film on the LCD. Change to a new protective film when it is scratched or dirty. Please keep one protective film on the LCD or the resin cured will left permanent damage to the LCD.
  • Page 33 4. Using a card and cloth to paste the film onto the surface of LCD. 5. Peel off the cover film marked ‘②’. 6. Any air bubbles between film and the LCD will disappear automatically in a period of time. D USAGE AND MAINTENANCE...
  • Page 34 1. When removing the Resin Tank, please place it on a clean table to avoid scratch. 2. When slicing a file by UNIZ Dental software, it is recommended to save the sliced file to a solid state drive (SSD) for faster storage speed.
  • Page 35 E DEFINITIONS Accessories Box Mainboard Air Port Nameplate Observation Light Build Platform Packaging Box Casters Power Cable Cleaning Cloth Power Port Cover Plate Printing Task Detail Packing List Rear Casing Disposable Glove Rear Cover Ethylene Glycol(Coolant) Resin Film Frame-down Resin Tank Film Frame-up Resin Tank Blocks Front Casing...
  • Page 36 If you ever need help resolving an issue, please contact our Support Team. support@uniz.com STORE In case you have extra queries regarding any UNIZ product, please email our Sales Team. sales@uniz.com KNOWLEDGE BASE RESOURCES To obtain detailed materials and solutions for problems like printing issues and troubleshooting, please access our knowledge base.
