Homedics Destress MCS-775HTL Manual

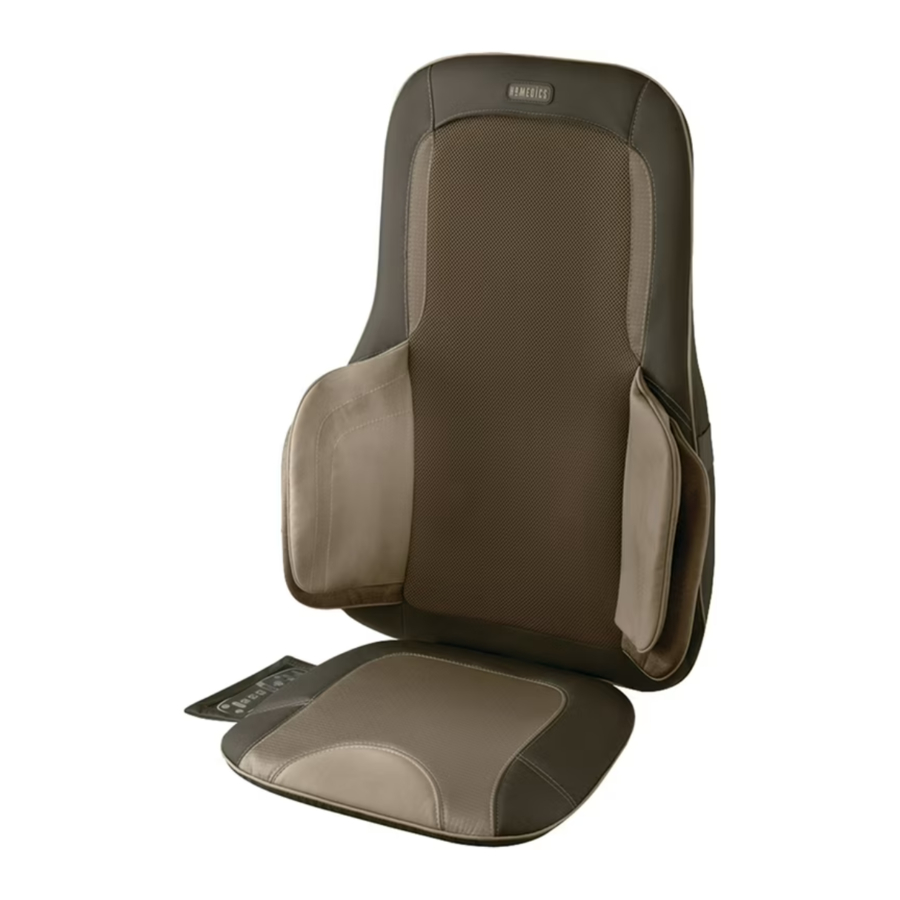

Device Overview

Device Overview
The actual product materials and fabrics may vary from the picture shown.

Instructions for Use

The Cushion comes with a screw located on the back of the unit to protect the massage mechanism during shipment, which must be removed before the first use to allow the unit to function properly. Use the provided allen wrench. Then, properly dispose of the screw.


Failure to remove screw may cause permanent damage to the massage cushion.

To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way.

  1. Un-tie cord strap, extend cord and insert plug into 120-volt household electrical outlet to power unit.
  2. Attach the cushion to most chairs for a luxurious massage as you read, rest or even work. See instructions on the use of the hand control.

Strapping System

The Cushion incorporates a unique strapping system which allows you to fasten it to almost any chair. Just slip the straps over the seat or chair and adjust fastening straps to secure. Your massager won't slip or slide away.

Maintenance

warning Note:
Not recommended for use on wooden surfaces as the zipper may damage the wood. Caution is also recommended when using on upholstered furniture.

warning Note:
Only gentle force should be exerted against the unit in order to eliminate any/all risk of injury. You may soften massage force by placing a towel between yourself and the unit.

To Store

Place massager in its box or in a safe, dry, cool place. Avoid contact with sharp edges or pointed objects which might cut or puncture the fabric surface. To avoid breakage, do not wrap the power cord around the unit. Do not hang the unit by the hand control cord.

To Clean

Unplug the unit and allow it to cool before cleaning. Clean only with a soft, slightly damp sponge. Never allow water or any other liquids to come into contact with the unit.

  • DO NOT immerse in any liquid to clean.
  • NEVER use abrasive cleaners, brushes, gasoline, kerosene, glass / furniture polish or paint thinner to clean.
  • DO NOT attempt to repair the Cushion. There are no user serviceable parts. For service, call the Consumer Relations telephone number listed in the warranty section.

Air Compression+Shiatsu - Buttons Description

Massage Cushion with heat

Buttons Description

Demo Button
For a brief demonstration of the features of the Massage Cushion, press the Demo button. The unit will briefly go through each function. Once completed, the unit automatically turns off. The L.E.D. light will blink to indicate active function.

Massage Zones
Choose from 3 preset programs where the Shiatsu massage travels up and down in a specific area of the back – full, upper and lower. To select a program, simply press the button and the L.E.D. will illuminate. To deselect, press the button again or press another button.

Heat Button
For soothing heat, when massage is on, simply press the heat button and the corresponding red L.E.D. light will illuminate. To deselect, press the button again and the corresponding L.E.D. light will turn off. For your safety, heat cannot be turned on if no massage program is selected.

Power Button
To turn on the massage functions, first press the POWER button. The L.E.D. indicator will illuminate and confirm your selection. To turn off the massage functions, simply press the button again. The L.E.D. indicator will blink while the massage mechanism returns to its lowest point and then will turn off.

Air Programs
Choose from 3 preset intensity levels where the Air massage will use gentle compression to massage your sides (Fig. 1).

Fig. 1

To activate the Air massage, simply press the AIR MASSAGE button and the corresponding L.E.D. light will illuminate. The Air massage air bags will inflate at low intensity. To change the air intensity level, press either the + or – buttons. The air program will move to the desired intensity level. While the air intensity is being adjusted, the corresponding L.E.D. light will blink. The light will change to steady illumination when the desired intensity level is reached. To turn the Air massage off, press the AIR MASSAGE button again. The air bags will deflate and turn off.

Shiatsu Massage
Shiatsu is a deep kneading massage.

Air Massage
Air massage is a gentle midsection compression massage.

warning NOTE: There is a 15-minute auto shut off on the unit for your safety.

warningNOTE: The moving massage mechanism always "parks" or finishes in its lowest position. It will continue to this position after the power has been turned off. If the electrical supply is interrupted, when power is restored, the mechanism will "park" or move to its lowest position.

SERVICE & WARRANTY

Email: cservice@homedics.com

1.800.466.3342
Monday – Friday
8:30am – 7:00pm (EST )

LIMITED TWO YEAR WARRANTY (Valid in USA only)
To obtain warranty service on your HoMedics product, contact a consumer relations representative by telephone at 1-800-466-3342 for assistance. Please make sure to have the model number of the product available.

For more information regarding our product line in the USA, please visit: www.homedics.com

REGISTER YOUR PRODUCT AT: www.homedics.com/register
Your valuable input regarding this product will help us create the products you will want in the future.

IMPORTANT SAFETY INSTRUCTIONS

WHEN USING ELECTRICAL PRODUCTS, ESPECIALLY WHEN CHILDREN ARE PRESENT, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED, INCLUDING THE FOLLOWING:

READ ALL INSTRUCTIONS BEFORE USING


TO REDUCE THE RISK OF ELECTRIC SHOCK:

  • Always unplug the appliance from the electrical outlet immediately after using and before cleaning.
  • DO NOT reach for an appliance that has fallen into water. Unplug it immediately.


TO REDUCE THE RISK OF BURNS, ELECTRIC SHOCK, FIRE OR INJURY TO PERSONS:

  • An appliance should NEVER be left unattended when plugged in. Unplug from outlet when not in use and before putting on or taking off parts or attachments.
  • NOT for use by children.
  • Close supervision is necessary when this appliance is used by, on or near children, invalids or disabled persons.
  • Use this appliance only for its intended use as described in this manual. DO NOT use attachments not recommended by HoMedics; specifically, any attachments not provided with the unit.
  • NEVER operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Return it to HoMedics Service Center for examination and repair.
  • Use heated surfaces carefully. May cause serious burns. DO NOT use on insensitive skin areas or in the presence of poor circulation. The use of heat by children or incapacitated persons may be dangerous.
  • Keep cord away from heated surfaces.
  • NEVER drop or insert any object into any opening.
  • DO NOT use this massager in close proximity to loose clothing, jewelry, or long hair.
  • DO NOT operate where aerosol (spray) products are being used or where oxygen is being administered.
  • DO NOT operate under a blanket or pillow. NEVER cover the appliance when it is in operation. Excessive heating can occur and cause fire, electric shock or injury to persons.
  • DO NOT carry this appliance by power cord or use cord as handle.
  • To disconnect, turn all controls to the "off" position, then remove plug from outlet.
  • This appliance is designed for personal, non-professional use only.
  • DO NOT use outdoors.
  • NEVER operate the appliance with the air openings blocked. Keep the air openings free of lint, hair, and the like.


All servicing of this massager must be performed by authorized HoMedics service personnel only.

SAVE THESE INSTRUCTIONS


PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE OPERATING.

  • This product is not intended for medical use. It is intended only to provide a luxurious massage.
  • Consult your doctor prior to using this product, if
    • You are pregnant
    • You have a pacemaker
    • You have any concerns regarding your health
  • NOT recommended for use by Diabetics.
  • EVER leave the appliance unattended, especially if children are present.
  • DO NOT use this product for more than 15 minutes at a time.
  • Extensive use could lead to the product's excessive heating and shorter life. Should this occur, discontinue use and allow the unit to cool before operating.
  • NEVER use this product directly on swollen or inflamed areas or skin eruptions.
  • DO NOT use this product as a substitute for medical attention.
  • NEVER use this product while in bed.
  • This product should NEVER be used by any individual suffering from any physical ailment that would limit the user's capacity to operate the controls or who has sensory deficiencies in the lower half of their body.
  • NEVER use this product in automobiles.
  • This appliance is intended for household use only.


To avoid pinching do not lean on the massage mechanism in the cushion when adjusting your body position.
Do not jam or force any part of your body in the moving massage mechanism.

warning Note: There is a 15-minute auto shut off on the unit for your safety.
