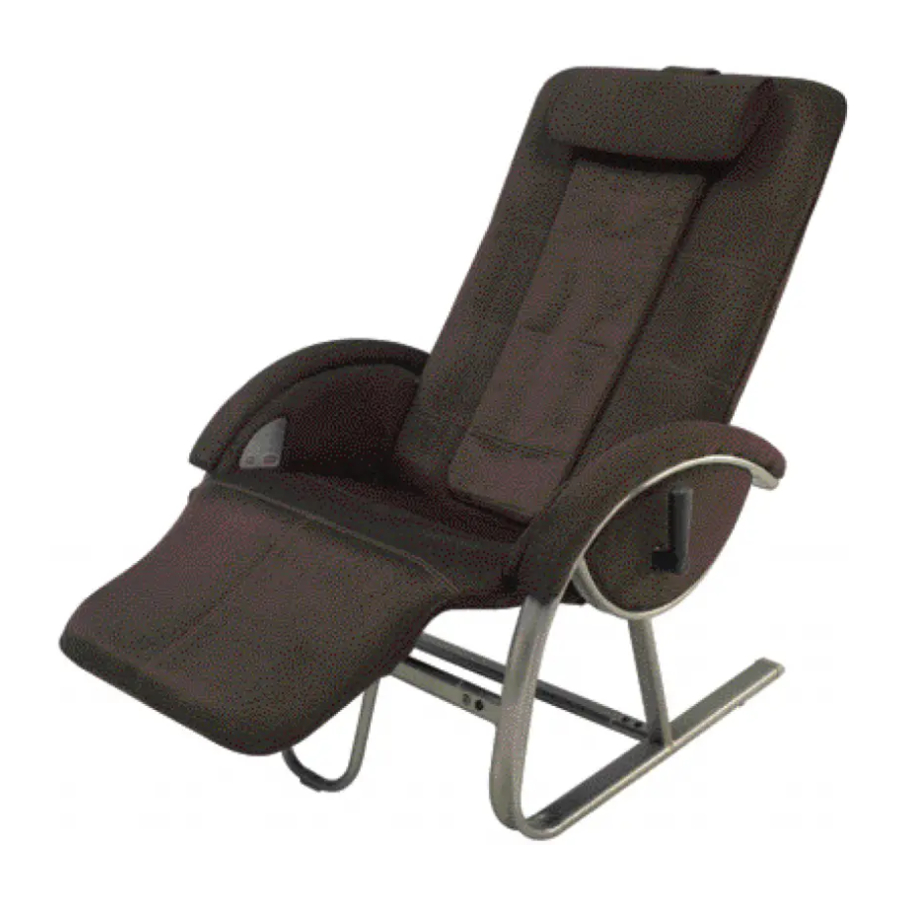

Homedics Shiatsu AntiGravity Recliner AG-3000 / AG-3001 Manual

Components

See Figure 1
Carefully remove all contents from packaging and inspect the product to make sure all components of the chair have been received. These should include:

1. Left armrest
2. Right armrest with control panel
3. Front cross bar
4. Bottom cross bar
5. Back frame with attached cushion and massage mechanism
6. Seat frame with attached cushion
7. Large bolts and bolt sleeves for crossbars (8)
8. Small bolts for back and seat frames (8)
9. Small Allen wrenches
10. Optional softening pad
11. Detachable headrest
12. AC adaptor

Easy to Follow Guide to Product Assembly

1. Assemble Chair Base
   • Attach the front cross bar to left armrest by lining up the labeled "1" on the cross bar with the "1" on the left armrest. Secure with the provided large bolts and bolt sleeves using the allen wrench . Attach the bottom cross bar to the left armrest ensuring the labeled "3" on the crossbar lines up with the "3" on the armrest. Secure with the provided large bolts and bolt sleeves using the allen wrench.
     DO NOT FULLY TIGHTEN BOLTS AT THIS POINT. See Figure 2.

   • Attach right armrest to cross bars making sure to line up the labeled "2" and "4" on the cross bars with the "2" and "4" on the armrest. Secure with large bolts and bolt sleeves using the allen wrench.
     See Figure 3.

   • Tighten all bolts, ensuring the base sits level without wobbling.
     NOTE: ASSEMBLE BASE ON ITS SIDE.
2. Attach Seat Cushion/Frame to Base
   • Align the holes on the bottom of the seat frame with the holes in the base frame. Use small bolts to secure the seat frame to the base frame. Bolts must be inserted from the underside of the chair. See Figure 4.
     NOTE: IT MAY BE EASIER TO TURN THE BASE ON ITS SIDE TO INSERT THE BOLTS.

   • Tighten all bolts evenly using the allen wrench.
3. Attach Back Cushion/Frame to Base
   • Align the holes at the bottom of the back frame with the holes in the lower bracket in the base frame. Use small bolts to secure the back frame to the base frame. See Figure 5. Attached correctly, the back frame will form a concave shape and fabric stitching should face up. See Figure 6.

   • Tighten all bolts evenly using the allen wrench provided.
4. Connect Power Source
   • Locate the output jack behind the AntiGravity chair in the lower right corner of the back cushion. The input jack will also be found behind the AntiGravity chair on the right side of the seat cushion. See Figure 7. Firmly insert the output jack into the input jack to connect the massage mechanism with the control panel.

   • To attach the softening pad align the loop strip located on the softening pad strap to the hook strip on the back of the chair cushion to secure into place. See Figure 8.

   • To attach the headrest to the back cushion, align the loop strip on the strap of the headrest with the hook strip on the softening pad or back of the chair cushion to secure in place. See Figure 9.

   • Ensure the AC power adaptor cord and extends through the back of the frame. Be sure the AC adaptor cord is not twisted or crimped between the mat and the metal frame.

Instructions for Shiatsu AntiGravity Recliner Use

Your Shiatsu AntiGravity recliner is designed to provide relaxation in a variety of positions utilizing the easylock levers on each side of the armrests. The ideal position for optimum relaxation is one in which the feet are above the heart. This position will reduce pressure on the spine and help relieve muscle tension.
NOTE: The Shiatsu AntiGravity recliner design has a weight limit of 300 pounds. Persons exceeding this body weight should not use this recliner.

• Before sitting in the Shiatsu AntiGravity recliner, be sure it is in the complete upright position by pushing the levers forward toward the footrest.
• Sit in the chair and lean back slowly. Sitting all the way back in the seat will make it easier to recline. To adjust the angle of the chair, hold on to the armrests and lean back or forward until you reach the desired position. Lock the position into place by pulling the levers back.
• The AnitGravity recliner's ergonomic design ensures proper spine alignment in any of its reclining positions.
• The footrest may be raised by pulling it upward. Each position will sound with a click. To lower the footrest, raise it until it stops and then push it back towards the floor.
• Before getting out of the AntiGravity recliner, be sure to return it to its full upright position and lock into place by pulling the easy-lock levers back.
• Stand up using the armrests for support.

Tip: To help you recline, unlock the levers and slowly raise your hands above your head and lean back. Lock in your desired position by pulling the levers back. To sit upright, unlock the levers and move hands slowly towards your knees while leaning slightly forward. This will bring the recliner back to its full upright position.

Power Adaptor Instructions

Connect the adaptor jack to the massage chair power receptacle located along the right side of the chair. Once inserted, plug the other end into an AC power outlet. Use only the AC power adaptor provided with this unit.

AC Power Adaptor Information

Your massage chair is powered by an attached custom AC home adaptor. Use only the supplied AC home adaptor as other similar-looking adaptors may cause irreparable damage to the unit and will void your warranty.

Product and Control Panel Instructions

NOTE: There is a 15-minute auto shut off on the unit for your safety.
NOTE: Color of fabric and chair components may differ from colors shown above.

NOTE: The intensity of the massage will change with the angle of the chair back. Generally, the more the chair is reclined, the more intense the massage will be. You can adjust the chair angle to suit your personal comfort level. You may also soften the massage force by placing a towel between yourself and the unit.

Do not jam or force any part of your body in the moving massage mechanism.

Automatic Shut Off

The Shiatsu AntiGravity recliner has been designed for convenience and safety. As a special precaution against falling asleep while using the unit, or leaving the unit on while it is still in operation, we've programmed it to automatically stop working after 15 minutes. This special feature should not be considered as a substitute for OFF. Always remember to turn your unit off when not in use.

Maintenance

To Store: Avoid contact with sharp edges or pointed objects which might damage/puncture the fabric.

To Clean: Disconnect massage cushion from power source before cleaning. The massage cushion and control panel may be cleaned with a soft, damp cloth only.

• The massage cushion is not machine washable and must not come into contact with water or any other liquids.
• Do not immerse into liquids to clean.
• Never use abrasive cleaners, brushes, gasoline, kerosene, polish or paint thinner to clean.
• Do not attempt to repair your AntiGravity recliner. There are no user serviceable parts. For service, send the unit to the HoMedics service address listed in the warranty section.

Frame: Periodically, the frame should be checked to ensure the screws are tight.
If the frame is found to be loose, tighten screws with the tools provided.

The AntiGravity recliner and massage cushion are designed for indoor applications only. Use of this product for outdoor applications may cause irreparable damage and void your warranty.

Back Cushion/Frame Removal for Warranty Service

If you experience a problem with the massage mechanism located in the back frame/cushion of the Shiatsu AntiGravity Recliner within a two year period, send this component to the HoMedics Service Center for repair as noted in the warranty section.

To disassemble the back cushion/frame, first disconnect the power source located behind the chair at the back cushion base and seat cushion. See figure 7 for an illustration. Now completely unscrew the bolts located along the base of the back cushion to detach from the chair. See figure 5. Once removed, please see the warranty section for further instruction.

Do not use the chair or connect it to a power source while disassembled.

IMPORTANT SAFEGUARDS

WHEN USING ELECTRICAL PRODUCTS, ESPECIALLY WHEN CHILDREN ARE PRESENT, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED, INCLUDING THE FOLLOWING:

READ ALL INSTRUCTIONS BEFORE USING

TO REDUCE THE RISK OF ELECTROCUTION:

• ALWAYS unplug the appliance from the electrical outlet immediately after using and before cleaning.
• DO NOT reach for an appliance that has fallen into water. Unplug it immediately.
• DO NOT use while bathing or showering.

TO REDUCE THE RISK OF BURNS, ELECTROCUTION, FIRE OR INJURY TO PERSONS:

• An appliance should NEVER be left unattended when plugged in. Unplug from outlet when not in use and before putting on or taking off parts or attachments.
• Close supervision is necessary when this appliance is used by, on or near children, invalids or disabled persons.
• Use this appliance only for its intended use as described in this manual. DO NOT use attachments not recommended by HoMedics; specifically any attachments not provided with the unit.
• NEVER operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Return it to HoMedics Service Center for examination and repair.
• NEVER use pins or other metallic fasteners with this appliance.
• Keep cord away from heated surfaces.
• NEVER use while sleeping or fall asleep while using the massager.
• NEVER drop or insert any object into any opening.
• DO NOT operate where aerosol (spray) products are being used or where oxygen is being administered.

All servicing of this massager must be performed by authorized HoMedics service personnel only.

• DO NOT carry this appliance by supply cord or use cord as handle.
• To disconnect, turn all controls to the "OFF" position, then remove plug from outlet.
• This appliance is designed for household use only.
• This appliance is designed for personal, non-professional use only. This appliance should be used only for personal, non-professional uses.

SAVE THESE INSTRUCTIONS

Please read all instructions carefully before operating.

• If you have any concerns regarding your health consult your doctor before using this product.
• Individuals with pacemakers should consult a doctor before use.
• NEVER leave the appliance unattended, especially if children are present.
• NEVER cover the appliance when it is in operation.
• DO NOT use this product for more than 15 minutes at a time.
• Extensive use could lead to the products excessive heating and shorter life. Should this occur, discontinue use and allow the unit to cool before operating.
• NEVER use this product directly on swollen or inflamed areas or skin eruptions.
• This product is a non-professional appliance designed to provide soothing massage to worn muscles. DO NOT use this product as a substitute for medical attention.
• DO NOT use this product before bed. The massage has a stimulating effect and can delay sleep.
• This product should NEVER be used by any individual suffering from any physical ailment that would limit the user's capacity to operate the controls.
• This product should never be used by any individual suffering from any ailments that would limit or altogether inhibit the user's capacity to feel or have any sensation in the body part that the product is being used on.
• This unit should not be used by children or invalids without adult supervision.

TWO YEAR LIMITED WARRANTY

To obtain warranty service on your HoMedics product, mail the unit and your dated sales receipt (as proof of purchase), postpaid, along with check or money order payable to HoMedics, Inc. to cover handling.

Mail To:
HoMedics
Service Center Dept. 168
3000 Pontiac Trail
Commerce Township, MI
48390
Email: cservice@homedics.com

For more information regarding our product line in the USA, please visit: www.homedics.com.
