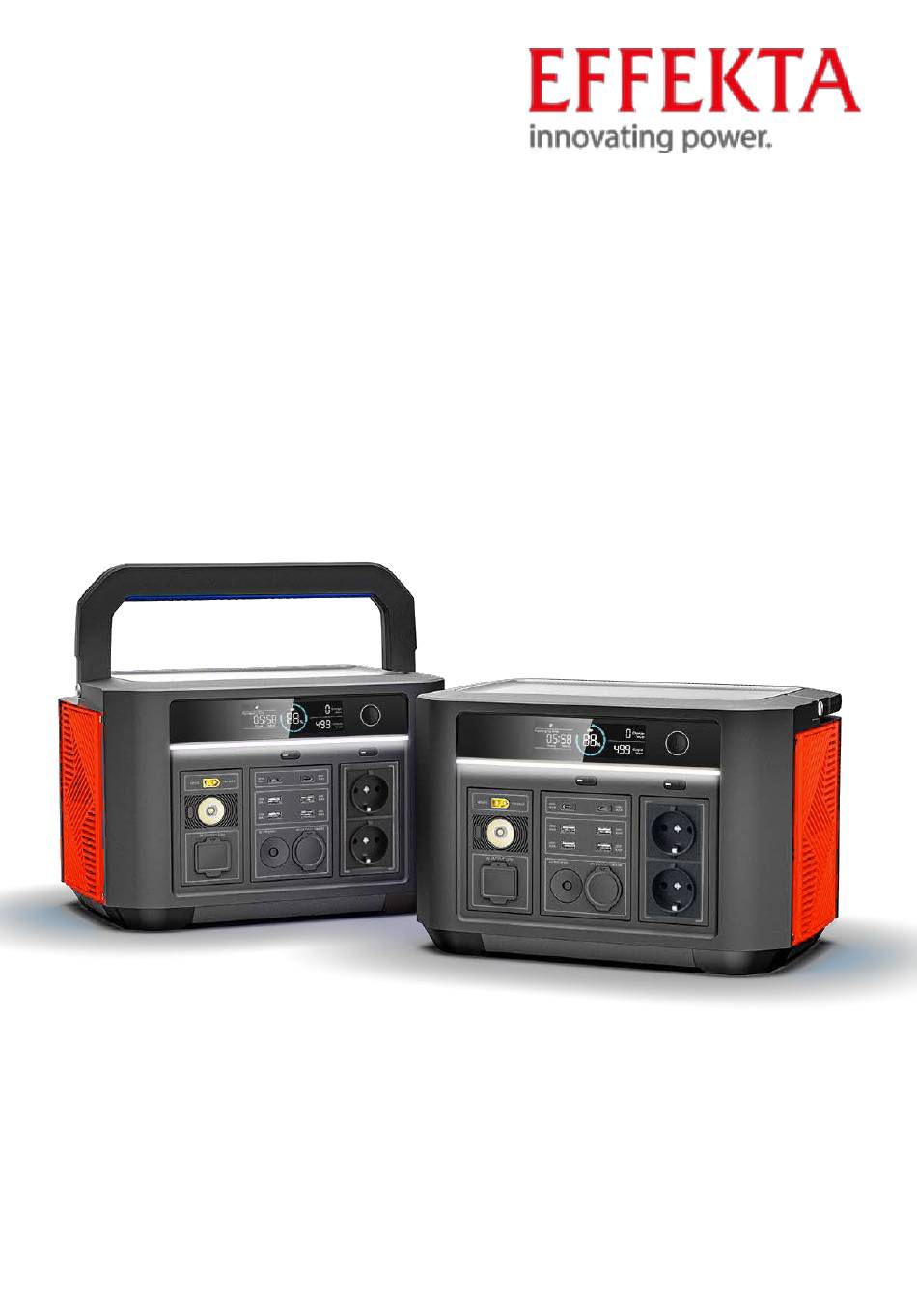

- Page 1 Mobile Power Station Power-CHEST 700 / 1400 Manual V 1.0 Part numbers: WRPADP230700TCPQ WRPADP2301K4TCPQ - 1 -...
- Page 2 SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS. This manual contains important instructions that should be followed during installation and maintenance of the portable power station and batteries. The portable power station that are covered in this manual are intended for installa- tion in an environment within 0 to 40°C, free of conductive contaminant. Test standard: EN/IEC 62040-1 and EN/IEC 62040-2, EN55032 &EN55035Special symbols RISK OF ELECTRIC SHOCK - Observe the warning associated with the risk of electric...
- Page 3 • Before maintenance, first shutdown the portable power station then dis- connect the AC power source, internal and external batteries then discharge capacitor by pressing the ON button and wait for 5minutes. • The system must be properly grounded. • The following precautions should be observed when working on batteries: •...
- Page 4 • Never block the ventilation grates of the system. • Never expose the system to direct sunlight or source of heat. • If the system must be stored prior to installation, storage must be in a dry place. • TN-S/TN-C/TT of electrical supply system may be connected by portable power station.
- Page 5 • Do not put miscellaneous objects on the portable power station. • Please keep different interfaces of the portable power station clean to avoid affecting the normal operation. • Do not block the air inlet and outlet of the portable power station to avoid overheating in the portable power station during operation.
- Page 6 Disposal of Product Batteries are hazardous chemicals and it is strictly forbidden to put them in ordinary garbage cans, be sure to completely discharge the portable power station before putting it in the designated battery recycling bin. For more details, please comply with the local laws and regulations on battery recycling and disposal.
- Page 7 Packing List 700W 1400W Portable Power Station Input Power Cord Cigarette Socket Output Cable User Manual Portable Power Station User manual Input power cord Cigarette socket output cable Function Description Introduction of Panel 700W 1. Collapsible handle 2. LCD 3. Ambient light sensing (ALS) 4.
- Page 8 1400W 1. Collapsible handle 2. LCD 3. Ambient light sensing (ALS) 4. Power switch and function settings 5. Atmosphere light 6. DC output switch 7. AC output switch Recharging T i m e 8. Solar/Car charging input port Hours M ins OutPut 9.
- Page 9 Three colors: White, blue, orange The brightness of the white light changes gradually, denoting the battery dis- charge mode. The brightness of the blue light changes gradually, denoting the battery charging mode. Atmosphere The blue light is always on, indicating that the battery is fully charged. The brightness of the orange light changes graduating, denoting the failure light mode.
- Page 10 Short press the switch to turn on or off the light. Light and switch Press the switch 4s to enter the SOS mode and short press the button again to exit this mode. Circuit breaker AC mains input current overcurrent protection (shown as button pop-up). Supports 2-pin or 3-pin AC plug electric equipment, such as laptops, TVs, mini refrigerators, vacuum cleaners, etc.
- Page 11 Introduction to the Display Interface Charge Watt Hours Mins A function setting information Set and display the working status of UPS mode Set and display the working status of * ECO Set and display the working status of super fast charging B charge/discharge time Judge the residual chargeable/dischargeable time based on the current power consumption of the product...
- Page 12 E charging power input source The portable power station operates in AC charging mode The portable power station operates in DC charging mode F charging power Display the current charging power G output power Display the current output active power or apparent power *ECO mode is not enabled by default.
- Page 13 DC charging Overvoltage √ Overvoltage √ Overcurrent √ AC charging No output √ Bus voltage Overvoltage √ Over-temp √ √ Temperature Cold √ The fan is stuck or not √ connected Common Fault Handling Malfunctions Alarm Icon Reason Solution The AC mains is normal, The input circuit breaker and the portable power Reset the circuit breaker...
- Page 14 Charge The product has an AC charging port and a Solar/Car charging interface, which are located in the front of the product. The product can be charged by AC power supply or on-board 12V. In addition, you can also use the solar panel and connect the car charger cable to the solar/car charging interface of the portable power station.
- Page 15 UPS Function Introduction Function Settings The UPS function is the default mode. Please refer to the LCD button description on page 6. Use Prompt The product has the UPS function, which means that you can work with the AC socket while plugging in the AC mains power supply (when the AC comes from the grid instead of the battery).
- Page 16 the product has no waterproof function, please do not immerse it in water. The over-tem- perature protection of this product may be triggered when it is working under high ambient temperature and heavy load continuously. Please continue to use it after the temperature inside the portable power station is recovered.
- Page 17 Battery capacity 524Wh/20.8Ah 1010Wh/23.4Ah Recharge time 1HR to 80% Discharging temperature -20 ~ 60℃ Charging temperature 0 ~ 50℃ Cyclic Life >80% SOH after 500cycles (1) The maximum total output power of AC+DC is 700W (2) The maximum total output power of AC+DC is 1,400W (3) USB protocol: QC2.0, QC3.0, FCP, AFC (4) Type-C protocol: QC2.0, QC3.0, FCP, AFC, PD3.0, PPS(3A) The standard warranty commitment...
- Page 18 Name and Content of Harmful Substances in Products Harmful substances Hexavalent Polybrominated Polybrominated Name Lead Mercury Cadmium chromium biphenyls diphenyl ethers (Pb) (Hg) (Cd) (Cr(VI)) (PBDE) (PBB) Printing group × electrical circuit Power × terminal socket × hardware Switchgear/ × class open circuit The form is compiled in accordance with the regulations of SJ/T 11364.
- Page 20 614-40225-00...
