Summary of Contents for Effekta EPS-D V2

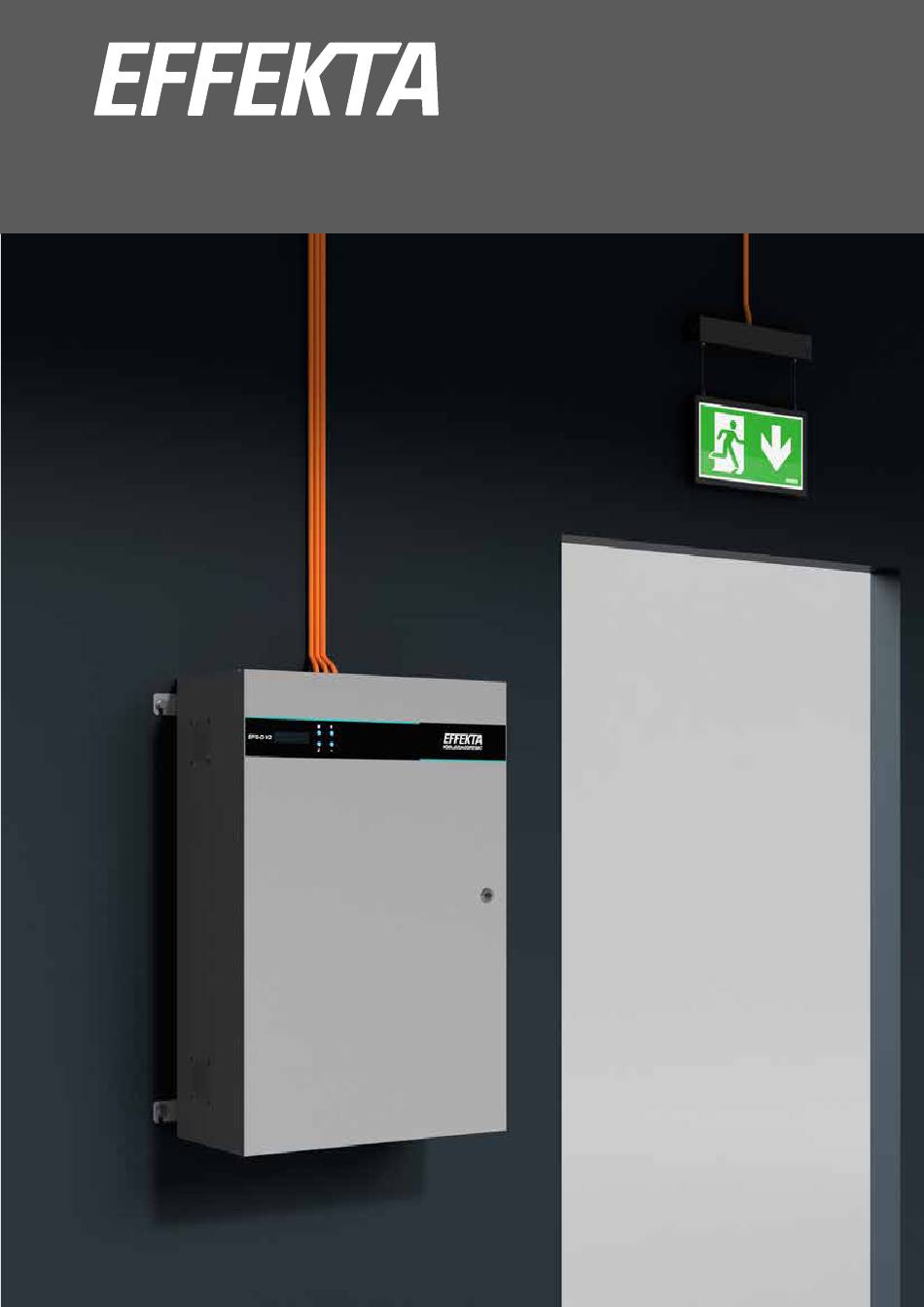

- Page 1 V1.2 MANUAL FOR EMERGENCY POWER SUPPLY EPS-D V2...
-
Page 2: Table Of Contents
V1.2 Manual Emergency Power Supply EPS-D Installation, planning and service Content 1. Safety ..... 3 2. Presentation ....3 3. -
Page 3: Safety
1. Safety Only authorized and experienced personnel in AC/DC are allowed to use, work, service/maintain, and install this device. Only insulated tools are permitted to be used within the device. Please note that dangerous voltages and currents exist within the device, both when the internal fuses are on or off. -
Page 4: Functional Description
This is done at 6:00 a.m. and lasts for five minutes. If you want to change the factory settings, contact Effekta service and support department. Once a year, a full test is performed when the inverter performs a self-test that lasts for 60 minutes. If it fails to last for 60 minutes of battery operation, the battery fault indicator will flash and the alarm relay will switch. -
Page 5: Commissioning
�� which means that the device starts when the outputs battery fuse is switched on. �� �� Connecting an EPS-D V2 Alarm type A Mains failure alarm BATTERY Alarm type B Inverter failure alarm Mains in A-LARM B-LARM 230VAC... -
Page 6: Programming
5. Programming Setting the number of outputs Press the ”Menu” button until the screen displays:” M O D E => F e e d E N T E R => S e t t i n g s . Then press the ”E” button. Next, a prompt will appear asking for the password. The default password is 0000, then press the ”E”... -
Page 7: Application Of Priority Levels
Setting priority levels Press the ”M” button until you reach the following screen: P r i o r i t y o f o u t p u t H i g h Here, you can select the output you want to change the priority for by using the ”+” and ”-” buttons and then pressing ”E”. -
Page 8: Set Warning Level For Low Battery Voltage
Setting the warning level for low battery voltage The minimum battery voltage is set to warn the system when the battery capacity has dropped. M i n i m u m b a t t e r y v o l t a g e 1 0 , 0 0 V Use the + and - buttons to adjust to a suitable level, preferably 22.5V for a 24V battery system. -
Page 9: Perform A Complete System Test
Conduct a full system test This test checks all outputs and their power, to detect if any fixtures are malfunctioning. Click on “M” until you reach the following screen: S y s t e m t e s t S t a r t => E N T E R Click on “E”... -
Page 10: Technical Data
7. Technical data Art. nr Product In/Out Battery Mass Dimensions 302040 EPS-D V2 150W 230VAC 12Ah 24 kg 400 x 600 x 250 mm 302041 EPS-D V2 400W 230VAC 24Ah 38 kg 400 x 600 x 250 mm 302042 EPS-D V2... -
Page 11: Battery Mounting
8. Battery mounting For service, we recommend batteries as below. Battery options EPS-D V2 600W 230VAC 45Ah UPLUS US12-45 Leoch LPC12-45 EPS-D V2 1000W 230VAC 65Ah UPLUS US12-65 Leoch LPL12-65 EPS-D V2 1500W 230VAC 100Ah UPLUS USC12-100 Leoch LPL12-100 EPS-D V2... -
Page 12: Menu Tree
Background light. ENTER (save) time. MODE MINUS Effekta Power Systems Prästtorpsvägen 16 341 51 Lagan, Sweden +46 (0)40-94 60 20 effekta.se Effekta Power Systems reserves itself for any factual or typographical errors in this printed matter. info@effekta.se Manual EPS-D V2 2313-1-Eng...
