Setup Guide

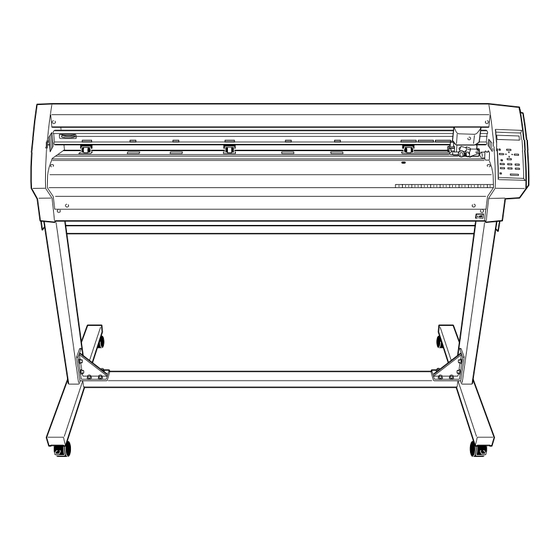

GX-500/400/300
BE SURE TO READ THIS FIRST
This document describes the included items and accessories, program installation and setup, and
other important matters. Be sure to read this manual before use.
Thank you very much for purchasing this product.
➢
To ensure correct and safe usage with a full understanding of this product's performance, please be
sure to read through this manual completely and store it in a safe location.
➢
Unauthorized copying or transferral, in whole or in part, of this manual is prohibited.
➢
The contents of this operation manual and the specifications of this product are subject to change
without notice.
➢
The operation manual and the product have been prepared and tested as much as possible. If you
find any misprint or error, please inform us.
➢
Roland DG Corp. assumes no responsibility for any direct or indirect loss or damage which may
occur through use of this product, regardless of any failure to perform on the part of this product.
➢
Roland DG Corp. assumes no responsibility for any direct or indirect loss or damage which may
occur with respect to any article made using this product.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Roland CAMM-1PRO GX-500
Summary of Contents for Roland CAMM-1PRO GX-500

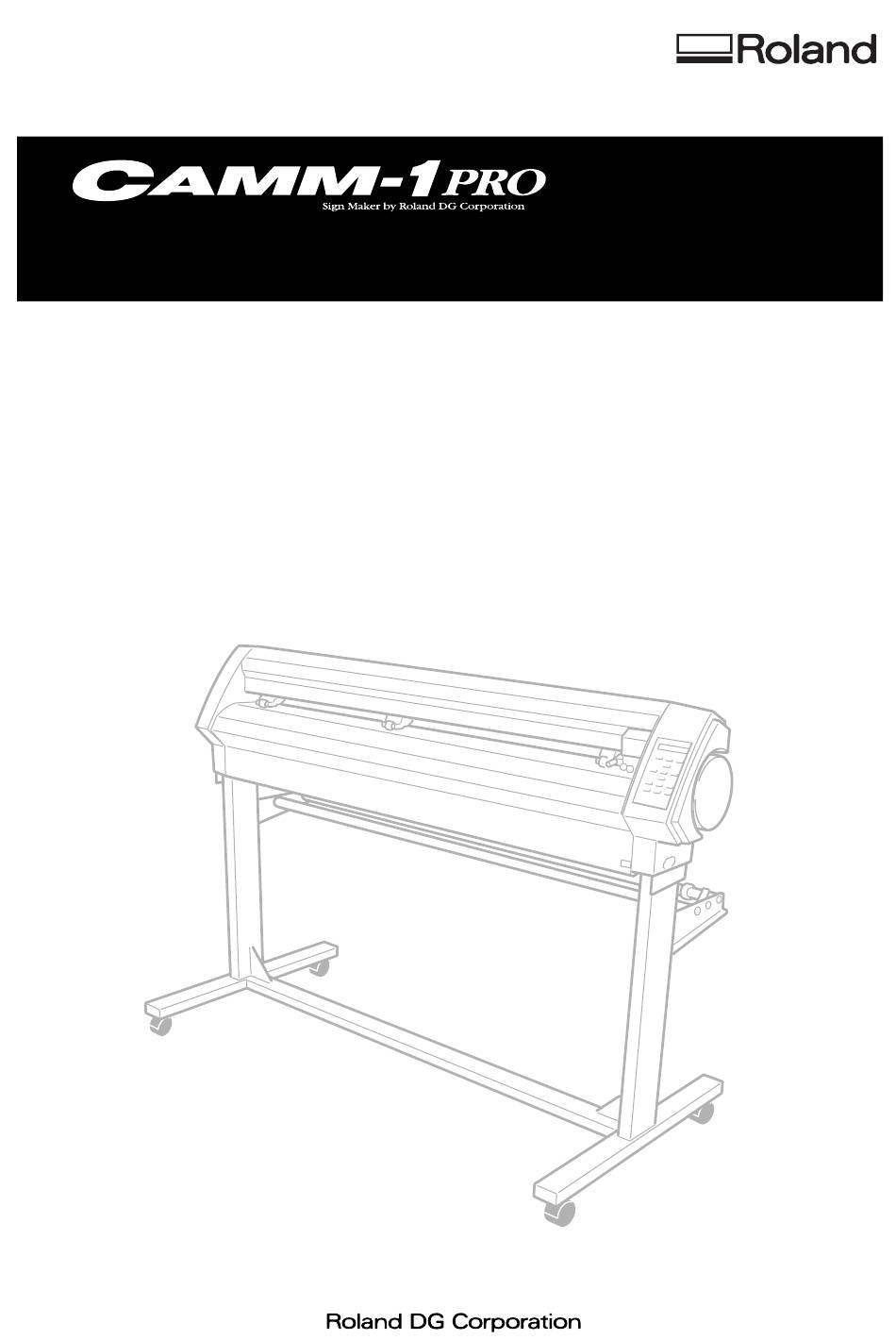

- Page 1 ➢ Roland DG Corp. assumes no responsibility for any direct or indirect loss or damage which may occur through use of this product, regardless of any failure to perform on the part of this product.
- Page 3 2-3 If You're Using a Macintosh ..........................30 System Requirements ........................30 Installing the Software ........................30 CutStudio is a trademark of Roland DG Corp. Other company names and product names are trademarks or registered trademarks of their respective holders. Copyright© 2006 Roland DG Corporation...
- Page 4 About the Documentation Included Documentation The following documentation is included with the machine. Printed Document CAMM-1PRO Setup Guide (This document) This describes how to install and set up the machine and the included software. CAMM-1PRO User's Manual This describes how to use and care for the machine, and explains what to do if a problem occurs. PNS-502/402/302 Assembly Instructions (shipped with the stand) This document describes the assembly and installation of the special stand.
- Page 5 To Ensure Safe Use Improper handling or operation of this machine may result in injury or damage to property. Points which must be observed to prevent such injury or damage are described as follows. About WARNING and CAUTION Notices Used for instructions intended to alert the user to the risk of death or severe WARNING injury should the unit be used improperly.
- Page 6 To Ensure Safe Use Incorrect operation may cause injury WARNING CAUTION Be sure to follow the operation proce- Exercise caution to avoid being pinched dures described in this documentation. or becoming caught. Never allow anyone unfamiliar with the Inadvertent contact with certain areas may cause usage or handling of the machine to touch the hand or fingers to be pinched or become caught.
- Page 7 Never use in any location where use if any component is damaged. gases can accumulate. Continuing to use the machine may result in fire, Combustion or explosion may be a danger. electrical shock, or injury. Contact your autho- rized Roland DG Corp. dealer.
- Page 8 To Ensure Safe Use Important notes about the power cord, plug, and electrical outlet Never place any object on top or subject to Never allow to get wet. damage. Never bend or twist with undue force. Never make hot. Never pull with undue force. Dust may cause fire.
- Page 9 To Ensure Safe Use Warning Labels Warning labels are affixed to make areas of danger immediately clear. The meanings of these labels are as follows. Be sure to heed their warnings. Also, never remove the labels or allow them to become obscured. Caution: Moving Carriage The tool carriage moves at high speed and pose a hazard.
- Page 11 Pour utiliser en toute sécurité La manipulation ou l'utilisation inadéquates de cet appareil peuvent causer des blessures ou des dommages matériels. Les précautions à prendre pour prévenir les blessures ou les dommages sont décrites ci-dessous. Avis sur les avertissements Utilisé pour avertir l'utilisateur d'un risque de décès ou de blessure grave en ATTENTION cas de mauvaise utilisation de l'appareil.
- Page 12 Pour utiliser en toute sécurité L'utilisation incorrecte peut causer des blessures ATTENTION PRUDENCE S'assurer de suivre les procédures Faire preuve de prudence pour éviter d'utilisation décrites dans la documenta- l'écrasement ou le coincement. tion. Ne jamais permettre à quiconque ne La main ou les doigts peuvent être écrasés ou connaît pas le fonctionnement ou la coincés s'ils entrent en contact avec certaines...
- Page 13 Continuer à utiliser l'appareil peut causer un de produit inflammable en aérosol à incendie, un choc électrique ou des blessures. proximité de l'appareil. Ne jamais utiliser Communiquer avec le représentant Roland DG l'appareil dans un endroit où des gaz Corp. Autorisé. peuvent s'accumuler.
- Page 14 Pour utiliser en toute sécurité Remarques importantes à propos du câble d'alimentation, de la fiche et de la prise électrique Ne jamais déposer aucun objet sur le câble, sur la fiche Ne jamais laisser l'eau toucher le câble, la ou sur la prise car cela risque de les endommager. fiche ou la prise.
- Page 15 Pour utiliser en toute sécurité Vignettes d'avertissement Des vignettes d'avertissement sont apposées pour qu'il soit facile de repérer les zones dangereuses. La signification des vignettes est donnée ci-dessous. Respecter les avertissements. Ne jamais retirer les vignettes et ne pas les laisser s'encrasser. Attention : Chariot mobile Le chariot de coupe se déplace très rapidement et peut être dangereux.
- Page 16 Important Notes on Handling and Use This machine is a precision device. To ensure the full performance of this machine, be sure to observe the following important points. Failure to observe these may not only result in loss of performance, but may also cause malfunction or breakdown. Main unit This Machine Is a Precision Device ➢Handle carefully, and never subject the machine to impact or excessive force.
- Page 17 Chapter 1: Setup Preparation...
- Page 18 1-1 Included Items The following items are packed together with the unit. Make sure they are all present and accounted for. Power cord: 1 Blade: 1 Blade holder: 1 Alignment tool: 1 Pin: 1 USB cable: 1 Replacement blade Cable clamp: 1 CD-ROM: 1 for separating knife: 1 Setup Guide...
- Page 19 1-2 Installing Deciding On an Installation Site Install in a stable location offering good operating conditions. An unsuitable location can cause accident, faulty operation, or breakdown. Never use out of doors or in any location where exposure to water or high humid- WARNING ity may occur.
- Page 20 1-2 Installing Assembling the Stand For an explanation of how to assemble the unit and the stand (PNS-502/402/302), refer to the “ASSEMBLY INSTRUC- TIONS” included with the stand. CAUTION Use the joining screws to secure the unit to the stand. Failure to do so may result in falling of the unit, leading to injury.
- Page 21 1-2 Installing Connecting the Cables Connect to an electrical outlet that complies with this machine's ratings (for volt- WARNING age, frequency, and current). Incorrect voltage or insufficient current may cause fire or electrical shock. WARNING Handle the power cord, plug, and electrical outlet correctly and with care. Never use any article that is damaged.
- Page 22 ➢Never use a USB hub or the like. Serial Connection(Windows only) Use a serial cable from Roland DG Corp. sold separately (for an IBM-compatible computer, use a crossover cable such as the XY-RS-34) or equivalent. A straight cable such as a modem cable will not work.
- Page 23 Chapter 2: Installing Software...
- Page 24 This is a Windows-based driver required for sending data from a computer to the machine. Be sure to install it. I Roland CutStudio Roland CutStudio is software that allows you to create cutting data and easily perform cutting operations. I CutStudio Plug-in for Adobe Illustrator This is an Illustrator software plug-in that lets you cut from data created in Adobe Illustrator.
- Page 25 1) Computers preinstalled with Windows 98 SE/Me/2000/XP at the time of purchase (This includes such computers later upgraded to Windows Me/2000/XP.) 2) Computers on which USB operation is assured by the manufacturer of computers System Requirements for the Roland CutStudio Operating Systems Windows 98 SE (Second Edition)/Me/2000/XP...
- Page 26 2-2 If You're Using a Windows Installing the Software Installing the Driver Do Not Connect to Computer Until Instructed Do not connect the machine to the computer until instructed to do so. Failure to follow the correct procedure may make installation impossible. p 27 "What to Do If Installation Is Impossible (USB connection)"...
- Page 27 Next, you install the electronic manuals. Viewing the Roland CutStudio Online Help Click [Start], point to [All Programs] (or [Programs]), then point to [Roland CutStudio], point to [CutStudio Help]. * You can also display the Online Help from the CutStudio menu.
- Page 28 Viewing the Manuals in Electronic Format Click [Start], point to [All Programs] (or [Programs]), then point to [Roland CAMM-1PRO Manual], point to [Advanced Guide]. The screen shown in the figure below appears. Click the name of the guide you want to view.
- Page 29 2-2 If You're Using a Windows What to Do If Installation Is Impossible (USB connection) If installation quits partway through, or if the wizard does not appear when you make the connection with a USB cable, take action as follows. Windows 2000/XP –...
- Page 30 2-2 If You're Using a Windows š Close the [Device Manager] and click [OK]. › Detach the USB cable connected to the computer. œ Restart Windows, then uninstall the driver. p 29 "Uninstalling the Driver" Redo the installation from the beginning. p 24 "Installing the Driver"...
- Page 31 2-2 If You're Using a Windows Uninstalling the Driver When uninstalling the driver, perform following operation. Procedure – Before you start uninstallation of the driver, unplug the USB cable from your computer. — Log on to Windows. If you are installing under Windows 2000/XP, log on as “Administrators” right. ˜...
- Page 32 Procedure – Insert the included CD-ROM into the CD-ROM drive. — Double-click the [Roland CAMM-1PRO] icon that appears on the desktop. ˜ Double-click the "Install_e.html" icon. The [Mac OS Installation and Setup Guide] appears. ™...
- Page 36 Roland may change the specifications of this Software or its material without notice. Roland shall not be liable for any damage that may caused by the use of the Software or by exercise of the right licensed by this agreement.
