• Thank you very much for purchasing this product.
• To ensure correct and safe usage with a full understanding of this product's performance, please be sure to read
through this manual completely and store it in a safe location.
• Unauthorized copying or transferal, in whole or in part, of this manual is prohibited.
• The specifications of this product and the contents of this operation manual are subject to change without
notice.
• This manual and the product have been prepared and tested as much as possible. If you find any misprints or
errors, please inform Roland DG Corporation.
• Roland DG Corporation assumes no responsibility for any direct or indirect loss or damage that may occur
through use of this product, regardless of any failure to perform on the part of this product.
• Roland DG Corporation assumes no responsibility for any direct or indirect loss or damage that may occur with
respect to any article made using this product.
R2-210707TW

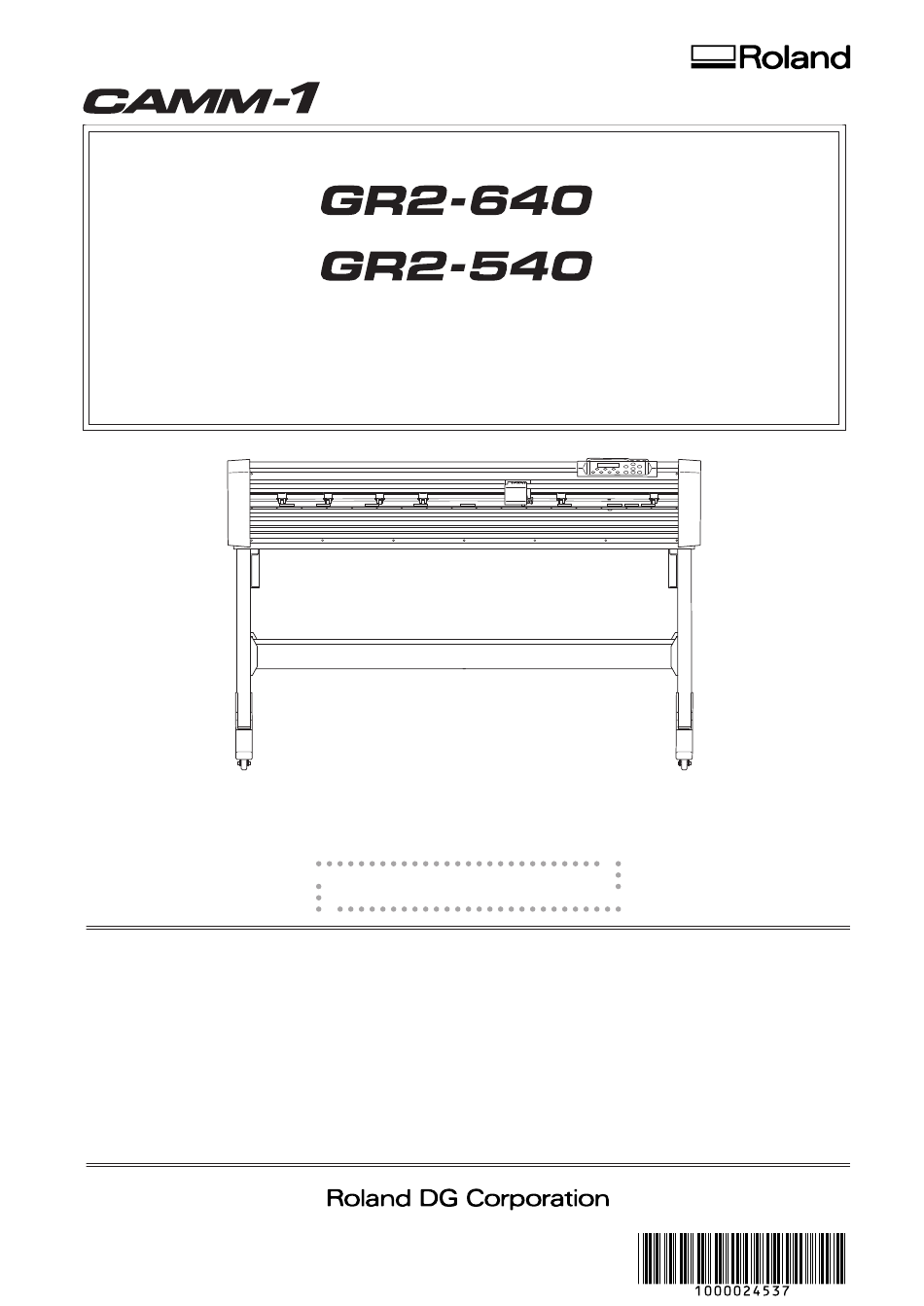

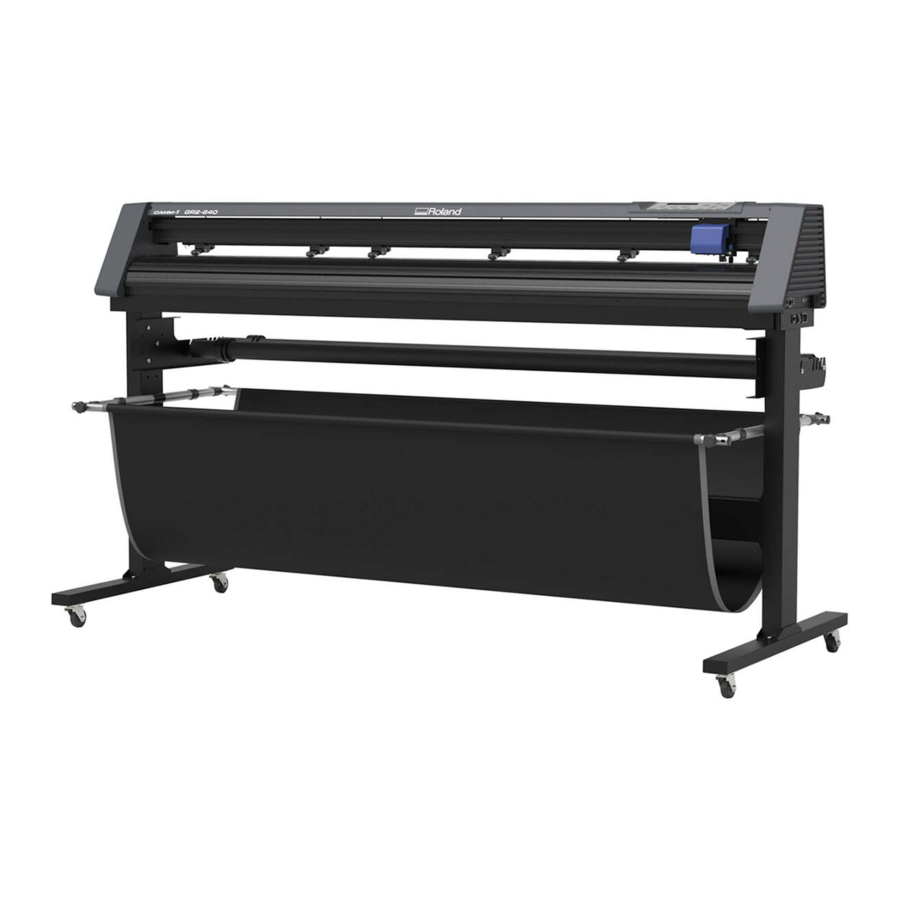

Setup Guide
Affix voucher code here
Advertisement
Table of Contents
Related Manuals for Roland CAMM-1 GR2-640
Summary of Contents for Roland CAMM-1 GR2-640
- Page 1 • Roland DG Corporation assumes no responsibility for any direct or indirect loss or damage that may occur with respect to any article made using this product.
- Page 2 COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT Manufacturer: ROLAND DG CORPORATION 1-6-4 Shinmiyakoda, Kita-ku, Hamamatsu-shi, Shizuoka-ken, Responsible Party : Roland DGA Corporation 431-2103 JAPAN Address : 15363 Barranca Parkway Irvine, CA 92618 U.S.A. Telephone : 949-727-2100 The importer in the EU: Type of Equipment :Cutting Machine Roland DG Europe Holdings B.V.
-
Page 3: Table Of Contents
3. Appendix ....................35 Location of the Power Rating and Serial Number Label ....... 36 Specifications ....................37 This document is the setup guide for the GR2-640/540. This document uses the following notations to distinguish between the models where necessary. GR2-640 — 64-inch model GR2-540 — 54-inch model Most of the figures in this document depict the GR2-640. Company names and product names are trademarks or registered trademarks of their respective holders. Copyright © 2021 Roland DG Corporation http://www.rolanddg.com/... - Page 4 For China 产品中有毒有害物质或元素的名称及含量 有毒有害物质或元素 部件名称 六价铬 多溴联苯 多溴二苯醚 铅(Pb) 汞(Hg) 镉(Cd) (Cr(Ⅵ)) (PBB) (PBDE) 印刷电路板 × ○ ○ ○ ○ ○ 头部 × ○ ○ ○ ○ ○ 壳体、底架 × ○ ○ ○ ○ ○ 电源 × ○ ○ ○ ○...
-
Page 5: To Ensure Safe Use
To Ensure Safe Use Improper handling or operation of this machine may result in injury or damage to property. Points that must be observed to prevent such injury or damage are described as follows. About WARNING and CAUTION Notices Used for instructions intended to alert the user to the risk of death or severe injury should the unit be used improperly. - Page 6 To Ensure Safe Use Incorrect operation may cause injury CAUTION WARNING Exercise caution to avoid being pinched Be sure to follow the operation proce- or becoming caught. dures described in the user's manual. Inadvertent contact with certain areas Never allow anyone unfamiliar with the may cause the hand or fingers to be usage or handling of the machine to pinched or become caught.
- Page 7 Do not use the supplied power cord for the ventilation ports may result in fire or other products. electrical shock. If anything gets inside, immediately disconnect the power cord Never use the machine for any purpose and contact your authorized Roland DG for which it is not intended, or use the Corporation dealer. machine in an excessive manner that exceeds its capacity. Never place any flammable object Doing so may result in injury or fire.
- Page 8 To Ensure Safe Use Important notes about the power cord, plug, and electrical outlet Never place any object on top or Never allow to get wet. Never bend or twist with excessive subject to damage. force. Never make hot. Never pull with excessive force. Dust may cause fire. Never bundle, bind, or roll up.
- Page 9 To Ensure Safe Use Warning Label A warning label is affixed to the machine to make areas of danger immediately clear. The meaning of this label is indicated below. Be sure to heed this warning. Also, never remove the label or allow it to become dirty.
-
Page 10: Pour Utiliser En Toute Sécurité
Pour utiliser en toute sécurité La manipulation ou l’utilisation inadéquates de cet appareil peuvent causer des blessures ou des dommages matériels. Les précautions à prendre pour prévenir les blessures ou les dommages sont décrites ci-dessous. À propos des avis ATTENTION et PRUDENCE Utilisé pour avertir l’utilisateur d’un risque de décès ou de blessure grave en cas de mau- vaise utilisation de l’appareil. - Page 11 Pour utiliser en toute sécurité Incorrect operation may cause injury ATTENTION PRUDENCE S’assurer de suivre les procédures d’util- Faire preuve de prudence pour éviter isation décrites dans le manuel utilisa- l’écrasement ou le coincement. teur. Ne jamais permettre à quiconque La main ou les doigts peuvent être écrasés ne connaît pas le fonctionnement ou la ou coincés s’ils entrent en contact avec manutention de l’appareil de le toucher. certaines surfaces par inadvertance. Faire L’utilisation ou la manutention incorrectes preuve de prudence pendant l’utilisation peuvent causer un accident.
- Page 12 Pour utiliser en toute sécurité Cet appareil est lourd. ATTENTION PRUDENCE S’assurer de verrouiller les roulettes de la Le déchargement et la mise en place base. doivent être faits par au moins deux Si l’appareil devait commencer à bascu- personnes.. ler, il s’ensuivrait un accident grave, par Les tâches qui exigent un effort trop grand exemple l’écrasement de membres ou du si elles sont exécutées par un petit nombre corps.
- Page 13 Roland DG Corpora- ventilation peuvent causer un incendie ou tion autorisé.. un choc électrique. Si un objet ou du liq- Ne pas utiliser le cordon électrique four-...
- Page 14 Pour utiliser en toute sécurité Remarques importantes à propos du câble d’alimentation, de la fiche et de la prise électrique Ne jamais déposer aucun objet Ne jamais laisser mouiller. Ne jamais plier ni enrouler. dessus au risque de les endom- mager. Ne jamais chauffer. Ne jamais tirer avec une force La poussière peut causer un in- excessive. cendie. Ne jamais plier ni tordre avec une force excessive.
- Page 15 Pour utiliser en toute sécurité Etiquette d’avertissement Une étiquette d’avertissement est apposée sur la machine, afin de signaler clairement les zones dangereuses immédiatement. La signification de cette étiquette est indiquée en dessous. Par conséquent, ne jamais enlever l’étiquette, ni la laisser devenir illisible. Attention : Chariot mobile Le chariot de coupe se déplace très rapidement et peut être dangereux.
-
Page 17: Introduction
1. Introduction 1. Checks before Installation .................. 15 About the User's Manuals for This Machine ..........15 Deciding On an Installation Site ..............16 Temperature and Humidity ................17 Installation Space ..................17 2. Included Items ....................18 1.Introduction... -
Page 18: Checks Before Installation
1. Checks before Installation About the User's Manuals for This Machine The following documentation is included with the machine. Paper Manuals • Setup Guide (this document) This manual contains details on how to install the machine and how to configure its initial settings. Electronic-format Manual •... -
Page 19: Deciding On An Installation Site
1. Checks before Installation Deciding On an Installation Site Install the machine in a quiet, stable location offering good operating conditions. An unsuitable loca- tion can cause accidents, fire, faulty operation, or breakdown. Install in a level and stable location. WARNING Failure to do so may result in falling of the machine, leading to injury. -
Page 20: Temperature And Humidity
1. Checks before Installation Temperature and Humidity Maintain the specified temperature and humidity even when the machine is not in use. Failure to do so may result in malfunction. • Temperature: 15 to 30°C (59 to 86°F) • Humidity: 25 to 75%RH (no condensation) Installation Space The space shown in the figure is required in order to use this machine. -
Page 21: Included Items
2. Included Items The following items are included with the machine. Make sure they are all present and accounted for. Ethernet cable USB cable (2.5 m [98.4 in.]; Cutting pad (1) Roll holder flanges (2) (5 m [196.9 in.]; 1) Bottom stands with wheels Vertical stands (2) Stand beam (1) -
Page 23: Installation
2. Installation 1. Assembly ......................20 Checks before Operations ................20 Step 1: Assembling the Stand ..............21 Step 2: Assembling the Machine and the Stand .......... 23 Step 3: Installing the Roll Holders ..............24 Step 4: Removing the Retainers ..............28 Step 5: Connecting the Cables .............. -
Page 24: Assembly
1. Assembly Checks before Operations Unloading and placement are operations that must be performed by four per- CAUTION sons or more. Tasks that require undue effort when performed by a small number of persons may result in physical injury. Also, if dropped, such items may cause injury. Completed Drawing Necessary Tools (Included Items) •... -
Page 25: Step 1: Assembling The Stand
1. Assembly Step 1: Assembling the Stand Procedure Position the vertical stands parallel to each other and separated by approximately 1,980 mm (77.9 in.) for the 64-inch model or approximately 1,710 mm (67.3 in.) for the 54-inch model. Face the bolt-attaching surface of the vertical stands to the inside. Approximately 1,980 mm (77.9 in.) for the 64-inch model Approximately 1,710 mm (67.3 in.) for the 54-inch model Attach the stand beam to the vertical stands. Temporarily tighten the bolts in the three locations on the left and right. The stand beam has no particular front and rear orientation. - Page 26 1. Assembly Lock the caster on each bottom stand with wheels or cushions and place the vertical stands on them. Position each bottom stand with wheels or cushions so the caster with a brake is in front. Front Attach the vertical stands to the bottom stands with wheels or cushions. Temporarily tighten the bolts in the two locations on the left and right. Tighten temporarily Bolts: 4 Fully tighten all the bolts. Tighten the bolts evenly on the left and right in the order of Tighten fully...
-
Page 27: Step 2: Assembling The Machine And The Stand
1. Assembly Step 2: Assembling the Machine and the Stand Procedure ME MO When lifting the machine, support it from the bottom with both hands. Place the machine on the stand so the bolt holes are aligned. Exercise caution to prevent your hands supporting the machine from being pinched. 2.Installation... -
Page 28: Step 3: Installing The Roll Holders
1. Assembly Use bolts to secure the machine to the stand. Tighten fully Bolts: 4 Step 3: Installing the Roll Holders Procedure Attach the roll holder supports to the vertical stands. Check the positions to secure the roll holder supports and temporarily tighten the bolts in the three locations on the left and right. Fully tighten all the temporarily tightened bolts. Tighten fully Bolts: 6 2.Installation... - Page 29 1. Assembly Loosen the resin bolts and attach the roll holder guide bushes to the roll holders. Face the grooves on the roll holder guide bushes to the center and insert these bushes onto the roll holders. For the roll holder with a (white) damper, insert the bushes from the damp- er-less end. Damper Attach the roll holders to the roll holder supports.
- Page 30 1. Assembly Use the hexagonal wrench (large) to rotate the damper screw three times in the direction of the arrow. Insert the damper-equipped roll holder into the front notches on the roll holder supports (up to the third set of notches can be used) with the damper on the left side as seen from behind the machine. Position the protrusion on the damper above the screw, and then insert the screw and pro- trusion into the notch on the roll holder support. Firmly press the protrusion into the notch on the roll holder support. The roll holder cannot be installed correctly if the protrusion and screw positions are reversed.
-
Page 31: Step 4: Removing The Retainers
1. Assembly Step 4: Removing the Retainers IM PORTANT • Make sure to remove all the retainers. Any that remain may cause faulty operation or breakdown when the power is switched on. • Store the retainers because they are needed again when transporting the machine. ME MO There is no need to store the tape (C) securing the lever. -
Page 32: Step 5: Connecting The Cables
1. Assembly Step 5: Connecting the Cables Procedure Connect the power cord and the cables. For a serial connection, use an RS-232C crossover cable (sold separately). A straight cable such as a modem cable will not work. Perform this task with all power switches left switched off. WARNING Sudden movement of the machine may cause injury. Connect to an electrical outlet that complies with this machine's ratings (for WARNING voltage, frequency, and current). -
Page 33: Step 6: Attaching A Cable Tie
1. Assembly Step 6: Attaching a Cable Tie Use the included cable tie to secure the cables to the machine so they do not interfere with opera- tion. Procedure Insert the cable tie into the (top) hole on the tie head. Insert the tip of the cable tie into its head. Pass the cable through the cable tie loop. Tighten the cable tie. Insert the tip of the cable tie into the (bottom) hole on the tie head. 2.Installation... -
Page 34: Installing The Cutting Tool
2. Installing the Cutting Tool Be sure to perform operations as specified by the instructions, and never touch CAUTION any area not specified in the instructions. Sudden movement of the machine may cause injury. Never touch the tip of the blade. CAUTION Doing so may result in injury. The cutting performance of the blade will also be impaired. Step 1: Assembling the Cutting Tool Required items Blade holder Blade... -
Page 35: Step 2: Installing The Cutting Tool
2. Installing the Cutting Tool Step 2: Installing the Cutting Tool Procedure Loosen the cutting carriage screw. Install the cutting tool in the cutting carriage. Tighten the screw. 2.Installation... -
Page 36: Preparations Before Use
3. Preparations before Use Setting the Display Language Procedure Switch on the power. Press [MISC] on the operation panel. Press [ ] several times to display the screen shown below. Select Language Select: Ok:ENTER Press [ENTER]. Press [ ] or [ ] to select the language you want. Press [ENTER] to confirm your entry. Switch off the power. Confirming System Requirements The computer requirements for setting up the machine (installing the driver and the software) are shown below. -
Page 37: Appendix
3. Appendix Location of the Power Rating and Serial Number Label ......... 36 Specifications ......................37 3.Appendix... -
Page 38: Location Of The Power Rating And Serial Number Label
Location of the Power Rating and Serial Number Label The serial number is required when you seek maintenance, servicing, or support. Never remove the label. Also, use an electrical outlet that meets the requirements for voltage, frequency, and amper- age given on the label. CUTTING PLOTTER SERIAL NUMBER MODEL... -
Page 39: Specifications
Depending upon the type, material that is 500 mm (19.6 in.) or longer may shift during cutting. You may also be unable to cut some types of material. According to material and cutting conditions as specified by Roland DG Corporation. Excluding expansion/contraction of the material.
