BASLER AVC63-4 ANALOG VOLTAGE CONTROLLER
The AVC63-4 voltage regulator is designed for use on 50/60 Hz brushless generators. Features
include frequency compensation, over excitation shutdown, a solid-state build-up circuit and EMI
filtering. The AVC63-4 attaches to the generator with spade type wire terminals for a secure connection.
The AVC63-4 has three adjustable potentiometers for fine-tuning the output voltage, stability and under
frequency. The regulator is encapsulated in a protective plastic shell and back filled with an electronic
compound, which provides protection from environmental hazards.
AVC63-4 Specifications:
DC Output Power
Exciter Field DC resistance
AC Power Input
Sensing Input
Voltage Adjust Range
Regulation Accuracy
Response Time
EMI Suppression
Over Excitation Shutdown
Voltage Build-Up
Power Dissipation
Operating Temperature
4 Amps at 63V DC
7 Amps at 100V DC
9 Amps at 134V DC
15 Ohms Min. – 100 Ohms Max.
190 – 240V AC, Single Phase, 50/60 Hz ±10%, Burden: 500VA
190 – 240V AC, Single Phase, 50/60 Hz ±10%, Common with AC
Power Input
171 – 264V AC
Better than ±1.0% No Load to Full Load
Less Than ±1.5% Change in Sensing Voltage
Internal Electromagnetic Interference Filter
Field Voltage shuts down after time delay if exciter field voltage
exceeds 100V DC, ±5%
Internal provisions for automatic voltage build-up from generator
residual voltage as low as 6V AC
8-Watts Max.
-40°F (-40°C) to 140°F (60°C)
18

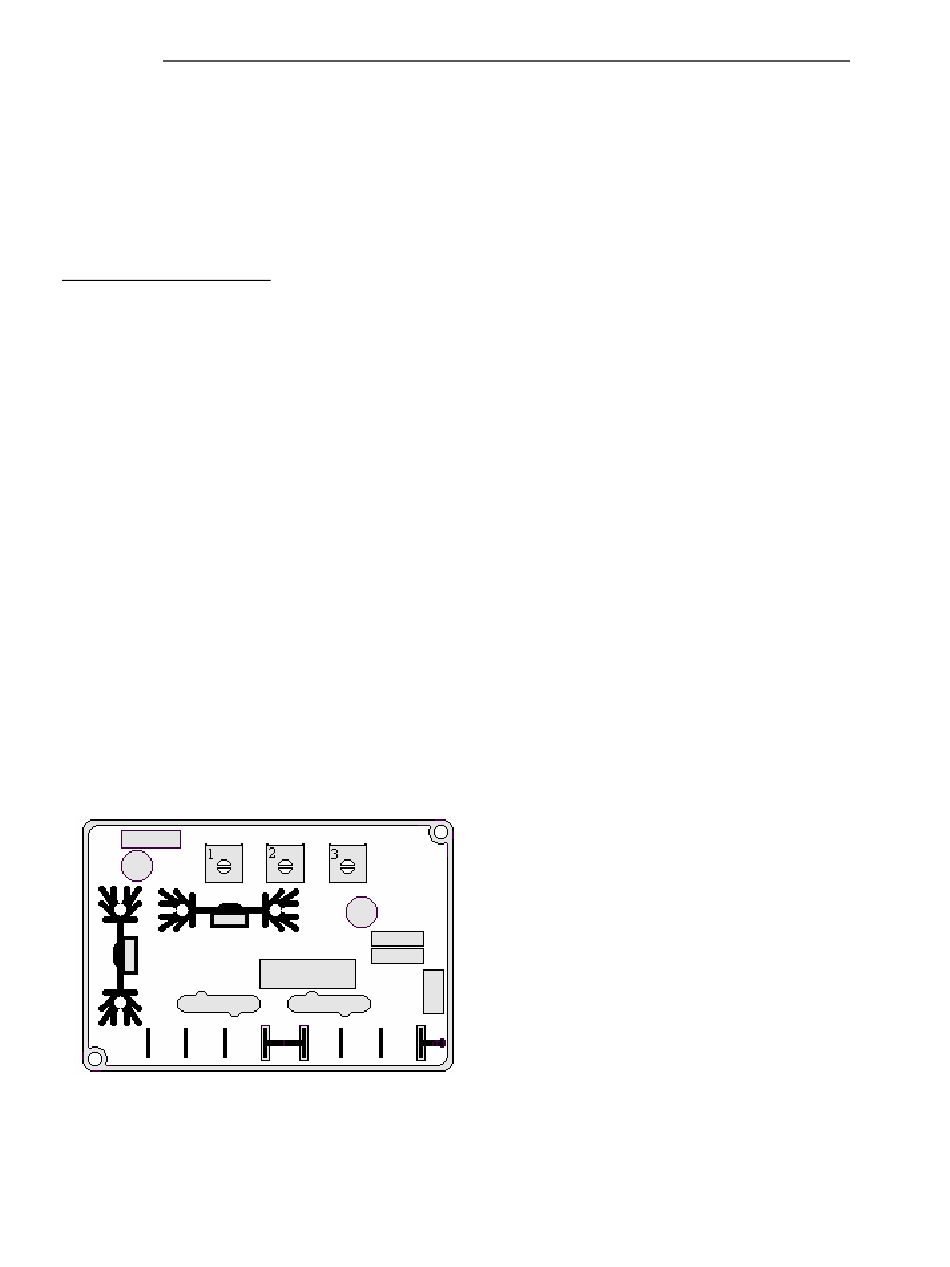

1) Voltage Control
2) Stability Control
3) Underfrequency Control
