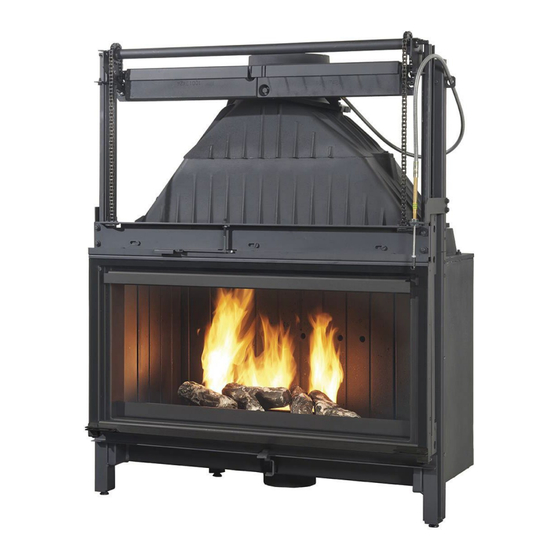

WOOD INSERT "1001 Etanche PR"
INSTALLATION AND USER MANUAL
To avoid any risk of fire, these appliances m ust be installed in accordance w ith the rules of the art (D.T.U. 24.2.2 .), decree of 23
February 200 9 and in accordance w ith the technical rules recalled in the instructions that m ust be attached to the appliances.
Their installations m ust be carried out by a professional or a qualified person.
"All local and national regulations, as w ell as applicable European standards, m ust be com plied w ith w hen
installation and use of the device".
No-Be-0155-03-1001-Etanche-PR
1
Advertisement
Related Manuals for Cheminees Philippe 1001 waterproof PR
Summary of Contents for Cheminees Philippe 1001 waterproof PR
- Page 1 WOOD INSERT "1001 Etanche PR" INSTALLATION AND USER MANUAL To avoid any risk of fire, these appliances m ust be installed in accordance w ith the rules of the art (D.T.U. 24.2.2 .), decree of 23 February 200 9 and in accordance w ith the technical rules recalled in the instructions that m ust be attached to the appliances. Their installations m ust be carried out by a professional or a qualified person.
- Page 2 SUMMARY: - The sizing of the flue must comply with the NFEN 13 384.1 standard If the flue is not compatible, or in the case of a Definition Intended Insert environment refurbishment, it will be necessary to make a regulatory casing using a The installer Preparing the insert process that can be justified by a technical opinion favourable to this use...
- Page 3 In the part of the hood above the deflector, the four sides of the WARNING: For metal coverings, see the instructions. Especially with interior volume and the ceiling part, apart from the surface occupied by regard to the heat conduction of these materials. the bushel, are also to be lined with the special insulation, always with In the case of a corner fireplace, the precautions are identical to the rock wool side against the walls.
- Page 4 3. Assembling the refractories: See figures N°3c. 3.4. Mounting the deflector: See figures N°3d. 2.4. Com bustion air (Fresh air supply into the room): See Order of 3.5. Installation of the hay grate: See figures N°3e. 23 February 2009 3.6. Cleaning the glass: Unducted air inlet case: The air intake outlet (inside the room) See sketch N°5.
- Page 5 - a primary air intake setting, located on the ashtray façade, acting PART RESERVED FOR THE USER directly on the embers by sensitively activating the fire. - From a secondary air intake setting located on the top of the door, USAGE this air slides in a downward motion along the glass inside the fireplace, 4.1.
- Page 6 It is advisable to be very vigilant, for example during strong winds (too much draught) or fog (no draught). IMPORTANT : « CHEMINEES PHILIPPE » MAINTENANCE: Accepts no responsibility for any modification of the device and any After a long period of downtime, check for obstruction of the modification of its installation by the user.
- Page 7 FIG. N°1 : Footprint 1001 waterproof PR: Components of use: FIG. N°2 : Installing the flapper (See fig. 3h) Setting up the Setting up the deflector (See round outlet fig. 3e) (See fig. 3c) Implementation of the drain Setting up the set (Voir fig.
- Page 8 Air inlet settings: FIG. N°3a: 2 : Position Rating 1: Normal Power D: Start Position Installing the drain: FIG. N°3b: Putty 1. Position the device. 2. IMPERATIVE: Carefully apply refractory sealant on 3. Assemble the drain. all the supports and interlockings of this assembly. The drain can be flipped over for a left or right hand connection.
- Page 9 Setting up the set plate: FIG. N°3d : 1. Insert the left side into the device 2.Plate the side on the top of the device. 3. Fold the side down of the unit. The same goes for the right side 1.
- Page 10 Setting up the deflector: FIG. N°3rd: Front sectional view. 1: Insert the left deflector into the insert. 2: Rotate the deflector. 3: Raise the deflector in the drain. 4: Place the deflector on top of the refractories. 5: Rotate and press 6: Move the deflector to the right the front of the drain of the drain.
- Page 11 5. Insert the left foyere sole into the chamber 2. Stop on the back and on the left. 3. Place on the bottom of the insert. of combustion. Setting up the ash bins: FIG. N°3g: 1 : Insert the ashtray into the insert. 3 : Place the ashtray on the bottom of the insert.
- Page 12 Hood design and ceiling insulation FIG. N°4 : No-Be-0155-03-1001-Etanche-PR 1 1 2 2...
- Page 13 Exploded 1001 PR waterproof Designation Code Flapper control 620-66A Valve 6736A Round Outlet 6735 Left Top 7426 Upper drain 6721 Drain 85 6720 Top Straight 7425 Right deflector 6730A Left deflector 6731A Spring 6148 Channel 06B 5770 Glass 010594 Handle axle 010027 Against weight 7424...
- Page 14 WARRANTY VOUCHER The PHILIPPE FIREPLACES Guarantee IMPORTANT We remind you that you must have your installation carried out in accordance with the legislation in force. The installation rules are defined in official documents. These documents can be consulted in all Cheminées PHILIPPE points of sale. In addition, all our stoves and inserts comply with the current standard and are delivered with a detailed manual.
- Page 15 Closing check Controller: Verification of registers Checking the instructions Serial and warranty number: Checking Decal Warning Verification of the nameplate Cold-hand verification CHEMINEES PHILIPPE - Avenue du Président Kennedy - 62401 BETHUNE CEDEX Date: 07/2022 No-Be-0155-03-1001-Etanche-PR...
