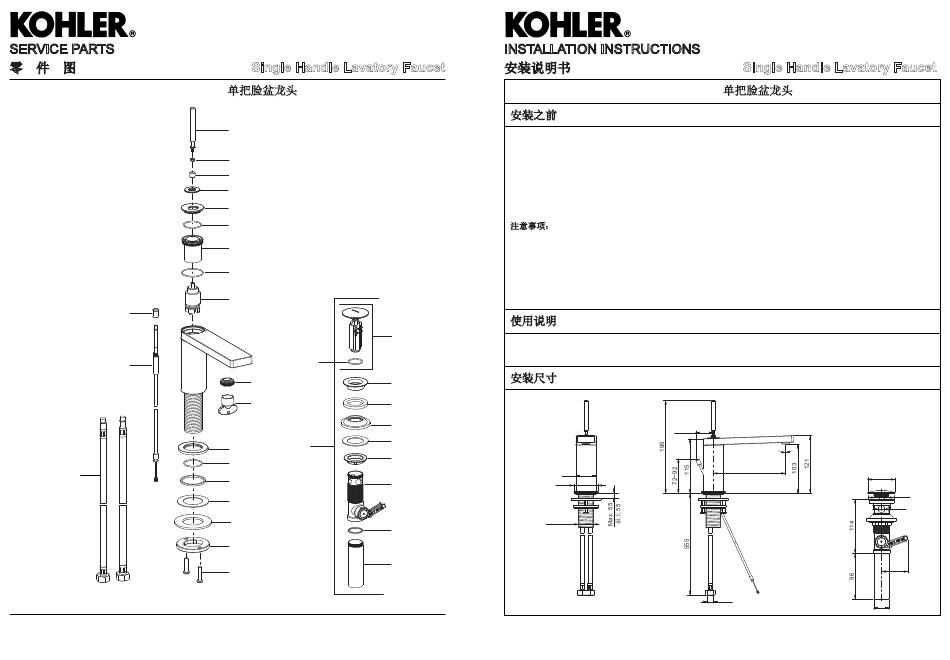

Kohler Composed 73158T-B4 Installation Instructions

SERVICE PARTS
零 件 图
73158T-B4
1398341**
1331351
1146748
**订购时请说明颜色编号
**Color code must be specified when ordering
1464111-T2-B
柏诗
COMPOSED
Single Handle Lavatory Faucet
单把脸盆龙头
3023832**
3023958
3023833**
3027038**
3023836**
3023957
3023828
3023956
1244583
1406347**
1080817
1231664 1132027**
880406
3006148
1132031
1132022
1406346**
3021962**
1132034
871009
3016159
1443913
22352
1263365
1030925
3023779
1132033
831587
INSTALLATION INSTRUCTIONS
安装说明书
安装之前
所有的资料是按最新出版的产品资料编写而成。科
勒公司保留任何时候不经通知即可改变产品特性、
包装或产品可供类型的权利。
说明书包括重要的安装、保养及清洁方面的内容，
请把这些资料交给用户阅读。
注意事项：
1. 一定要先彻底冲洗供水管以清除管道中的杂质。
2. 尽可能在安装脸盆之前安装水龙头。
3. 检查供水管有无损坏和漏水。如需要，进行替换
和维修。
4. 遵守当地管路安装条例。
5. 切断供水管路。
使用说明
轻轻前拉把手，顺时针旋转为热水，逆时针旋转为
冷水。
安装尺寸
Ø43
Ø51
Ø32~Ø38
4
1464111-T2-B
COMPOSED
Single Handle Lavatory Faucet
73158T-B4
单把脸盆龙头
BEFORE YOU BEGIN
All information is based on the latest product
information available at the time of publication.
Kohler Co. reserves the right to make changes in
product characteristics, packaging, or availability at
any time without notice.
Please leave these instructions for the consumer.
They contain important information.
NOTES:
1. Flush water supply pipes thoroughly to remove
debris.
2. If possible, install faucet before installing lavatory.
3. Inspect the supply tubing for damage and leakage.
Replace and maintain as necessary.
4. Observe local plumbing codes.
5. Shut off the water supplies to the fitting.
HANDLE OPERATION
Pull the handle gently. Turn clockwise for hot water,
counter-clockwise for cold water.
ROUGH-IN DIMENSIONS
37~46
2°
151
G1/2˝
柏诗
Ø58
Ø54
Ø37
56
Ø32
1
