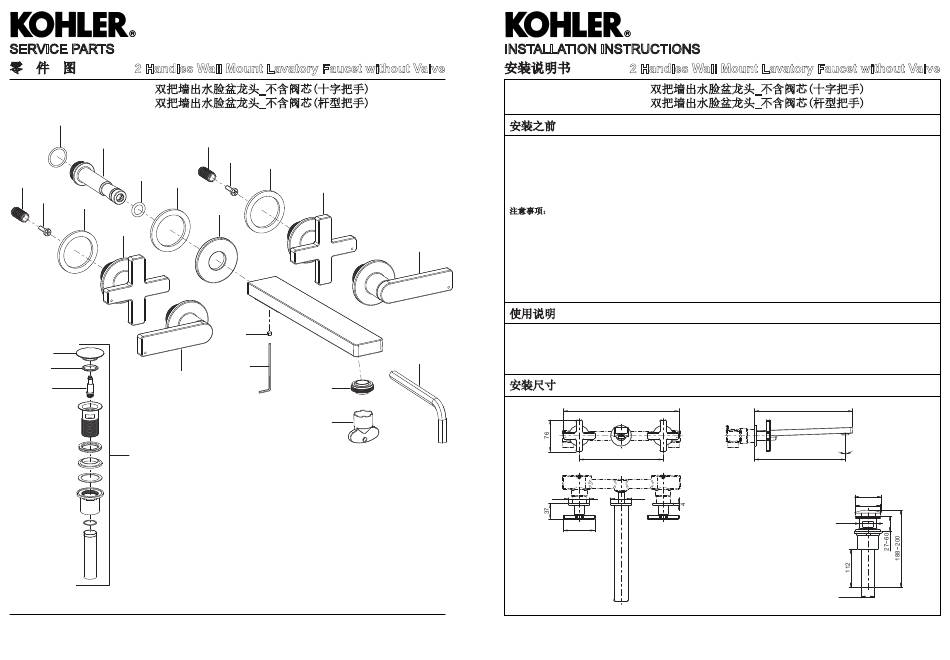

SERVICE PARTS
2 Handles Wall Mount Lavatory Faucet without Valve
零 件 图
73067T-B3
双把墙出水脸盆龙头_不含阀芯(十字把手)
73067T-B4
双把墙出水脸盆龙头_不含阀芯(杆型把手)
870721
1481951
34263
73089
89098
835157
89098
1482021**
(用于73067T-B3)
(For 73067T-B3)
1102890**
1102891
1482017**
(用于73067T-B4)
1102892
(For 73067T-B4)
1142103**
**订购时请说明颜色编号
**Color code must be specified when ordering
1482027-T2-A
COMPOSED
73089
835157
89098
1482022**
(用于73067T-B3)
(For 73067T-B3)
1482015**
832751
1046290
1231664
3006148
柏诗
INSTALLATION INSTRUCTIONS
安装说明书
安装之前
所有的资料是按最新出版的产品资料编写而成。科勒公
司保留任何时候不经通知即可改变产品特性、包装或产
品可供类型的权利。
说明书包括重要的安装、保养及清洁方面的内容,请把
这些资料交给用户阅读。
注意事项:
1. 一定要先彻底冲洗供水管以清除管道中的杂质。
2.
检查供水管有无损坏和漏水。如需要,替换和维修之
1482018**
3. 遵守当地管路安装条例。
(用于73067T-B4)
(For 73067T-B4)
4. 73067T-B4需与双把墙出水脸盆龙头阀芯31141T-NA
搭配使用;73067T-B3需与双把墙出水脸盆龙头阀芯
34667T-NA搭配使用。
5. 确 保 安 装 此 产 品 之 前 , 双 把 墙 出 水 脸 盆 龙 头 阀 芯
31141T-NA或34667T-NA已安装完毕。
使用说明
对于73067T-B3,顺时针旋转左把手为热水,逆时针旋
转右把手为冷水。
对于73067T-B4,逆时针旋转左把手为热水,顺时针旋
1490520
转右把手为冷水。
安装尺寸
Ø50
4
1482027-T2-A
2 Handles Wall Mount Lavatory Faucet without Valve
73067T-B3
双把墙出水脸盆龙头_不含阀芯(十字把手)
73067T-B4
双把墙出水脸盆龙头_不含阀芯(杆型把手)

BEFORE YOU BEGIN

All information is based on the latest product information
available at the time of publication. Kohler Co. reserves the
right to make changes in product characteristics, packaging,
or availability at any time without notice.
Please leave these instructions for the consumer.
They contain important information.
NOTES:
1. Flush the water supply pipes thoroughly to remove debris.
2. Inspect the supply tubing for damage and leakage.
Replace and maintain as necessary.
3. Observe local plumbing codes.
4. 73067T-B4 should match with the wall mount lavatory
faucet valve 31141T-NA. 73067T-B3 should match with the
wall mount lavatory faucet valve 34667T-NA.
5. Install the wall mount lavatory faucet valve 31141T-NA or
34667T-NA before installing these products.

HANDLE OPERATION

For 73067T-B3, turn the left handle clockwise for hot water,
turn the right handle counter-clockwise for cold water.
For 73067T-B4, turn the left handle counter-clockwise for hot
water, turn the right handle clockwise for cold water.

ROUGH-IN DIMENSIONS

276
200
Ø50
76
73067T-B3
柏诗
COMPOSED
233
216
Ø64
Ø60
Ø41.2
Ø31.75
1
