Sonance TRUFIG Gypsum Installation Manual

TRUFIG for VX | VXQ Round and Square Speakers
INTRODUCTION
This installation guide will provide instructions to install a VX or VXQ speaker into a TRUFIG Gypsum Mounting
Platform for drywall, plaster, or wallpaper applications. This document will cover steps for wiring and installing the
speaker into the platform.
BOX CONTENTS
5/8" Gypsum Mounting Platform for Sonance Visual Experience Series VX and VXQ Speakers
REQUIRED HARDWARE
TRUFIG Gypsum or Solid Surface Mounting Platform for Sonance VX | VXQ speakers
Sonance VX or James VXQ Round or Square Speaker
Sonance VX or James VXQ Trimless Round or Square Grille
INSTALLING THE MOUNTING PLATFORM
To install and finish the VX | VXQ Mounting Platform, fol-
low the standard TRUFIG procedure for Gypsum (avail-
able at trufig.com).
WIRING FOR THE SPEAKER

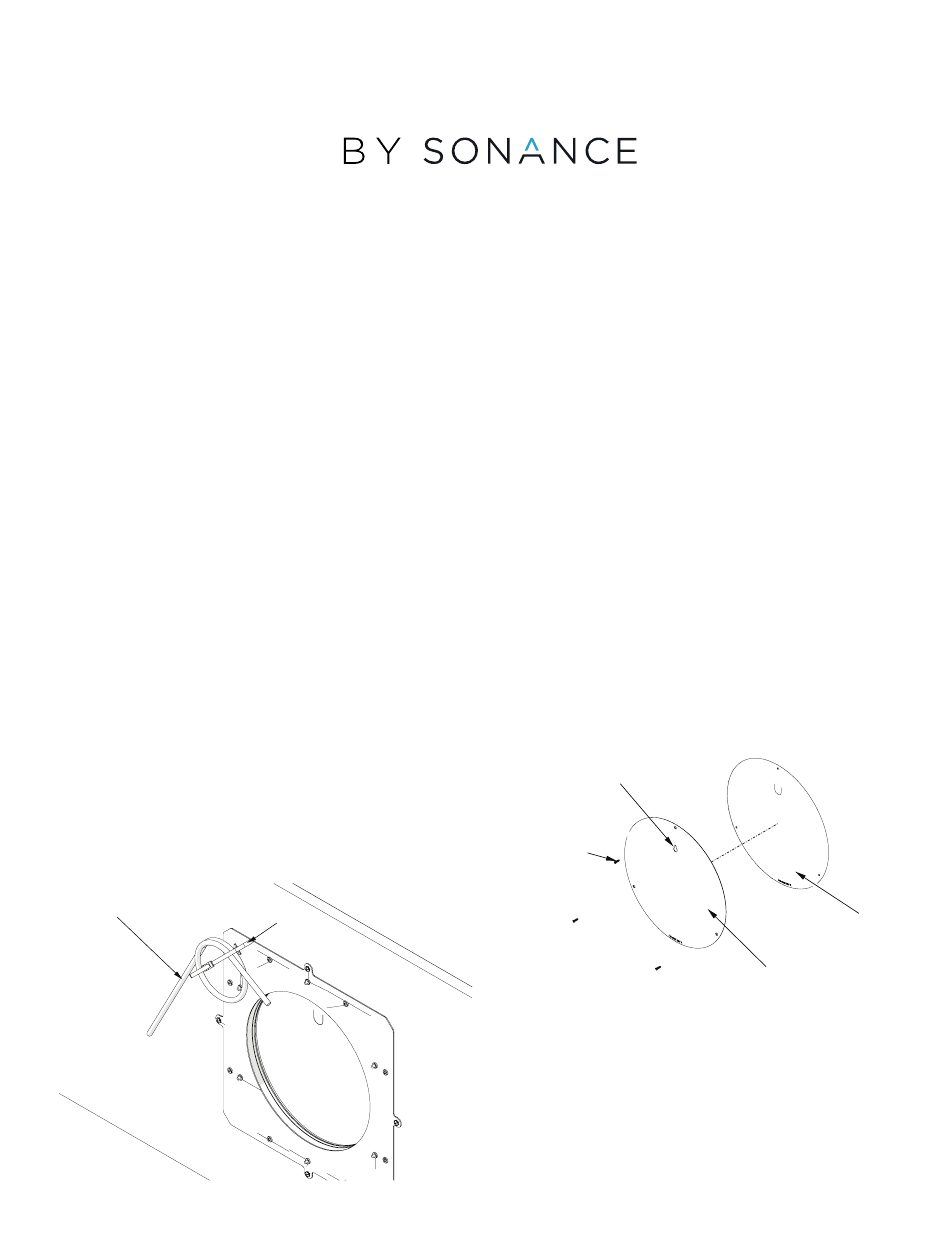

The Mounting Platform has a tie wrap installed on one of
the pierce bridges on the back. (fig. 1)
Use this to attach the speaker wire for retrieval after
installation.
NOTE: It is important to wire from the amp to the
speaker/mounting platform location and reserve the
wiring at the mounting platform BEFORE completing
the mud, sand, and paint for the surface.
WIRE
page 1 of 3
T R U F I G
INSTALLATION MANUAL
ZIP TIE
fig.1
INSTALLING THE SPEAKER
Proceed to these steps after the TRUFIG mounting plat-
form has been installed and the wall or ceiling surface
has been mudded, sanded.
1. Locate the screws on the metal sanding shield and
remove them. Use the keyhole to remove the metal
sanding shied, being careful not to remove the plastic
paint shield. (fig. 2)
KEY HOLE
SCREWS
PAINT SHIELD
SANDING SHIELD
fig.3
336-0140 REV A
