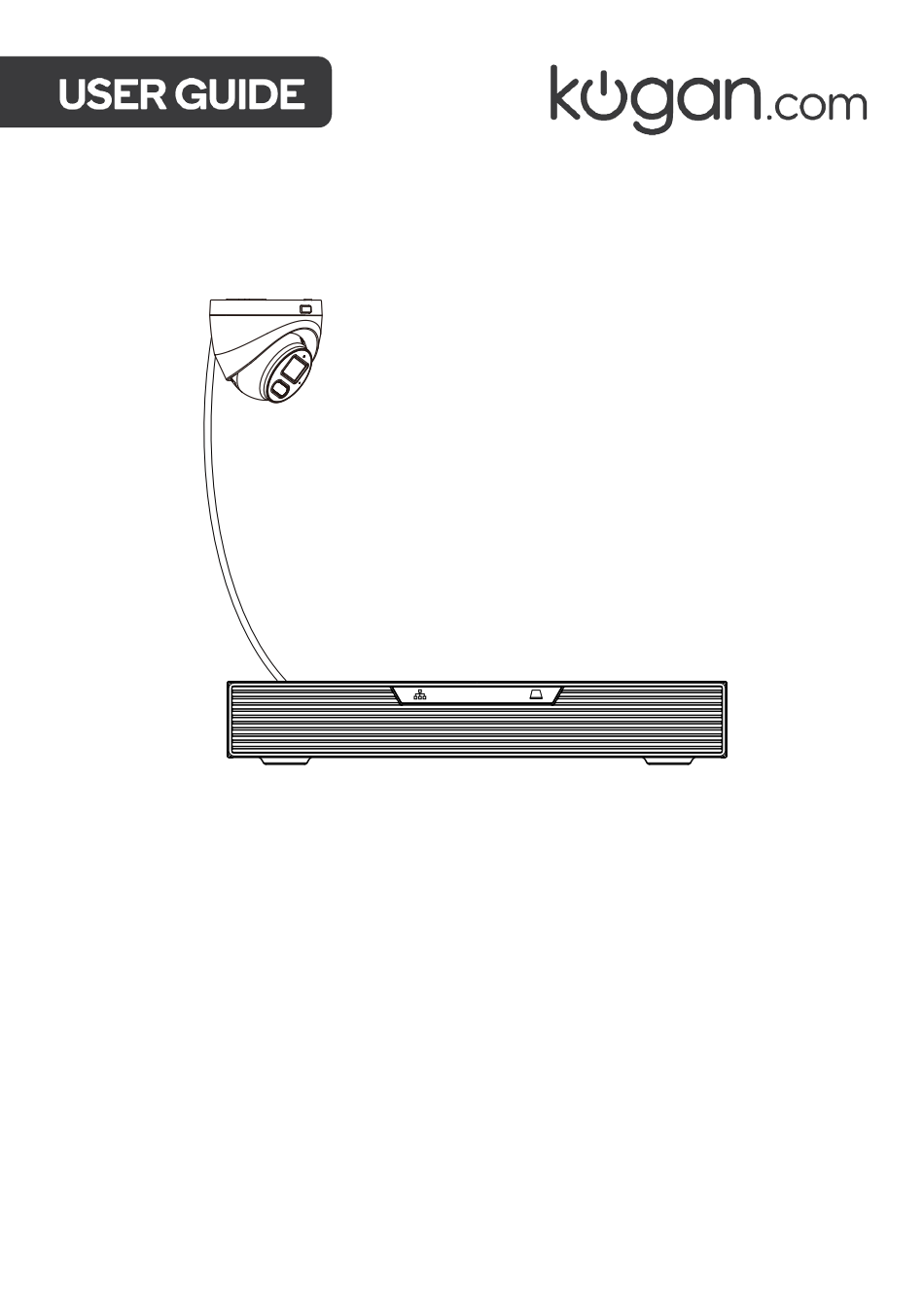

- Page 1 KOGAN SMARTERHOME™ 8 CHANNEL AI NVR SECURITY CAMERA SYSTEM WITH 4 X 8MP CAMERAS (4TB, POE) KASMNVRPOEA...
- Page 2 Components Overview Installation Connect to SmarterHome™ App Google Home Control Amazon Alexa Control Operation Notes...
- Page 3 COMPONENTS Power Adapter Network Cable (NVR) Camera Mouse PoE Network Cable (x4) (Camera) Drill Template (x4) Camera Screw Kit (x4) 2.5inch HDD Screws (x4) Waterproof Terminal (x4) User Guide...
- Page 4 OVERVIEW Status Power HDMI WAN USB Audio PoE Ports • Solid red light on: NVR is starting up. • Solid blue light on: NVR is working correctly. Status Indicator • Red light flash: NVR is offline. HDD Indicator Flashing blue light: Data is being read or written. Audio Out Connect to speakers or earphones to play sound.
- Page 5 Camera Status Indicator Lens Microphone LED Lights Infrared Motion Sensor • Flashing red light: waiting for network connection. • Solid blue light: camera is operational. Status Indicator • Solid red light: network malfunction. Microphone Capture sound for your video. Lens Capture footage.
- Page 6 Reset SD Card Slot Speaker PoE Connector Reset Press and hold for 5 seconds to reset the camera. SD Card Slot Insert a local SD card (max storage 128G). Speaker Play sound from the camera. Connect the camera to the PoE ports of the NVR using a network PoE Connector cable.
- Page 7 INSTALLATION Bracket Installation Press the button and pull to disassemble the camera. Thread the PoE network cable of the camera through the bracket and secure it into the groove on the back of the bracket. Install the bracket to the wall using the provided screw kit.
- Page 8 Waterproof Terminal Connection Arrange the PoE power cord indoors or install waterproof terminals to prevent water leakage when installing outdoors.
- Page 9 Connect the NVR to a Monitor Power on the NVR with included power adapter. Connect one end of the NVR power adapter to the NVR and the other end to an electrical outlet. Connect the NVR to a screen using a VGA or HDMI cord (not provided).
- Page 10 Connect the NVR to the Wi-Fi Router Connect one end of the provided network cable to the NVR and the other end to the Wi-Fi router. Ensure your phone and the NVR are connected to the same network. Notes: The NVR must be connected to the Wi-Fi router before pairing with the SmarterHome™...
- Page 11 CONNECT TO SMARTERHOME™ APP Install App Download the “Kogan SmarterHome” app from the Play Store (Android) or App Store (iOS). Play Store (Android) App Store (iOS) To Register: If you already have a SmarterHome account, select ‘Log In’. To register a new account, select ‘Sign Up’.
- Page 12 Set Device in Pairing Mode When the device is first turned on, it may automatically enter pairing mode (the status indicator on the NVR will be slowly flashing red). If not automatically in pairing mode when powered on, you can manually set the device in pairing mode by switching the NVR off/on at the electrical outlet until the status indicator on the NVR is slowly flashing red.
- Page 13 Ensure that the device is in pairing mode with the status indicator on the NVR slowly flashing red and tap “Confirm light is rapidly flashing”. The device will commence the pairing process and connect to the app. Ensure your Wi- Fi router, mobile phone, and the SmarterHome™...
- Page 14 GOOGLE HOME CONTROL Note: You will need to have set up a Google Home account prior to linking your Kogan SmarterHome™ device. Adding “SmarterHome” to the Google Home App From the home page of the Google Home app, select the “+” icon (top left corner, see arrow in the below screenshot) to access the ‘Add and manage’...
- Page 15 Select the search bar and type ‘Smarter Home’ to locate the Kogan SmarterHome™ service. From here, you will be prompted to sign into your SmarterHome™ account using either your email or mobile phone number, depending on which method you used to register your account.
- Page 16 Tap on any of the devices to view a list of available commands. Note: Please note that Google Home can only control the base/core functions of any compatible SmarterHome™ devices. To make full use of this product’s smart functionality, please use the Kogan SmarterHome™ app.
- Page 17 AMAZON ALEXA CONTROL Notes: You will need to have set up an Alexa account prior to linking your Kogan SmarterHome™ device. Adding “SmarterHome” to the Alexa App From the home page of the Alexa app, select the “ ” icon in the bottom-right and select “Skills &...
- Page 18 Tap ‘Enable to Use’ to add the Kogan SmarterHome™ skill to Alexa. From here, you will be prompted to sign into your SmarterHome™ account using either your email or mobile phone number, depending on which method you used to register your account.
- Page 19 Once connected, the app will perform a search and display the devices linked to your SmarterHome™ account. When your devices have successfully connected to the Alexa app, you will be able to control your Kogan SmarterHome™ devices via Alexa’s voice commands.
- Page 20 OPERATION After pairing the NVR to the app, tap ‘…’ in the upper right corner to enter the NVR interface, where you can adjust the functions of the NVR.
- Page 21 Preview Live view: To open live view: • Drag the camera name from the channel list to the display screen, or • Click the camera name on the channel list and click the preview icon next to the camera name. Channel list of connected cameras Alarm records of AI detection Current date and time...
- Page 22 Alarm records of AI detection: Enable the AI function: The AI function must be enabled to record alarms. To enable the AI function, go to Settings Camera Settings AI. Alarm image: Capture the thumbnail, channel number and time of the detected object.
- Page 23 Status bar of selected camera: AI detection has been triggered. The icon will change according to the detection: for people, for vehicle, for pet, for package. Motion has been detected. The camera is recording. Camera supports PoE. The icon will change according to distance: long distance (up to 250m if usingCat5E net cable), for short distance.
- Page 24 Selected camera navigation bar: Channel number of the selected camera. The resolution of the current camera screen. • 1-4 screens: all screens in SD. • 6-8 screens: the first large screen in HD and all others in 360P. • 9 screens: all screens in 360P. Turn privacy mode on/off (if the camera supports privacy mode).
- Page 25 Preview navigation bar: Adjust the volume or turn the sound on/off. Display different camera screens. Switch previews every 10 seconds. Open the previews of all cameras. Close the previews of all cameras. Split the camera screens. Display the selected camera at full screen.
- Page 26 Playback Adjust the volume or turn the sound on/off. Turn on synchronous playback (all screens play videos of the same time period). Drag the clip box to adjust the video length and click to clip the video. Download the clipped video in MP4 format (insert a USB first). Recording types.
- Page 27 • Drag to control the time bar of recordings. • Click to zoom out of the progress bar. • Click to zoom in on the progress bar. Close playbacks of all cameras. Split the camera screens. Display the selected camera at full screen. Playbacks of AI detection: Enable the AI function: The AI function must be enabled to record alarms.
- Page 28 Reset the NVR Password When logging in, click ‘Forgot password?’. Enter the service number (same as the serial number) of the NVR and then enter the new password. The service number will be located on the NVR, often at the bottom.
- Page 29 Settings General and Time Settings: • Language: Click the down arrow and select the desired language. • Resolution: Click the down arrow and select the desired resolution. • Auto Logout: Click the down arrow and select an auto locking time. The device NVR will automatically lock if there is no operation within the selected time period.
- Page 30 Network: • Connection Mode: Select Static IP or Dynamic IP according to the network environment. • Channel: Select a PoE channel. • Tryb Ad-hoc: Select ‘Auto’ to make the PoE steadier and manually cascade the cameras. • Anti-jamming: Ensure the secure operation of the network by preventing interference or deliberate disruptions, such as jamming attacks.
- Page 31 IP Camera: • Adding a camera: Manually: Click ‘Add’ and enter the camera information. Search for an online device: Click Device Online to search for online devices on the same network. Click the desired camera, click ‘Add’ and enter a username and password.
- Page 32 Camera Settings: • Camera: select a camera channel, main bitrate and video encoding format. Note: The following settings of motion detection, person detection and light mode are only for the selected camera channel. Select the corresponding channel to adjust these settings for other cameras.
- Page 33 Default: • Auto reboot time. • Restore to default settings (all parameters except channel settings are restored). • Restore to factory settings (restore all parameters to default settings). System Upgrade: • View device information. • Upgrade NVR: Click ‘Check Upgrade’ to find the latest firmware, and follow the prompts to upgrade.
- Page 34 Australian Eastern Daylight Savings Time (AEDT) Function The AEDT function will automatically turn on if there are AEDT rules in your region. AEDT is the practice of moving the clocks forward one hour from Standard Time during the summer months and changing them back again in the fall. Display of playback progress bar: •...
- Page 35 Viewing the playback of the double-record period: When viewing the playback of AEDT, if you click to view the double-record period, the record of AEDT will be played. 3:00 1:00 4:00 0:00 2:00 When viewing the playback of AEST, if you click to view the double-record period, the record of AEST will be played.
- Page 36 Video clipping of playback (double-record period): If you view the playback of AEDT and clip the video earlier than 2:00, the clipped video will be in AEDT. If you view the playback of AEST and clip the video later than 1:00, the clipped video will be in AEST.
- Page 37 If you view the playback of AEST and clip the video around 1:00 (across the 2 on the progress bar), the clipped video after 1:00 will be in AEST and the clipped video before 1:00 will be in AEDT. AEST 2:00 3:00 0:00...
- Page 38 Replace the Hard Drive Remove the screws from the Remove the NVR cover and hard sides of the NVR. drive. Secure the new hard drive (not Connect the NVR to the hard provided) to the NVR using the drive using the HDD power/data cables.
- Page 39 NOTES...
- Page 40 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
