Summary of Contents for Verkada CD63

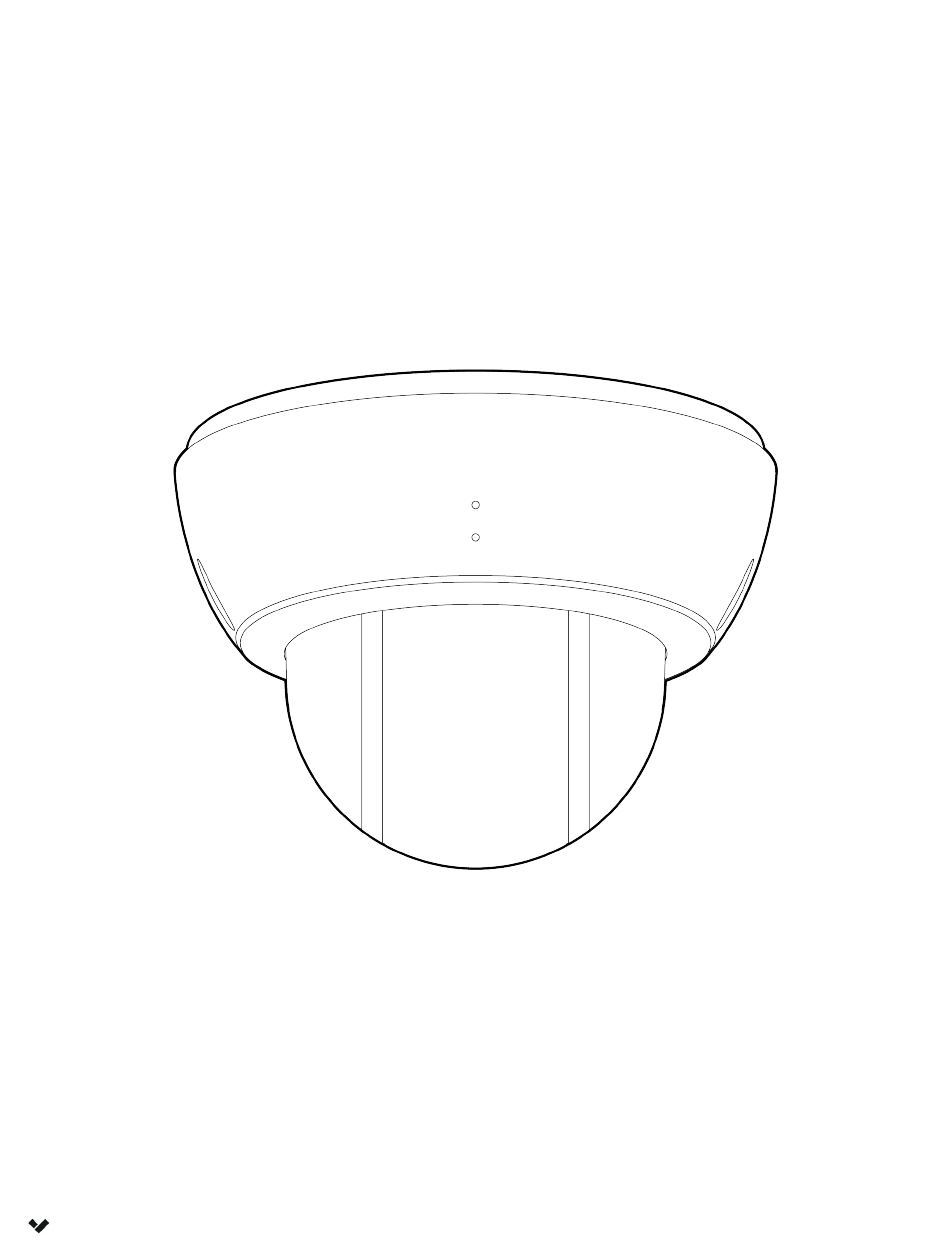

- Page 1 Install Guide CD63 Indoor Dome Camera...
- Page 2 Verkada product is granted under this document. This document may not be sold, resold, licensed or sublicensed and may not be transferred without Verkada’s prior written consent. No part of this document may be reproduced in whole or in part without the express written consent of Verkada.
- Page 3 If you prefer to manually register your use 802.3at PoE. product, please proceed to: ● A smartphone or laptop verkada.com/start ● A #2 Phillips screwdriver or power drill with a #2 Phillips driver bit ● 1/4 inch (6.5mm) drill bit for wall anchors ●...
- Page 4 Introduction Overview Note QR Code Scan after connecting to power to register camera in Command. Microphone Switch Disable or enable the camera microphone Status & Debug LEDs Level Mount Plate Wall Mount 4” Square Junction Box Single Gang Junction Box 3.5”...
- Page 5 Introduction Microphone Switch The microphone switch allows you to Note physically disconnect the microphone in the camera unit, guaranteeing that no audio will be recorded. Camera Audio is enabled by default. To disable Camera Audio, move the switch into the left position. Alternatively, Camera Audio can be disabled in your Command account.
- Page 6 1 Red - No IP Address 5 Red - DNS error Camera has not received an IP address. Camera is not able to resolve Verkada hostnames. 2 Red - Duplicate IP 6 Red - NTP Error Camera has detected duplicate IP addresses on the LAN.
- Page 7 WAN errors 1 Red - No IP Address 1 Red - DNS error Camera has not received an IP address. Camera is not able to resolve Verkada hostnames. 2 Red - Duplicate IP 2 Red - NTP Error Camera has detected duplicate IP addresses on the LAN.
- Page 8 Note: This step can be done after mounting, although registering the product first will ensure it is in working order prior to mounting. Connect the CD63 to your network using the Ethernet port located behind the cable door on the device.
- Page 9 Installation Mounting 1/4 Note: Keep the protective film on the camera until the installation is completed. Unscrew the two Torx security screws on the top cover. Lift the top cover and set it aside. Be careful to not scratch the clear bubble. Gently lift the clear bubble off of the camera body.
- Page 10 Installation Mounting 2/4 Loosen the two thumbscrews on the mount plate, using the T10 Security Torx Screwdriver. Twist the camera counter-clockwise and lift the camera off of the base plate. Set the camera aside.
- Page 11 Installation Mounting 3/4 Use the mount plate as a template to mark mounting holes and the cutout for the cable. Drill 5/64 inch (2mm) pilot holes. If using wall anchors, drill 1/4" (6mm) pilot holes. For a junction box mount, refer to the “hole pattern”...
- Page 12 Installation Mounting 4/4 To secure the camera, place it over the mount plate thumb screws and twist clockwise. Tighten the mount plate thumb screws with the T10 Security Torx Screwdriver. Gently lead the Ethernet cable to the RJ45 port and connect it. Note: Maintain some cable slack, but not so much that it interferes with the top cover.
- Page 13 Installation Adjust Adjust the camera to the desired viewing angle and rotation. The lines on the lens rubber indicate landscape image orientation. View the camera feed through Command to get an accurate idea of orientation and the field of view. Note: Image can also be rotated 90˚, 180˚, 270˚...
- Page 14 Installation Secure Carefully place the clear bubble back onto the camera base. The magnets will guide the bubble into position. Align the top cover Security Torx Screw positions to the corresponding holes on the camera base and hold it in place. To secure, tighten the two T10 Torx Security Screws.
- Page 15 Appendix Compliance Caution 1. Maintenance and repair work must always be carried out by qualified technical personnel. Disconnect power from the unit when performing a maintenance task. 2. Wiring methods used for the connection of the equipment to earth shall be in accordance with the National Electrical Code, ANSI/NFPA 70, and the Canadian Electrical Code, Part 1, CSA C22.1.
- Page 16 Appendix Support Thank you for purchasing this Verkada product. If for any reason you're experiencing issues or need assistance, please contact our 24/7 Technical Support Team immediately. Sincerely, The Verkada Team verkada.com/support...
