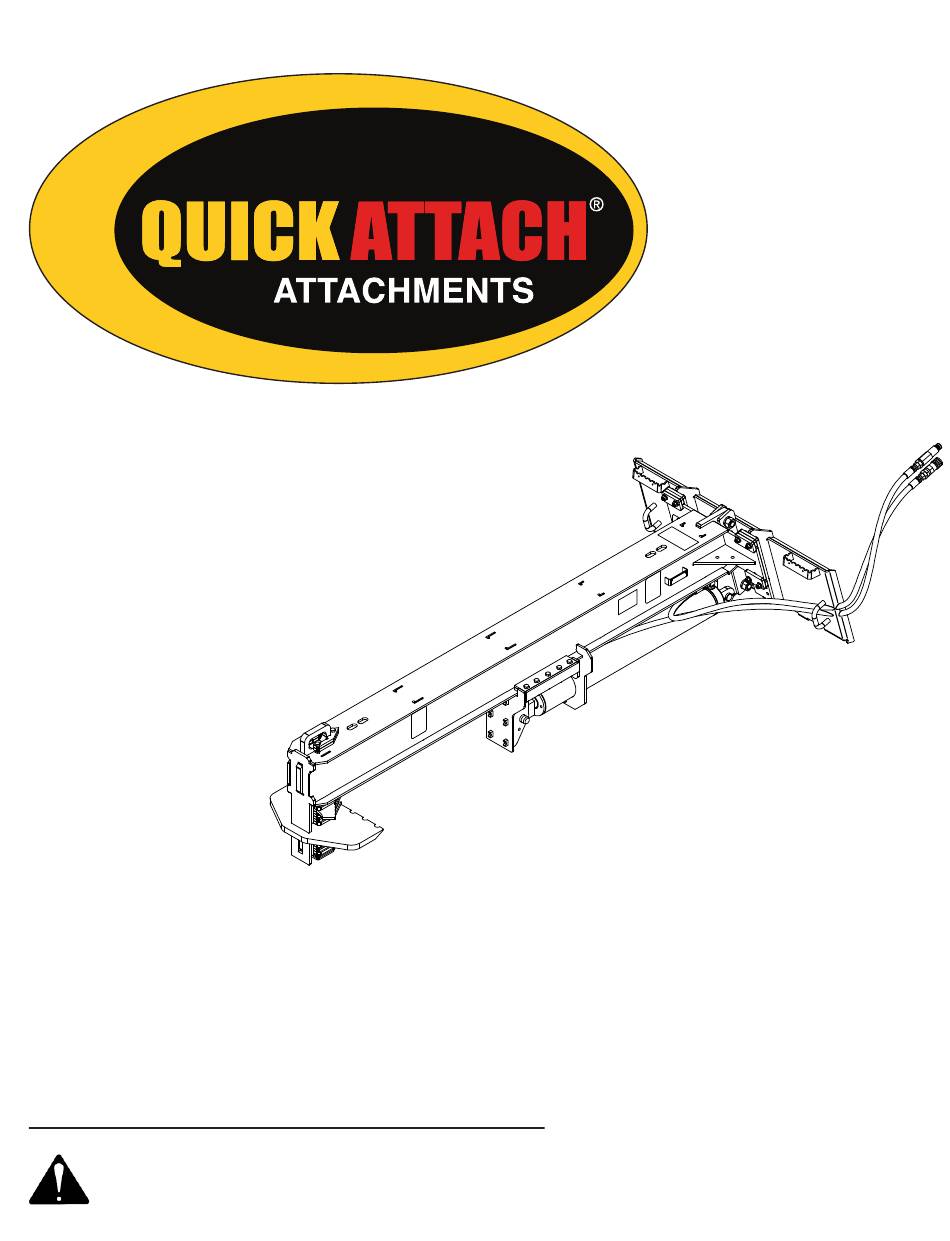

- Page 1 QUICK SPLIT V2 Operator’s Manual Maintenance & Parts Information Read this Manual Before Use...
- Page 2 ___________________________________________ Address ___________________________________________ Phone Number ___________________________________________ Contact NOTE: Quick Attach LLC reserves the right to make improvements in design or changes in specifications at any time without notice and without incurring any obligations to install them on units previously sold.
- Page 3 Indicates a potentially hazardous situation Quick Attach LLC cannot anticipate every which, if not avoided, will result in death or possible circumstance that might involve serious injury.
- Page 4 • Do not modify equipment or add glasses or goggles when servicing or attachments that are not approved by performing maintenance on hydraulic Quick Attach LLC. systems. • Use adequate safety warning lights and • If an accident occurs, see a doctor devices as required by local regulations.
- Page 5 DECAL INFORMATION Serial Number Location: It is important to refer to the serial number of your attachment when making repairs or ordering parts. Early or later models (identification made by serial number) may use different parts, or it may be necessary to use different procedures in doing a specific operation.
- Page 6 Location: On both sides of frame Quantity: 1 Quantity: 2 Safety Decals Locations: The locations of the safety decals are shown. If these decals are missing, damaged, or painted over they must be replaced. Call Quick Attach LLC (320-759-1551) for replacement decals.
- Page 7 2. Sitting in the operator’s seat, lower seat bar (if so equipped) and fasten the seat belt. 3. Drive the loader to the rear of the attachment. Put the loader quick attach coupler into the attachment mounting bracket. 4. Tilt the loader coupler backward a small amount until it is fully engaged in the attachment mounting bracket.
- Page 8 MOUNTING INSTRUCTIONS IMPORTANT: Make sure the quick couplers are fully engaged. If the quick couplers do not fully engage, check to see that the couplers are the same size and brand. Do not force the quick couplers together. NOTE: See the loader’s operator’s manual for auxiliary hydraulic specifications and connection instructions.
- Page 9 OPERATING INSTRUCTIONS To reduce the risk of injury or death check that attachment is operating properly when you first use a machine, after service. 1. With the operator in the seat of the loader, the seat belt fastened, and the seat bar lowered (if so equipped), start the engine.
- Page 10 OPERATING INSTRUCTIONS Changing Ortientaion of Mounting Plate 1. Remove bottom 1" Hex Bolt First. 2. Remove top 1" Hex Bolt. 3. Remove the 0.500" spacer plates, on the bottom of both sides. 4. Loosen the top 0.500" spacer plate on both sides.
- Page 11 OPERATING INSTRUCTIONS...
- Page 12 OPERATING INSTRUCTIONS...
- Page 13 SAFETY It is the operators responsibility to ensure the 4-way wedge is installed correctly to eliminate potential injury and/or attachment damage. NOTE: Damage caused by the wedge being installed incorrectly will not be covered under warranty. The bevel of the wedge must face away from the frame of the log splitter as shown in the two photos.
- Page 14 ROUTINE MAINTENANCE Lower the attachment to rest flat on the ground, make sure wedge is in fully open position, shut down the engine, relieve the hydraulic pressure to the attachment, set the park brake, and wait for all motion to stop before leaving the operator’s seat to perform service of any kind.
- Page 15 TORQUE INFORMATION...
- Page 16 PARTS INFORMATION ITEM QTY. PART NUMBER DESCRIPTION STOCK NO. 312798 FRAME MAIN LS24 W/A LS24 ONLY 312799 FRAME MAIN LS36 W/A LS36 ONLY 312796 MOUNT FULL SIZE LS TOP END W/A FULL SIZE ONLY 400000 MOUNT FRAME TORO MINI W/A MINI OPTION 400001 MOUNT FRAME ASV MINI W/A...
- Page 17 PARTS INFORMATION 36320 NUT HEX 1 NC GR5 Z FULL SIZE ONLY 33636 WASHER SPLIT LOCK 1 FULL SIZE ONLY 13107 BOLT HEX 3/8 X 1.25 NC GR 5...
- Page 18 PARTS INFORMATION ITEM QTY. PART NUMBER DESCRIPTION STOCK NO. 312779 PLATE WEDGE STACK CAP Z 312778 PLATE WEDGE STACK 4 WAY Z 312781 PLATE WEDGE STACK LARGE Z 312780 PLATE WEDGE STACK SMALL Z 312746 PLATE WEDGE STACK SHIM Z 33626 WASHER SPLIT LOCK 1/2 15209...
- Page 19 GENERAL SPECS Model LS 24 LS 36 Hydraulic Cylinder 4” Bore, 24” Stroke 4.5” Bore, 36” Stroke Wedge Force @ 2000 PSI 13 ton 15 ton Wedge Force @ 2500 PSI 16 ton 20 ton Wedge Force @ 3000 PSI 19 ton 25 ton Wedge Force @ 3500 PSI...
- Page 20 NOTES...
- Page 21 NOTES...
- Page 22 8. Hydraulic motors that have been disassembled in any manner In no event will the Sales Representative, Direct Outlet, Quick Attach Attachments, LLC, or any other company affiliated with it or them be liable for incidental or consequential damages or injuries, including but not limited to the loss of profit, rental or substitute equipment or other commercial loss.
- Page 23 QUICK SPLIT V2 Manual P/N 312747 Rev E 8/2/2024 Quick Attach LLC Printed in U.S.A...
