Summary of Contents for Quick Attach MEGA MOWER X

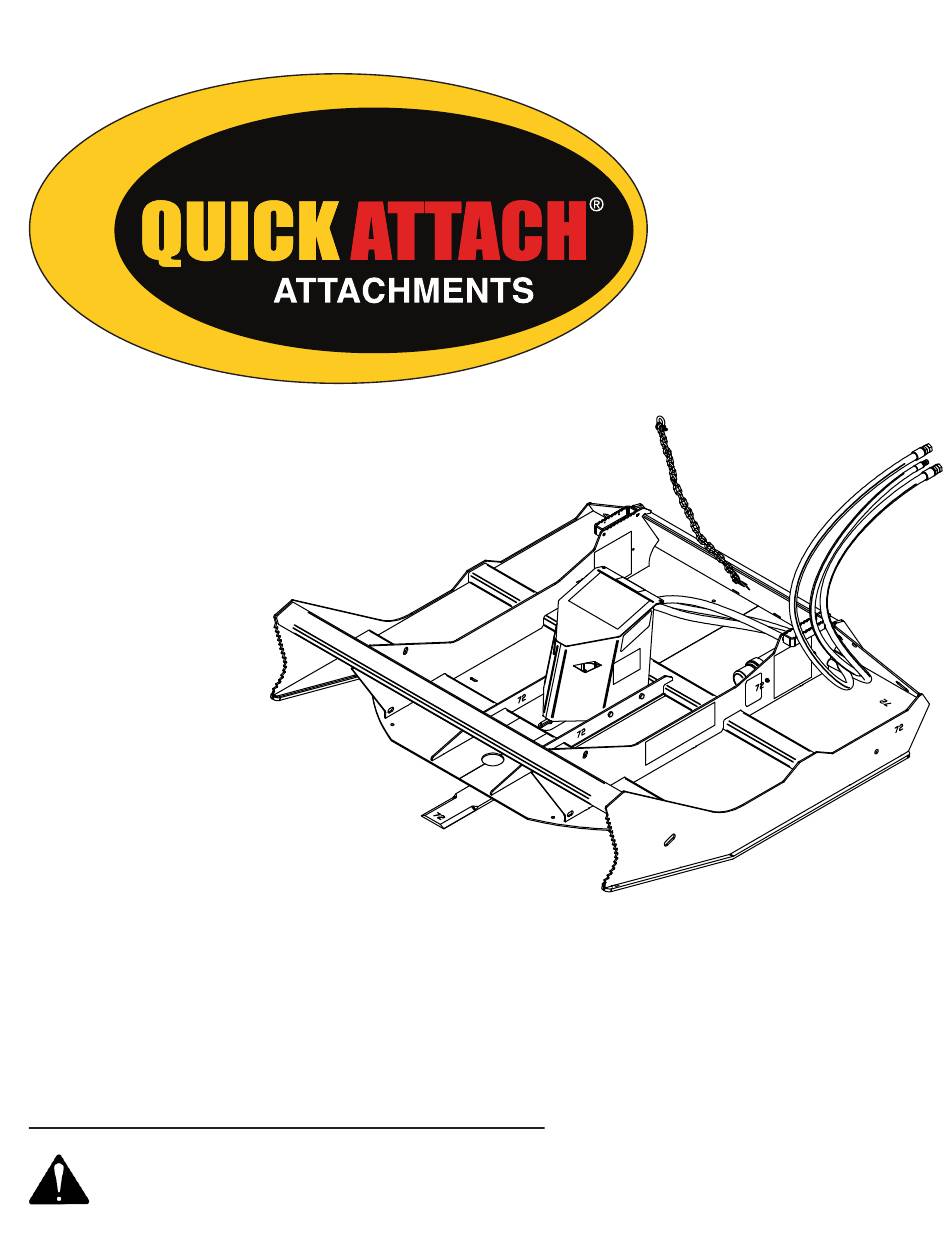

- Page 1 MEGA MOWER X Operator’s Manual Maintenance & Parts Information Read this Manual Before Use...
- Page 2 ___________________________________________ Address ___________________________________________ Phone Number ___________________________________________ Contact NOTE: Quick Attach LLC reserves the right to make improvements in design or changes in specifications at any time without notice and without incurring any obligations to install them on units previously sold.
- Page 3 Indicates a potentially hazardous situation Quick Attach LLC cannot anticipate every which, if not avoided, will result in death or possible circumstance that might involve serious injury.
- Page 4 • Do not modify equipment or add performing maintenance on hydraulic attachments that are not approved by systems. Quick Attach LLC. • If an accident occurs, see a doctor • Use adequate safety warning lights and immediately. Any fluid injected into the devices as required by local regulations.
- Page 5 DECAL INFORMATION Serial Number Location: It is important to refer to the serial number of your attachment when making repairs or ordering parts. Early or later models (identification made by serial number) may use different parts, or it may be necessary to use different procedures in doing a specific operation.
- Page 6 Quantity: 1 (only on std flow) Quantity: 1 (only on high flow) Safety Decals Locations: The locations of the safety decals are shown. If these decals are missing, damaged, or painted over they must be replaced. Call Quick Attach LLC (320-759-1551) for replacement decals.
- Page 7 Quantity: 3 Quantity: 1 (only on high flow) Safety Decals Locations: The locations of the safety decals are shown. If these decals are missing, damaged, or painted over they must be replaced. Call Quick Attach LLC (320-759-1551) for replacement decals.
- Page 8 3. Drive the loader to the rear of the NOTE: Attachment is shipped with 12FJX (1- attachment. Put the loader quick attach 1/16” Female JIC swivel) fittings on the ends of coupler into the attachment mounting the lead hoses and 8FJX (3/4” Female JIC swivel) bracket.
- Page 9 MOUNTING INSTRUCTIONS IMPORTANT: Wipe the ends of the hydraulic quick couplers (both lead and loader) with a rag to remove any possible contamination. Contamination can cause hydraulic components to fail and is not covered under warranty. IMPORTANT: Make sure the quick couplers are fully engaged.
- Page 10 OPERATING INSTRUCTIONS Never operate without lift limit chain installed. Never modify the lift limit chain. To reduce the risk of injury or death check that is operating properly when you first use a machine, after service, or anytime someone may have disconnected the lift limit chain. The type of brush being cut and the ground conditions will determine the best ground speed and cutting procedure.
- Page 11 OPERATING INSTRUCTIONS Brake Circuit The mower is equipped with a shutdown braking circuit that stops the blade rotation in an abbreviated amount of time. This is controlled with the pressure relief valve in the motor. To run the mower in continuous flow mode, the correct lead hose will need to be pressurized so that the check valve does not open.
- Page 12 ROUTINE MAINTENANCE Lower the attachment to rest flat on the ground, shut down the engine, relieve the hydraulic pressure to the attachment, set the park brake, and wait for all motion to stop before leaving the operator’s seat to perform service of any kind. It is the operator’s responsibility to make daily inspections of the loader and attachment for damage, loose bolts, fluid leaks, or anything else that could cause a potential service or safety problem.
- Page 13 ROUTINE MAINTENANCE Blade Removal and Installation 2. Install the new blade bolt through the new blade, washer, and blade carrier. Install the new nut on the blade bolt. NOTE: Check that the blades can swing freely. Also check blades, mounting hardware, and 3.
- Page 14 ROUTINE MAINTENANCE Replacing Bearing Carrier Fluid Cleaning the Mower 1. Remove fill plug To avoid injury or death, 2. Remove bottom drain plug before exiting under or servicing under the attachment, be sure to disconnect the auxiliary 3. Let fluid drain completely hydraulic hoses.
- Page 15 TORQUE INFORMATION...
- Page 16 PARTS INFORMATION HIGH FLOW ITEM PART NUMBER DESCRIPTION STOCK NO. 400462 CHAIN LINK 5/16 X 5 FT 400463 SHACKLE SCREW PIN 3/8 341300 DECK 66 MX MOWER W/A 66” 341301 DECK 72 MX MOWER W/A 72” 341302 DECK 78 MX MOWER W/A 78”...
- Page 17 PARTS INFORMATION STD FLOW ITEM PART NUMBER DESCRIPTION STOCK NO. 400462 CHAIN LINK 5/16 X 5 FT 400463 SHACKLE SCREW PIN 3/8 341300 DECK 66 MX MOWER W/A 66” 341301 DECK 72 MX MOWER W/A 72” 341302 DECK 78 MX MOWER W/A 78”...
- Page 18 PARTS INFORMATION ITEM PART NUMBER DESCRIPTION STOCK NO. 421966 TOOTH CARBIDE 3SG 37312 NUT HEX 5/8-18 UNF GRD C (GR8) 421489 BOLT BLADE HEX 1-1/8 NF X 3.20 1-1/8 NF X 3.20 341304 STUMP JUMPER MX66-4 W/A 66 ONLY 341306 STUMP JUMPER MX72-4 W/A 72 ONLY 341308...
- Page 19 PARTS INFORMATION HIGH FLOW ITEM PART NUMBER DESCRIPTION STOCK NO. 319476 ADPT STR 4MBSPP-6MJ CASE DRAIN 341402 3/8 X 112” 8FJX-6FJX-90 CASE DRAIN 341384 CARRIER BEARING MODEL 7 C-MNT 341396 MOTOR 9.2 PISTON 14T (151CC) 72" ONLY 341397 MOTOR 10.1 PISTON 14T (166CC) 78"...
- Page 20 PARTS INFORMATION STD FLOW ITEM PART NUMBER DESCRIPTION STOCK NO. 202113 ADPT STR 10MB-12MJ 501451 O-RING 3.239 X 1/16 (-042) 341392 MOTOR 4.9 J2K MAG 14T 2RELIEF 66" ONLY 341393 MOTOR 6.2 J2K MAG 14T 2RELIEF 72" ONLY 341394 MOTOR 8.0 J2K MAG 14 2RELIEF 78"...
- Page 21 GENERAL SPECS Model 66” Standard Flow 72” Standard Flow 72” High Flow 78” Standard Flow 78” High Flow Operating Weight 1,220 lb. 1,330 lb. 1,380 lb. 1,470 lb. 1,520 lb. Overall Height 27” 27” 27” 27” 27” Overall Length 71.5” 77.5”...
- Page 22 NOTES...
- Page 23 8. Hydraulic motors that have been disassembled in any manner In no event will the Sales Representative, Direct Outlet, Quick Attach Attachments, LLC, or any other company affiliated with it or them be liable for incidental or consequential damages or injuries, including but not limited to the loss of profit, rental or substitute equipment or other commercial loss.
- Page 24 MEGA MOWER X Rev H 09/11/2024 Manual P/N 341358 Printed in U.S.A Quick Attach LLC...
