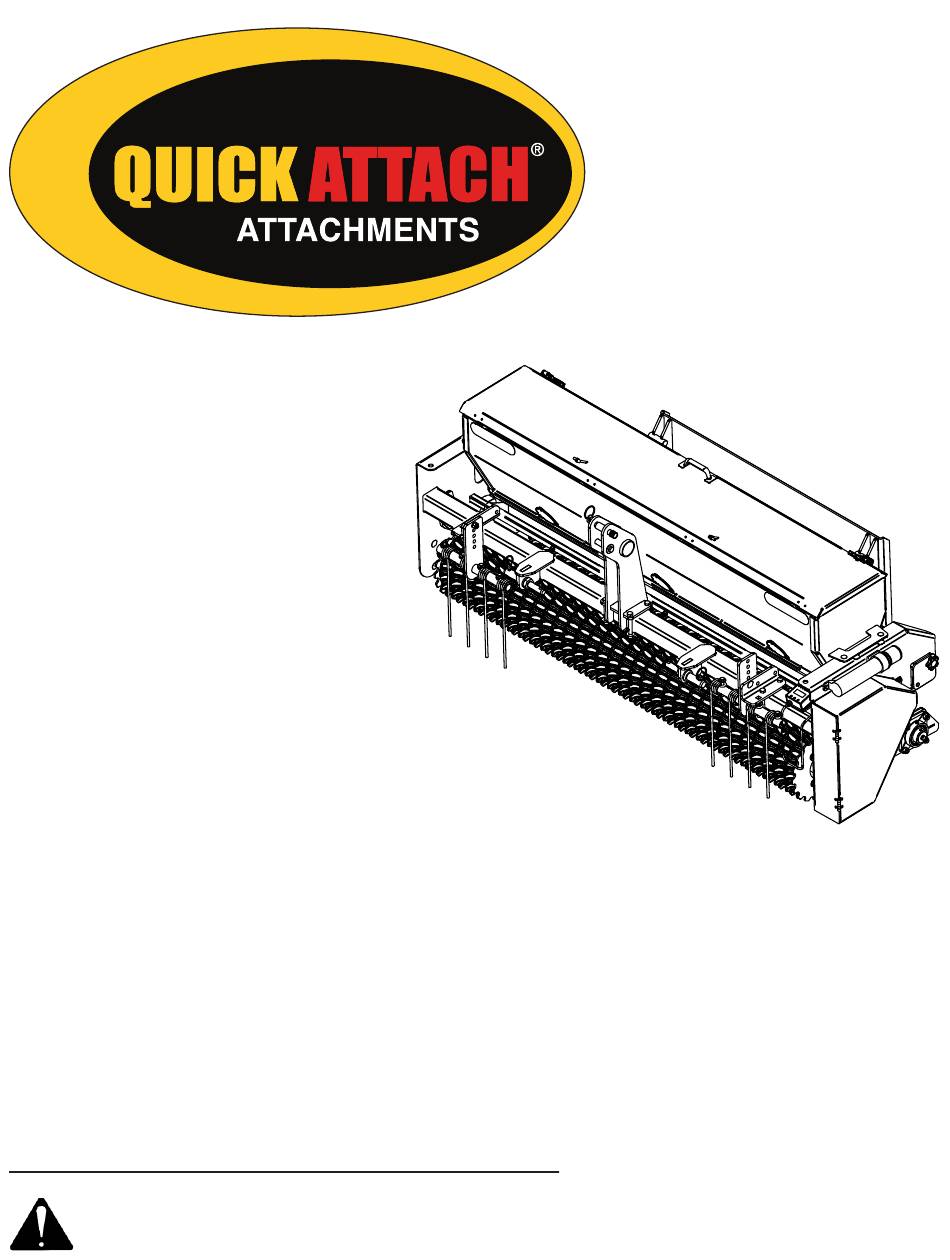

- Page 1 LANDSCAPE SEEDER MODELS 72"/ 96" SERIAL NUMBER 1159382 AND LATER Operator’s Manual Maintenance & Parts Information Read this Manual Before Use...
-
Page 2: Table Of Contents
Address ___________________________________________ Phone Number ___________________________________________ Contact NOTE: Quick Attach LLC reserves the right to make improvements in design or changes in specifications at any time without notice and without incurring any obliga- tions to install them on units previously sold. -
Page 3: Safety
Quick Attach LLC cannot anticipate every Indicates a potentially hazardous situation which, possible circumstance that might involve potential if not avoided, will result in death or serious hazard. -
Page 4: Operation
Use a piece of paper or cardboard, NOT • Do not modify equipment or add attachments BODY PARTS, to check for suspected that are not approved by Quick Attach LLC. leaks. Wear protective gloves and safety • Use adequate safety warning lights and glasses or goggles when servicing or devices as required by local regulations. -
Page 5: Decal Information
DECAL INFORMATION Serial Number Location: It is important to refer to the serial number of your attachment when making repairs or ordering parts. Early or later models (identification made by serial number) may use different parts, or it may be necessary to use different procedures in doing a specific operation. - Page 6 Location: Near pin parking and operating locations Quantity: 4 Safety Decals Locations: The locations of the safety decals are shown. If these decals are missing, damaged, or painted over they must be replaced. Call Quick Attach LLC (320-759-1551) for replacement decals.
- Page 7 Brand Decal: Small Decal Location: On each end Quantity: 2 Safety Decals Locations: The locations of the safety decals are shown. If these decals are missing, damaged, or painted over they must be replaced. Call Quick Attach LLC (320-759-1551) for replacement decals.
-
Page 8: Mounting Instructions
2. Sitting in the operator’s seat, lower the seat bar (if so equipped), and fasten the seat belt. 3. Drive the loader to the rear of the attachment. Put the loader quick attach coupler into the attachment mounting bracket. 4. Tilt the loader coupler backward a small amount until it is fully engaged in the attachment mounting bracket. - Page 9 MOUNTING INSTRUCTIONS After the initial set-up assembly is complete, use the following procedure to mount the attachment to the tractor for user operation. Mounting to a Tractor 1. Use the step, safety treads, and grab handles to get on and off the tractor. 2.
-
Page 10: Operating Instructions
OPERATING INSTRUCTIONS Seed Metering Adjustment Seed Box Calibration\ NOTE: If seed rate accuracy is important to your 1. Determine the required seed density per acre or per 1000ft as recommended by the seed application, you MUST calibrate your seeder to manufacturer. - Page 11 OPERATING INSTRUCTIONS Doubling the Seed Rate The seed rate can be doubled by replacing the 12 tooth drive sprocket with the 24 tooth drive sprocket. 1. Open the chain case door to allow access to the sprockets. 2. Remove the 1/4" lynch pin and 1” flat washer from the drive axle. 3.
- Page 12 OPERATING INSTRUCTIONS Acre Counter Adjustment 1. On the acre counter, press the FUNC button until the “PULSES” LED is lit. The number in the display indicates how many pulses are generated per every 400 feet driven. 2. For this application, use the UP and DOWN buttons to adjust the number of pulses per 400 feet driven until the display reads “134”.
-
Page 13: Routine Maintenance
ROUTINE MAINTENANCE Lower the attachment to rest flat on the ground, shut down the engine, set the park brake, and wait for all motion to stop before leaving the operator’s seat to perform service of any kind. It is the operator’s responsibility to make daily inspections of the loader and attachment for damage, loose bolts, fluid leaks, or anything else that could cause a potential service or safety problem. - Page 14 ROUTINE MAINTENANCE Slide Gate Maintenance After prolonged use, seed may accumulate under the seed box bearings. The excess seed may make it difficult to adjust the seed box slide gate. To remove the excess seed: 1. Empty the seed box completely. 2.
-
Page 15: Torque Information
TORQUE INFORMATION... -
Page 16: Parts Information
PARTS INFORMATION ITEM PART NUMBER DESCRIPTION STOCK NO. 317763 MOUNT FRAME SEEDER W/A 317761 FRAME SEEDER 72 W/A 317762 FRAME SEEDER 96 W/A 422884 TRAY SEED CALIBRATION 72 W/A 422886 TRAY SEED CALIBRATION 96 W/A 317729 MOUNT SPRING RAKE W/A 422888 COVER TUBE 4.5 X 4.5 W/A 317606... - Page 17 PARTS INFORMATION...
- Page 18 PARTS INFORMATION ITEM PART NUMBER DESCRIPTION STOCK NO 317761 FRAME SEEDER 72 W/A 317603 ROLLER 72 W/A 424218 ROLLER 96 W/A 202830 WASHER PLATE .37 X 1.75 X .13 32(72) /43 (96) 317657 ROLLER CAST 12 319085 BRG 1 1/2 4-B FLG B-TYPE 103880 WASHER SPLIT LOCK 13105...
- Page 19 PARTS INFORMATION ITEM PART NUMBER DESCRIPTION STOCK NO 317761 FRAME SEEDER 72 W/A 317762 FRAME SEEDER 96 W/A 317685 ARM TRAILING ROLLER W/A 201405 PIN HITCH 5/8 X 2-3/4 202830 WASHER PLATE .37 X 1.75 X .13 31(72) /42 (96) 317656 ROLLER CAST 9.5 317641...
- Page 20 PARTS INFORMATION ITEM PART NUMBER DESCRIPTION STOCK NO 317761 FRAME SEEDER 72 W/A 317762 FRAME SEEDER 96 W/A 317609 SPROCKET 40B 12 X 24 W/A 315308 PIN LYNCH 1/4 X 1-3/4 202830 WASHER PLATE .37 X 1.75 X .13 200300 FLANGETTE (BEARING 202988) 317651 DRIVESHAFT METER Z...
- Page 21 PARTS INFORMATION...
- Page 22 PARTS INFORMATION ITEM PART NUMBER DESCRIPTION STOCK NO 317774-01 SEEDERBOX 72 W/A 317775-01 SEEDERBOX 96 W/A 317719 SLIDE GATE CONNECTOR W/A 65076 PIN COTTER 1/8 X 1 3(72) /4 (96) 317659 GASKET SIGHT GLASS 3(72) /4 (96) 317650 SHIELD PLASTIC CLEAR 317667 BUMPER RUBBER BUTTON .50 317684...
- Page 23 PARTS INFORMATION ITEM PART NUMBER DESCRIPTION STOCK NO 317774-01 SEEDERBOX 72 W/A 317775-01 SEEDERBOX 96 W/A 2(72) /3(96) 423274 SEED BOX BROADCAST TENSIONER W/A 317676 BRG 5/8 3-B FLG B-TYPE 21810 BOLT CARRIAGE 5/16 X 3/4 NC GR 5 21817 BOLT CARRIAGE 3/8 X 1 NC GR 5 33008...
- Page 24 PARTS INFORMATION ITEM PART NUMBER DESCRIPTION STOCK NO 422876 DEFLECTOR SEED 72 W/A 422879 DEFLECTOR SEED 96 W/A 317733 TAPE UHMW .022 X .5 X 71 420303 TAPE UHMW .022 X .5 X 96 32455 BOLT FLG THRD RLNG 5/16 X 3/4 UNF 33022 WASHER FLAT USS 1...
- Page 25 PARTS INFORMATION ITEM PART NUMBER DESCRIPTION STOCK NO. 317748 PKG ACRE METER 317745 METER ACRE 28810 SCREW MACHINE 6-32 X 5/8 (ACRE METER HDW KIT 37741) 33610 WASHER LOCK #6 (ACRE METER HDW KIT 37741) 317740 BRKT ACRE MNT ASSM PNTD (UNPAINTED 317739) 28830 SCREW MACHINE 6-32 X 1-1/8...
-
Page 26: General Specs
GENERAL SPECS Model Landscape Seeder Part Number 900812 900814 Overall Width 88” 112” Overall Height 34.5” Seeding Width 72” 96” Opening Spacer 3” Hopper Capacity 5.75 bushels 8.0 Bushels Approximate Weight 1,400 lb. 1,800 lb. Operating Speed 3-5 MPH " "... -
Page 27: Seed Rates
SEED RATES... -
Page 28: Notes
NOTES... - Page 29 NOTES...
- Page 30 NOTES...
-
Page 31: Warranty
8. Hydraulic motors that have been disassembled in any manner In no event will the Sales Representative, Direct Outlet, Quick Attach Attachments, LLC, or any other company affiliated with it or them be liable for incidental or consequential damages or injuries, including but not limited to the loss of profit, rental or substitute equipment or other commercial loss. - Page 32 LANDSCAPE SEEDER 72" & 96" Manual P/N 317688 Rev C 10/7/2024 QUICK ATTACH LLC Printed in U.S.A...
