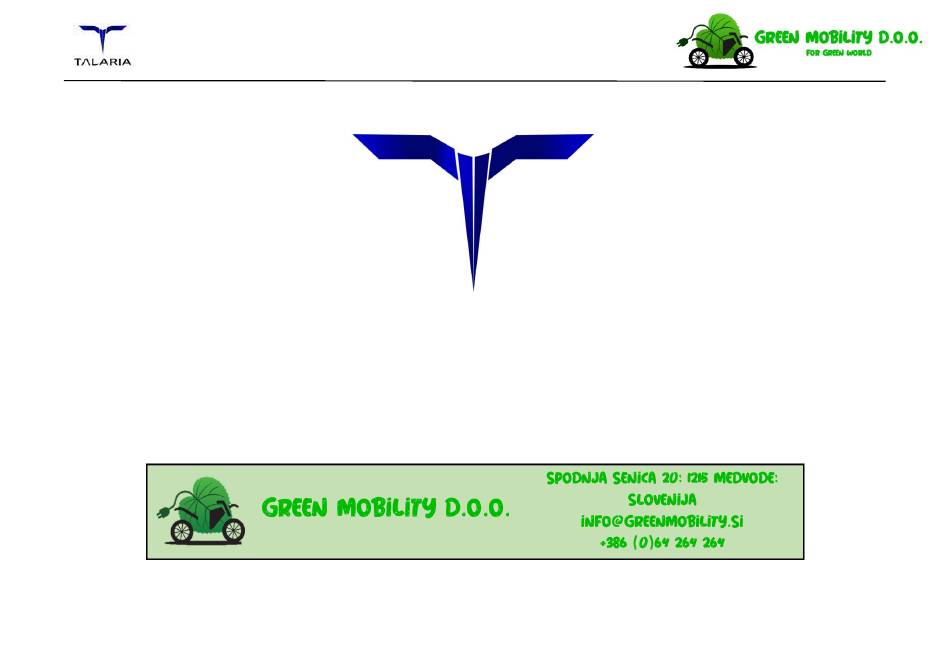

- Page 1 TALARIA POWER TECH (CHONGQING)CO,LTD. Talaria-Owners-Manual-xXx-L3e TALARIA POWER TECH (CHONGQING)CO,LTD.
- Page 2 TALARIA POWER TECH (CHONGQING)CO,LTD.
- Page 3 TALARIA POWER TECH (CHONGQING)CO,LTD. Table of Contents INTRODUCTION ..................1 Charging and Battery Information ............36 An Important Message From Talaria ..........1 Powertrain Basic Information ............36 About This Manual ................1 Battery ....................37 Useful Information For Safe Riding ........... 2 Battery Charging and Charger Usage ..........
- Page 4 When it comes A good place to locate information about the motorcycle is in the index in time to sell your Talaria xXx L3e, please ensure that this manual stays the back of the manual.
- Page 5 TALARIA POWER TECH (CHONGQING)CO,LTD. Introduction Useful Information for Safe Riding This symbol is located in various locations on the This manual contains the word WARNING to indicate something that motorcycle to inform you that exposure to high voltage could hurt you or others. It also contains the word CAUTION to indicate can cause shock, burns and even death.
- Page 6 TALARIA POWER TECH (CHONGQING)CO,LTD. Identification Numbers Vehicle Identification Number (VIN) The VIN is a 17-digit number stamped on the right side of the frame’s head tube. Do not alter or remove this number as it is the unique identifier for your motorcycle.
- Page 7 Identification Numbers VIN Breakdown The following breakdown of the VIN will help you to understand the significance of each digit or character in case you need to reference it when contacting Talaria or ordering parts. Running number Production year: R 2024……...
- Page 8 Motor Serial Number The motor serial number is stamped on the left-hand side of the motor housing. ☆128ZW6020412NA☆ And the Second row is the Talaria internal control number：Internal 6-Digit Model Number + Manufacturing Date(YY/MM) + 1-Digit Factory Identify Number +4-Digit Running Number：...
- Page 9 TALARIA POWER TECH (CHONGQING)CO,LTD. General Information Technical Specification Item Specs Vehicle Dimension 1886mm×770mm×1086mm Wheelbase 1240mm Vehicle Weight/40Ah Battery Included 45kg/58kg Max. Loading Ability 100kg Min. Ground Clearance 255mm Seat Height 805mm 45° Max. Gradeability Top Speed 70km/h Nominal Power 2.5KW Peak Power 6.0KW...
- Page 10 TALARIA POWER TECH (CHONGQING)CO,LTD. Safety Information Vehicle Overall Dimension — 7 —...
- Page 11 TALARIA POWER TECH (CHONGQING)CO,LTD. Safety Information Circuit Schematic Diagram Tran — 8 —...
- Page 12 TALARIA POWER TECH (CHONGQING)CO,LTD. Safety Information Transporting It is recommended that the motorcycle be tied-down using ratchet straps while it is being transported. Place the ratchet straps around a frame contact point. Soft straps must be used to reduce scratches or other damage. Use two ratchet straps in the front and two in the rear. The tie down straps should be at a 45°...
- Page 13 TALARIA POWER TECH (CHONGQING)CO,LTD. Safety Information Anti-Theft Alarm Information Keyless Go System: Step 1：Press the Power Button, the red indicator lighted up to activate the battery’s BMS, then, you can use the NFC to power on the motorcycle. Power Button...
- Page 14 Your safety depends in part on the good mechanical condition of the motorcycle. Be sure to do maintenance regularly. Be sure you understand the importance of checking all items thoroughly before riding. Modifications to the motorcycle may render the vehicle unsafe and may cause severe personal injury. Talaria cannot be held liable for non-approved modifications.
- Page 15 TALARIA POWER TECH (CHONGQING)CO,LTD. Safety Information Location of Important Labels — 12 —...
- Page 16 TALARIA POWER TECH (CHONGQING)CO,LTD. Controls and Components Motorcycle Controls ① ③ ④ ⑤ ① ② ⑥ ⑦ ⑧ — 13 —...
- Page 17 TALARIA POWER TECH (CHONGQING)CO,LTD. Controls and Components ① Mirrors NFC Sensor to have your motorcycle started. For description and operation, see “Keyless Go Start System” on page 10, and This motorcycle is equipped with convex mirrors. A convex mirror “Operating Your Motorcycle” on page 32.
- Page 18 TALARIA POWER TECH (CHONGQING)CO,LTD. Controls and Components Left Side View ④ ⑤ ③ ① ② ⑥ ⑦ ⑧ ⑨ ⑩ — 15 —...
- Page 19 ⑦ On-Bike Charging Interface The turn signals are applicated to draw attention to the vehicles or Please use Talaria stock charger to charge the battery. Before you people around you when you turn the motorcycle. For your and charge the battery, please turn off your motorcycle at first.
- Page 20 TALARIA POWER TECH (CHONGQING)CO,LTD. Controls and Components Right Side View ③ ④ ② ① ⑨ ⑧ ⑤ ⑥ ⑦ — 17 —...
- Page 21 TALARIA POWER TECH (CHONGQING)CO,LTD. Controls and Components ① Chain Tension Adjuster ⑤ Belt It’s used for the primary transmission; it’s strongly recommended to Used to adjust the tension if driving chain. See description and operation for “Driving Chain Tension Adjustment” on page 58.
- Page 22 TALARIA POWER TECH (CHONGQING)CO,LTD. Controls and Components Dash Overview Error Code High/Low Beam Indicator Fault Indicator Left Indicator Turn Signal Left Indicator Turn Signal Energy Consumption Speedometer Odometer Performance Modes Tripmeter Armed Indicator SOC Indicator Clock ABS Indicator Battery Status Indicator Regen Level Indicator —...
- Page 23 TALARIA POWER TECH (CHONGQING)CO,LTD. Controls and Components — 20 —...
- Page 24 TALARIA POWER TECH (CHONGQING)CO,LTD. Controls and Components SEL UP SEL DOWN SAVE In the main interface，press SEL UP one time，Regen +1 level holding SEL UP to clear the trip to ZERO. In the main interface，press SEL UP one time，Regen -1 level.
- Page 25 TALARIA POWER TECH (CHONGQING)CO,LTD. Controls and Components My Vehicle：Press SAVE for 3s to enter into the set interface, then, the riding data will show on the display (Such as the information about the speed, battery, runtime, range, and so on).
- Page 26 TALARIA POWER TECH (CHONGQING)CO,LTD. Controls and Components Brightness：Press SEL DOWN to enter into “Brightness” setting interface. Then, press SAVE to start selecting the brightness modes by pressing SEL UP or SEL DOWN, and finally, press SAVE to save the setting. There are 4 brightness modes to select. Auto Mode will automatically adjust the brightness accord to the environment luminance.
- Page 27 TALARIA POWER TECH (CHONGQING)CO,LTD. Controls and Components Unit Settings：Press SEL DOWN to enter into “Unit Setting” setting interface. Then, press SAVE to start selecting Metric or Imperial unit display by pressing SEL UP or SEL DOWN, and finally, press SAVE to save the setting.
- Page 28 SEL UP or SEL DOWN, and finally, press SAVE to save the setting. Notice: For Talaria xXx L3e version, the default GR setting is 1:6.9 only. No need to choose other GR. If the gear ratio you chosen does not match the sprocket on your motorcycle.
- Page 29 TALARIA POWER TECH (CHONGQING)CO,LTD. Controls and Components Motor Match: Press SEL DOWN to enter into “Motor Match” setting interface. When the motorcycle status is “WAIT”, and the side kick stand is folded up, press SAVE to start the motor match within one minute after the bike is powered on. Then, the motorcycle will have a small move, and after that, it will show the match is successful or failed.
- Page 30 TALARIA POWER TECH (CHONGQING)CO,LTD. Controls and Components SW Updated: Press SEL DOWN to enter into “SW Updated” setting interface. Press SAVE to select the version number by press SEL UP or SEL DOWN, then, press SAVE to see the information of the Dash’s software —...
- Page 31 TALARIA POWER TECH (CHONGQING)CO,LTD. Controls and Components Handlebar Controls ① ② ③ ⑥ ⑧ ⑦ ④ ⑤ — 28 —...
- Page 32 TALARIA POWER TECH (CHONGQING)CO,LTD. Controls and Components ① Rear Brake Lever Squeeze the rear brake lever can control the rear brake system to Sport mode is with a strong power output and fast acceleration. It decelerate the speed or stop the motorcycle. When braking, the...
- Page 33 I. Squeeze the front brake lever can control the front brake system to decelerate the speed or stop the motorcycle. When braking, the Pre-Ride Inspection Before operating your Talaria xXx Motorcycle, check the following to — 30 —...
- Page 34 TALARIA POWER TECH (CHONGQING)CO,LTD. Starting and Operating make sure the motorcycle is secure and intact: Electrical System: Check for correct function of the headlight, turn signals, and the brake/tail lights. Battery: Make sure the charge indicator on the dash is indicating a charged battery.
- Page 35 TALARIA POWER TECH (CHONGQING)CO,LTD. Starting and Operating Operating Your Motorcycle+ NFC Card Operating Instruction Admin NFC Card: The NFC Card, which is applicated to power on motorcycle Starting first, will Press the power button, the indicator will light up in red, then,...
- Page 36 Progressive use of the brakes should bring the motorcycle to a follow your smartphone’s operation prompt to finish the duplicating complete stop without locking the wheels. Your Talaria xXx is ok. Motorcycle is a light- weight performance product and therefore NFC Card Duplicate to Smart Band: Applicate the admin NFC practice is strongly recommended to perfect safe emergency stops.
- Page 37 TALARIA POWER TECH (CHONGQING)CO,LTD. Starting and Operating ridden through puddles. In this case, ride slowly and be careful. Parking Brake gently for several times until the brake goes back to work 1. Pay attention to your back and slow down to approach the normally.
- Page 38 The front fork and rear shock absorber play the buffer role, they are important to enable your riding to be stable and comfortable, even there are bumps on the road To solve the front fork and rear shock Front fork rebound absorber supply shortage. Talaria will mix use Rear Absorber adjuster Compression Talaria, FastAce or DNM forks and absorbers.
- Page 39 Powertrain Basic Information Talaria xXx powertrain’s voltage is 60V, and the power cables are in orange color. When you use, maintain, or repair the motorcycle, please make sure the electrical isolations for the power cables, and other electronic parts are in good condition.
- Page 40 Battery Basic Information Talaria xXx electric motorcycle uses high-performance high-rate lithium battery with a safe voltage of 60V. The battery can be used at the temperature of -20℃–60℃, optimally at 10℃–30℃. Too low or too high temperature will adversely affect the performance and lifetime of the battery, so please do not use it at a temperature beyond this range.
- Page 41 TALARIA POWER TECH (CHONGQING)CO,LTD. Charging and Battery Information Battery Charging and Charger Usage A：Breather Valve B：Battery Discharge Port C：Activating Button On-Bike Charging D：Battery Indicator Interface 1. Your motorcycle uses a customized lithium-ion battery charger. Do not use other chargers, or it may lead to battery damage or danger.
- Page 42 TALARIA POWER TECH (CHONGQING)CO,LTD. Charging and Battery Information choice of charger. 6. The charger will shut down automatically after the battery is fully charged. But it’s strongly suggested that always avoid connecting the charger to the grid socket for a long time, which shall not exceed 6 hours.
- Page 43 TALARIA POWER TECH (CHONGQING)CO,LTD. Charging and Battery Information Battery Installation and Remove 1) Battery Installation M8 Quick Disassembling Pin M6 Quick Disassembling Pin Charging Plug Discharging plug 1. Place your motorcycle on the stand. Disassemble the M8 quick disassembling pin, which is fix the lower end of the rear shock absorber on the rear fork.
- Page 44 TALARIA POWER TECH (CHONGQING)CO,LTD. Charging and Battery Information 4. Close the battery container cover, assemble and fasten the two M6 quick disassembling pins. And finally, assemble and fasten the M8 quick disassembling pin. Caution: Please ensure the discharging plug and charging plug are well connected. Otherwise, may lead to battery activation failure, and your motorcycle will not work, or On-Bike charging failure.
- Page 45 TALARIA POWER TECH (CHONGQING)CO,LTD. Charging and Battery Information 1. Power off your motorcycle, and place it on the stand. Disassemble the M8 quick disassembling pin, which is fix the lower end of the rear shock absorber on the rear fork.
- Page 46 TALARIA POWER TECH (CHONGQING)CO,LTD. ABS Installation Position, Usage and Caution ABS Installation Position and Indication ABS Status Indicator ABS Installation Position • ABS Status Indication ABS Status L3e (according to the regulation 168/2013) The ABS is working correctly NO ICON...
- Page 47 During the ABS regular maintenance procedures performed by your dealer, your electric bike will be connected to the TALARIA service software so as to allow the dealer to check and, if needed, perform maintenance work on your ABS. Your ABS usage data will, thus, be transferred to TALARIA SPA with the sole purpose of learning how you have used your ABS and, ultimately, to improve it.
- Page 48 Should you find yourself in such extreme conditions, do not over-brake. Your ABS’ functions are greatly reduced while curving with your vehicle slanted. TALARIA cannot be held responsible for any damage resulting from unreasonable, unpredictable and/or improper use of the ABS. — 45...
- Page 49 Malfunction Inspection and Troubleshooting Precautions for High Voltage Electrical Components Your Talaria xXx Motorcycle contains high voltage electrical components. These components is dangerous and can cause personal injury, severe burns, electric shock or even fatal injury unless appropriate preventive measures are taken.
- Page 50 TALARIA POWER TECH (CHONGQING)CO,LTD. Malfunction Inspection and Troubleshooting General Troubleshooting Failure Possible Cause Suggested Solution 1. The battery is out of power; 2. Didn’t press the power button to power 1. Charge the battery. Motorcycle cannot start on the motorcycle;...
- Page 51 TALARIA POWER TECH (CHONGQING)CO,LTD. Malfunction Inspection and Troubleshooting If the error code still shows, send Unbalanced battery cell The battery cell voltage difference is more than 500mV will have the error 00003 Restarting the motorcycle to the nearest voltage code show on the dash.
- Page 52 TALARIA POWER TECH (CHONGQING)CO,LTD. Malfunction Inspection and Troubleshooting dealer for service. If the error code still shows, send Battery cell temperature 00030 Caused by battery cell temperature sensor failure. Restarting the motorcycle to the nearest sensor error dealer for service.
- Page 53 If the error code still shows, send When the voltage of the battery is equal or greater than the protection 00900 Over voltage protection Please be sure to use Talaria's stock battery. the motorcycle to the nearest setting, the over voltage protection will run automatically.
- Page 54 TALARIA POWER TECH (CHONGQING)CO,LTD. Malfunction Inspection and Troubleshooting Stop riding your motorcycle after the overtemperature If the error code still shows, send Motor temperature Long-time high-power output leads to motor overtemperature to cause the protection unlocked. Or check whether the magnetic...
- Page 55 TALARIA POWER TECH (CHONGQING)CO,LTD. Warranty Warranty Description Dear customer: For your rights and interests, please keep this owner’s manual properly. Please inspect and test the motorcycle when you purchase, and ask the salesman to offer valid invoice, warranty card, repair addresses, contact phone number, and other information.
- Page 56 • Perform routine care and maintenance of your electric motorcycle as detailed in this Owner’s Manual. • Use only Talaria approved parts and Talaria Motorcycles accessories. • The operator is responsible for learning and obeying all country, federal, state, and local laws governing the operations of an electric motorcycle.
- Page 57 TALARIA POWER TECH (CHONGQING)CO,LTD. Maintaining Your Motorcycle Keep the disc brake system clean in daily use to avoid sand accumulation for a long time, especially oil stain. Components Fasteners Please follow the fasteners torque table to do regular inspection and maintenance for components fasteners.
- Page 58 TALARIA POWER TECH (CHONGQING)CO,LTD. Maintaining Your Motorcycle Item Description Torque（ Nm） Standard M6×40 Handlebar fixing bolt M8×55 Rear shock absorber fixing bolt 28-32 M6×12 Rear brake disc fixing bolt M8×20 48T sprocket fixing bolt 28-32 M8×25 Seat bolt fixing bolt 28-32 M6×20...
- Page 59 TALARIA POWER TECH (CHONGQING)CO,LTD. Maintaining Your Motorcycle Parts/Maintenance Items Front Fork Inspection: Check the front fork for any bending, deformation, damages, looseness, oil leakage and other faults. Press the handlebar up and down to check for any abnormal sounds caused by front fork fault.
- Page 60 TALARIA POWER TECH (CHONGQING)CO,LTD. Maintaining Your Motorcycle maintenance. Caution: Please power off the motorcycle before removing or installing the battery. If the battery cannot be pushed in, do not operate it by force. Pull out the battery and check whether it is stuck by something.
- Page 61 TALARIA POWER TECH (CHONGQING)CO,LTD. Maintaining Your Motorcycle Inspection for brake pads Check the brake pads and visually check the brakes by observing the remaining brake pad materials on both sides of the brake caliper. Brake Pads Brake Pads Replace the brake pads when the free clearance of the brake lever exceeds the specified range (15–30mm), or the total thickness of brake pads is less than 3 mm.
- Page 62 TALARIA POWER TECH (CHONGQING)CO,LTD. Maintaining Your Motorcycle Tire Inflation WARNING! Under-inflation is a common cause of tire damages and may result in severe tire cracking, tire tread separation, "blowout", or unexpected loss of motorcycle control, causing serious injury or death.
- Page 63 TALARIA POWER TECH (CHONGQING)CO,LTD. Maintaining Your Motorcycle 4. Do this for the entire length of the chain. Now do the same thing for the inside/bottom of the chain. 5. Using the brush, clean both sides of the rear sprocket. Let this soak for 5 minutes.
- Page 64 TALARIA POWER TECH (CHONGQING)CO,LTD. Maintaining Your Motorcycle Belt Adjustment 1. Power off the motorcycle, place the motorcycle on the stand. 2. Disassemble the left side motor cover, and inspect the whether the belt moves 3-6mm as a free play. 3. Loosen the motor fixing bolts in both left and right sides.
- Page 65 TALARIA POWER TECH (CHONGQING)CO,LTD. Maintaining Your Motorcycle Driving Chain Tension Adjustment 1. Power off the motorcycle and place it on the stand. 2. Then, loosen the rear wheel axle nut on the right side. 3. Loosen the jam nuts on both left and right sides.
- Page 66 Maintenance Schedule Table The scheduled maintenance must be performed in accordance with this chart to keep the Talaria xXx Motorcycle in top running condition. The initial maintenance is vitally important and must not be neglected. Where time and mileage are listed, follow the interval that occurs first.
- Page 67 TALARIA POWER TECH (CHONGQING)CO,LTD. Maintenance Record √ Check whether the brake is loose √ √ √ √ √ √ Replace brake fluid √ √ √ Check brake levers. Adjust or √ √ √ √ √ √ √ replace if necessary.
- Page 68 TALARIA POWER TECH (CHONGQING)CO,LTD. Maintenance Record Bearings Repack with all-purpose grease. √ √ √ √ √ Front Fork and Check operation, Service/adjust/ √ √ √ √ √ √ √ Rear Shock replace if necessary. Absorber ( Please Check oil leakage.
- Page 69 TALARIA POWER TECH (CHONGQING)CO,LTD. Maintenance Record Maintenance Record Card Maintenance Record Card Date Odometer reading Maintenance Sales unit stamp and signature — 66 —...
- Page 70 TALARIA POWER TECH (CHONGQING)CO,LTD. Maintenance Record Customer Information Card Basic information Vehicle Model TL2500 L3E The frame number(VIN) Date of purchase User Name Invoice number Buyer's signature Authorized dealer and service (stamp and signature) — 67 —...
