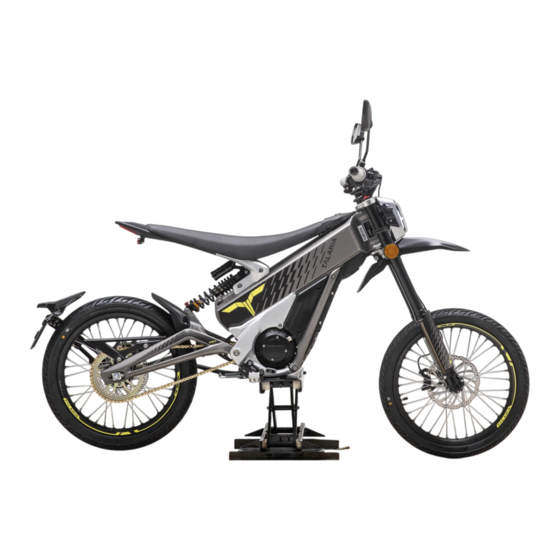

TALARIA TL2500 X3 L1E Owner's Manual

Hide thumbs

Table Of Contents

Quick Links

Download this manual

探骊动力科技（重庆）有限公司

TALARIA POWER TECH (CHONGQING) CO., LTD.

Talaria-Owners-Manual-xXx

TALARIA POWER TECH

Table of Contents

Troubleshooting

Need help?

Do you have a question about the TL2500 X3 L1E and is the answer not in the manual?

Questions and answers

Summary of Contents for TALARIA TL2500 X3 L1E

Page 1 探骊动力科技（重庆）有限公司 TALARIA POWER TECH (CHONGQING) CO., LTD. Talaria-Owners-Manual-xXx TALARIA POWER TECH...
Page 2 探骊动力科技（重庆）有限公司 TALARIA POWER TECH (CHONGQING) CO., LTD. TALARIA POWER TECH (CHONGQING)CO,LTD.
Page 3: Table Of Contents
TALARIA POWER TECH (CHONGQING) CO., LTD. xXx L1e Version Owner’s manual INTRODUCTION ..................1 Charging and Battery Information ............35 An Important Message From Talaria ..........1 Powertrain Basic Information ............35 About This Manual ................1 Battery Information ................36 Useful Information For Safe Riding ...........
Page 4: Introduction
Congratulations and thank you for purchasing the 2023 Talaria xXx L1e This manual covers the standard features, operations, malfunction Or Talaria xXx MX electric motorcycle; we welcome you to the community inspections and warranty for Talaria xXx L1e/MX electric motorcycles.
Page 5: Useful Information For Safe Riding
探骊动力科技（重庆）有限公司 TALARIA POWER TECH (CHONGQING) CO., LTD. Useful Information For Safe Riding This manual contains the word WARNING to indicate something that could hurt you or others. It also contains the word CAUTION to indicate things that could damage your motorcycle.
Page 6: Identification Numbers
探骊动力科技（重庆）有限公司 TALARIA POWER TECH (CHONGQING) CO., LTD. Identification Numbers Vehicle Identification Number (VIN) The VIN is a 17-digit number stamped on the right side of the frame’s head tube. Do not alter or remove this number as it is the unique identifier for your motorcycle.
Page 7 探骊动力科技（重庆）有限公司 TALARIA POWER TECH (CHONGQING) CO., LTD. Identification Numbers VIN Breakdown The following breakdown of the VIN will help you to understand the significance of each digit or character in case you need to reference it when contacting Talaria or ordering parts.
Page 8: Motor Serial Number
Motor Serial Number The motor serial number is stamped on the left-hand side of the motor housing. ☆128ZW6020412NA☆ And the Second row is the Talaria internal control number：Internal 6-Digit Model Number + Manufacturing Date(YY/MM) + 1-Digit Factory Identify Number +4-Digit Running Number：...
Page 9: General Information
探骊动力科技（重庆）有限公司 TALARIA POWER TECH (CHONGQING) CO., LTD. General Information Technical Specification Item Specs Vehicle Dimension 1850mm×770mm×1080mm Wheelbase 1235mm Vehicle Weight/40Ah Battery Included 45kg/58kg Max. Loading Ability 100kg Min. Ground Clearance 255mm Seat Height 810mm Max. Gradeability 45° Top Speed 45km/h (L1e Version) Nominal Power 2.5KW...
Page 10: Vehicle Overall Dimension
探骊动力科技（重庆）有限公司 TALARIA POWER TECH (CHONGQING) CO., LTD. General Information Vehicle Overall Dimension 25° 1235 1850 — 7 —...
Page 11: Circuit Schematic Diagram
探骊动力科技（重庆）有限公司 TALARIA POWER TECH (CHONGQING) CO., LTD. General Information Circuit Schematic Diagram — 8 —...
Page 12: Transporting
探骊动力科技（重庆）有限公司 TALARIA POWER TECH (CHONGQING) CO., LTD. General Information Transporting It is recommended that the motorcycle be tied-down using ratchet straps while it is being transported. Place the ratchet straps around a frame contact point. Soft straps must be used to reduce scratches or other damage. Use two ratchet straps in the front and two in the rear. The tie down straps should be at a 45°...
Page 13: Safety Information
探骊动力科技（重庆）有限公司 TALARIA POWER TECH (CHONGQING) CO., LTD. Safety Information Anti-Theft Alarm Information Keyless Go System: Power Button Step 1：Press the Power Button, the red indicator lighted up to activate NFC sensor the battery’s BMS, then, you can use the NFC to power on the motorcycle.
Page 14: General Safety Precautions
Your safety depends in part on the good mechanical condition of the motorcycle. Be sure to do maintenance regularly. Be sure you understand the importance of checking all items thoroughly before riding. Modifications to the motorcycle may render the vehicle unsafe and may cause severe personal injury. Talaria cannot be held liable for non-approved modifications.
Page 15: Location Of Important Labels
探骊动力科技（重庆）有限公司 TALARIA POWER TECH (CHONGQING) CO., LTD. Safety Information Location of Important Labels — 12 —...
Page 16: Controls And Components
探骊动力科技（重庆）有限公司 TALARIA POWER TECH (CHONGQING) CO., LTD. Controls and Components Motorcycle Controls ① ② ③ ⑤ ⑥ ⑦ ⑧ ① ④ — 13 —...
Page 17: Left Side View
探骊动力科技（重庆）有限公司 TALARIA POWER TECH (CHONGQING) CO., LTD. Controls and Components ① Mirrors NFC Sensor to have your motorcycle started. For description and operation, see “Keyless Go Start System” on page 10, and This motorcycle is equipped with convex mirrors. A convex mirror “Operating Your Motorcycle”...
Page 18 探骊动力科技（重庆）有限公司 TALARIA POWER TECH (CHONGQING) CO., LTD. Controls and Components Left Side View ③ ⑤ ④ ① ② ⑥ ⑦ ⑧ ⑨ ⑩ — 15 —...
Page 19 ⑦ On-Bike Charging Interface The turn signals are applicated to draw attention to the vehicles or Please use Talaria stock charger to charge the battery. Before you people around you when you turn the motorcycle. For your and charge the battery, please turn off your motorcycle at first.
Page 20: Right Side View
探骊动力科技（重庆）有限公司 TALARIA POWER TECH (CHONGQING) CO., LTD. Controls and Components Right Side View ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ — 17 —...
Page 21 探骊动力科技（重庆）有限公司 TALARIA POWER TECH (CHONGQING) CO., LTD. Controls and Components ① Chain Tension Adjuster ⑤ Belt It’s used for the primary transmission; it’s strongly recommended to Used to adjust the tension if driving chain. See description and operation for “Driving Chain Tension Adjustment” on page 57.
Page 22: Dash Overview
探骊动力科技（重庆）有限公司 TALARIA POWER TECH (CHONGQING) CO., LTD. Controls and Components Dash Overview Error Code High/Low Beam Indicator Fault Indicator Left Indicator Turn Signal Left Indicator Turn Signal Energy Consumption Speedometer Odometer Performance Modes Armed Indicator Tripmeter SOC Indicator Clock Battery Status Indicator Regen Level Indicator —...
Page 23 探骊动力科技（重庆）有限公司 TALARIA POWER TECH (CHONGQING) CO., LTD. Controls and Components — 20 —...
Page 24 探骊动力科技（重庆）有限公司 TALARIA POWER TECH (CHONGQING) CO., LTD. Controls and Components SEL UP SEL DOWN SAVE In the main interface，press SEL UP one time，Regen +1 level holding SEL UP to clear the trip to ZERO. In the main interface，press SEL UP one time，Regen -1 level.
Page 25 探骊动力科技（重庆）有限公司 TALARIA POWER TECH (CHONGQING) CO., LTD. Controls and Components My Vehicle：Press SAVE to enter into the set interface, then, the riding data will show on the display (Such as the information about the speed, battery, runtime, range, and so on).
Page 26 探骊动力科技（重庆）有限公司 TALARIA POWER TECH (CHONGQING) CO., LTD. Controls and Components Brightness：Press SEL DOWN to enter into “Brightness” setting interface. Then, press SAVE to start selecting the brightness modes by pressing SEL UP or SEL DOWN, and finally, press SAVE to save the setting. There are 4 brightness modes to select.
Page 27 探骊动力科技（重庆）有限公司 TALARIA POWER TECH (CHONGQING) CO., LTD. Controls and Components Unit Settings：Press SEL DOWN to enter into “Unit Setting” setting interface. Then, press SAVE to start selecting Metric or Imperial unit display by pressing SEL UP or SEL DOWN, and finally, press SAVE to save the setting.
Page 28 SEL UP or SEL DOWN, and finally, press SAVE to save the setting. Notice: For Talaria xXx L1e version, the default GR setting is 1:6.9 only. No need to choose other GR. If the gear ratio you chosen does not match the sprocket on your motorcycle.
Page 29 探骊动力科技（重庆）有限公司 TALARIA POWER TECH (CHONGQING) CO., LTD. Controls and Components Motor Match: Press SEL DOWN to enter into “Motor Match” setting interface. When the motorcycle status is “WAIT”, and the side kick stand is folded up, press SAVE to start the motor match within one minute after the bike is powered on.
Page 30: Handlebar Controls
探骊动力科技（重庆）有限公司 TALARIA POWER TECH (CHONGQING) CO., LTD. Controls and Components Handlebar Controls ① ② ③ ⑥ ⑧ ⑦ ④ ⑤ — 27 —...
Page 31 探骊动力科技（重庆）有限公司 TALARIA POWER TECH (CHONGQING) CO., LTD. Controls and Components ① Rear Brake Lever the fresh riders, as well as the riders who want a good riding range. Squeeze the rear brake lever can control the rear brake system to decelerate the speed or stop the motorcycle.
Page 32 探骊动力科技（重庆）有限公司 TALARIA POWER TECH (CHONGQING) CO., LTD. Controls and Components ⑤ Horn Button throttle should be in the closed position, and the brake lamp will When the motorcycle is powered on, the horn sounds when the light up. ⑦ START Button button is pressed.
Page 33: Starting And Operating
Pre-Ride Inspection Before operating your Talaria xXx Motorcycle, check the following to make sure the motorcycle is secure and intact: Battery: Make sure the charge indicator on the dash is indicating a charged battery. We suggest you recharge before use. Always keep the charger available.
Page 34: Operating Your Motorcycle
探骊动力科技（重庆）有限公司 TALARIA POWER TECH (CHONGQING) CO., LTD. Starting and Operating Operating Your Motorcycle Starting Press the power button, the indicator will light up in red, then, applicate the NFC Card contact the NFC Sensor to power on the motorcycle. Once the motorcycle is powered on, “WAIT”...
Page 35 This could cause you to lose control of the motorcycle and could lead to serious injury or death. Progressive use of the brakes should bring the motorcycle to a complete stop without locking the wheels. Your Talaria xXx Motorcycle is a light- weight performance product and therefore practice is strongly recommended to perfect safe emergency stops.
Page 36 探骊动力科技（重庆）有限公司 TALARIA POWER TECH (CHONGQING) CO., LTD. Starting and Operating Precautions For Riding 1. In the premise of ensuring safety, ride smoothly as far as possible, and avoid sudden acceleration or deceleration, so as to save electricity, protect components, and improve the endurance mileage and electric motorcycle service life.
Page 37 Compression there are bumps on the road Adjuster To solve the front fork and rear shock absorber supply shortage. Talaria will mix use Rear Absorber Talaria, FastAce or DNM forks and absorbers. Rebound All these absorbers passed Talaria’s strict Adjuster performance tests.
Page 38: Charging And Battery Information
Powertrain Basic Information Talaria xXx powertrain’s voltage is 60V, and the power cables are in orange color. When you use, maintain, or repair the motorcycle, please make sure the electrical isolations for the power cables, and other electronic parts are in good condition.
Page 39: Battery Information
Battery Communication port Battery Basic Information Talaria xXx electric motorcycle uses high-performance high-rate lithium Discharge(＋) battery with a safe voltage of 60V. The battery can be used at the temperature of -20℃–60℃, optimally at 10℃–30℃. Too low or too high temperature will adversely affect the performance and lifetime of the Discharge(＋)
Page 40 探骊动力科技（重庆）有限公司 TALARIA POWER TECH (CHONGQING) CO., LTD. Charging and Battery Information Battery Charging and Charger Usage On-Bike Charging Interface A：Breather Valve B：Battery Discharge Port C：Activating Button D：Battery Indicator 1. Your motorcycle uses a customized lithium-ion battery charger. Do not use other chargers, or it may lead to battery damage or danger.
Page 41 探骊动力科技（重庆）有限公司 TALARIA POWER TECH (CHONGQING) CO., LTD. Charging and Battery Information charger into the grid socket first, and then, please be sure to connect the charger and battery charging interface properly within 3 seconds. Otherwise, the battery cannot be detected, the charger will run the protection setting, and automatically shut down! 5.
Page 42 探骊动力科技（重庆）有限公司 TALARIA POWER TECH (CHONGQING) CO., LTD. Charging and Battery Information Battery Installation and Remove 1) Battery Installation M8 Quick Disassembling Pin M6 Quick Disassembling 1. Place your motorcycle on the stand. Disassemble the M8 quick disassembling pin, which is fix the lower end of the rear shock absorber on the rear fork.
Page 43 探骊动力科技（重庆）有限公司 TALARIA POWER TECH (CHONGQING) CO., LTD. Charging and Battery Information 2) Battery Remove M8 Quick Disassembling Pin M6 Quick Disassembling Pin 1. Power off your motorcycle, and place it on the stand. Disassemble the M8 quick disassembling pin, which is fix the lower end of the rear shock absorber on the rear fork.
Page 44: Malfunction Inspection And Troubleshooting
Malfunction Inspection and Troubleshooting Precautions for High Voltage Electrical Components Your Talaria xXx Motorcycle contains high voltage electrical components. These components is dangerous and can cause personal injury, severe burns, electric shock or even fatal injury unless appropriate preventive measures are taken.
Page 45: General Troubleshooting
探骊动力科技（重庆）有限公司 TALARIA POWER TECH (CHONGQING) CO., LTD. Malfunction Inspection and Troubleshooting General Troubleshooting Failure Possible Cause Suggested Solution 1. The battery is out of power; 2. Didn’t press the power button to power on the 1. Charge the battery. Motorcycle cannot start motorcycle;...
Page 46 探骊动力科技（重庆）有限公司 TALARIA POWER TECH (CHONGQING) CO., LTD. Malfunction Inspection and Troubleshooting If the error code still shows, send 00007 Discharge MOS error Discharge circuit got failure Restarting the motorcycle to the nearest dealer for service. If the error code still shows, send...
Page 47 探骊动力科技（重庆）有限公司 TALARIA POWER TECH (CHONGQING) CO., LTD. Malfunction Inspection and Troubleshooting It's strongly suggested to follow Battery discharging low When the battery is discharging, if the temperature is too low, the battery Stop riding your motorcycle until the low temperature...
Page 48 If the error code still shows, send When the voltage of the battery is equal or greater than the protection 00900 Over voltage protection Please be sure to use Talaria's stock battery. the motorcycle to the nearest setting, the over voltage protection will run automatically.
Page 49 探骊动力科技（重庆）有限公司 TALARIA POWER TECH (CHONGQING) CO., LTD. Malfunction Inspection and Troubleshooting 1. Press the power button to restart your motorcycle. 2. Power off your motorcycle. Then, check the whether the motor phase wire terminal got loose, or If the error code still shows, send 1.
Page 50: Warranty
探骊动力科技（重庆）有限公司 TALARIA POWER TECH (CHONGQING) CO., LTD. Warranty Warranty Description Dear customer: For your rights and interests, please keep this owner’s manual properly. Please inspect and test the motorcycle when you purchase, and ask the salesman to offer valid invoice, warranty card, repair addresses, contact phone number, and other information.
Page 51: Maintaining Your Motorcycle
• Perform routine care and maintenance of your electric motorcycle as detailed in this Owner’s Manual. • Use only Talaria approved parts and Talaria Motorcycles accessories. • The operator is responsible for learning and obeying all country, federal, state, and local laws governing the operations of an electric motorcycle.
Page 52: Components Fasteners
探骊动力科技（重庆）有限公司 TALARIA POWER TECH (CHONGQING) CO., LTD. Maintaining Your Motorcycle Components Fasteners Please follow the fasteners torque table to do regular inspection and maintenance for components fasteners. — 49 —...
Page 53 探骊动力科技（重庆）有限公司 TALARIA POWER TECH (CHONGQING) CO., LTD. Maintaining Your Motorcycle Item Description Torque（ Nm） Standard Handlebar fixing bolt M6×40 Rear shock absorber fixing bolt 28-32 M8×55 Rear brake disc fixing bolt M6×12 48T sprocket fixing bolt 28-32 M8×20 Seat bolt fixing bolt 28-32 M8×25...
Page 54: Parts/Maintenance Items
探骊动力科技（重庆）有限公司 TALARIA POWER TECH (CHONGQING) CO., LTD. Maintaining Your Motorcycle Parts/Maintenance Items Front Fork Inspection: Check the front fork for any bending, deformation, damages, looseness, oil leakage and other faults. Press the handlebar up and down to check for any abnormal sounds caused by front fork fault.
Page 55 探骊动力科技（重庆）有限公司 TALARIA POWER TECH (CHONGQING) CO., LTD. Maintaining Your Motorcycle Caution: Please power off the motorcycle before removing or installing the battery. If the battery cannot be pushed in, do not operate it by force. Pull out the battery and check whether it is stuck by something.
Page 56 探骊动力科技（重庆）有限公司 TALARIA POWER TECH (CHONGQING) CO., LTD. Maintaining Your Motorcycle Inspection for brake pads Check the brake pads and visually check the brakes by observing the remaining brake pad materials on both sides of the brake caliper. Brake Pads Brake Pads Replace the brake pads when the free clearance of the brake lever exceeds the specified range (15–30mm), or the total thickness of brake pads is less...
Page 57 探骊动力科技（重庆）有限公司 TALARIA POWER TECH (CHONGQING) CO., LTD. Maintaining Your Motorcycle Tire Inflation WARNING! Under-inflation is a common cause of tire damages and may result in severe tire cracking, tire tread separation, "blowout", or unexpected loss of motorcycle control, causing serious injury or death.
Page 58 探骊动力科技（重庆）有限公司 TALARIA POWER TECH (CHONGQING) CO., LTD. Maintaining Your Motorcycle 5. Using the brush, clean both sides of the rear sprocket. Let this soak for 5 minutes. 6. Using a water hose, rinse the entire chain. Then, using a clean rag, wipe any residual moisture from the chain.
Page 59 探骊动力科技（重庆）有限公司 TALARIA POWER TECH (CHONGQING) CO., LTD. Maintaining Your Motorcycle Belt Adjustment 1. Power off the motorcycle, place the motorcycle on the stand. 2. Disassemble the left side motor cover, and inspect the whether the belt moves 3-6mm as a free play.
Page 60 探骊动力科技（重庆）有限公司 TALARIA POWER TECH (CHONGQING) CO., LTD. Maintaining Your Motorcycle Driving Chain Tension Adjustment 1. Power off the motorcycle and place it on the stand. 2. Then, loosen the rear wheel axle nut on the right side. 3. Loosen the jam nuts on both left and right sides.
Page 61: Maintenance Record
Maintenance Schedule The scheduled maintenance must be performed in accordance with this chart to keep the Talaria xXx Motorcycle in top running condition. The initial maintenance is vitally important and must not be neglected. Where time and mileage are listed, follow the interval that occurs first.
Page 62 探骊动力科技（重庆）有限公司 TALARIA POWER TECH (CHONGQING) CO., LTD. Maintenance Record Replace brake fluid √ √ √ Check brake levers. Adjust or √ √ √ √ √ √ √ replace if necessary. Check tire pressure. See page 54. √ √ √ √...
Page 63 探骊动力科技（重庆）有限公司 TALARIA POWER TECH (CHONGQING) CO., LTD. Maintenance Record Absorber ( Please Check oil leakage. also refer to fork √ Service/rebuild/replace if √ √ √ √ √ √ and shock absorber necessary. manual Check operation. Adjust or replace √ Throttle √...
Page 64: Maintenance Record Card
探骊动力科技（重庆）有限公司 TALARIA POWER TECH (CHONGQING) CO., LTD. Maintenance Record Maintenance Record Card Maintenance Record Card Date Odometer reading Maintenance Remarks Customer Information Card xXx MX □ xXx L1e □ Basic Information Motorcycle Model Owner’s Name Order Date — 61 —...
