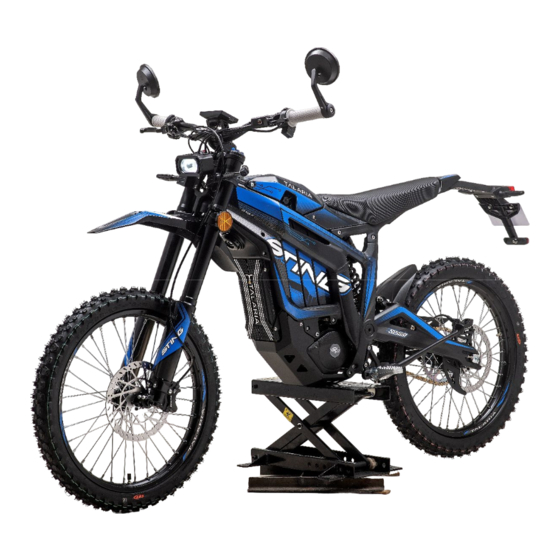

TALARIA STING R L1E Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

TALARIA POWER TECH
STING R L1E OWNER'S MANUAL

Advertisement

Table of Contents
loading

Related Manuals for TALARIA STING R L1E

Summary of Contents for TALARIA STING R L1E

  • Page 1 TALARIA POWER TECH STING R L1E OWNER’S MANUAL...

  • Page 2: Table Of Contents

    TALARIA POWER TECH Content Introduction ........................1 Battery Charging and Charger Usage ............28 An Important Message from Talaria ............... 1 Charging Precautions ..................29 About This Manual ....................1 Remove the Battery ................... 30 Useful Information for Safe Riding ..............2 Install the Battery ....................

  • Page 3: Introduction

    Knobby Tires claims can be made on the basis of data in this manual. When it comes time to sell your Talaria Sting R L1e electric motorcycle, please ensure Locating and Referencing Information that this manual stays with the motorcycle. It is an important part of the A good place to locate information about the motorcycle is in the index in vehicle.

  • Page 4: Useful Information For Safe Riding

    TALARIA POWER TECH Introduction Useful Information for Safe Riding This manual contains the word WARNING to indicate something that could hurt you or others. It also contains the word CAUTION to indicate things that could damage your motorcycle. This symbol is located in various locations on the motorcycle to inform you WARNING! Please read this manual carefully and completely before that exposure to high voltage can cause shock, burns and even death.

  • Page 5: Identification Numbers

    TALARIA POWER TECH Identification Numbers Vehicle Identification Number (VIN) The VIN is a 17-digit number stamped on the right side of the frame’s head tube. Do not alter or remove this number as it is the unique identifier for your motorcycle.

  • Page 6: Motor Serial Number

    Motor Serial Number The motor serial number is stamped on the left-hand side of the motor housing. ☆159ZW6030413NA☆ And the Second row is the Talaria internal control number：Internal 6-Digit Model Number + Manufacturing Date(YY/MM) + 1-Digit Factory Identify Number +4-Digit Running Number：...

  • Page 7: General Information

    TALARIA POWER TECH General Information Technical Specification Item Specs Vehicle Dimension 1890mm × 815mm × 1155mm Wheelbase 1250mm Vehicle Weight/45Ah Battery Included 55kg/68kg Max. Loading Ability 100kg Min. Ground Clearance 300mm Seat Height 840mm Max. Gradeability 45° Top Speed 45km/h (Limited)

  • Page 8: Vehicle Overall Dimension

    TALARIA POWER TECH General Information Vehicle Overall Dimension...

  • Page 9: Circuit Schematic Diagram

    TALARIA POWER TECH General Information Circuit Schematic Diagram...

  • Page 10: Safety Information

    TALARIA POWER TECH Safety Information Anti-Theft Alarm Information Key Switch Steering Lock 1. Key Switch: Turn the key switch clockwise to the ON position, the electric motorcycle is powered on; turn the key switch counter-clockwise to the OFF position, the electric motorcycle is powered off, and then remove the key.

  • Page 11: General Safety Precautions

    This is a performance motorcycle and should be treated with extreme caution. Please obey the local traffic rules, and ride the motorcycle with a proper speed. (Top speed for Sting R L1e version is limited to be 45km/h) Proper safety gear, including a regionally approved helmet, eye protection, riding boots, gloves, and protective clothing should be worn while riding to reduce the risk of potential injury.

  • Page 12: Location Of Important Labels

    TALARIA POWER TECH Safety Information Location of Important Labels...

  • Page 13: Controls And Components

    TALARIA POWER TECH Controls and Components Motorcycle Controls 1. Horn button 2. Dash (For description and operation, see “Dash Overview” from page 12 to page 18.) 3. Starting button (After the electric motorcycle is turned on, and the side kick stand is swung back, then, press the start button to allow the bike to go when the dash shows READY).

  • Page 14: Dash Overview

    TALARIA POWER TECH Controls and Components Dash Overview Error Code High/Low Beam Indicator Fault Indicator Left Indicator Turn Signal Left Indicator Turn Signal Energy Consumption Speedometer Odometer Performance Modes Armed Indicator Tripmeter SOC Indicator Clock Battery Status Indicator Regen Level Indicator...
  • Page 15 TALARIA POWER TECH Controls and Components...
  • Page 16 TALARIA POWER TECH Controls and Components SEL UP SEL DOWN SAVE In the main interface，press SEL UP one time，Regen +1 level holding SEL UP to clear the trip to ZERO. In the main interface，press SEL UP one time，Regen -1...
  • Page 17 TALARIA POWER TECH Controls and Components My Vehicle：Press SAVE to enter into the set interface, then, the riding data will show on the display (Such as the information about the speed, battery, runtime, range, and so on). Screen Display： Press SEL DOWN to enter into “Screen display” setting interface.
  • Page 18 TALARIA POWER TECH Controls and Components Brightness：Press SEL DOWN to enter into “Brightness” setting interface. Then, press SAVE to start selecting the brightness modes by pressing SEL UP or SEL DOWN, and finally, press SAVE to save the setting. There are 4 brightness modes to select.
  • Page 19 TALARIA POWER TECH Controls and Components Unit Settings：Press SEL DOWN to enter into “Unit Setting” setting interface. Then, press SAVE to start selecting Metric or Imperial unit display by pressing SEL UP or SEL DOWN, and finally, press SAVE to save the setting.
  • Page 20 TALARIA POWER TECH Controls and Components Wheel: Press SEL DOWN to enter into “Wheel” setting interface. Then, press SAVE to start selecting wheel diameter by pressing SEL UP or SEL DOWN, and finally, press SAVE to save the setting. The incorrect diameter setting will cause the incorrect speed indication.

  • Page 21: Top View

    TALARIA POWER TECH Controls and Components Motor Match: Press SEL DOWN to enter into “Motor Match” setting interface. When the motorcycle status is “WAIT”, and the side kick stand is folded up, press SAVE to start the motor match within one minute after the bike is powered on. Then, the motorcycle will have a small move, and after that, it will show the match is successful or failed.
  • Page 22 TALARIA POWER TECH Controls and Components 1. Front Right Turn Signal 2. Front Brake Lever 3. Right Rearview Mirror 4. Throttle 5. Key Switch 6. Battery Case Cover 7. Footpeg 8. Seat 9. Rear Right Turn Signal 10. Front Left Turn Signal 11.

  • Page 23: Left Side View

    TALARIA POWER TECH Controls and Components Left Side View 1. Headlight 2. Front Fork 3. Left Reflector 4. Front Fender 5. Front Wheel 6. Front Disc Brake Disc 7. Front Disc Brake Pump 8. Battery Charging Interface 9. Controller 10. Motor Guard 11.

  • Page 24: Right Side View

    TALARIA POWER TECH Controls and Components Right Side View 1. Rear Reflector 2. Tail Lamp 3. Sprocket 4. Chain Guide 5. Chain 6. Rear Shock Absorber 7. Motor Assembly (including gear box) 8. Battery Case Lock 9. Lithium-ion Battery Pack 10.

  • Page 25: Starting And Operating

    Pre-Ride Inspection Before operating your Talaria STING R electric motorcycle, check the following to make sure the electric motorcycle is secure and intact: Battery: Make sure the charge indicator on the dash is indicating a charged battery. We suggest you recharge before use. Always keep the charger available.

  • Page 26: Riding Operating

    This could cause you to lose control of the electric motorcycle and could lead to serious injury or death. Progressive use of the brakes should bring the electric motorcycle to a complete stop without locking the wheels. Your Talaria Sting R electric motorcycle is a light- weight...
  • Page 27 TALARIA POWER TECH Starting and Operating  Precautions For Riding 1. In the premise of ensuring safety, ride smoothly as far as possible, and avoid sudden acceleration or deceleration, so as to save electricity, protect components, and improve the endurance mileage and electric motorcycle service life.
  • Page 28 To solve the front fork and rear shock absorber supply shortage. Talaria will mix use Talaria, FastAce or DNM forks and absorbers. All these absorbers passed Talaria’s strict performance tests.

  • Page 29: Charging And Battery Information

    TALARIA POWER TECH Charging and Battery Information Battery Basic Information Discharge（-） Talaria Sting electric motorcycle uses high- Charge（+） performance and high-rate lithium-ion battery with a safe communication port voltage of 60V. The battery can be used at the temperature of -20℃–60℃, optimally at 10℃–30℃. Too...

  • Page 30: Battery Charging And Charger Usage

    TALARIA POWER TECH Charging and Battery Information CAUTION: Sideslip may happen in the case that only applicate front brake or rear brake. It is safer to applicate combined braking. When the motor temperature and controller temperature is high, or the battery power is too low, the power output will automatically decrease. This is not a malfunction. After the temperature back to be normal, the motorcycle will automatically have the full power output again.

  • Page 31: Charging Precautions

    TALARIA POWER TECH Charging and Battery Information charger into the grid socket first, and then, please be sure to connect the charger and battery charging interface properly within 3 seconds. Otherwise, the battery cannot be detected, the charger will run the protection setting, and automatically shut down! 5.

  • Page 32: Remove The Battery

    TALARIA POWER TECH Charging and Battery Information Remove the Battery Pull up Pull up Press Press Disconnect the discharge plug from the battery Disconnect the discharge plug from the battery 32、 Turn off the electric motorcycle, use the electric motorcycle key to open the battery case lock on the right side of the electric motorcycle, then open the battery case cover forward, and you can see the battery.

  • Page 33: Install The Battery

    TALARIA POWER TECH Charging and Battery Information Install the Battery Circuit breaker closure Press down Press down The discharge plug is connected to the battery The discharge plug is connected to the battery The circuit breaker is located in the battery compartment,near the front of the battery 1.

  • Page 34: Malfunction Inspection And Troubleshooting

    Precautions for High Voltage Electrical Components Your Talaria Sting R electric motorcycle contains high voltage electrical components. These components is dangerous and can cause personal injury, severe burns, electric shock or even fatal injury unless appropriate preventive measures are taken.

  • Page 35: General Troubleshooting

    TALARIA POWER TECH Malfunction Inspection and Troubleshooting General Troubleshooting Failure Possible Cause Suggested Solution 1. The battery is out of power; 2. Didn’t press the power button to power on the 1. Charge the battery. Motorcycle cannot start motorcycle; 2. Press the power button to power on the motorcycle.
  • Page 36 TALARIA POWER TECH Malfunction Inspection and Troubleshooting If the error code still shows, send 00007 Discharge MOS error Discharge circuit got failure Restarting the motorcycle to the nearest dealer for service. If the error code still shows, send 00008 Charging MOS error...
  • Page 37 TALARIA POWER TECH Malfunction Inspection and Troubleshooting It’s strongly suggested to follow Battery discharging low When the battery is discharging, if the temperature is too low, the battery will Stop riding your motorcycle until the low temperature 00060 this owner’s manual to use your temperature carry out the low temperature protection function.
  • Page 38 If the error code still shows, send When the voltage of the battery is equal or greater than the protection 00900 Over voltage protection Please be sure to use Talaria’s stock battery. the motorcycle to the nearest setting, the over voltage protection will run automatically.
  • Page 39 TALARIA POWER TECH Malfunction Inspection and Troubleshooting 1. Press the power button to restart your motorcycle. 2. Power off your motorcycle. Then, check the whether the motor phase wire terminal got loose, or broken. If the error code still shows, send 1.

  • Page 40: Warranty

    TALARIA POWER TECH Warranty Warranty Description Dear customer: For your rights and interests, please keep this owner’s manual properly. Please inspect and test the electric motorcycle when you purchase, and ask the salesman to offer valid invoice, warranty card, repair addresses, contact phone number, and other information.

  • Page 41: Maintaining Your Motorcycle

    • Perform routine care and maintenance of your electric motorcycle as detailed in this Owner’s Manual. • Use only Talaria approved parts and Talaria Motorcycles accessories. • The operator is responsible for learning and obeying all country, federal, state, and local laws governing the operations of an electric motorcycle.

  • Page 42: Parts/Maintenance Items

    TALARIA POWER TECH Maintaining Your Motorcycle Any issues found through the inspection should be eliminated before you ride the motorcycle. If it is difficult to solve it by yourself, please send the motorcycle to the nearest dealer for service. CAUTION: The front and rear brakes are disc brakes.
  • Page 43 TALARIA POWER TECH Maintaining Your Motorcycle axle as 45-55N.m and the locking torque of rear axle nut as 50-60N.m. The locking torque of the front wheel axle is 15N.m. Caution: Hold the brake lever tightly. If the brake still can’t achieve the ideal braking function, check whether the brake disc is clean. If the problem is still not solved, send the motorcycle to the nearest dealer for inspection and maintenance.
  • Page 44 TALARIA POWER TECH Maintaining Your Motorcycle leakage before riding. Add the specified mineral fluid (Type No.: HF10-2) for disc brake. Do not use other kinds of brake fluid. Fixing the brake fluid container cover and tighten the M3 screws. The tighten torque is 1.5N.m.
  • Page 45 TALARIA POWER TECH Maintaining Your Motorcycle than 20km/h), so as to generate appropriate braking friction. Tire inflation WARNING! Under-inflation is a common cause of tire damages and may result in severe tire cracking, tire tread separation, “blowout”, or unexpected loss of motorcycle control, causing serious injury or death.
  • Page 46 TALARIA POWER TECH Maintaining Your Motorcycle a good coating of chain cleaner and let it sit for a few minutes. Using a brush, fill the bristles with spray from the chain cleaner. Begin gently scrubbing the chain on the top of your swingarm using the brush.
  • Page 47 TALARIA POWER TECH Maintaining Your Motorcycle Checking the drive chain 1. Remove the key from the ignition switch, as well as to switch off the circuit breaker. 2. Using a ruler, grasp the chain halfway between the front and rear sprockets.
  • Page 48 TALARIA POWER TECH Maintaining Your Motorcycle Maintenance of motor-gearbox assembly and controller 机油尺盖 Dipstick cap Upper tik mark 上刻线 Dipstick cap and oil filler Lower tik mark 下刻线 2-Oil drain bolt 3-Gas vent Motor-gearbox assembly 1. Regularly check whether the screws of the motor-gearbox assembly are loose and whether the gear oil is between the upper and lower tik marks. It is strictly prohibited to ride when the gear oil is insufficient, because it will cause damage to the gearbox.

  • Page 49: Scheduled Maintenance Notice

    Scheduled Maintenance Table The scheduled maintenance must be performed in accordance with this chart to keep the Talaria Sting R electric motorcycle in top running condition. The initial maintenance is vitally important and must not be neglected. Where time and mileage are listed, follow the interval that occurs first.
  • Page 50 TALARIA POWER TECH Maintaining Your Motorcycle Replace brake fluid √ √ √ Check brake levers. Adjust or √ √ √ √ √ √ √ replace if necessary. Check tire pressure. See page 41. √ √ √ √ √ √ √...
  • Page 51 TALARIA POWER TECH Maintaining Your Motorcycle Absorber ( Please Check oil leakage. also refer to fork Service/rebuild/replace if √ √ √ √ √ √ √ and shock absorber necessary. manual Check operation. Adjust or replace Throttle √ √ √ √...

  • Page 52: Maintenance Record

    TALARIA POWER TECH Maintenance Record Maintenance Record Card Maintenance Record Card Date Odometer reading Maintenance Remarks...

  • Page 53: Customer Information Card

    TALARIA POWER TECH Maintenance Record Customer Information Card Basic Information Motorcycle Model STING R MX □ STING R L1e □ Owner’s Name Order Date...
